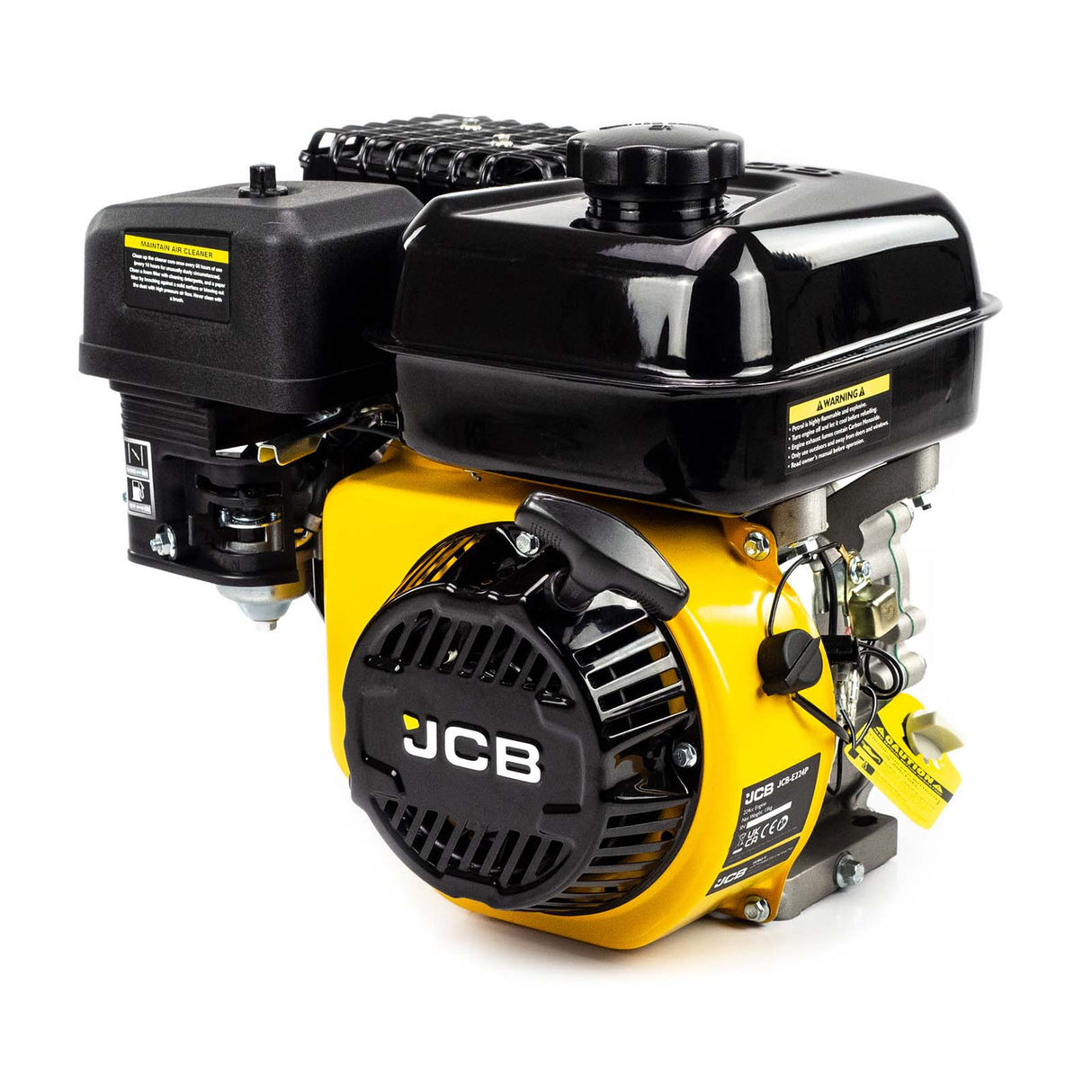

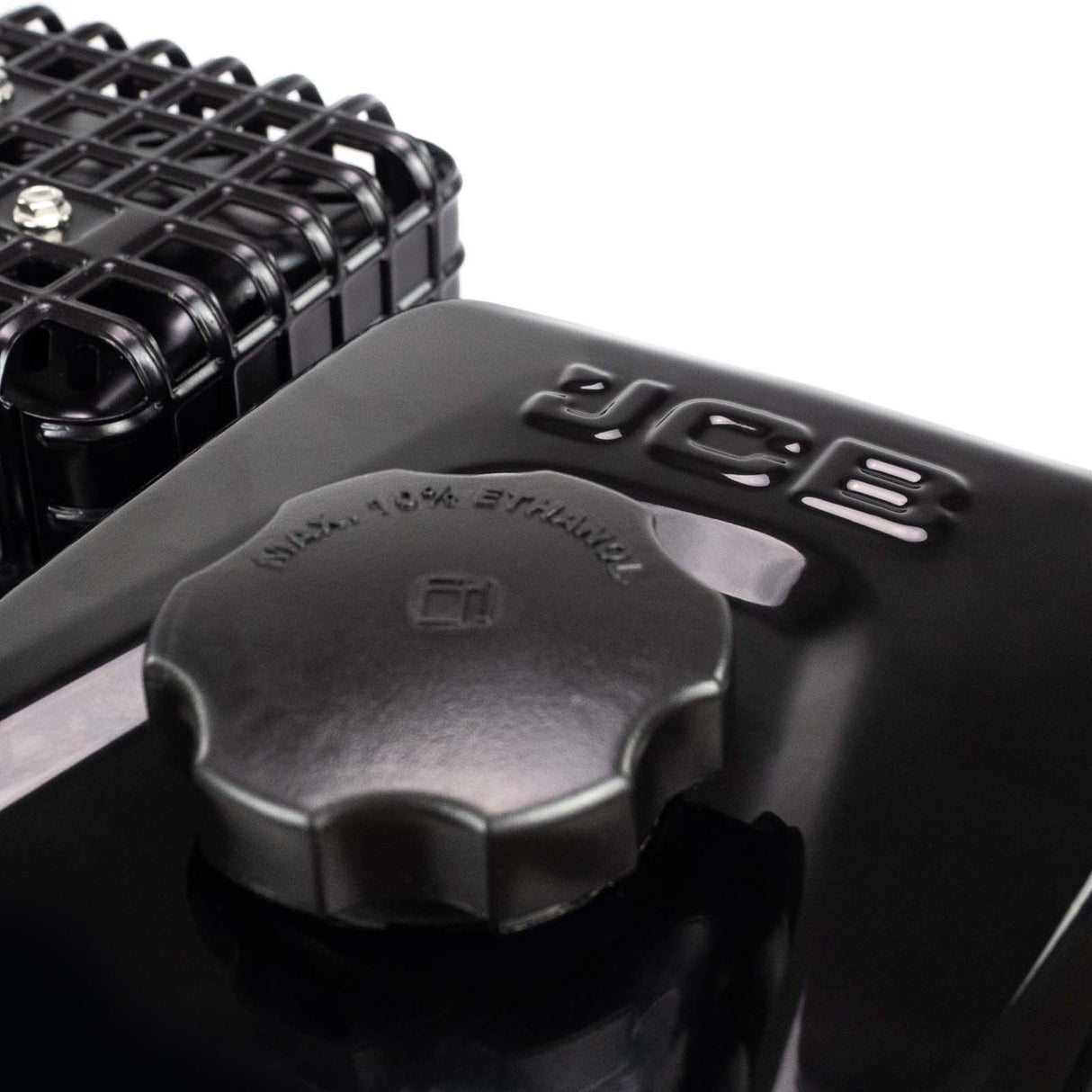

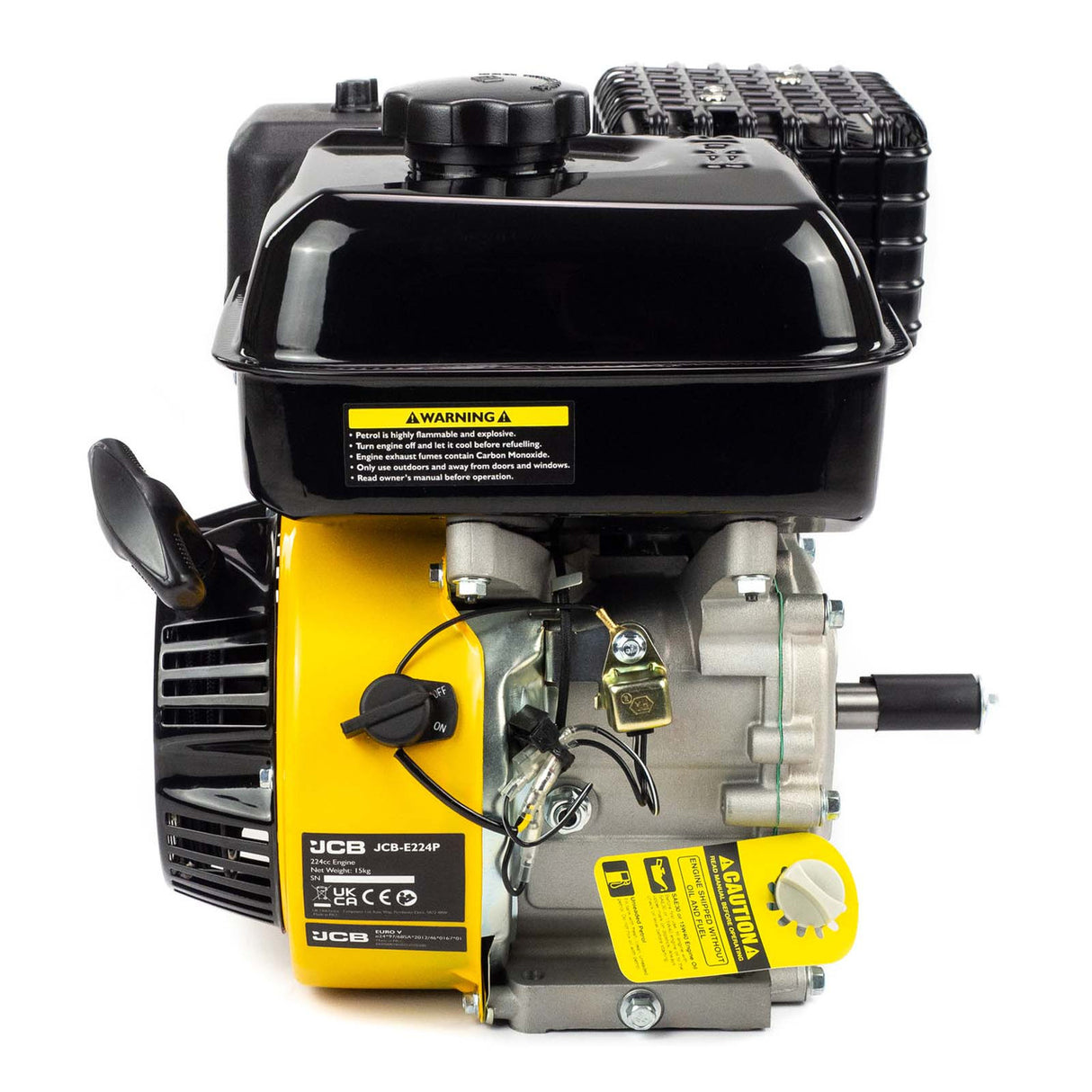

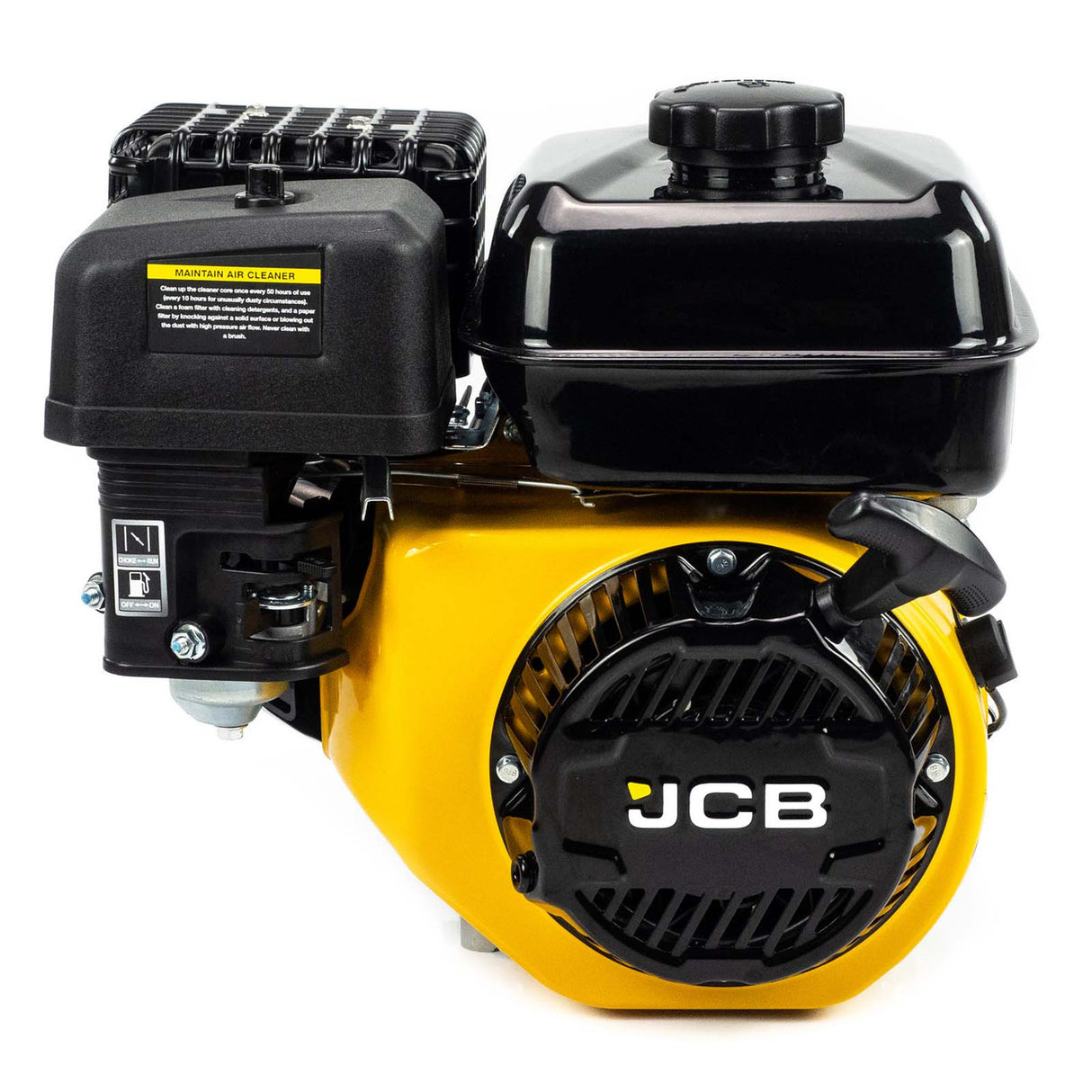

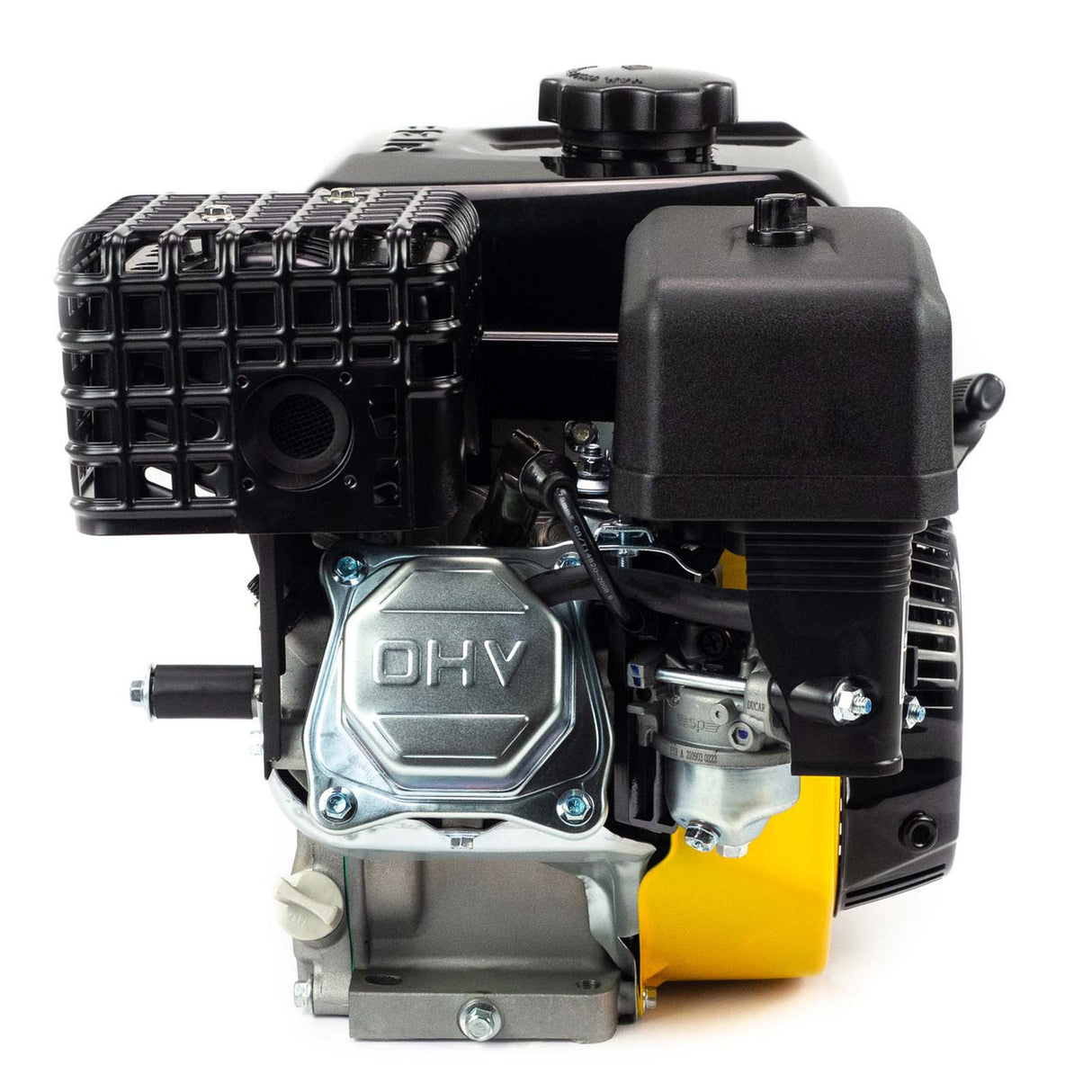

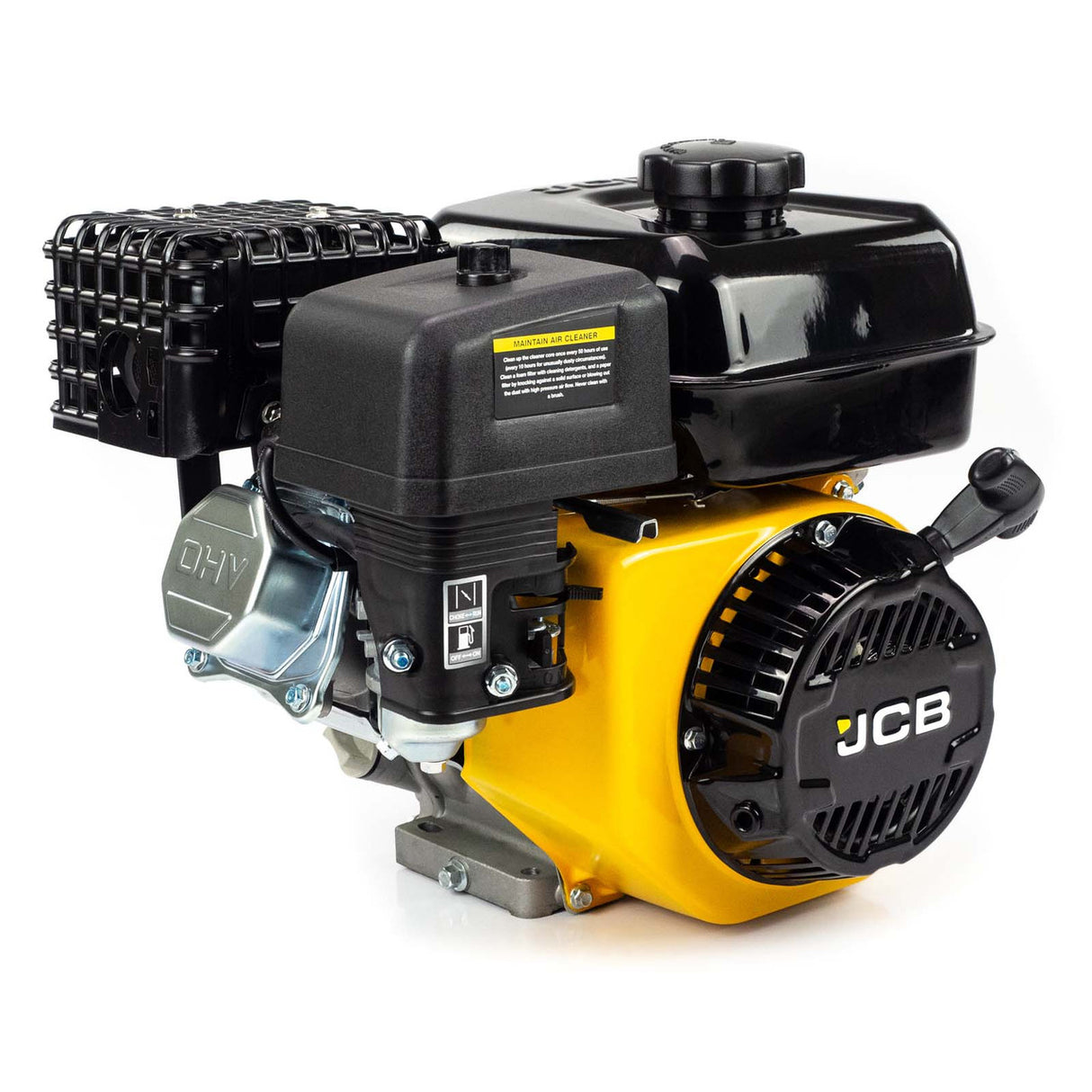

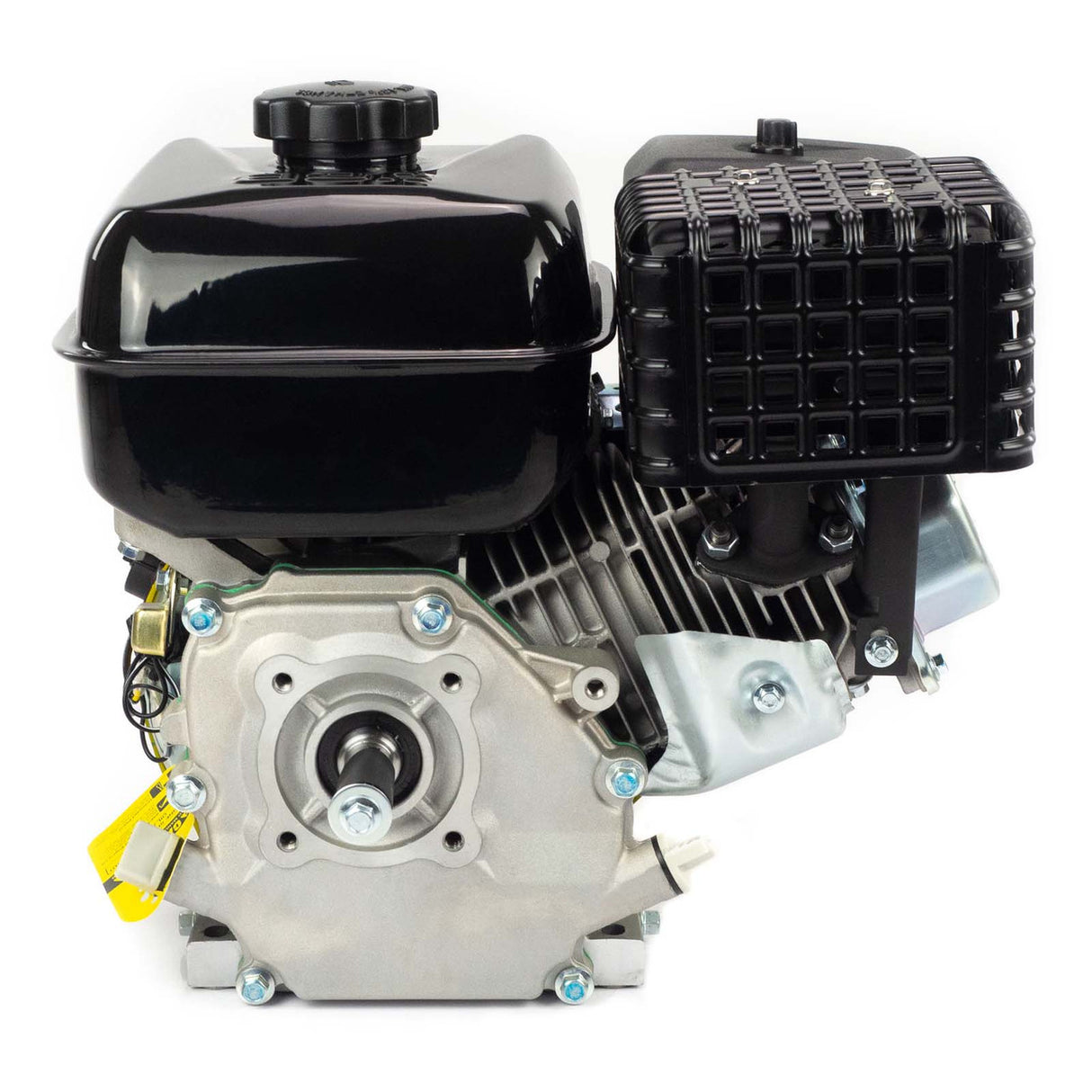

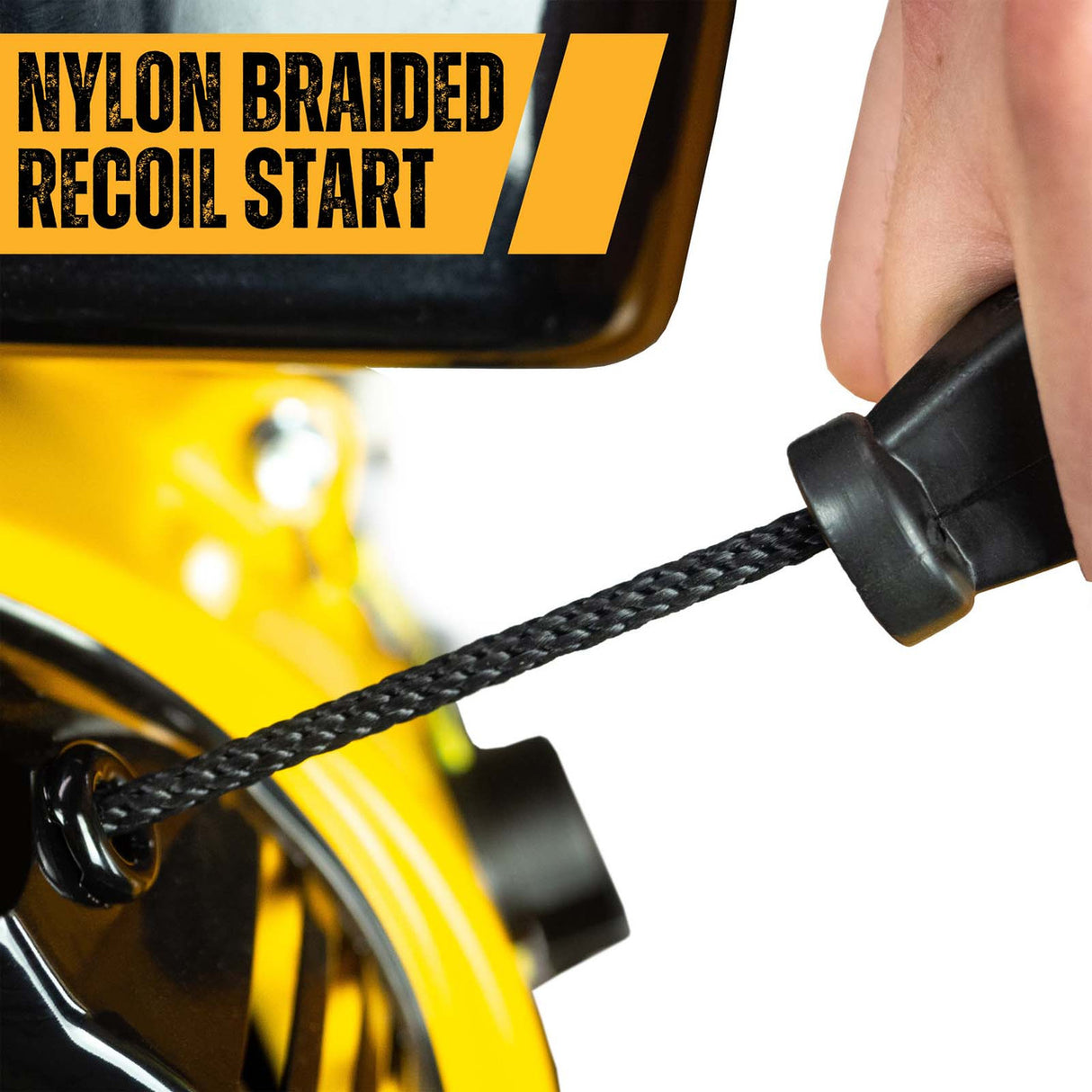

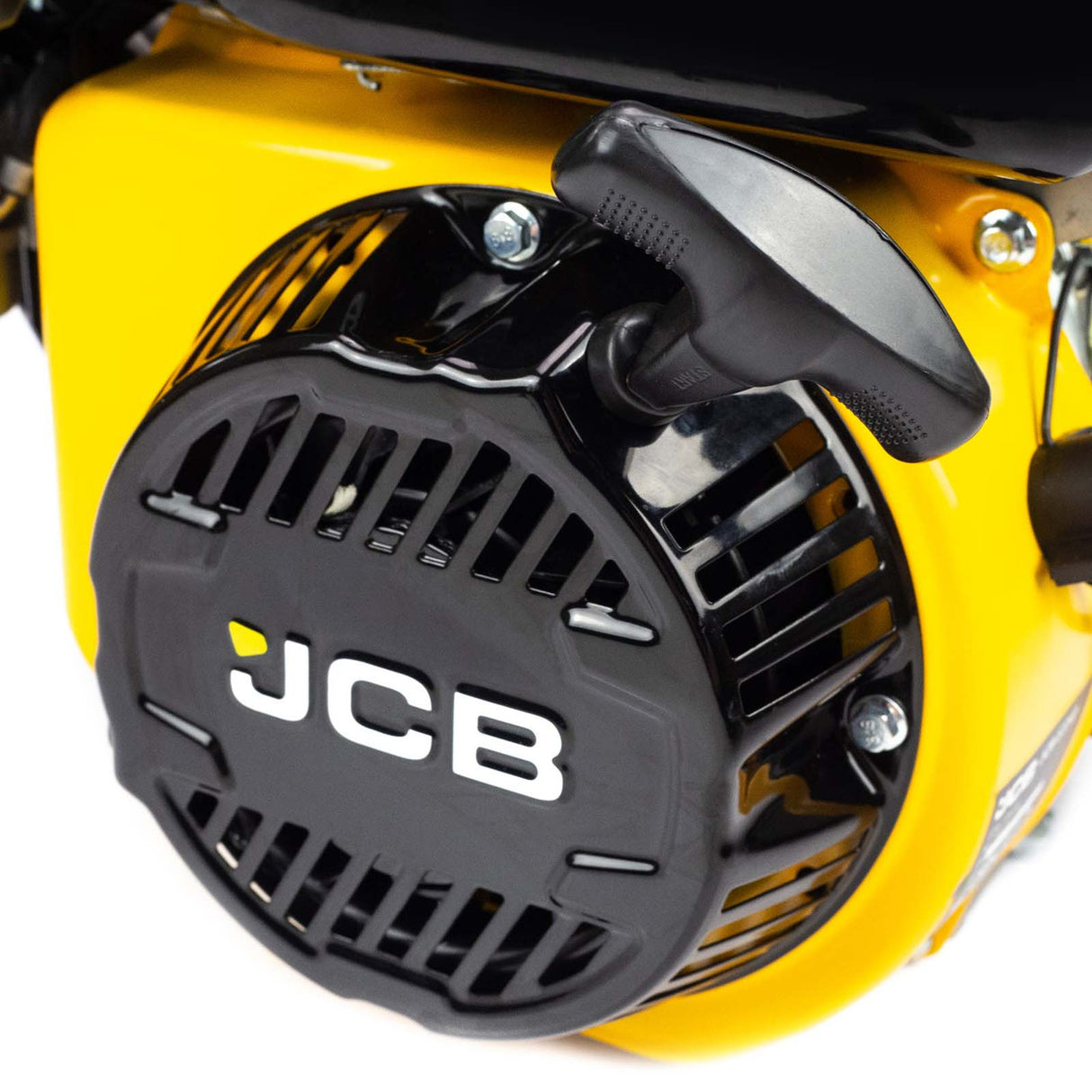

The JCB-E225P replacement engine is a 224cc 7.5hp horizontal straight shaft petrol engine. 19.05mm shaft (¾ inch), with keyway compatible for various applications including commercial, heavy-duty home use or industrial pressure washers, wood chippers, water pumps, tillers, grinders, compaction plates, other heavy-duty machinery or even used with karts (subject to small adjustments). The engine’s easy recoil pull-start is aided by reliable CDI ignition for consistent and easy starting. The impressive design allows market leading 7.5hp of max power using a design which will retrofit all common and major brands engines as a direct replacement, ranging from 160-220cc models. Replacing a 196cc engine with the JCB 224cc engine, for example, offers you more power from almost the size and weight as other smaller engines. The engine is a reliable OHV design, offering a balance of compactness, higher torque, and an easily serviceable layout to maintain your engine over future years.. 4-Stroke Euro V engine, with a 3.5L fuel tank.
Key Features
In the Box:
| Model | JCB-E225P |
|---|---|
| Start Method | Recoil |
| Shaft Type | Straight Horizontal Shaft, with Keyway |
| Shaft size (mm/in) | 19.05/ ¾ (0.75) |
| Fuel Type | Petrol |

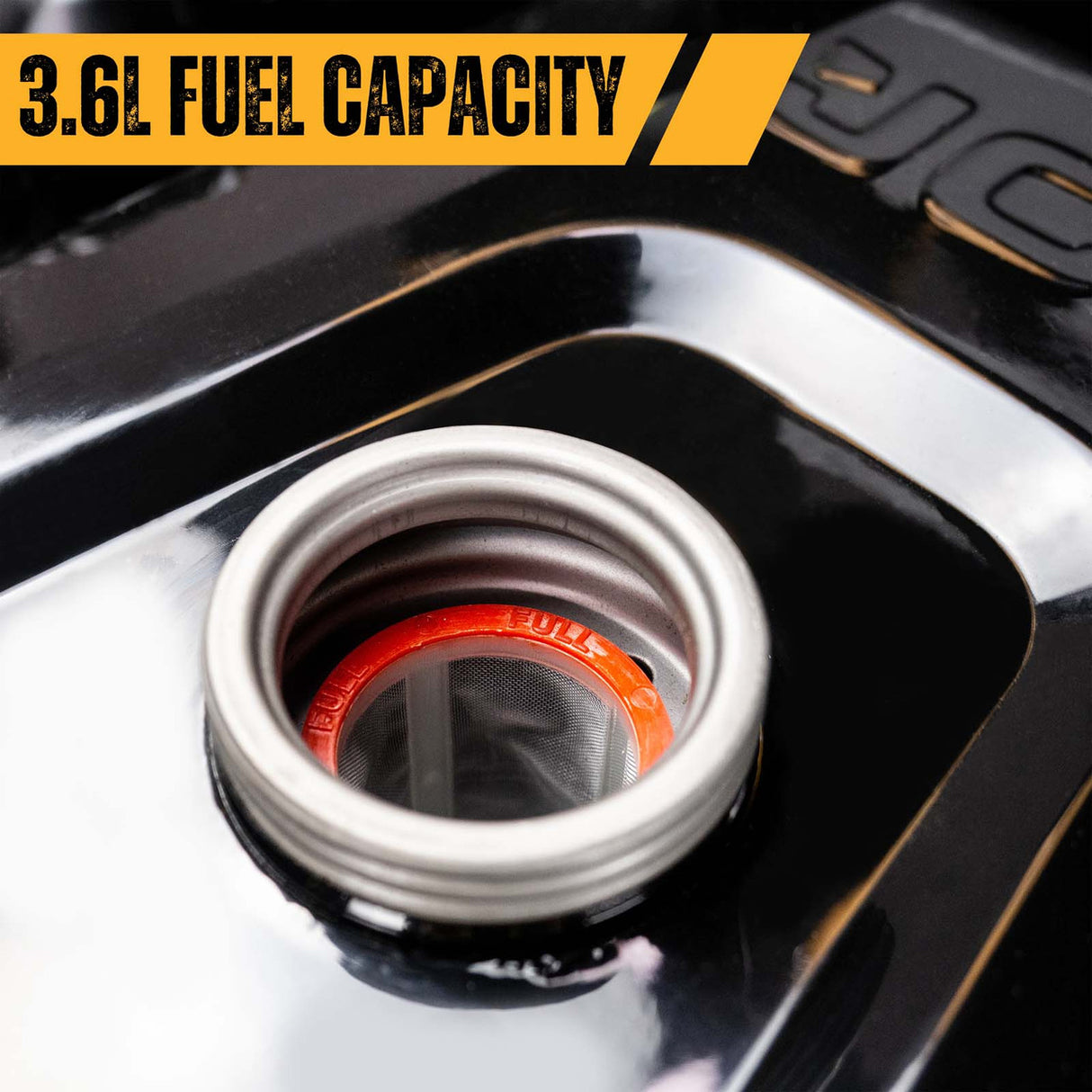

| Fuel Capacity (L) | 3.6 |
| Impeller Type | PP |
| Engine Oil | SAE30 / 15W40 |
| Engine Oil Capacity (ml) | 600 |
| Low Oil Shutdown | Yes |
| Run Time @ 50% Load (hr) | 2.8 |
| Engine Model | JCB-E225P |
| Engine Type | OHV |
| Engine Size (cc) | 224 |
| Ignition System | CDI |
| Bore x Stroke (mm) | 70 x 58 |
| Power (hp) | 7.5 |
| Speed (RPM) | 3600 |
| Gross Weight (kg) | 18.5 |
| Net Weight (kg) | 16 |

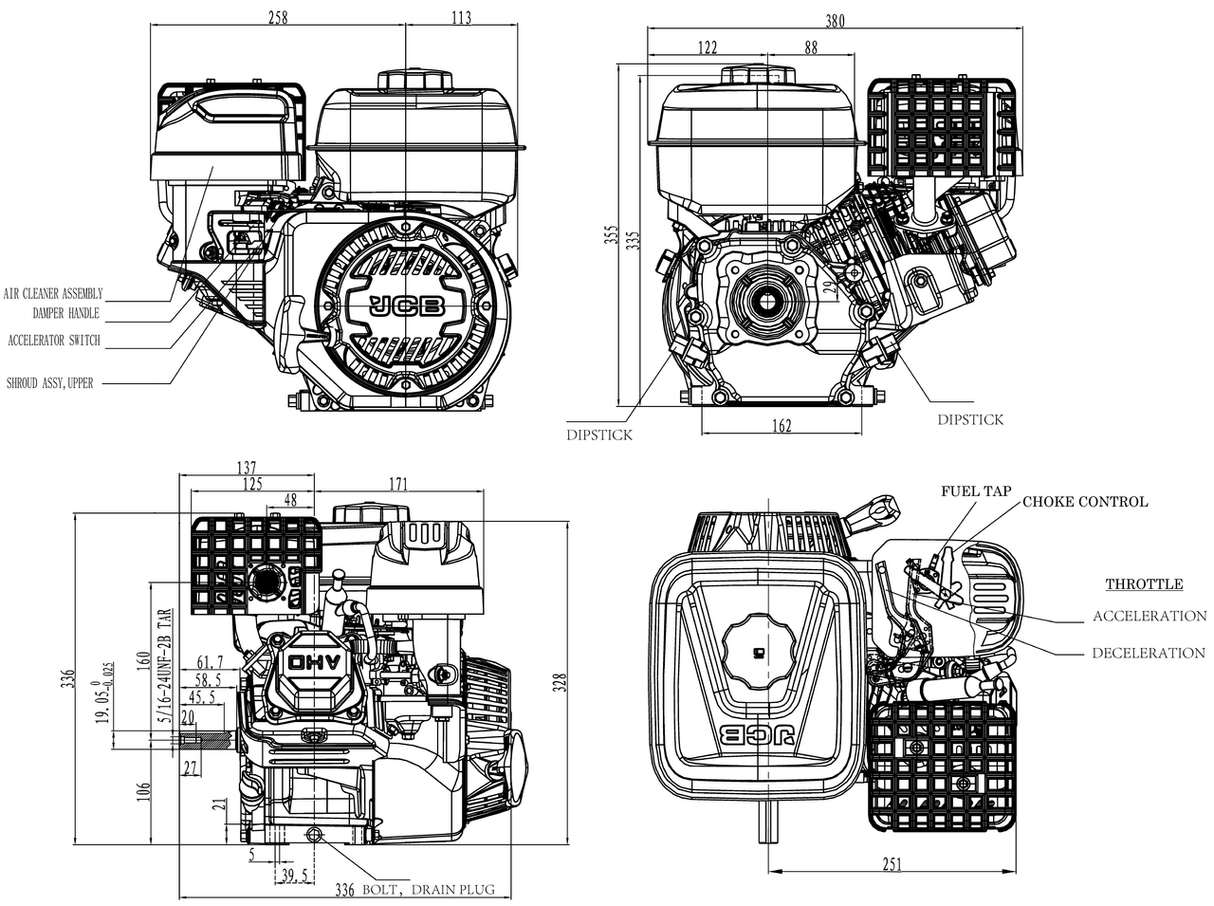

| Fully Assembled Dimensions (H x W x L) (mm) | 355 x 340 x 380 |
| Package Dimensions (H x W x L) (mm) | 385 x 370 x 415 |
| Product Type | Petrol Engine |
| Warranty (years) | 3 |
| Warranty Comercial (years) | 1 |
| In The Box | JCB 224cc 7.5HP Recoil Start Engine, Instruction Manual, Spark plug wrench |
| Model EAN | 5059608313017 |
