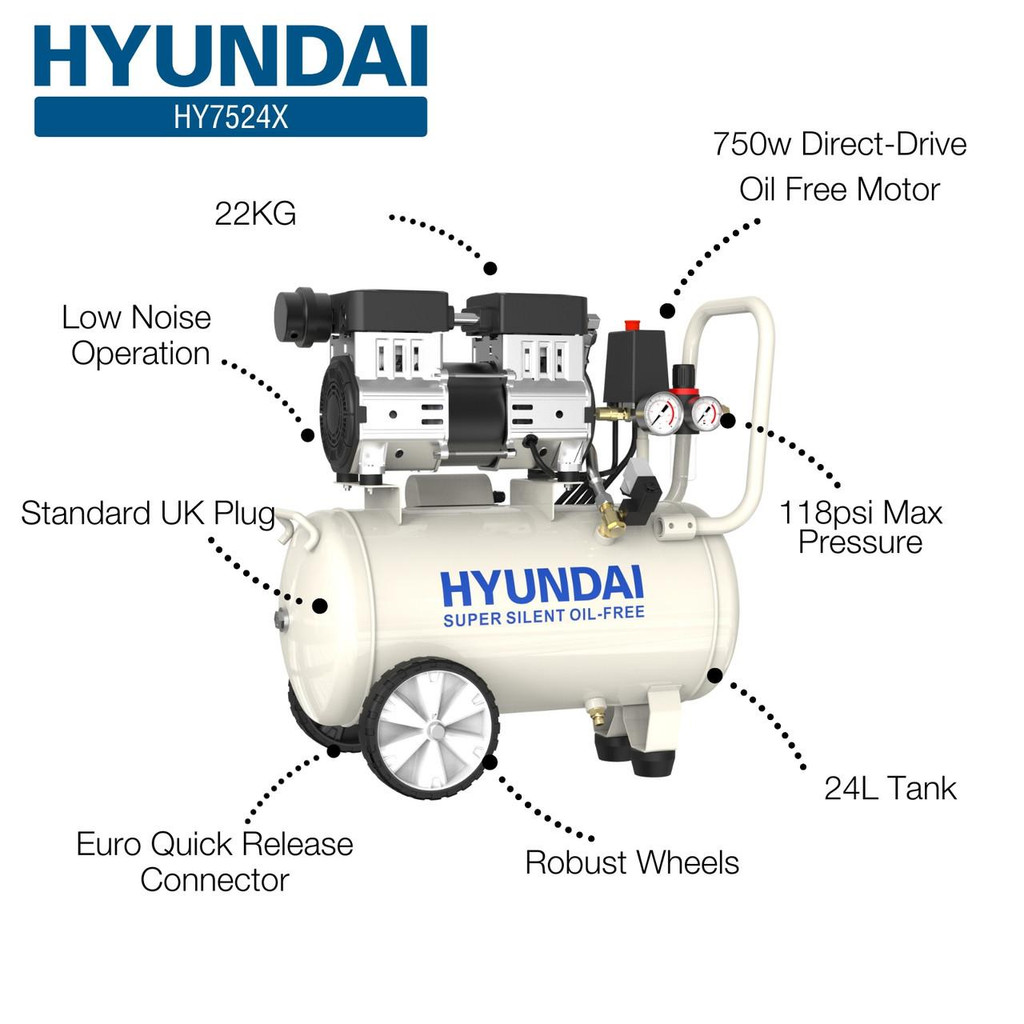

The HY7524 is a powerful yet compact 750w direct-drive oil-free low noise air compressor from Hyundai. Designed for DIY and trade applications the HY7524 silenced oil-free air compressor is ideal for spray-painting, blowing away dirt and dust, nailing, inflating tyres or operating air tools.
Weighing only 18kg the HY7524 air compressor is lighter than your conventional piston type air compressor and is completely oil-free, so there is no risk of oil contamination in the air supply. The HY7524 features 2 large wheels and 2 robust rubber mounted feet and a handle for easy manoeuvrability.
Powered by a 750w motor directly connected to the oil-less pump mounted on anti-vibration rubber mounts, makes it ideal for the home workshop or garage use where conventional residential power sockets are available.
This maintenance-free compressor uses an oil-free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.
With a 24-litre tank capacity, this compressor provides an air displacement of 5CFM/ 150 litres per minute and a maximum pressure of 7 bar / 100psi.b Airflow (FAD) 75 L/min / 3 CFM.
The pressure control system automatically stops and starts the motor to maintain the pressure in the air tank and comes with a twin gauge air pressure regulator.
Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
In the box: HY7524 Electric Air Compressor, User Manual.
Covered by Hyundai 2 year standard warranty.
| Model | HY7524 |
|---|---|
| Start Method | 13A UK Plug |
| Fuel Type / Power Source | Electric |
| Cable Length (m) | 1 |
| Stationary / Wheeled | Wheeled |
| Drive Type | Direct Drive |
| Lubrication Type | Oil Free |
| Tank Capacity (L) | 24 |
| Tank Material | Steel |
| Discharge Pressure (psi/bar) | 100/7 |
| Max Pressure (psi/bar) | 118/8 |
| Air Flow FAD (L/min) | 75 |
| Air Flow FAD (CFM) | 2.65 |
| Air Displacement (L/min) | 150 |
| Air Displacement (CFM) | 5.2 |
| Air Outlet Connection | Euro Quick Release |
| Voltage | 230 |
| Rated Power (w) | 750 |
| Motor Power kW/hp | 0.75/1 |
| Pump (RPM) | 1450 |
| Speed (RPM) | 1040 |
| Noise Level @ 7m (dB) | 60 |
| Gross Weight (kg) | 24.5 |
| Net Weight (kg) | 22.5 |
| Fully Assembled Dimensions (H x W x L) (mm) | 560 x 295 x 570 |
| Packaged Dimensions (H x W x L) (mm) | 630 x 290 x 600 |
| Product Type | Air Compressor |
| Warranty (years) | 2 |
| Model EAN | 5056275722722 |
| In The Box | HY7524 Electric Air Compressor , User Manual |
| Brand | Hyundai |
| Condition | New |
