Choose from these grades of refurbished Diesel Generators to fit your budget and needs:

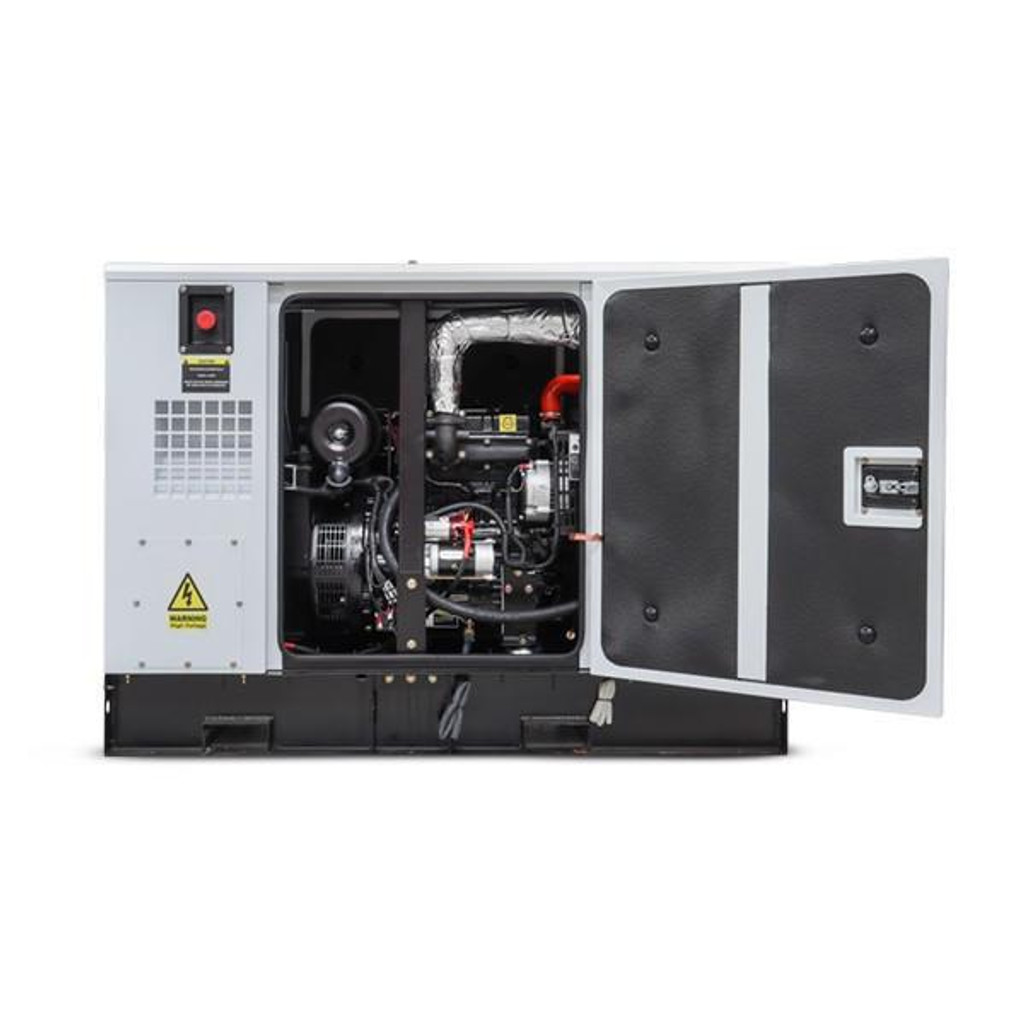

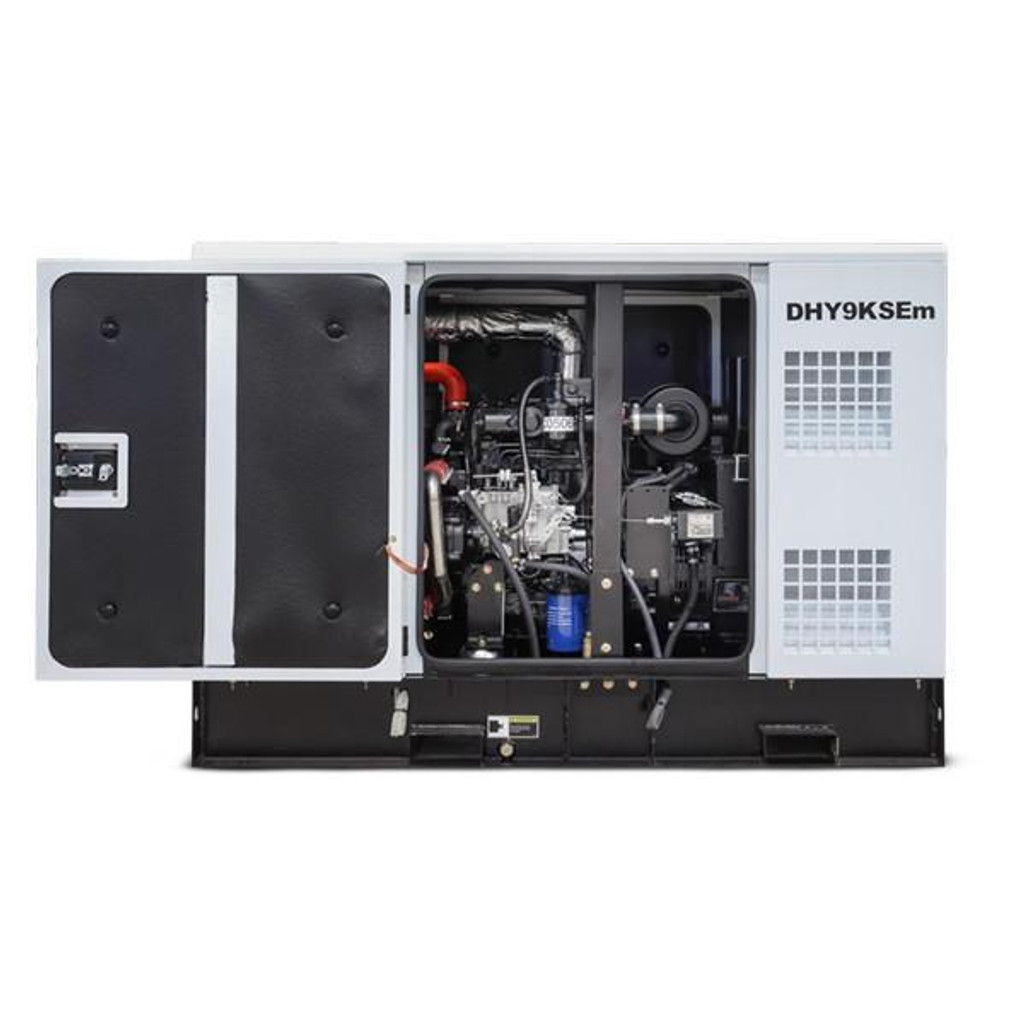

The DHY9KSEm is a powerful single-phase diesel generator from Hyundai. Suitable for providing your home or business with either prime power, if you just have a few appliances to run, or for backup power when the national grid lets you down.
Powered by an 11hp HY380 diesel engine, the DHY9KSEm is able to produce a maximum output of 11.25KVA / 9kW backup power and 10KVA / 8kW prime power.
The DHY9KSEm can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.
This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.

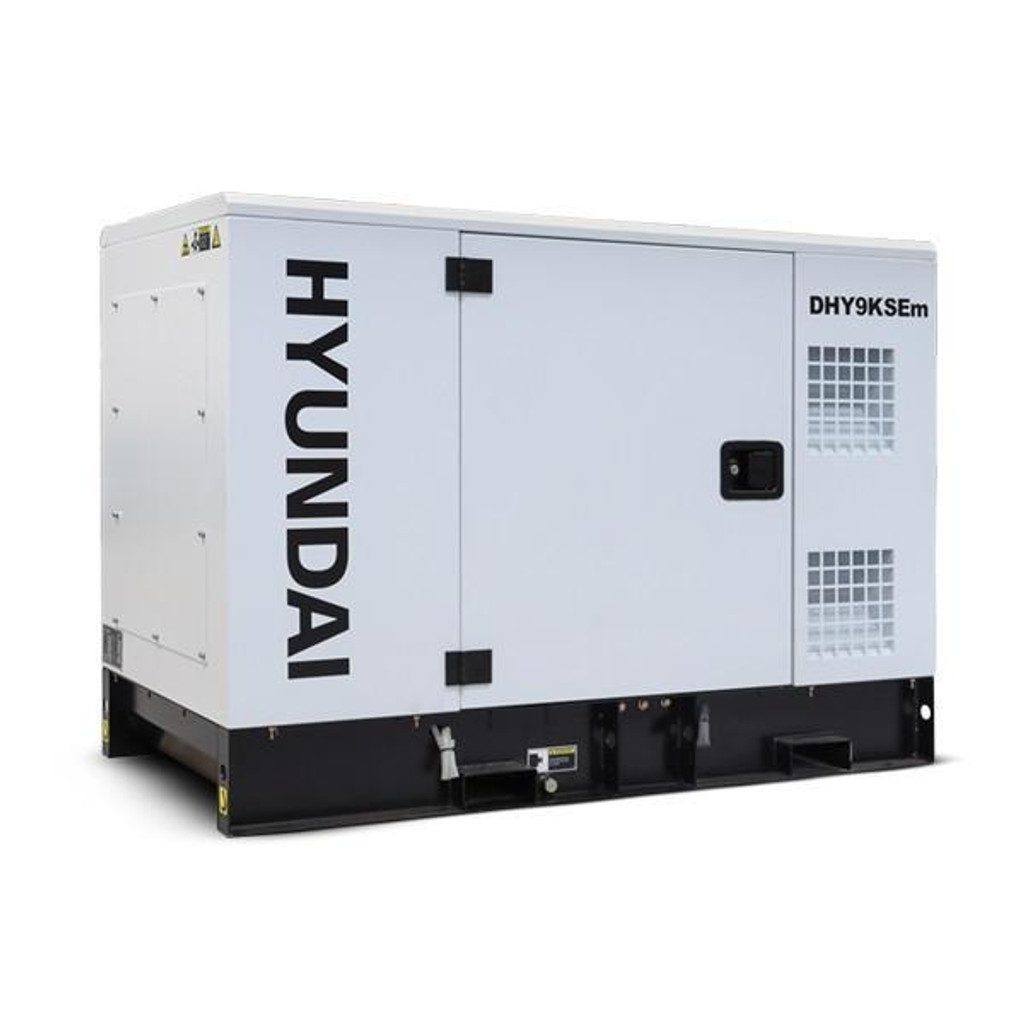

Housed in a weather-proof 'silenced' canopy, the DHY9KSEm produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.
1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.
1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.

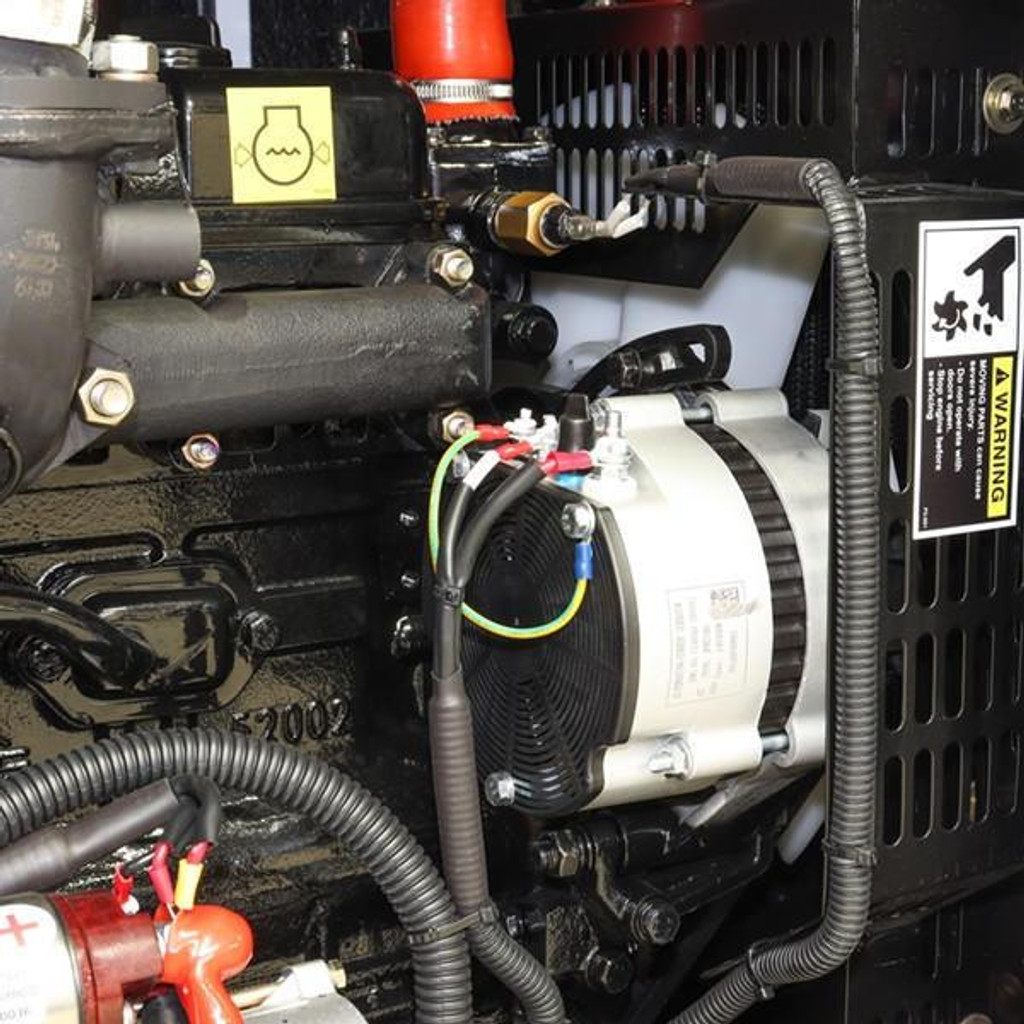

Equipped with an AVR alternator to produce clean energy, the DHY9KSEm is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business.
Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.
This 11kVA diesel generator comes with a 1 year / 1,000 hour warranty which can extended to 2 years* (subject to standby use of 500 hours per year - terms apply) with full UK parts and service backup for added peace of mind.
All of our single-phase generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.
| Model | DHY9KSEm |
|---|---|
| Rated/Prime kVA* | 10 |
| Rated/Prime kW | 8 |
| Max/Standby kVA* | 11.25 |
| Max/Standby kW | 9 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 1 x 230V/32A 1 x 230V/63A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 39 / 34.8 |
| Power Factor (Cosφ) | 1 |
| Fuel Type/Power Source | Diesel |
| Fuel Tank (Litres) | 42 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 68 |
| Noise Level @ 7m 75% load (dB) | 62 |
| ;Brand | Hyundai Diesel Engine Model=HY380 |
| Power Output (kw) | 11 |
| Displacement (Litres) | 1.36 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.4 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 3.5 |
| Oil Filter Part No. | JX0810Y |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.5 |
| Fuel Filter Part No. | C0506 |
| Cooling | Water |
| Alternator Model | 164B |
| Breakers | 2P C40A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Air Filter Part No. | K1317 |
| Net Weight (kg) | 480 |
| Gross Weight (kg) | 480 |
| Dimensions L x W x H (mm) | 1500x 760 x 1090 |
| Battery System / Starting (V - Ah) | 2x12/30 |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
| Accessories | - |
| Model EAN | 700621496199 |
| Warranty | 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*) |
| Brand | Hyundai |
| Condition | New |
