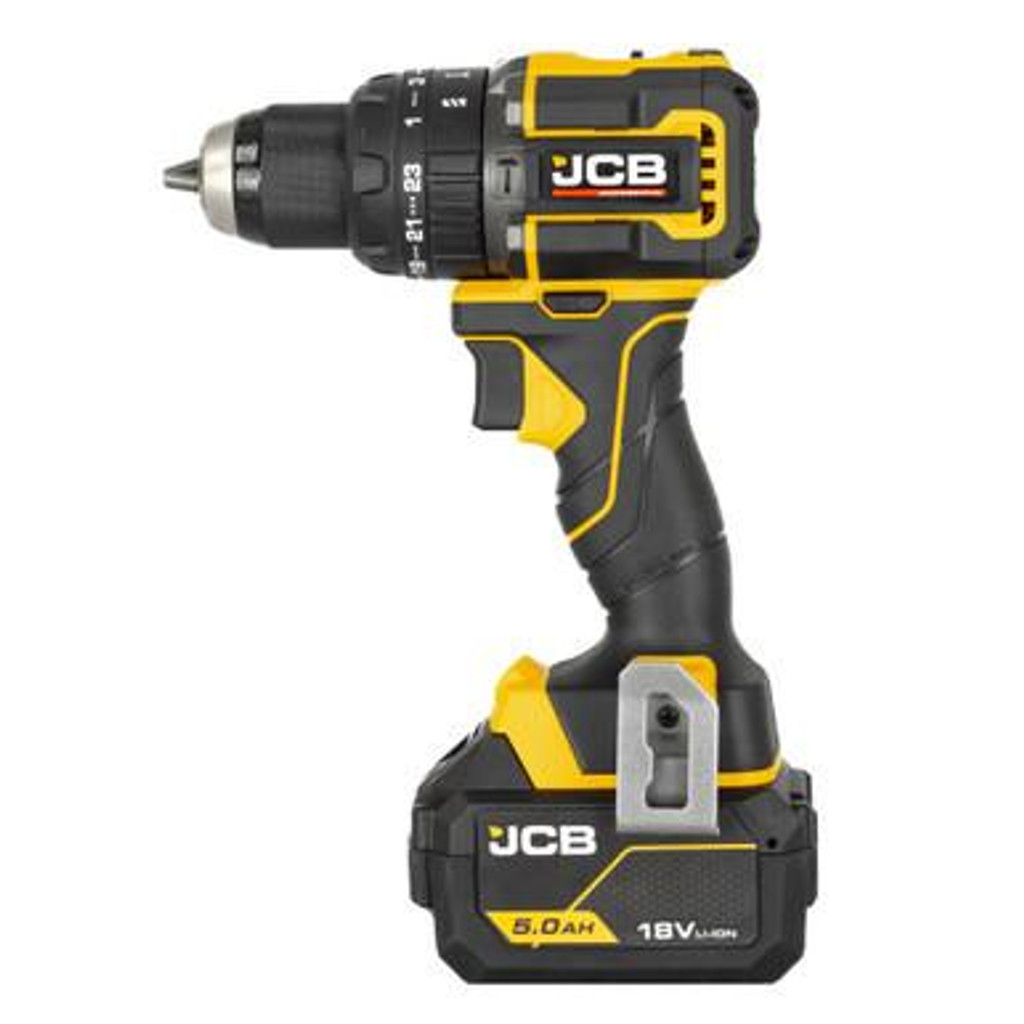

The JCB-18PCD-75 JCB Professional 18V Compact Combi Drill is built for tradespeople who demand pro-grade performance in tight or overhead spaces. Delivering an impressive 75Nm of torque from a lightweight, compact frame, this all-rounder is tailored for precision drilling, efficient screwdriving, and effective hammer action—without the bulk. Whether you’re fitting kitchens, installing electrics, or assembling agricultural equipment in confined environments, this drill offers outstanding control and durability where it counts.
Dust-sealed electronics and a brushless motor ensure extended tool life, even in harsh working conditions. The integrated 13mm chuck, 23+3 torque settings, and LED work light round out a feature set that balances power with performance.
Ideal for electricians, plumbers, kitchen fitters, and trade users who value compact power without compromise.
With a 3-year warranty on tools, and 2-year warranty on batteries (subject to terms), you can be confident your JCB Pro Tools will last for jobs to come. Coupled with our dedicated support, the JCB Professional 18V Compact Combi Drill 75Nm offers reliability and peace of mind. Order your JCB 18V Brushless Combi Drill today!
Discover the full JCB Professional Power Tool Range
JCB Pro Range
JCB Combi Drills
JCB Power Tools
| Model | JCB-18PCD-75-5 |
|---|---|
| Max Torque (NM) | 75 |
| Settings | 2 |
| Torque Settings | 25+3 (drill, screw, hammer) |
| Chuck Type | Metal Keyless |
| Chuck Capacity (inch / mm) | 1/2'' / 1.5-13mm |
| Dust Protected PCB | Yes |
| LED Light | - |
| Soft Grip | Yes |
| Variable Settings | Yes |
| Guard Type | - |
| No Load Speed (RPM) | 0-500/0-1800/min |
| Impact Rate (BPM) | 0-8800/0-28800 |
| Max. Drilling Capacity (Wood) | 120mm |
| Max. Drilling Capacity (Steel) | 13mm |
| Max. Drilling Capacity (Masonry) | 13mm |
| Battery Type | Lithium-ion |
| Battery Voltage | 18 |
| Average Run Time (mins) | - |
| Charging Time (mins approx.) | 120 minutes |
| Motor Type | Brushless |
| Sound Level (dB) | 93 |
| Sound Power Level (dB) | 101 |
| Auxiliary Side Handle | - |
| Vibration Level | 8.2 m/s² (Concrete) 1.9 m/s² (Metal) |
| Product Dimensions no battery (H x W x L) (mm) | 210 x 145 x 65 |
| Package Dimensions (H x W x L) (mm) | 248 x 168 x 97 |
| Fuel/Power Source | Battery-Powered |
| Product Type | Combi drill |
| Model EAN | 5059608460483 |

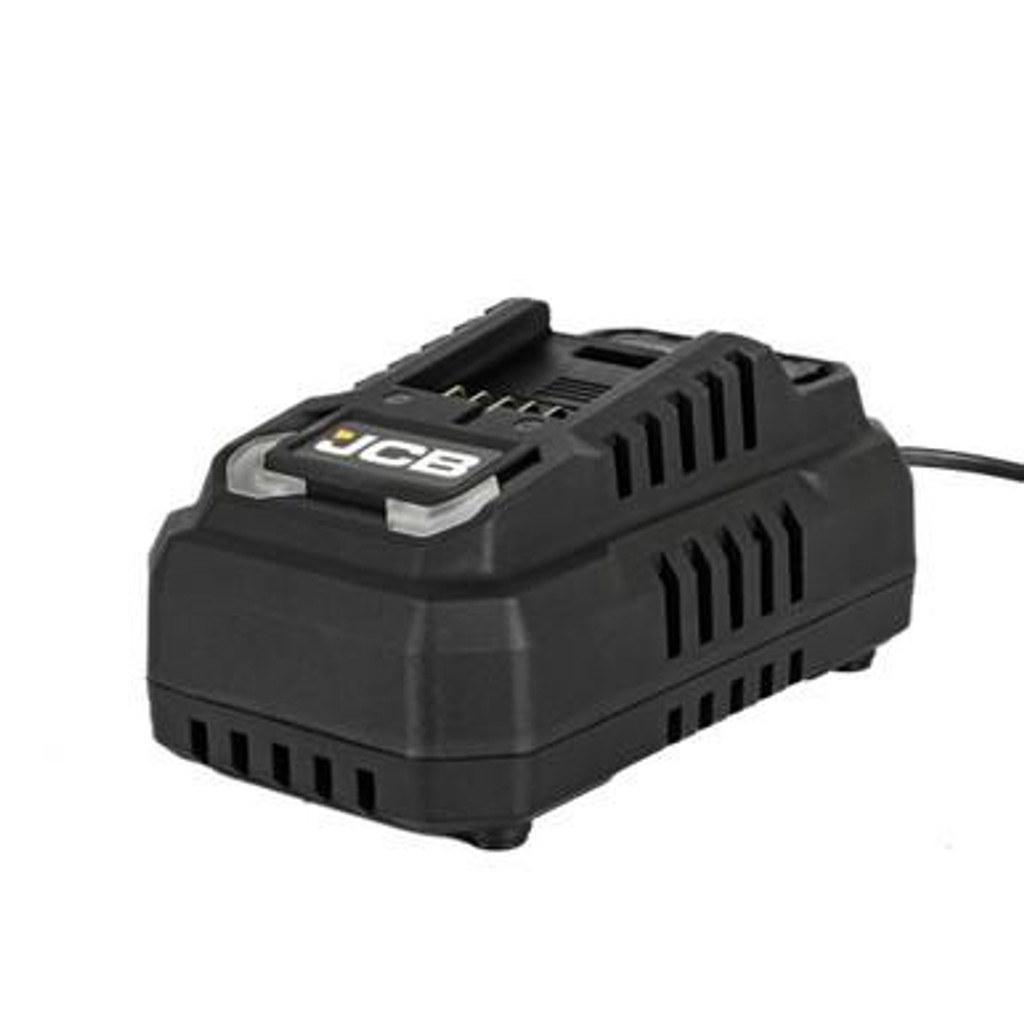

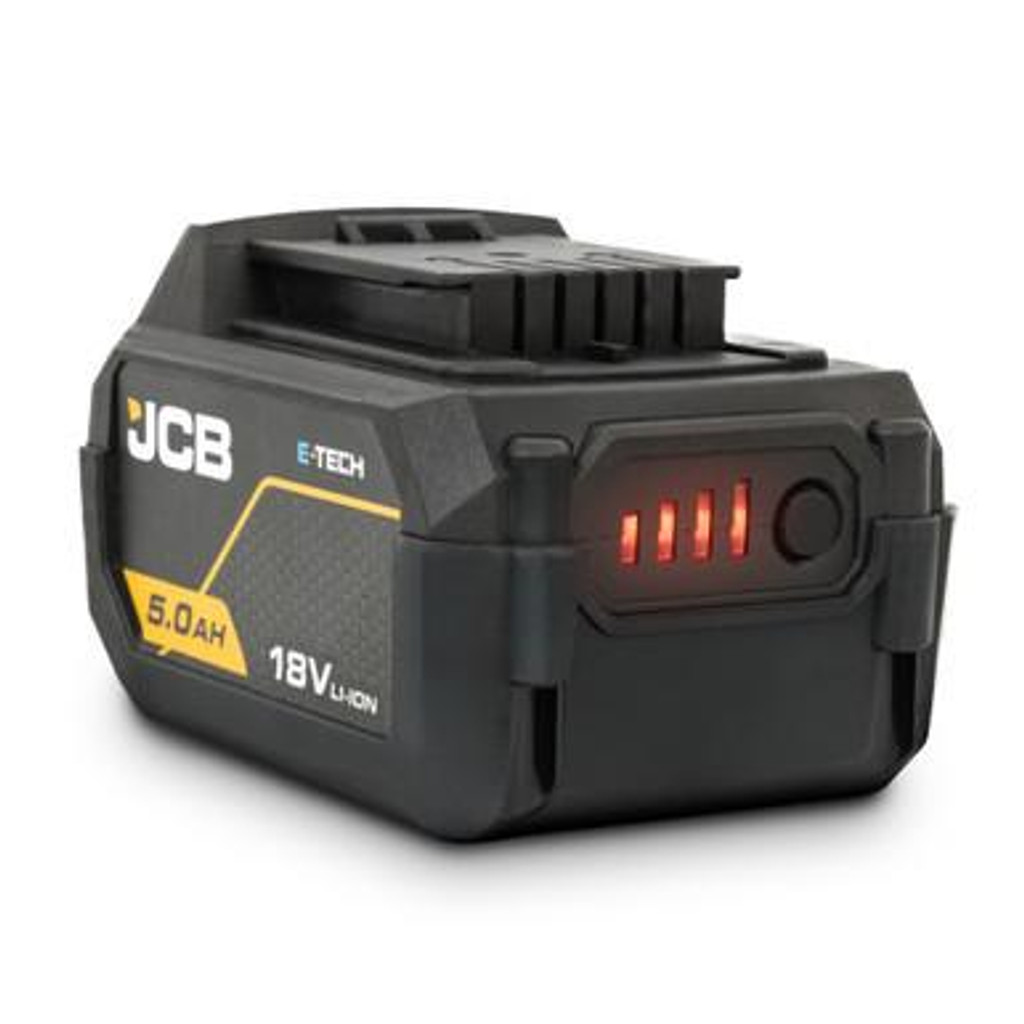

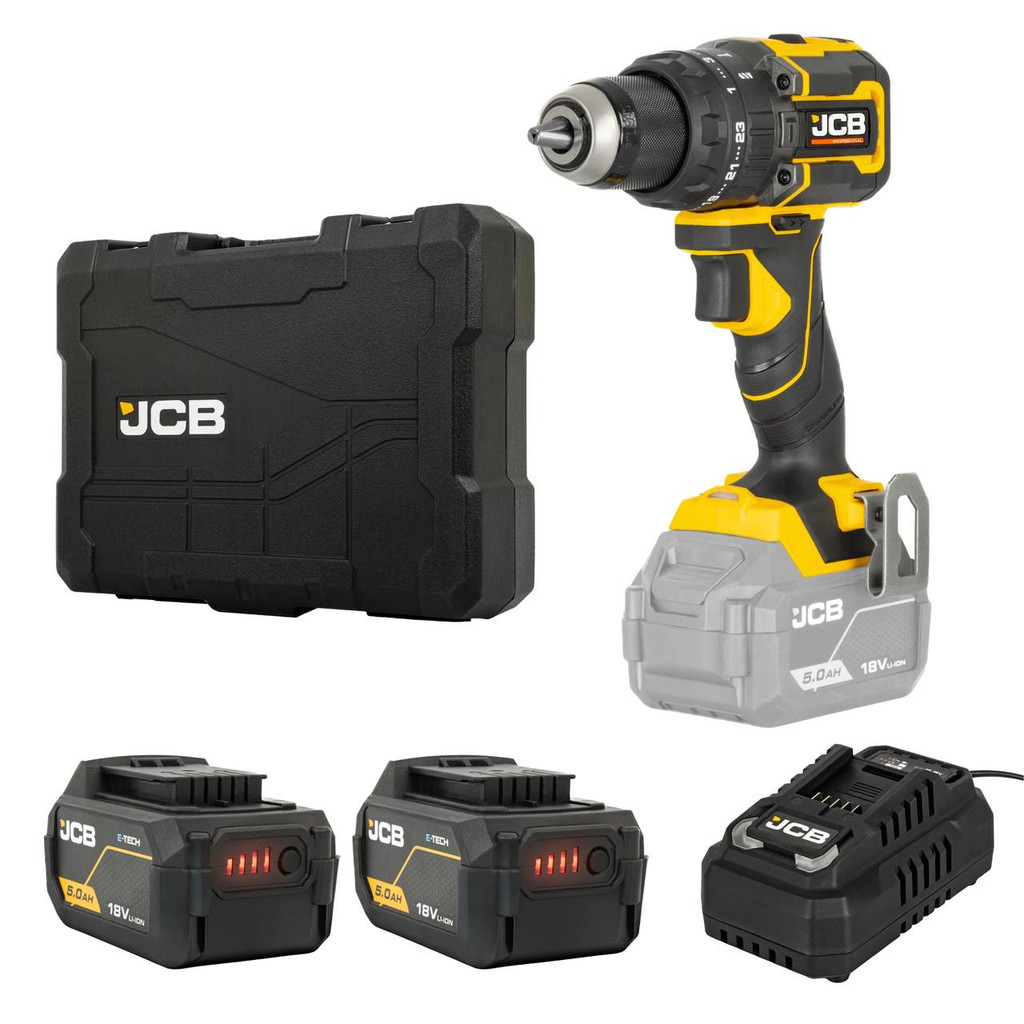

| In The Box | 1 x JCB-18PCD-75 Combi, 2 x JCB-18LI-5, 1 x JCB-18FC-45 and Belt Clip |
| Warranty (Years) | 3 |
| Charger Included | Yes |
| Voltage | 18 |
| Net Weight (kg) | 1.2 |
| Gross Weight (kg) | 1.3 |
