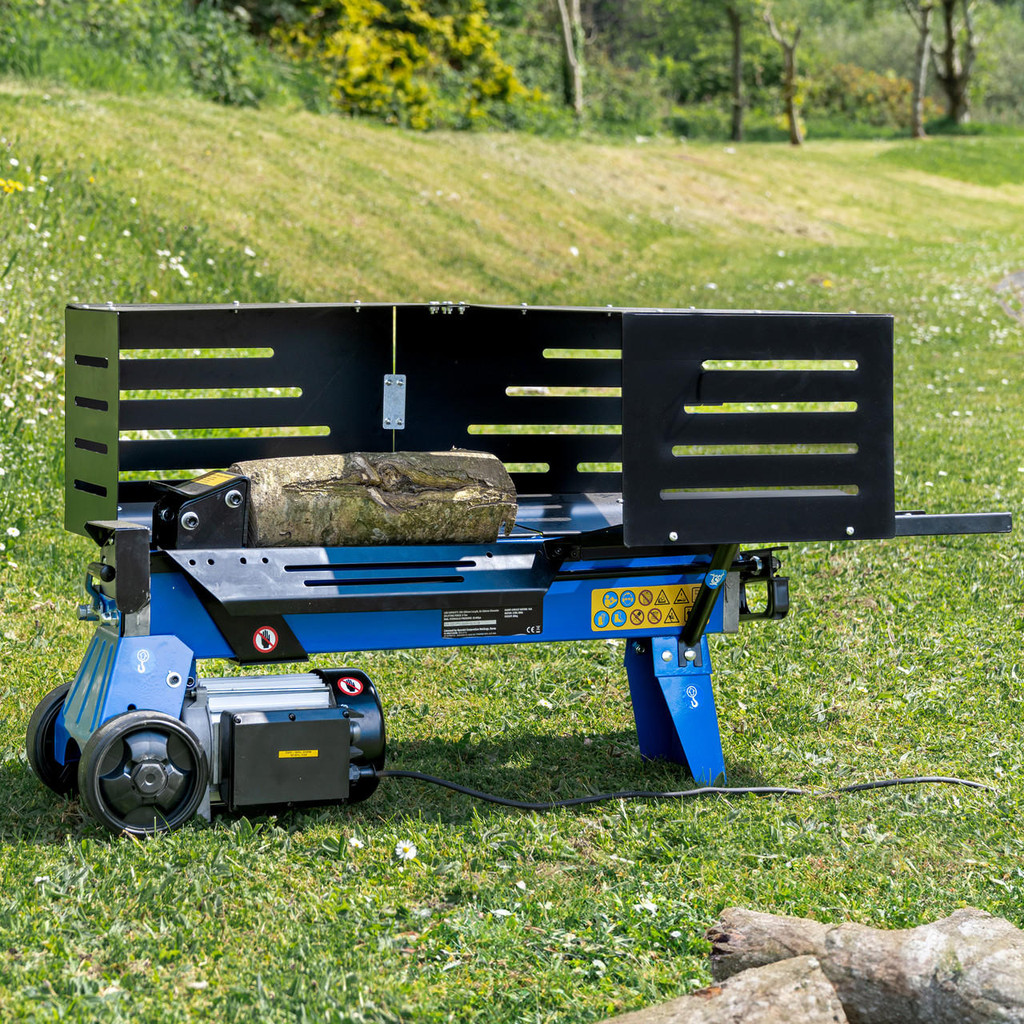

Hyundai 7 Tonne Horizontal Electric Log Splitter with Hydraulic Ram, Steel Protection Cage 520mm Length | HYLS7000HE

https://media.thepowersite.co.uk/HYLS7000HE/HYLS7000HEGuard.mp4

Hyundai

Hyundai 7 Tonne Horizontal Electric Log Splitter with Hydraulic Ram, Steel Protection Cage 520mm Length | HYLS7000HE

( 0 Reviews )

£249.99 (Ex. VAT)

£299.99 (Inc. VAT)

High Performance 7 Tonne Log Splitter

The Hyundai HYLS7000HE delivers a reliable 7-tonne splitting force through a high-pressure hydraulic system driven by a 2300 W motor. It easily splits hardwoods such as oak, beech, and ash - cutting preparation time for log burners and stoves dramatically. With a 12-second forward and 7-second retract cycle, it’s capable of processing around 100 logs per hour, depending on log size and operator rhythm.

Built for Domestic Use

Compact, sturdy, and designed for everyday firewood preparation, the HYLS7000HE handles logs up to 52 cm long and 25 cm wide - ideal for standard UK stove or fireplace lengths. The powder-coated steel body resists corrosion, and solid wheels make it easy to reposition on level ground. The 116 × 43 × 61 cm frame fits neatly into a shed or garage for storage.

Safe and Easy to Operate

The two-hand control system prevents accidental activation.
The steel protection cage shields you from moving parts and debris.
A pressure-limiting hydraulic valve provides overload protection.
The bleed screw must be loosened 1.5 turns before use for proper pressure balance.

Low Maintenance

Hydraulic oil capacity - 3.5 L (ISO 32 / ISO 46 oil).
Change oil every 12 months or 50 hours of use
Check oil level and vent screw before each session.
Keep the wedge sharp and the ram free of debris.
Machine weight – 60 kg (two-person lift recommended).
Supplied mostly assembled – you’ll only need to attach the cage and handle before use.

Optional Accessories

4-Way Cross Wedge – splits logs into quarters in one stroke.

Log Splitter Stand – raises the working height for improved ergonomics.

Cleaner, Quieter Power

The 230 V electric motor runs quietly (under 90 dB at load) with zero exhaust emissions, making it ideal for use near homes and outbuildings.

Usage & Maintenance Tips

Always loosen the bleed screw 1.5 turns before operation.
Work on flat, dry ground with clear surroundings.
Allow oil to circulate for two minutes before heavy splitting.
Clean debris from wedge and ram after use.
Replace hydraulic oil every 12 months.

Transport & Storage

The HYLS7000HE weighs 60 kg and features solid 145 mm wheels for short-distance movement. Use two people to lift safely. Store indoors or under a waterproof cover.

Safety & Compliance

Two-hand control for safe operation.
CE / UKCA-certified steel safety cage.
Double-insulated electrics for user protection.
Pressure-limiting valve prevents overload.
Noise and vibration within EU safety limits.

What’s in the Box

HYLS7000HE log splitter
Steel protection cage
Transport handle & fixings pack
Instruction manual
Hydraulic oil (pre-filled in most cases)

3 Year Warranty

Peace of mind thanks to our 3 year home-use warranty, or a 1 year commercial warranty, with full UK spares and large aftersales team to handle any enquiry

View all Hyundai Log Splitters

Specifications


Model	HYLS7000HE
Splitting Force (T)	7
Max Log Diameter (mm)	250
Max Log Length (mm)	520
Hydraulic Pressure (MPa)	24.2
Hydraulic Oil Capacity (L)	3.5
Forward Speed (mm/second)	30.8
Retract Speed (mm/second)	52.9
Ram Travel (mm)	370
Duty Cycle (Forward)	12 seconds
Duty Cycle (Retract)	7 seconds
Cable Length (m)	1.8
Handle Type	2 Handle Operation
Safety Features	Steel Protection Cage
Gross Weight (kg)	64
Net Weight (kg)	60
Tyres	Puncture Resistant Plastic
Wheel Size (inches)	6
Wheel Diameter (mm)	145
Sound Level (db)	78.8 dbA under no load; 89.8 dbA under full load
Fully Assembled Dimensions (H x W x L) (mm)	611 x 425 x 1160
Package Dimensions (H x W x L) (mm)	500 x 320 x 950
Fuel/Power Source	Electric
Product Type	Log Splitter
Warranty (years)	3
Commercial Warranty (years)	1
Model EAN	5059608404074
In The Box	HYLS7000HE & Manual
