Split logs faster and with less effort using this powerful Hyundai HYLS7000HE Log Splitter Kit, complete with the 4-Way Cross Wedge (1361150) for increased efficiency. This kit is the ideal solution for anyone looking to produce firewood or kindling quickly, safely, and without the strain of manual splitting.

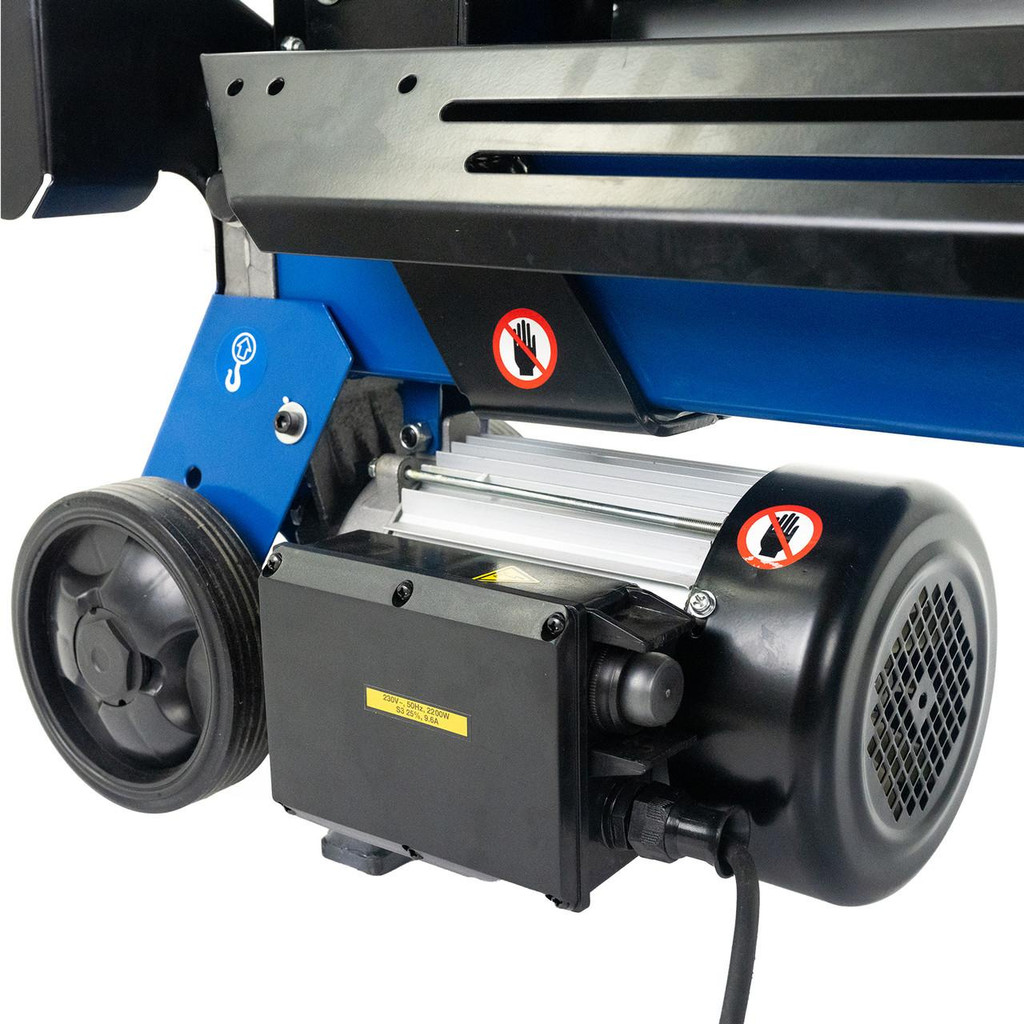

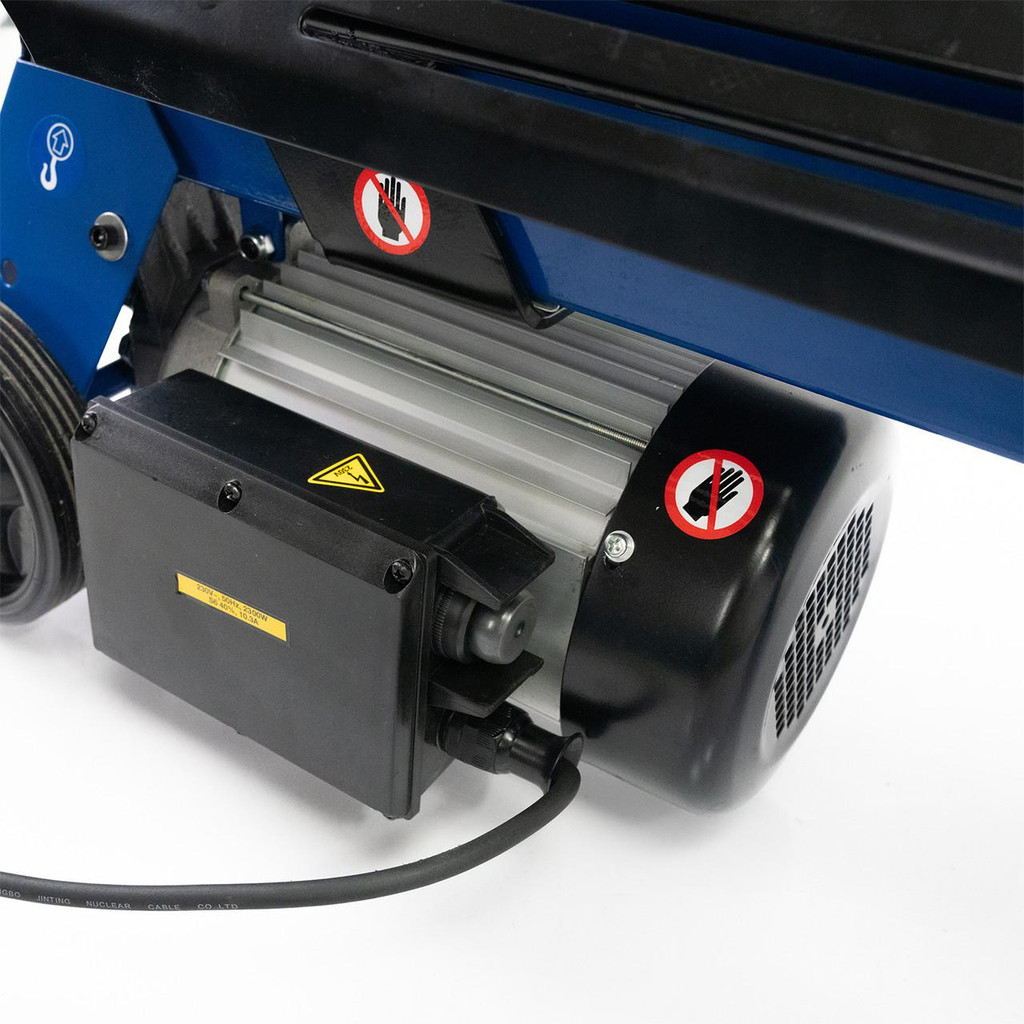

Driven by a dependable 2300W Hyundai electric motor, the HYLS7000HE delivers up to 7 tonnes of splitting force, making light work of seasoned or green wood. It’s capable of splitting logs up to 250mm in diameter and 520mm in length, producing clean cuts with minimal shards—reducing mess and clean-up time.

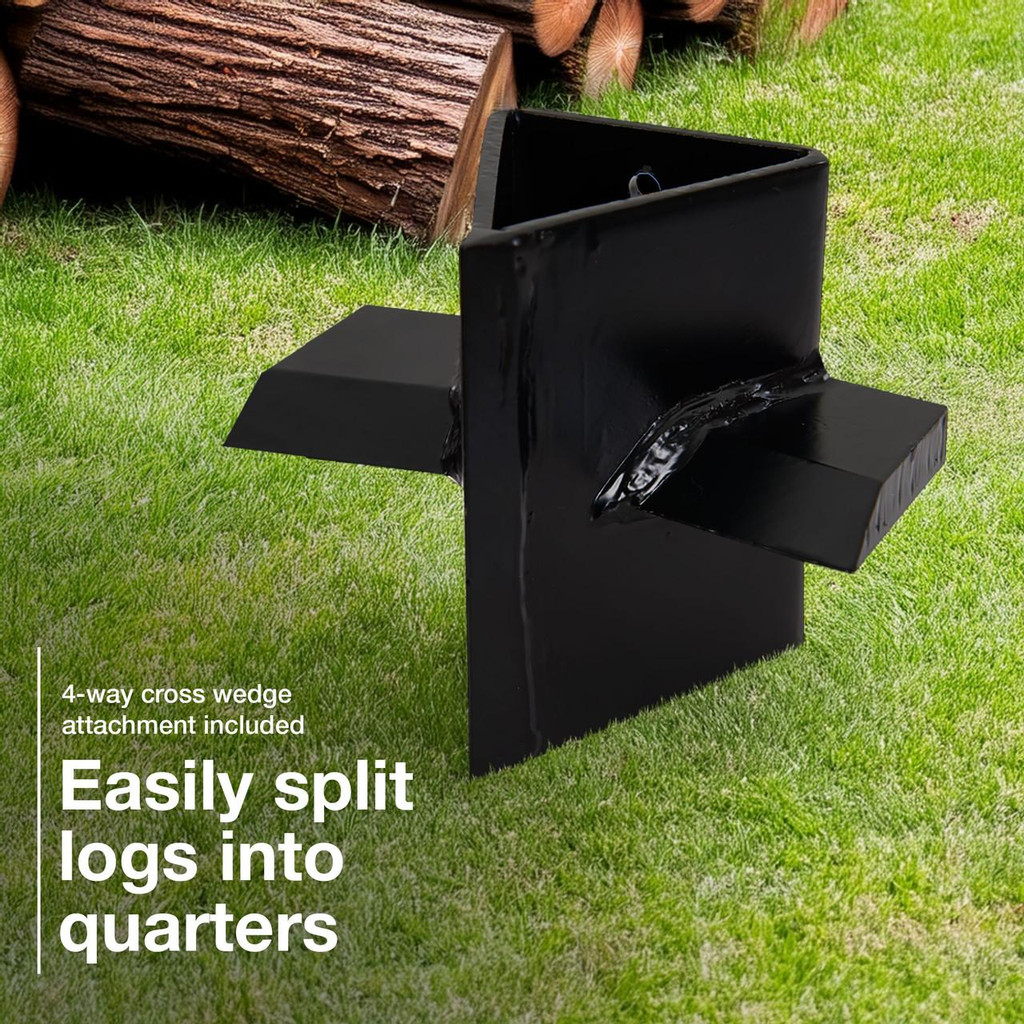

This kit includes a heavy-duty 4-way steel cross wedge designed to split logs into four sections in a single pass. It's perfect for creating kindling or efficiently processing large volumes of firewood, saving both time and effort. Simply attach the wedge to the splitter for instant productivity gains.

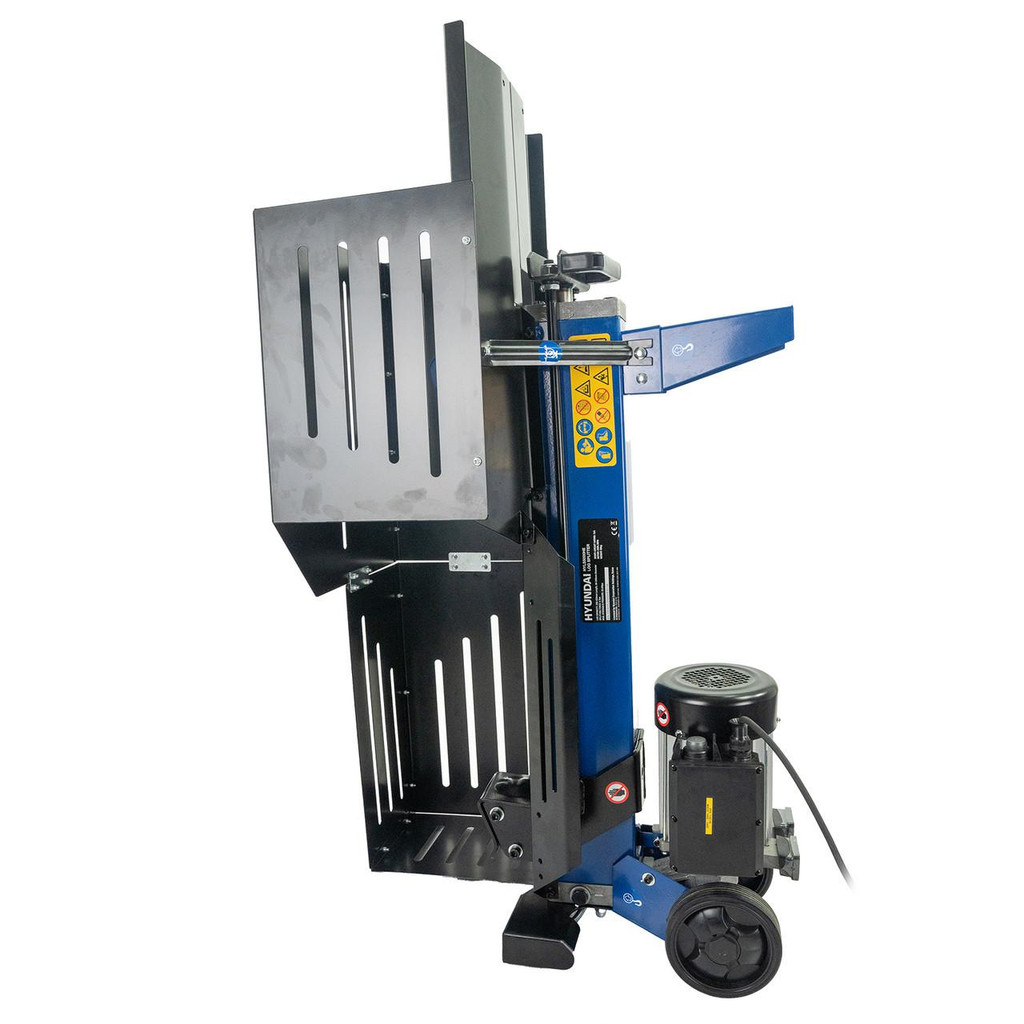

Constructed with a powder-coated steel body, this log splitter is built for durability and long-term performance. Integrated solid transport wheels allow you to easily move the splitter around your garden, shed, or workshop.

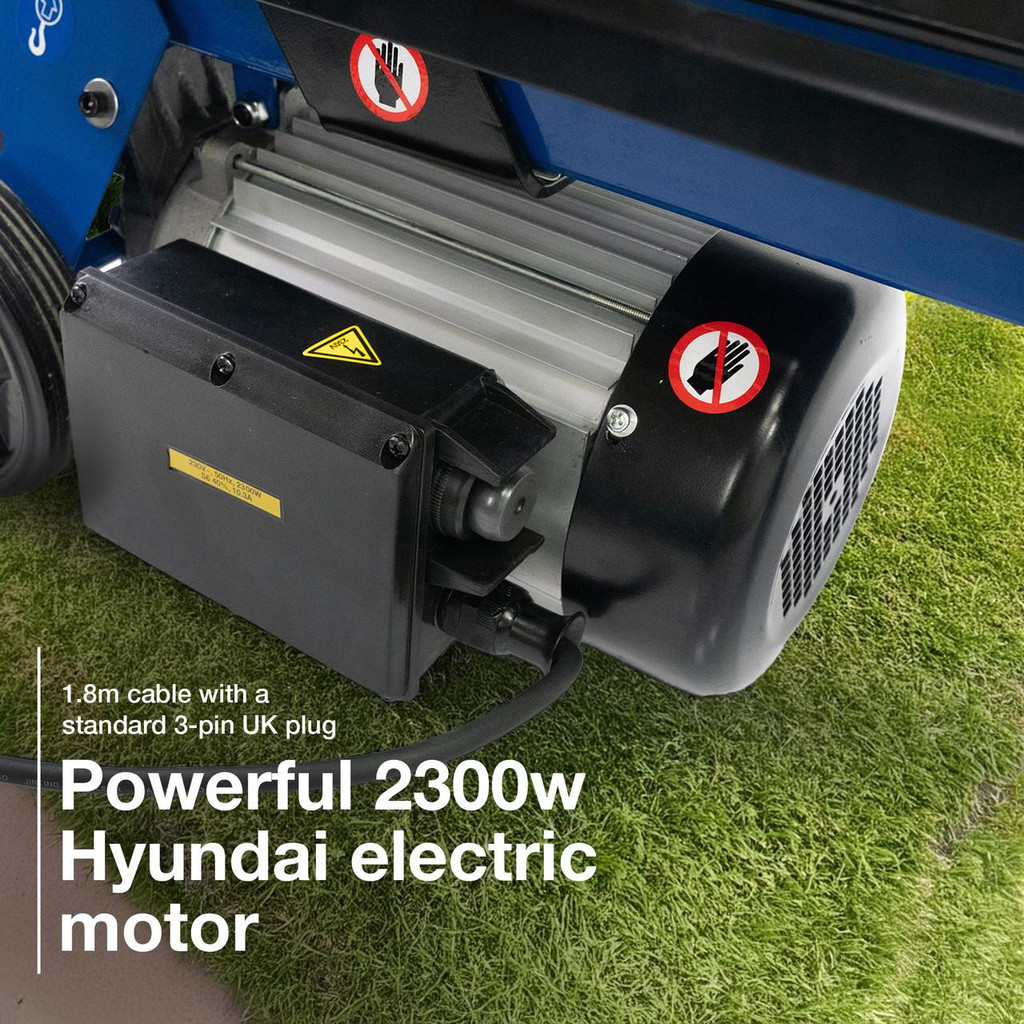

Plug the HYLS7000HE into any standard 230V socket using the fitted 3-pin UK plug and 1.8m cable—no special setup required. For peace of mind, it features two-handed operation controls, ensuring your hands stay safely out of the splitting area during use.
Comes with a 3-year warranty for home use (1 year for commercial use), supported by Hyundai’s comprehensive UK-based parts and customer service team.
| Model | HYLS7000HE+361150 |
|---|---|
| Splitting Force (T) | 7 |
| Max Log Diameter (mm) | 250 |
| Max Log Length (mm) | 520 |
| Hydraulic Pressure (MPa) | 24.2 |
| Hydraulic Oil Capacity (L) | 3.5 |
| Forward Speed (mm/second) | 30.8 |
| Retract Speed (mm/second) | 52.9 |
| Ram Travel (mm) | 370 |
| Duty Cycle (Forward) | 12 Seconds |
| Duty Cycle (Retract) | 7 Seconds |
| Cable Length (m) | 1.8 |
| Handle Type | 2 Handle Operation |

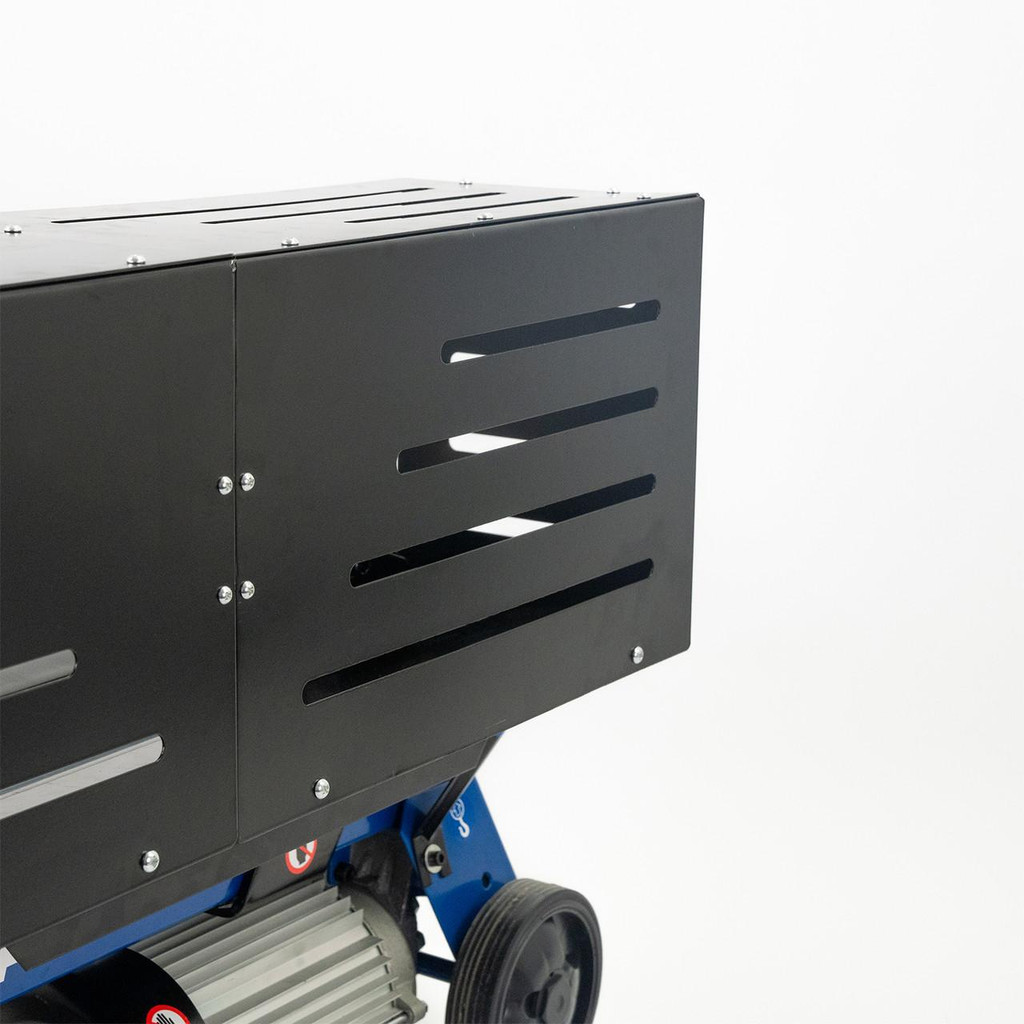

| Safety Features | Steel Protection Cage |
| Gross Weight (kg) | 64 |
| Net Weight (kg) | 60 |
| Wheels | Solid Wheels |
| Wheel Size (inches) | 6 |
| Wheel Diameter (mm) | 145 |
| Sound Level (db) | 78.8 dbA under no load; 89.8 dbA under full load |
| Fully Assembled Dimensions (H x W x L) (mm) | 611 x 425 x 1160 |
| Package Dimensions (H x W x L) (mm) | 500 x 320 x 950 |
| Fuel/Power Source | Electric |
| Product Type | Log Splitter |
| Warranty (years) | 3 |
| Commercial Warranty (years) | 1 |
| Model EAN | - |
| In The Box | HYLS7000HE 7 Tonne Horizontal Electric Log Splitter 1361150 4-Way Steel Cross Wedge |
| Feature 1 | Easily split logs up to 250mm: Thanks to the 2300w Hyundai electric motor and hydraulic ram. |
