Hyundai 50kg, 32cm, 78.5cc Petrol Plate Compactor,Wheel Kit and Paving Pad | HYCP5030
Loading delivery estimate…
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
Hyundai 50kg, 32cm, 78.5cc Petrol Plate Compactor,Wheel Kit and Paving Pad | HYCP5030 is backordered and will ship as soon as it is back in stock.
Hyundai 50kg, 32cm, 78.5cc Petrol Plate Compactor,Wheel Kit and Paving Pad | HYCP5030 is backordered and will ship as soon as it is back in stock.
- Powered by an 78.5cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.

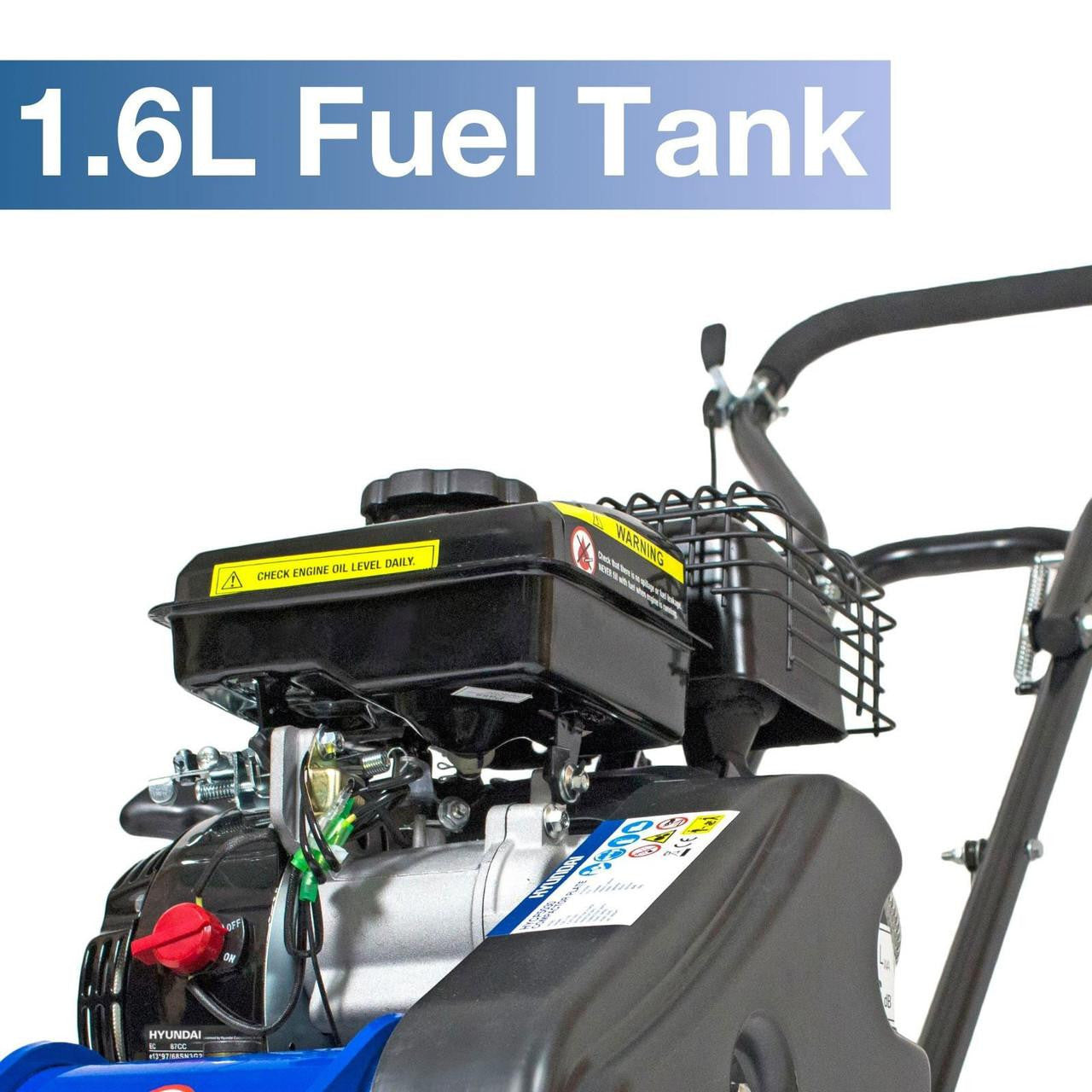

- Equipped with a large 1.6L fuel tank for long running.
- Fitted with a large 495mm x 320mm plate for working effectively on large areas.
- Has a travelling speed of 25m/min, with a compaction depth of 150mm.
- Wheel Kit and Paving Pad included.
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description

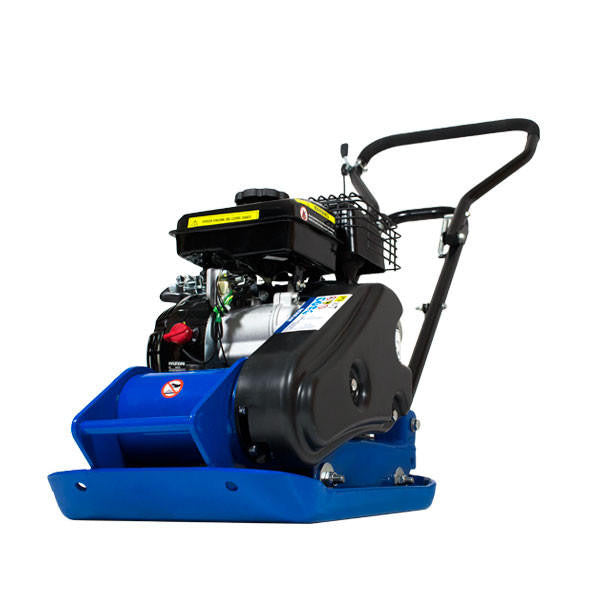

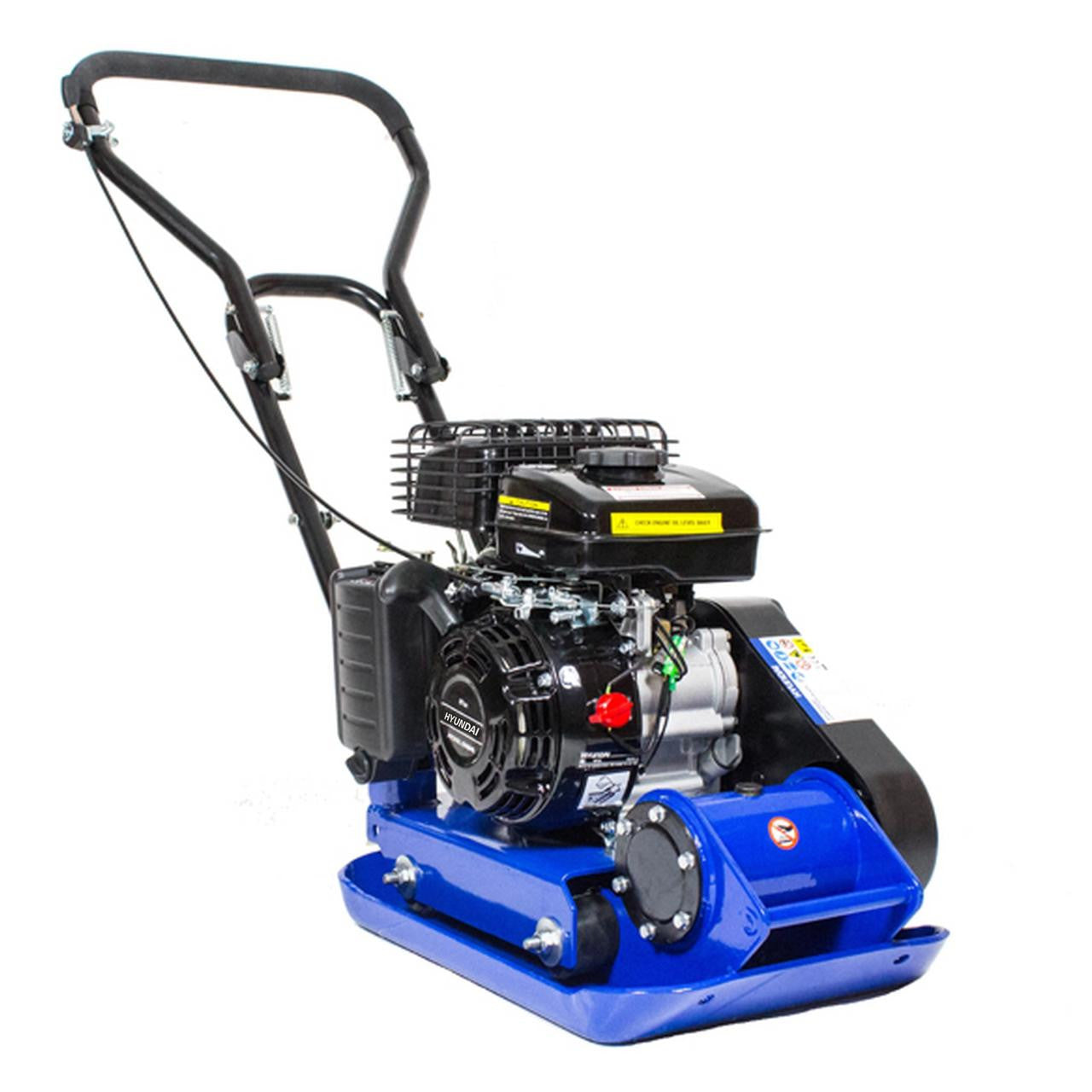

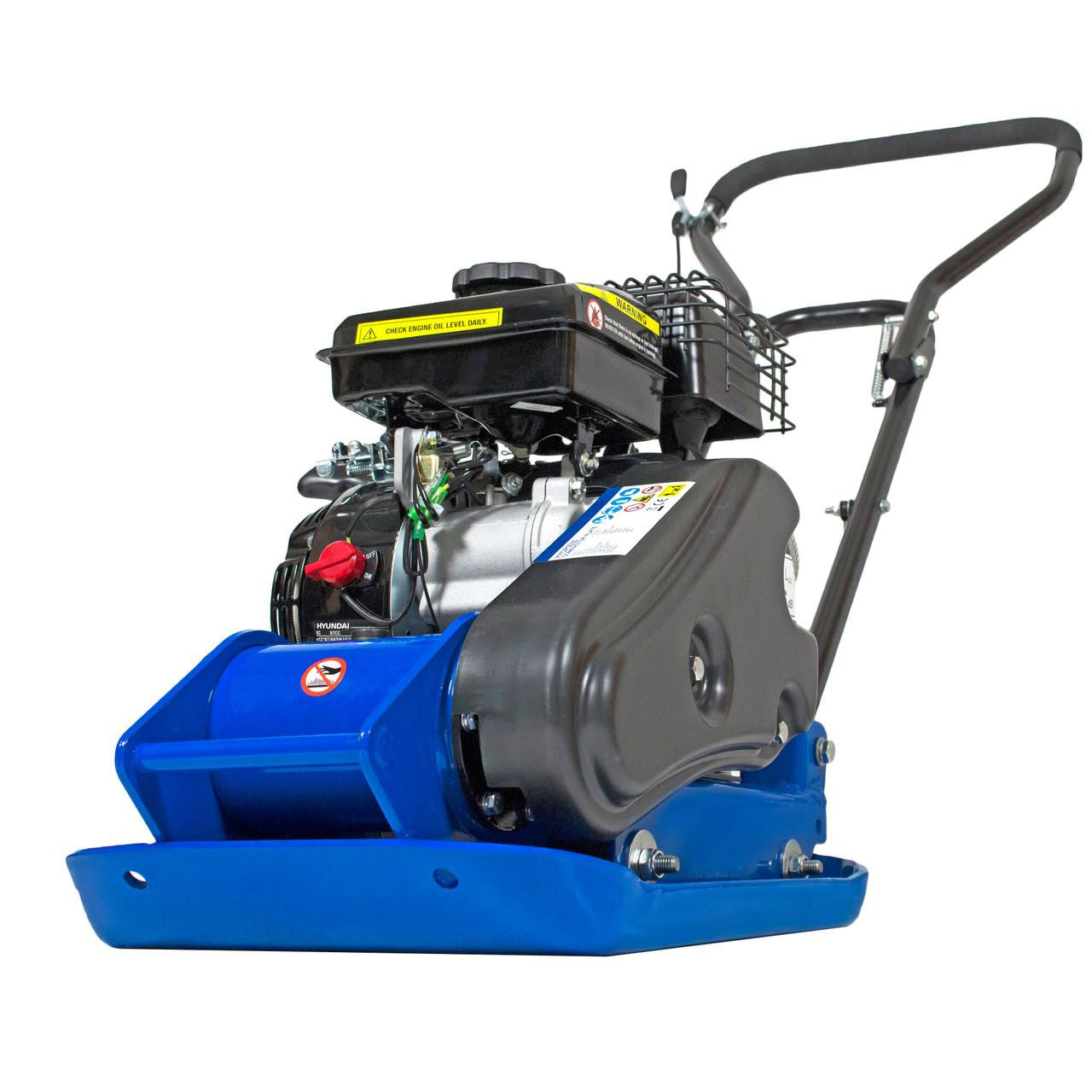

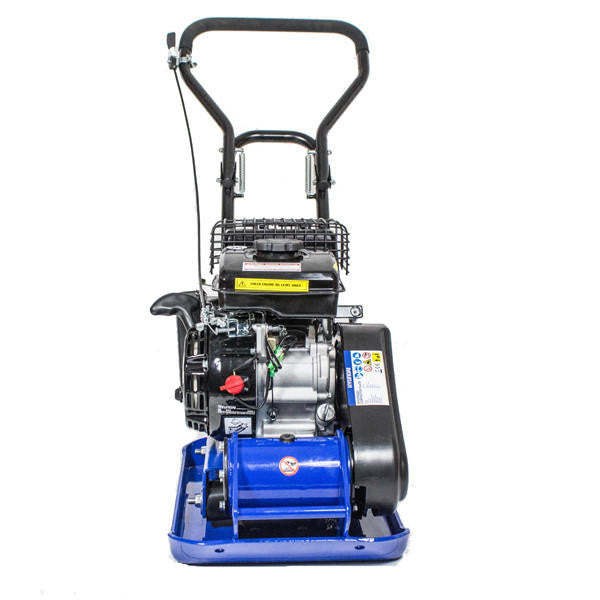

Hyundai 78.5cc Petrol Plate Compactor
The HYCP5030 is powered by an 78.5cc 4-stroke recoil start petrol engine, with a large 1.6L fuel tank for long running. It's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
Large Wacker Plate
It's fitted with a large plate measuring 495mm x 320mm (L x W) for making quick work of large areas and has a travelling speed of 25m/min, with a compaction depth of 150mm. The V-belt is covered by a guard which protects it from the knocks and bumps of construction work.
Suitable Use
The throttle control is conveniently mounted on the handle, which also has a soft grip cover for increased comfort. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations and the compactor plate comes with a paving pad to protect patios and block paving from any marks or damage during use.

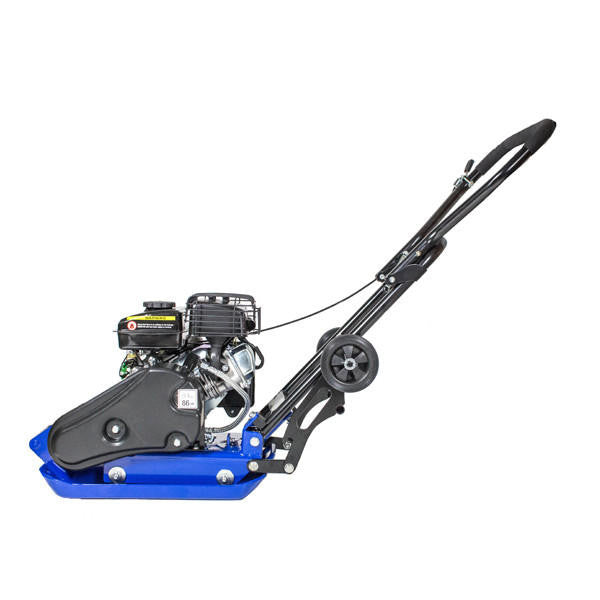

To make storage easy, the handles can be folded down over the main unit.

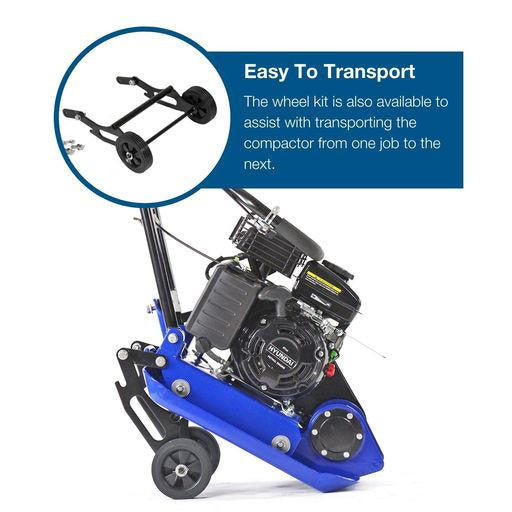

The wheel kit is also available to assist with transporting the compactor from one job to the next.
Warranty
All Hyundai compactor plates are covered by a Hyundai 3 year platinum warranty.
Specifications
| Centrifugal Force (N) | 8200 |
| Commercial Warranty (years) | 1 |
| Compaction Depth (mm) | 150 |
| Drive Type | - |
| EAN | 747150287850 |
| Engine Model | 152F |
| Engine Oil | SAE30 or SAE15W40 |
| Engine Oil Capacity (ml) | 400 |
| Engine Size (cc) | 78.5 |
| Engine Type | Hyundai 4-Stroke |
| Exciter Oil Capacity (ml) | 80 |
| Exciter Speed (RPM) | 5900 |
| Fuel | Unleaded Petrol |
| Fuel / Power Source | Petrol |
| Fuel Capacity (L) | 1.6 |
| Fully Assembled Dimensions (H x W x L) (mm) | 300 x 865 x 1040 |
| Gross Weight (kg) | 50 |
| Handle Type | Soft Grip |
| In The Box | HYCP5030 & Manual |
| Model | HYCP5030 |
| Net Weight (kg) | 48 |
| Package Dimensions (H x W x L) (mm) | 450 x 400 x 650 |
| Plate Size (mm) | 495 x 320 |
| Product Type | Compactor Plate |
| Rated Power (hp) | 1.6 |
| Rated Speed (RPM) | 3600 |
| Safety Features | Oil Alarm |
| Sound Level (db) | 91 |
| Start Method | Recoil |
| Travel Speed (m/min) | 25 |
| Vibration value m/s² | 13.76 |
| Warranty (years) | 3 |

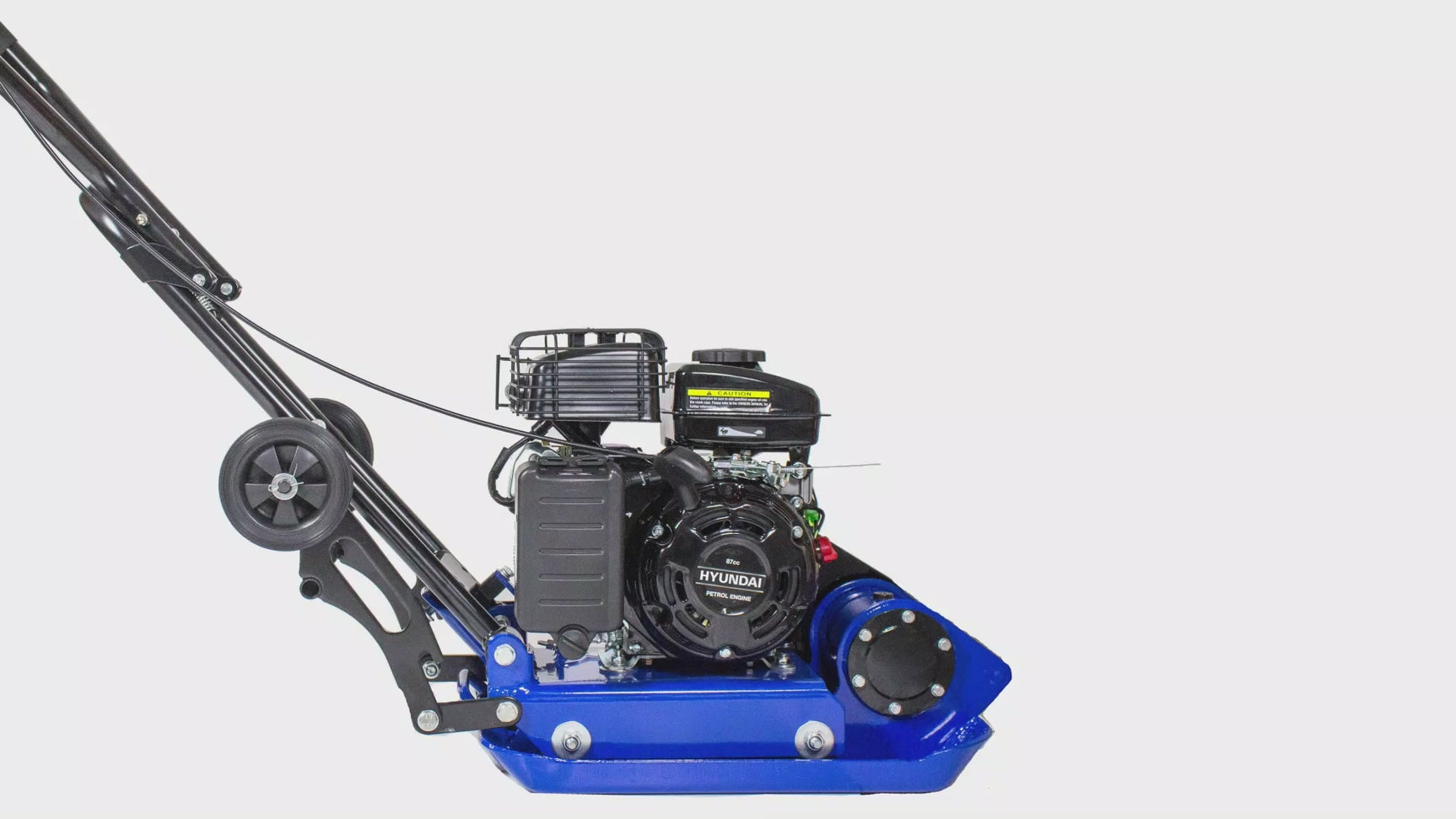

Watch it in Action
