Hyundai 60kg, 37cm, 196cc Petrol Plate Compactor, Wheel Kit and Paving Pad | HYCP6570
Loading delivery estimate…
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
Hyundai 60kg, 37cm, 196cc Petrol Plate Compactor, Wheel Kit and Paving Pad | HYCP6570 is backordered and will ship as soon as it is back in stock.
Hyundai 60kg, 37cm, 196cc Petrol Plate Compactor, Wheel Kit and Pav...
Hyundai 60kg, 37cm, 196cc Petrol Plate Compactor, Wheel Kit and Paving Pad | HYCP6570 is backordered and will ship as soon as it is back in stock.

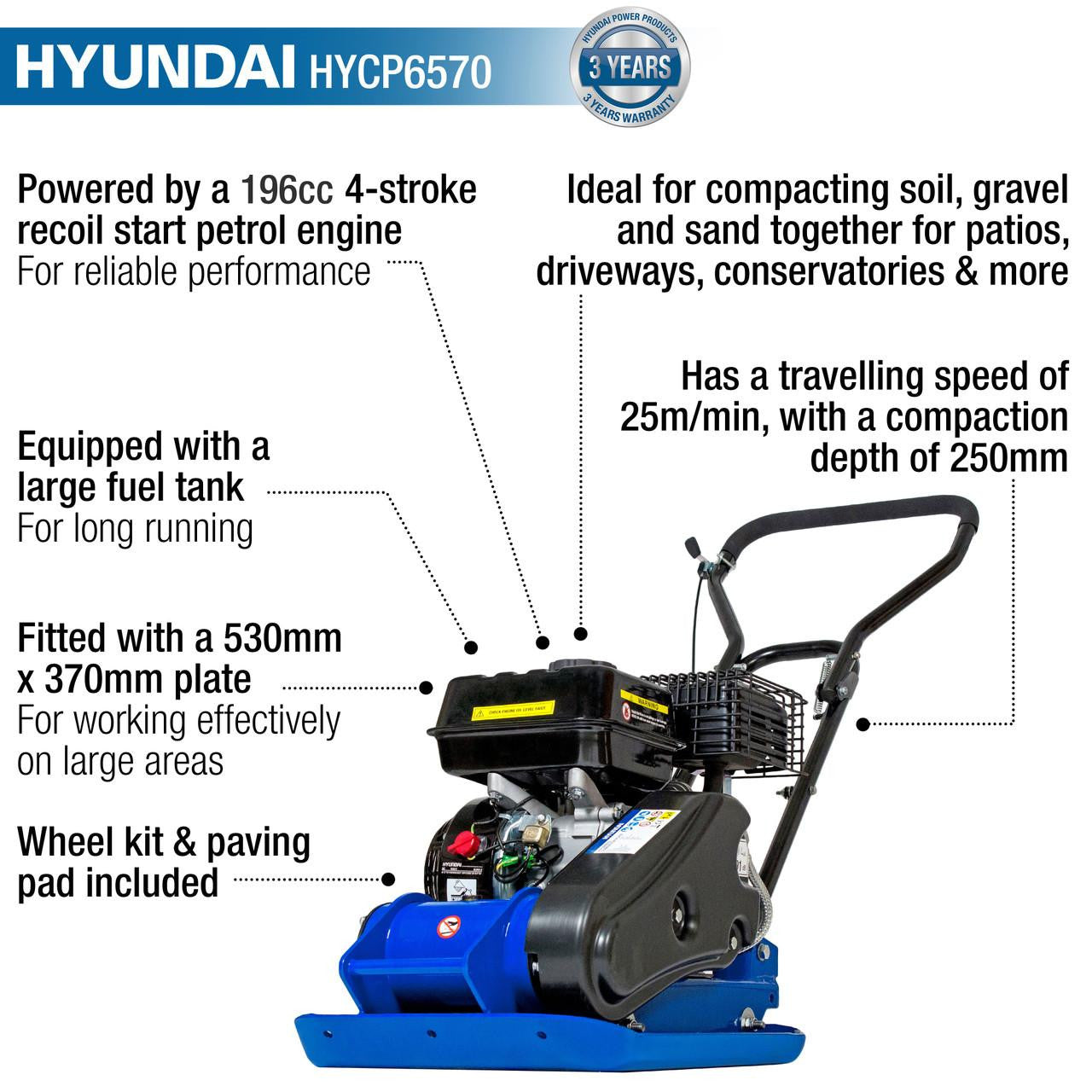

- Powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
- Equipped with a large fuel tank for long running.
- Fitted with a 530mm x 370mm plate for working effectively on large areas.
- Has a travelling speed of 25m/min, with a compaction depth of 250mm.
- Wheel kit included for increased maneuverability.
- Hyundai HYCP9070 Compactor Plate

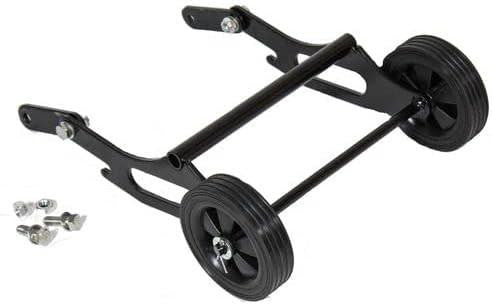

- Wheel Kit

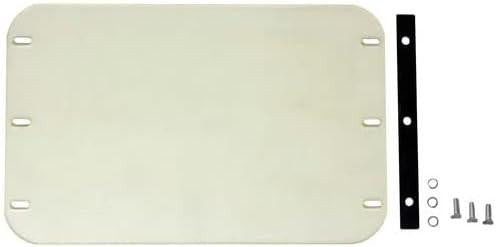

- Paving Pad
- Tool Kit
- User Manual
- Key Features
- Powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
- Equipped with a large fuel tank for long running.
- Fitted with a 530mm x 370mm plate for working effectively on large areas.
- Has a travelling speed of 25m/min, with a compaction depth of 250mm.
- Wheel kit included for increased maneuverability.
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description

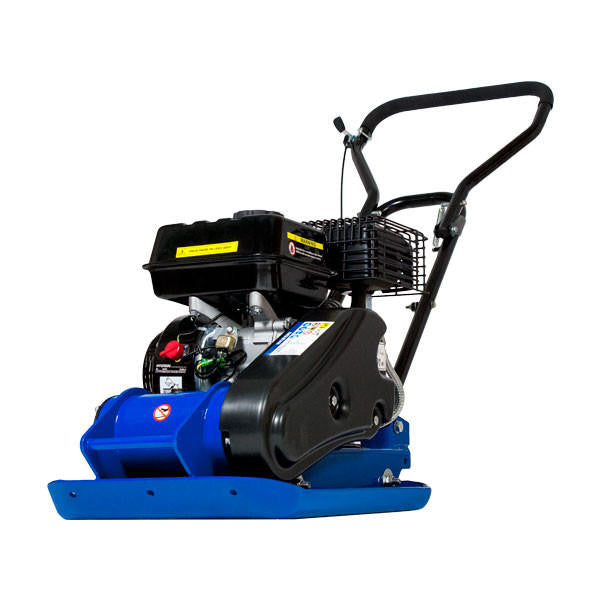

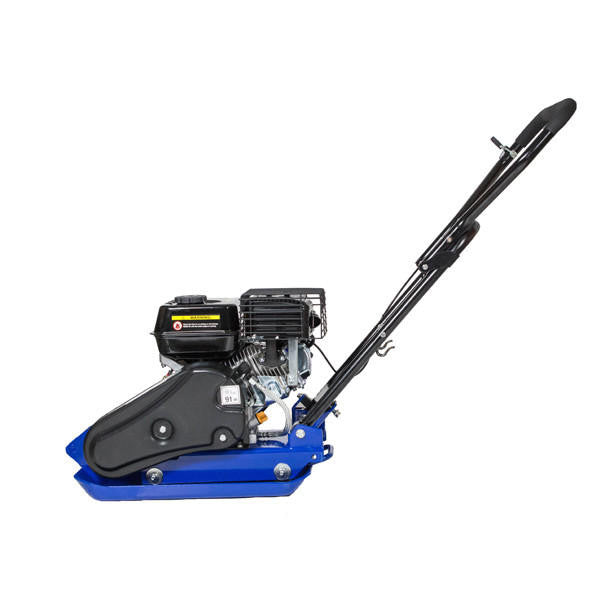

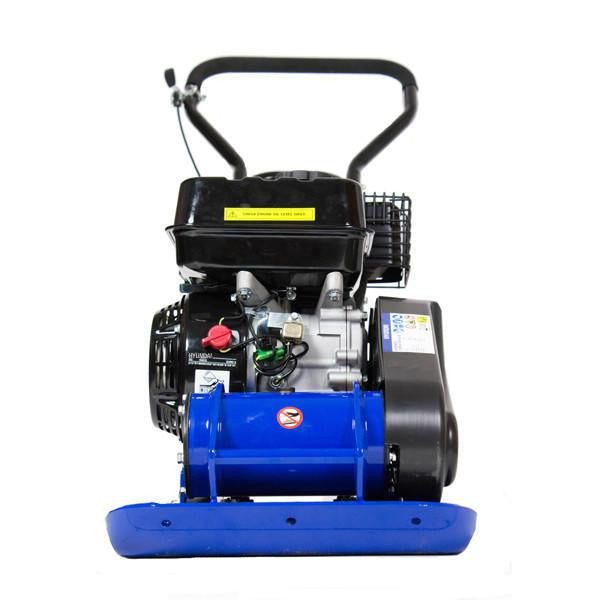

Hyundai Petrol Plate Compactor
The HYCP6570 is powered by a 196cc 4-stroke recoil start petrol engine, with a large fuel tank for long running. It's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
Large Compactor Plate
It's fitted with a large plate measuring 530mm x 370mm (L x W) for making quick work of large areas. It has a travelling speed of 25m/min, with a compaction depth of 250mm. For protection from knocks and bumps during construction work, the V-belt is covered by a rugged guard.
Suitable Uses
The handle features a soft grip cover for increased comfort, and for convenient storage the handle can also be folded down over the main unit. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations. A wheel kit is included for increased maneuverability when transporting the compactor plate from one job to the next.
Warranty
All Hyundai compactor plates are covered by a Hyundai 3 year platinum warranty.
Specifications
| Centrifugal Force (N) | 11000 |
| Commercial Warranty (years) | 1 |
| Compaction Depth (mm) | 250 |
| Drive Type | - |
| EAN | 747150287843 |
| Engine Model | 168F |
| Engine Oil | SAE30 or SAE15W40 |
| Engine Oil Capacity (ml) | 600 |
| Engine Size (cc) | 196 |
| Engine Type | Hyundai 4-Stroke |
| Exciter Oil Capacity (ml) | 80 |
| Exciter Speed (RPM) | 5500 |
| Fuel | Unleaded Petrol |
| Fuel / Power Source | Petrol |
| Fuel Capacity (L) | 3.6 |
| Fully Assembled Dimensions (H x W x L) (mm) | 890 x 385 x 1140 |
| Gross Weight (kg) | 60 |
| Handle Type | Soft Grip |
| In The Box | HYCP6570 & Manual, Wheel Kit and Paving Pad |
| Model | HYCP6570 |
| Net Weight (kg) | 58 |
| Package Dimensions (H x W x L) (mm) | 470 x 400 x 705 |
| Plate Size (mm) | 530 x 370 |
| Product Type | Compactor Plate |
| Rated Power (hp) | 5.2 |
| Rated Speed (RPM) | 3600 |
| Safety Features | Oil Protection |
| Sound Level (db) | 91 |
| Start Method | Recoil |
| Travel Speed (m/min) | 25 |
| Vibration value m/s² | 27.71 |
| Warranty (years) | 3 |
