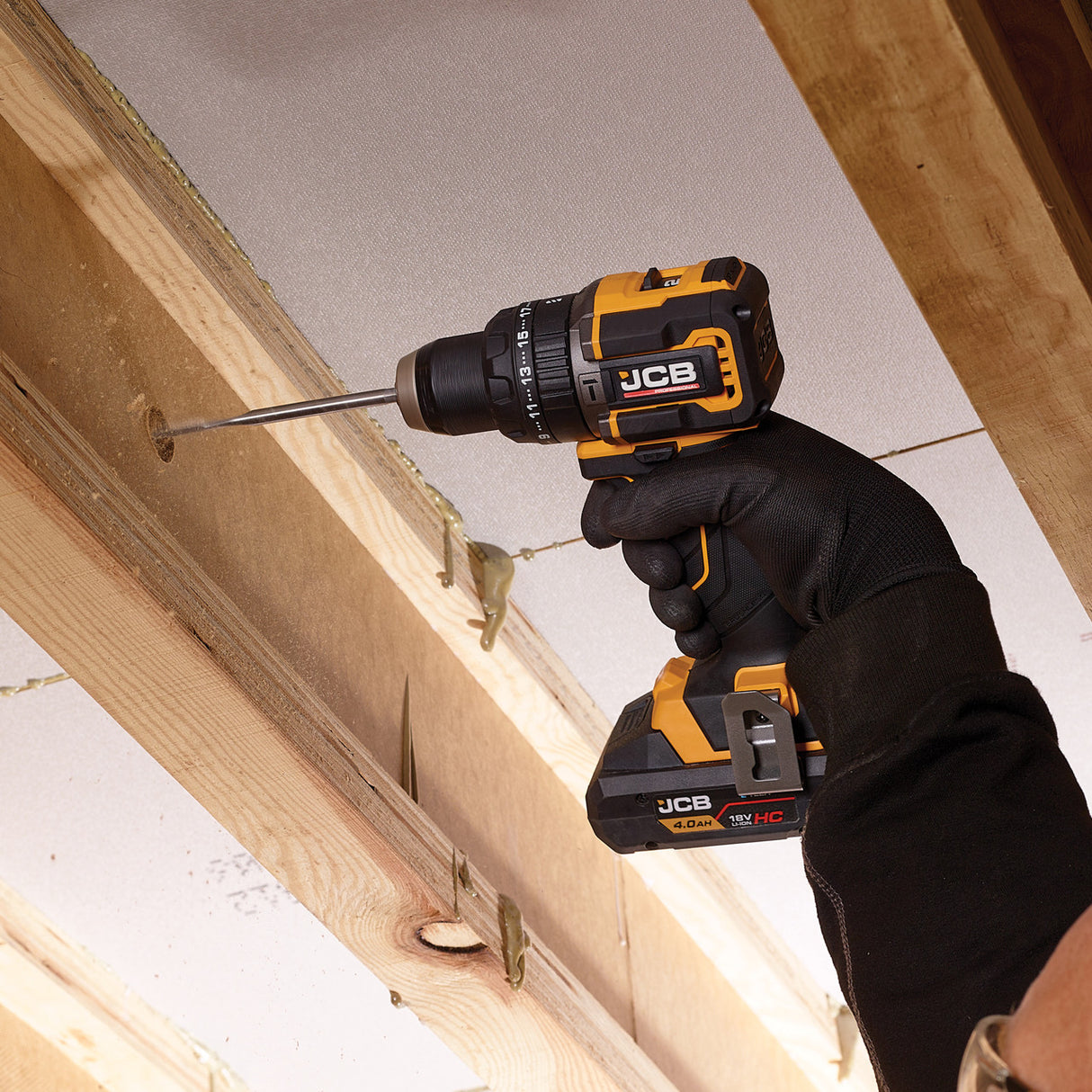

JCB Pro 18V Compact Combi Drill 75Nm, Brushless, 2-Speed, 23+3 Positions & 13mm Metal Chuck (Bare Tool) | JCB-18PCD-75
Loading delivery estimate…
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
JCB Pro 18V Compact Combi Drill 75Nm, Brushless, 2-Speed, 23+3 Positions & 13mm Metal Chuck (Bare Tool) | JCB-18PCD-75 is backordered and will ship as soon as it is back in stock.
JCB Pro 18V Compact Combi Drill 75Nm, Brushless, 2-Speed, 23+3 Posi...
JCB Pro 18V Compact Combi Drill 75Nm, Brushless, 2-Speed, 23+3 Positions & 13mm Metal Chuck (Bare Tool) | JCB-18PCD-75 is backordered and will ship as soon as it is back in stock.
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description

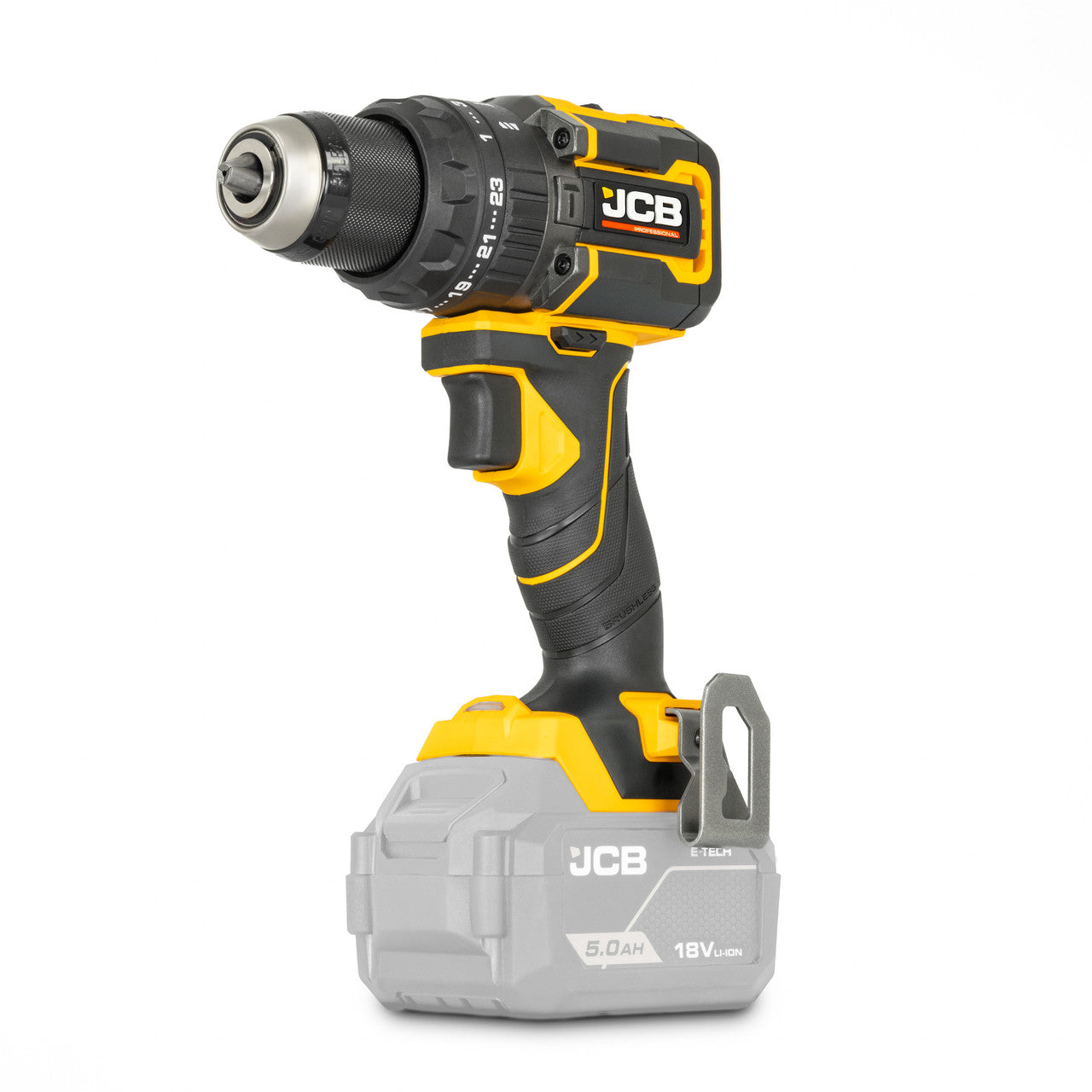

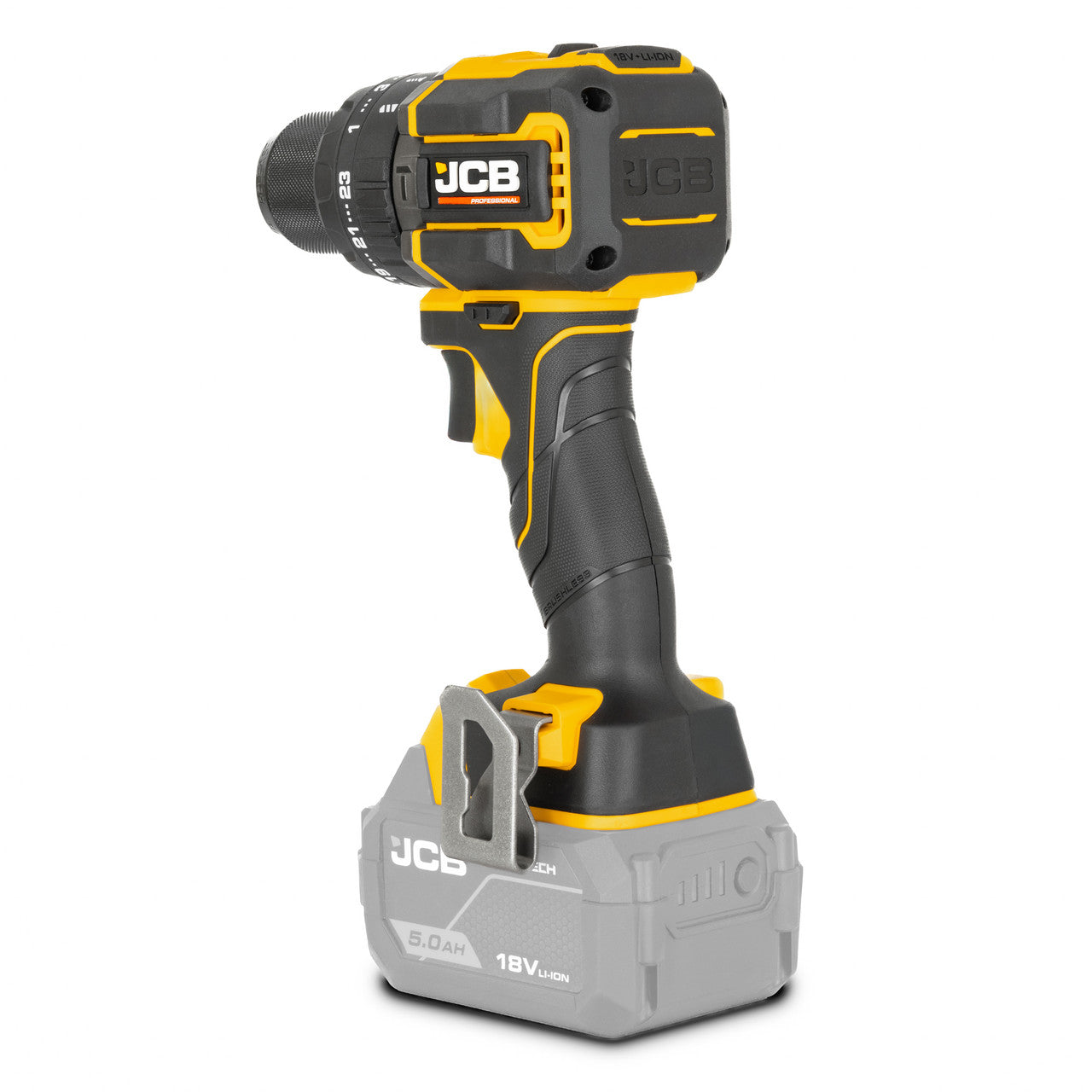

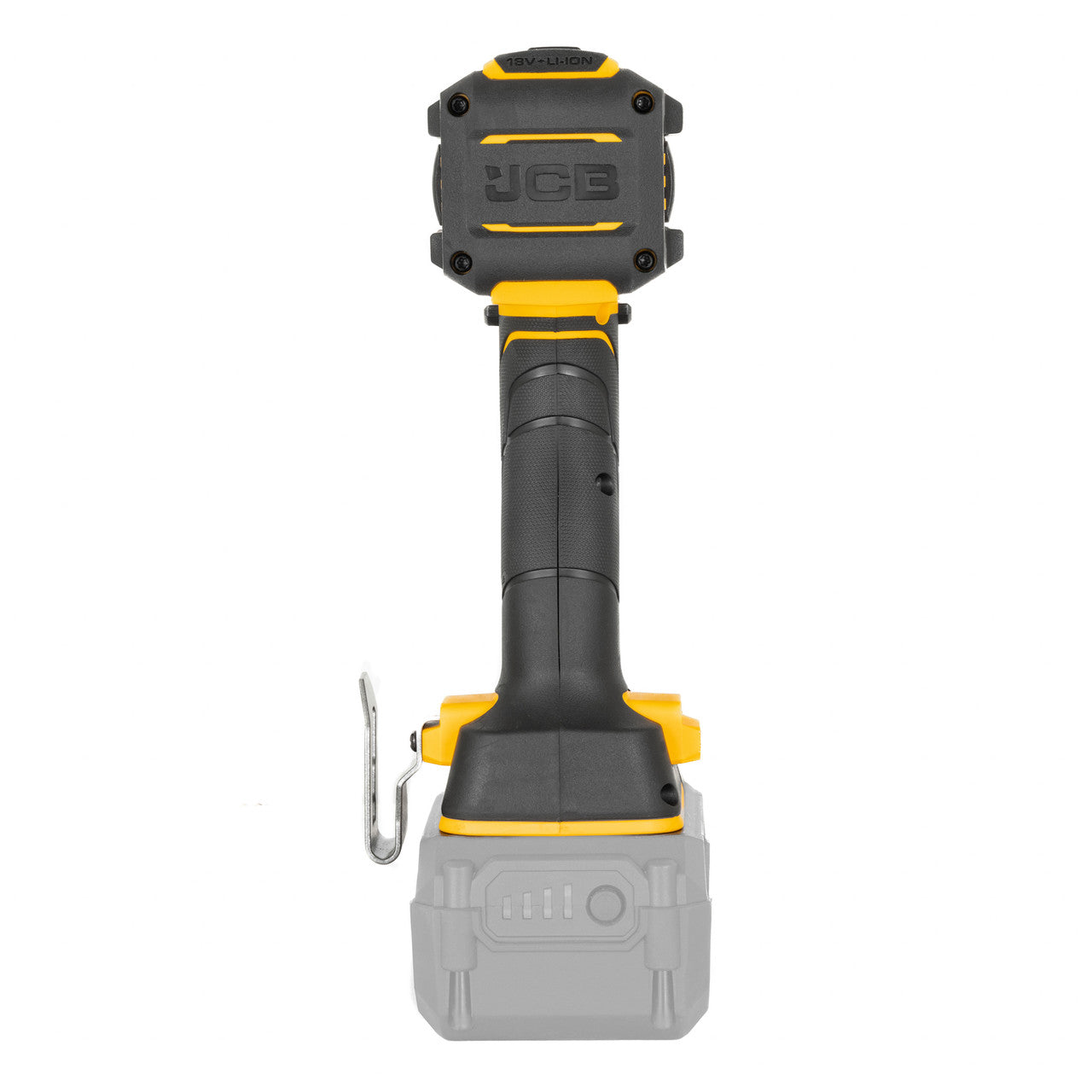

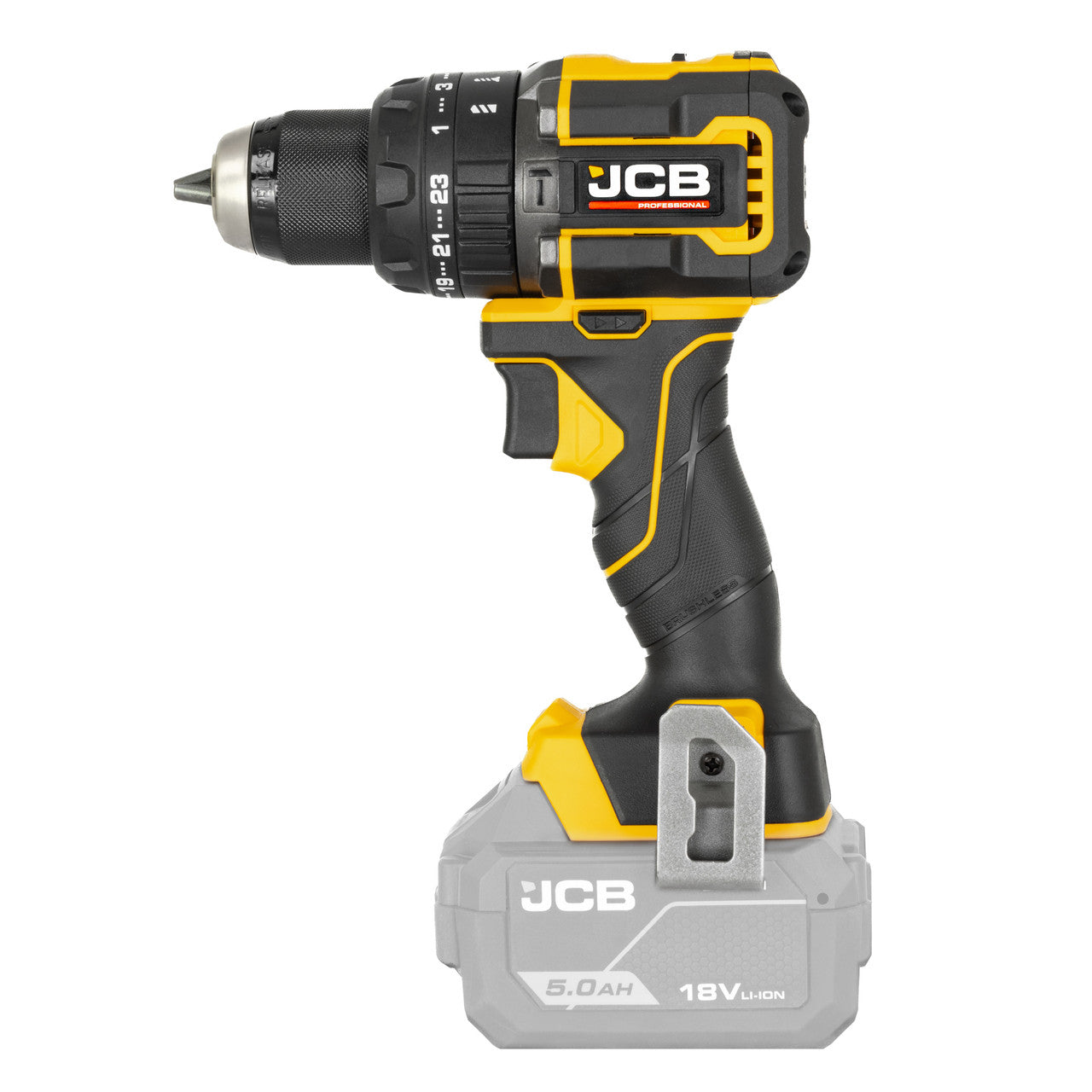

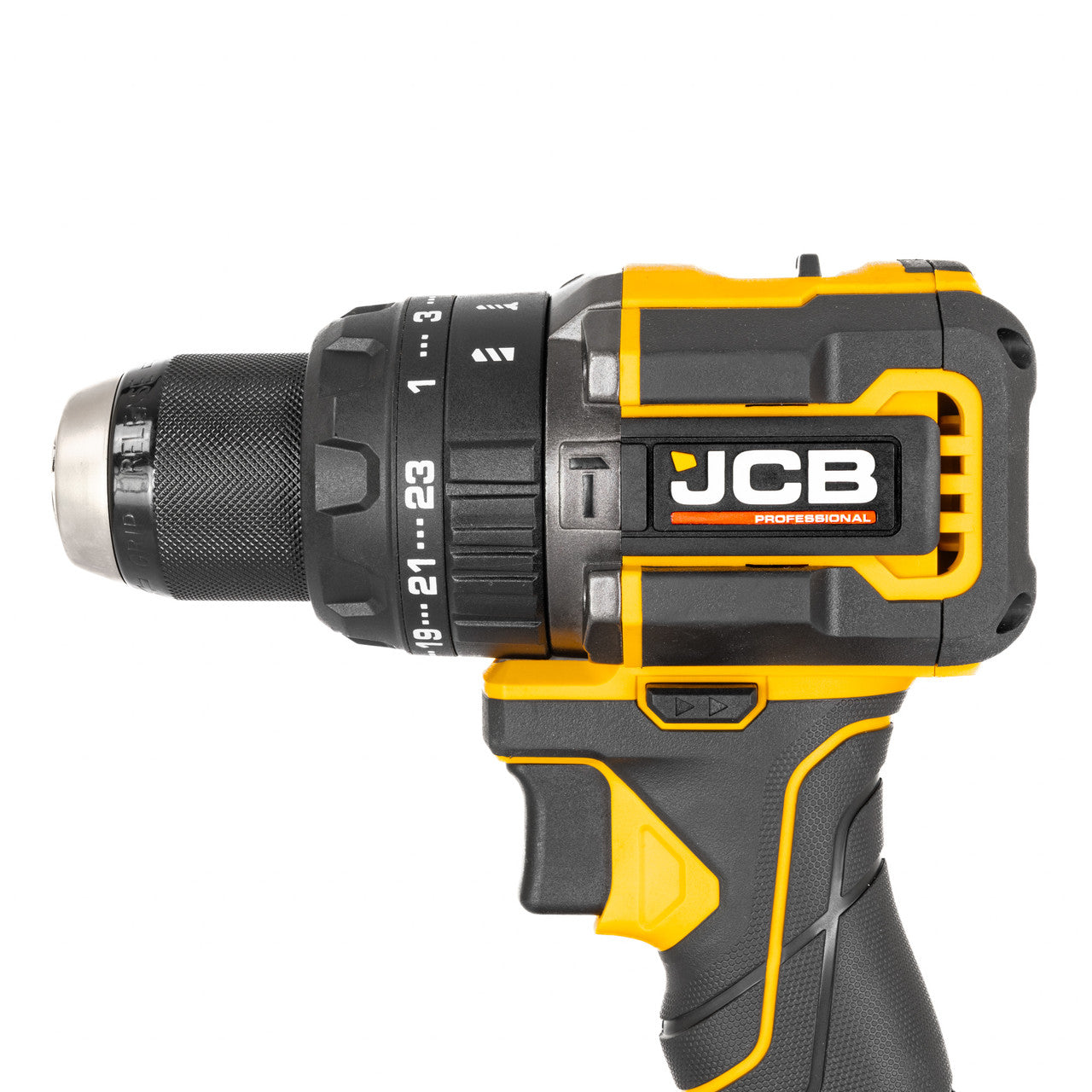

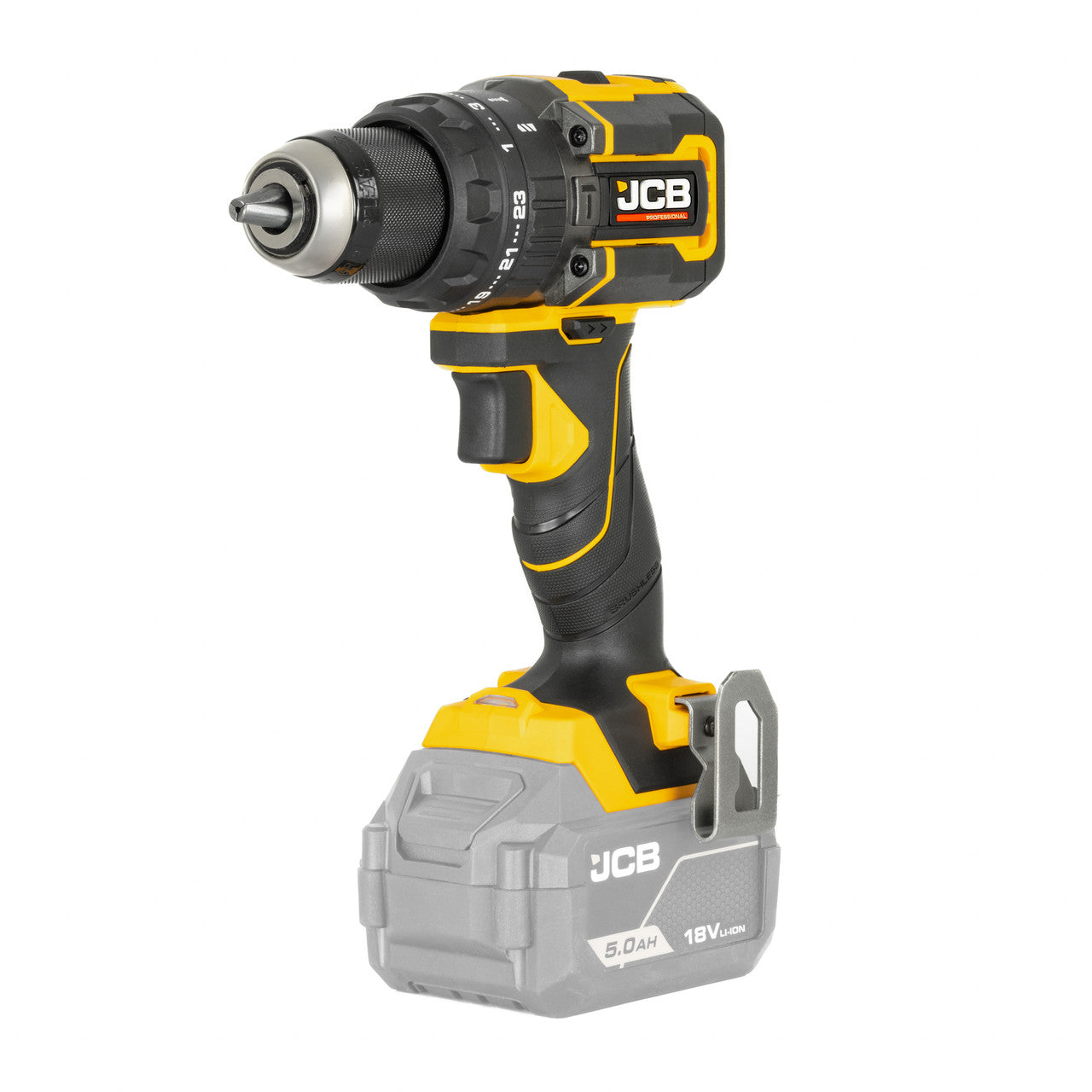

JCB Professional 18V Compact Combi Drill (JCB-18PCD-75) 75Nm Torque with 23+3 Positions, Brushless Motor, 2-Speed, & 13mm Chuck

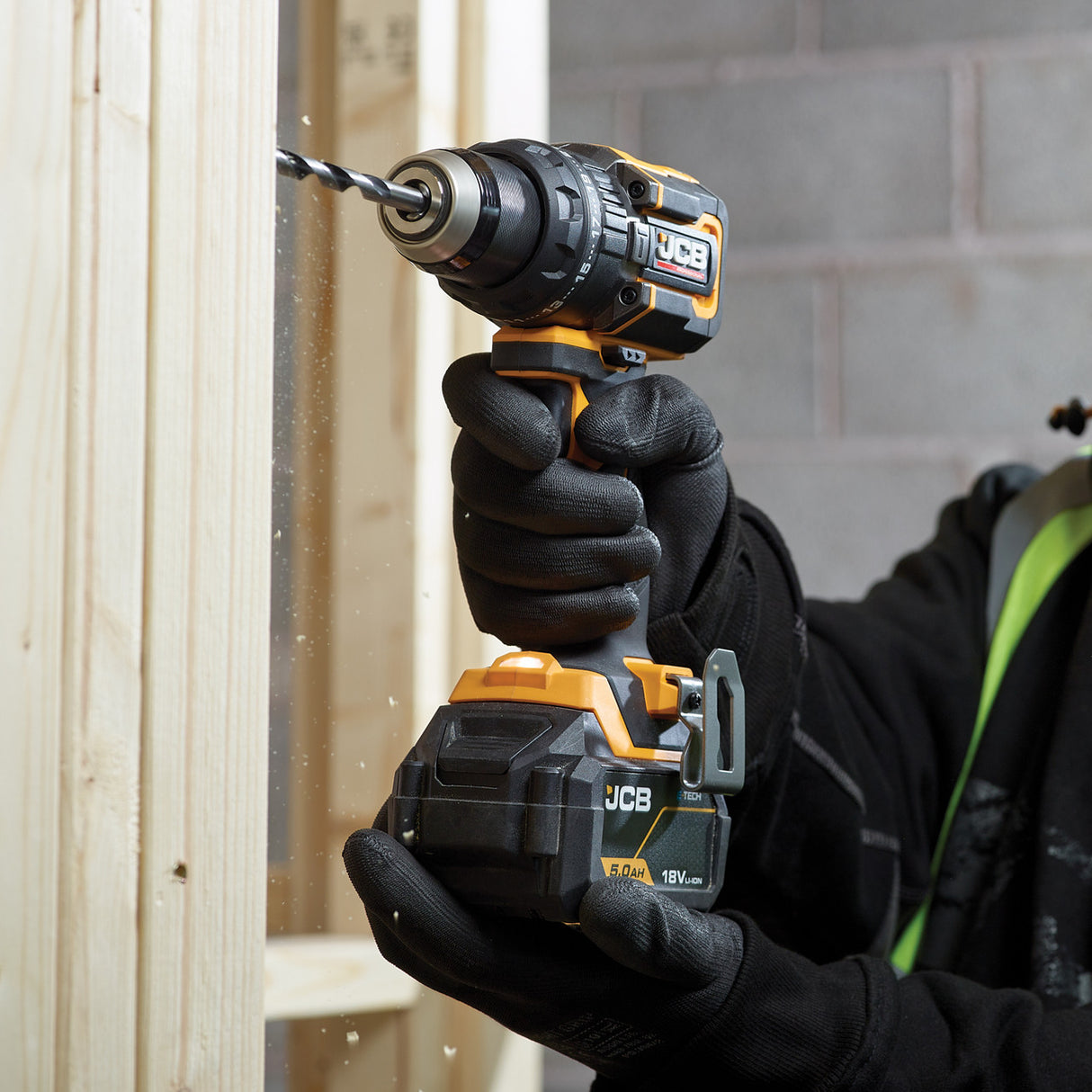

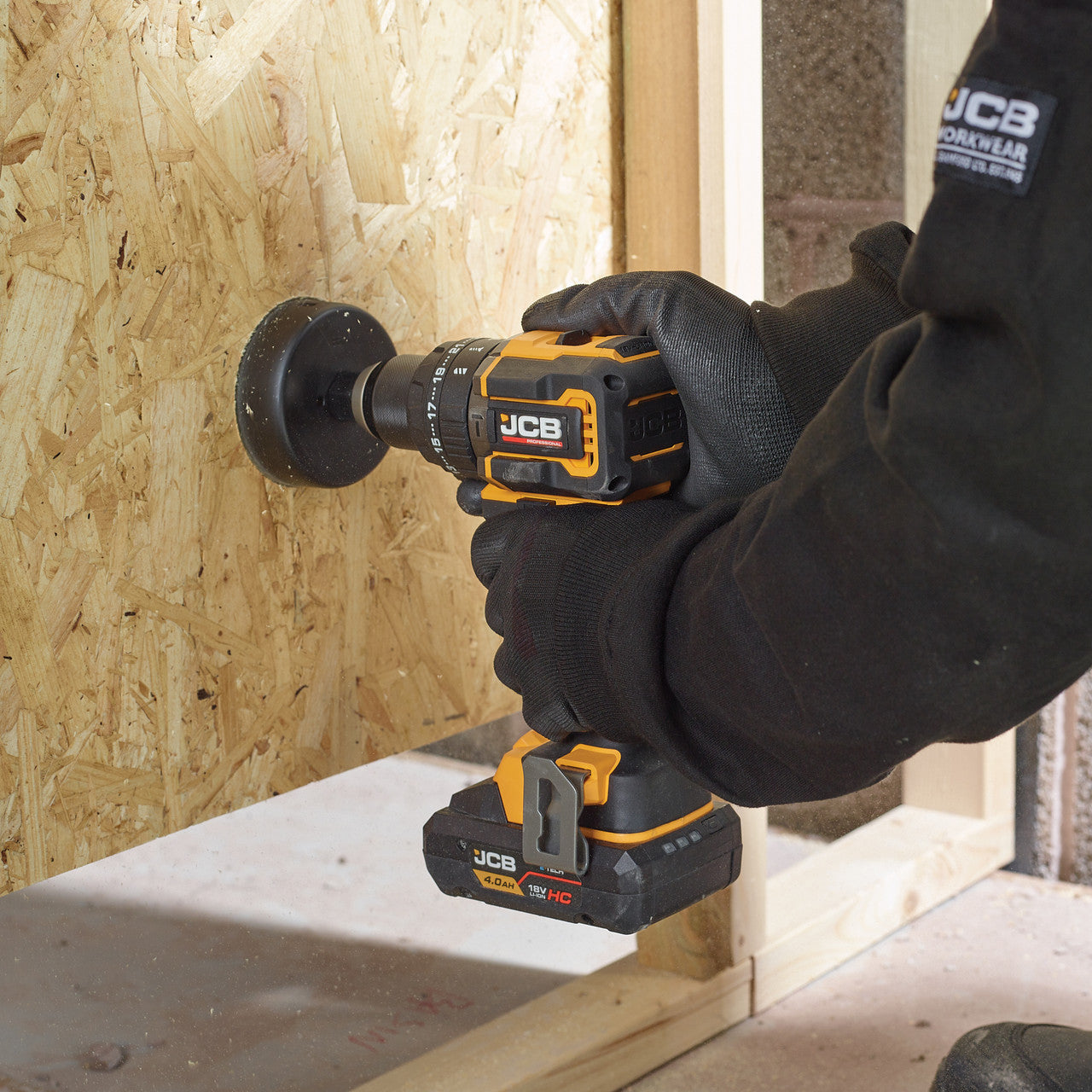

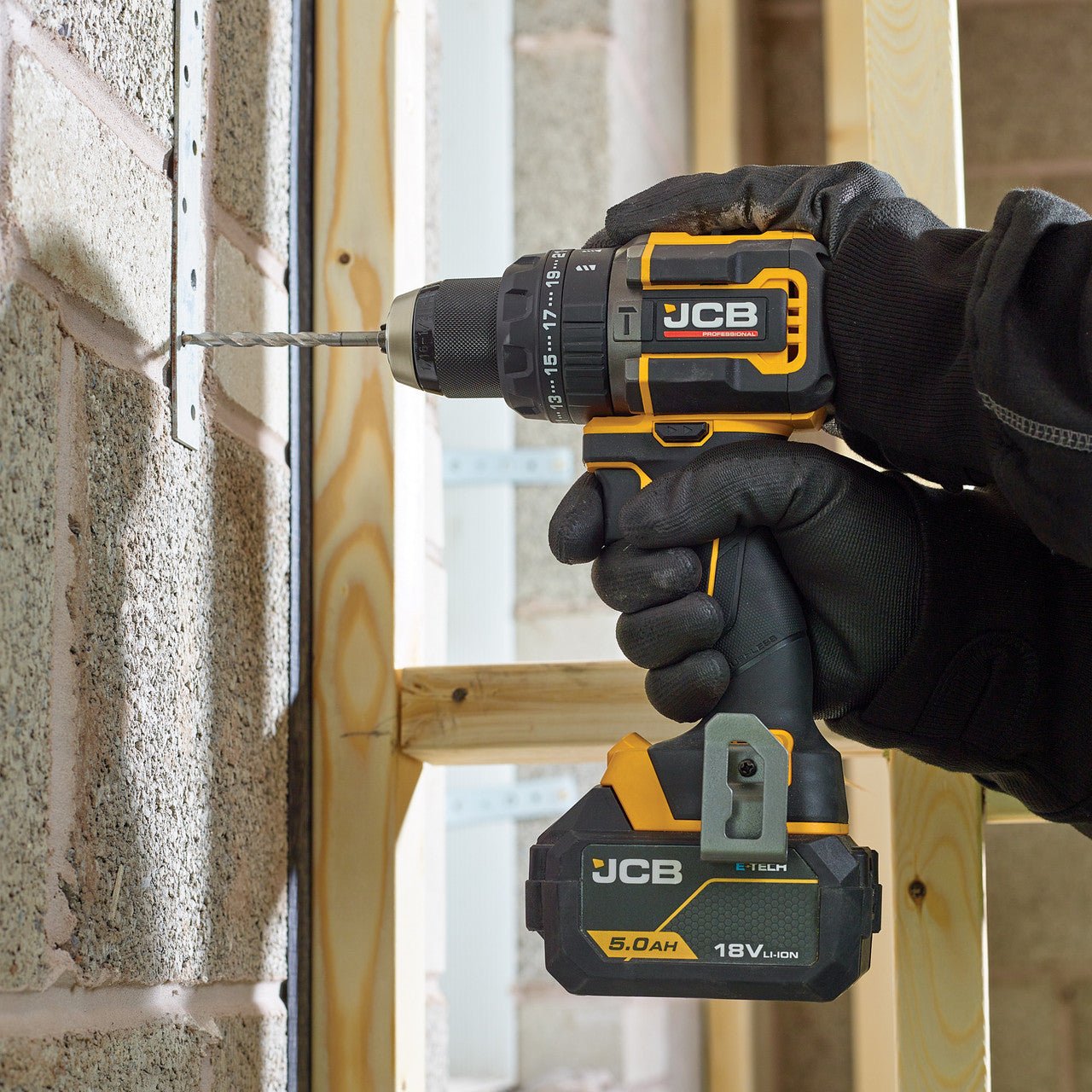

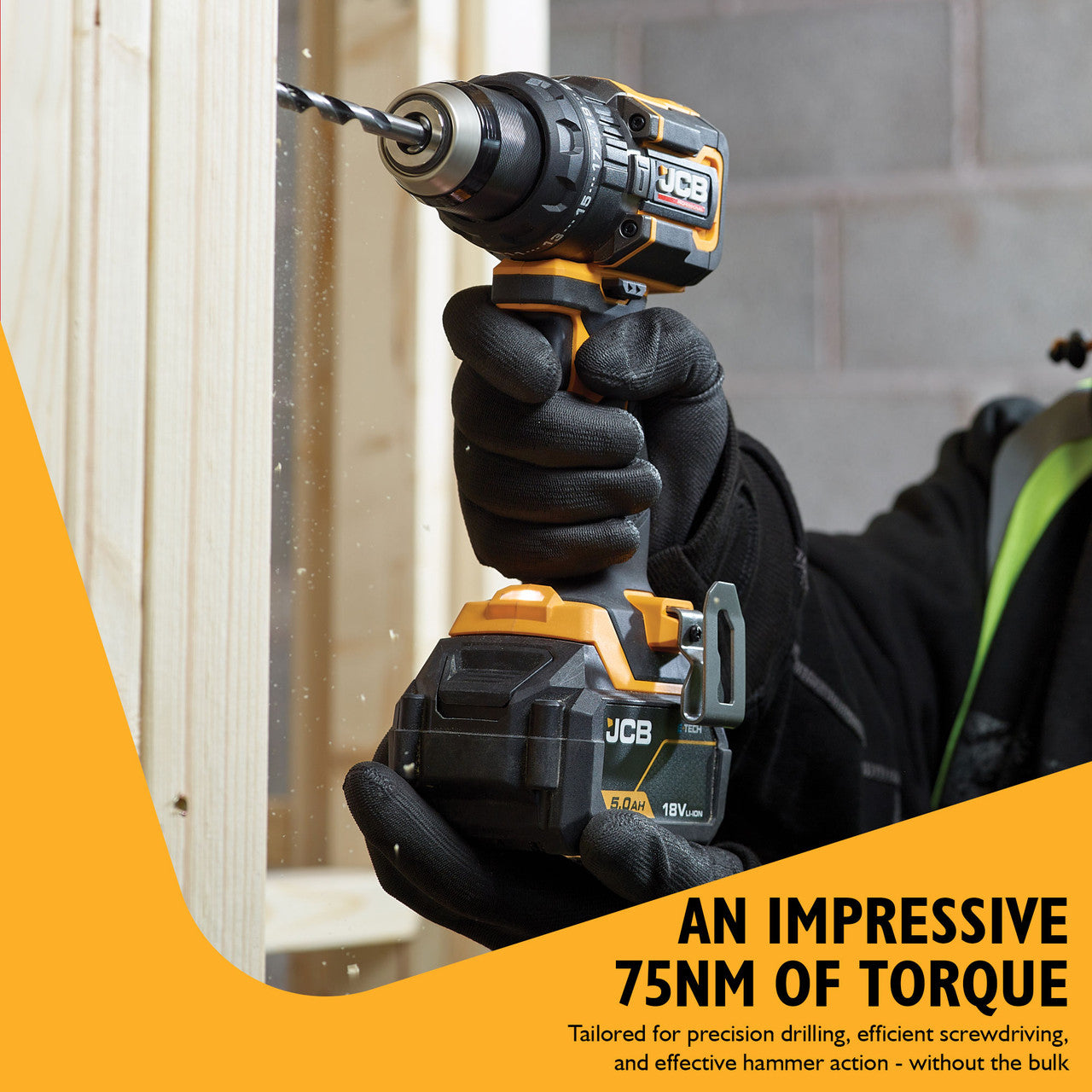

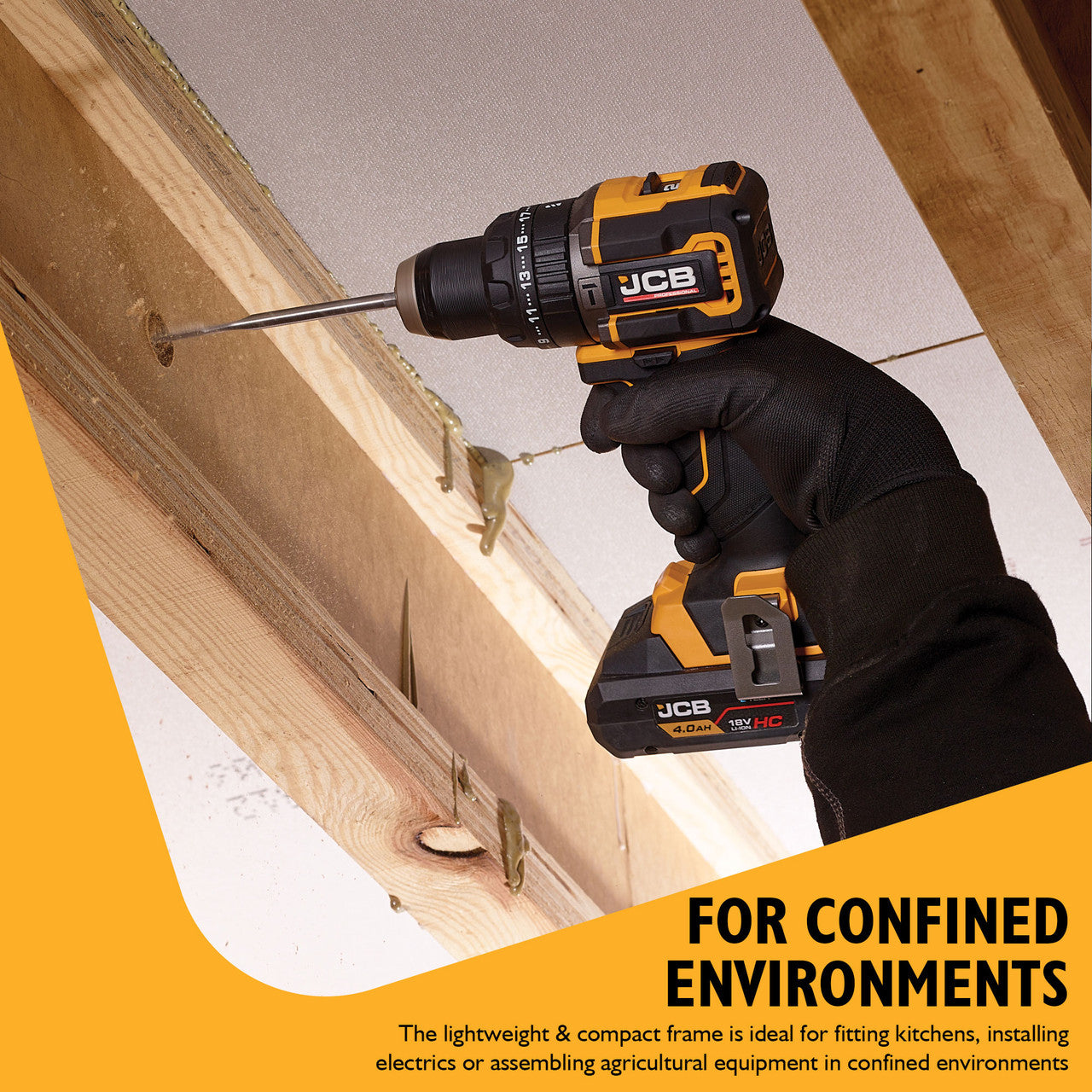

The JCB-18PCD-75 JCB Professional 18V Compact Combi Drill is built for tradespeople who demand pro-grade performance in tight or overhead spaces. Delivering an impressive 75Nm of torque from a lightweight, compact frame, this all-rounder is tailored for precision drilling, efficient screwdriving, and effective hammer action—without the bulk. Whether you’re fitting kitchens, installing electrics, or assembling agricultural equipment in confined environments, this drill offers outstanding control and durability where it counts.

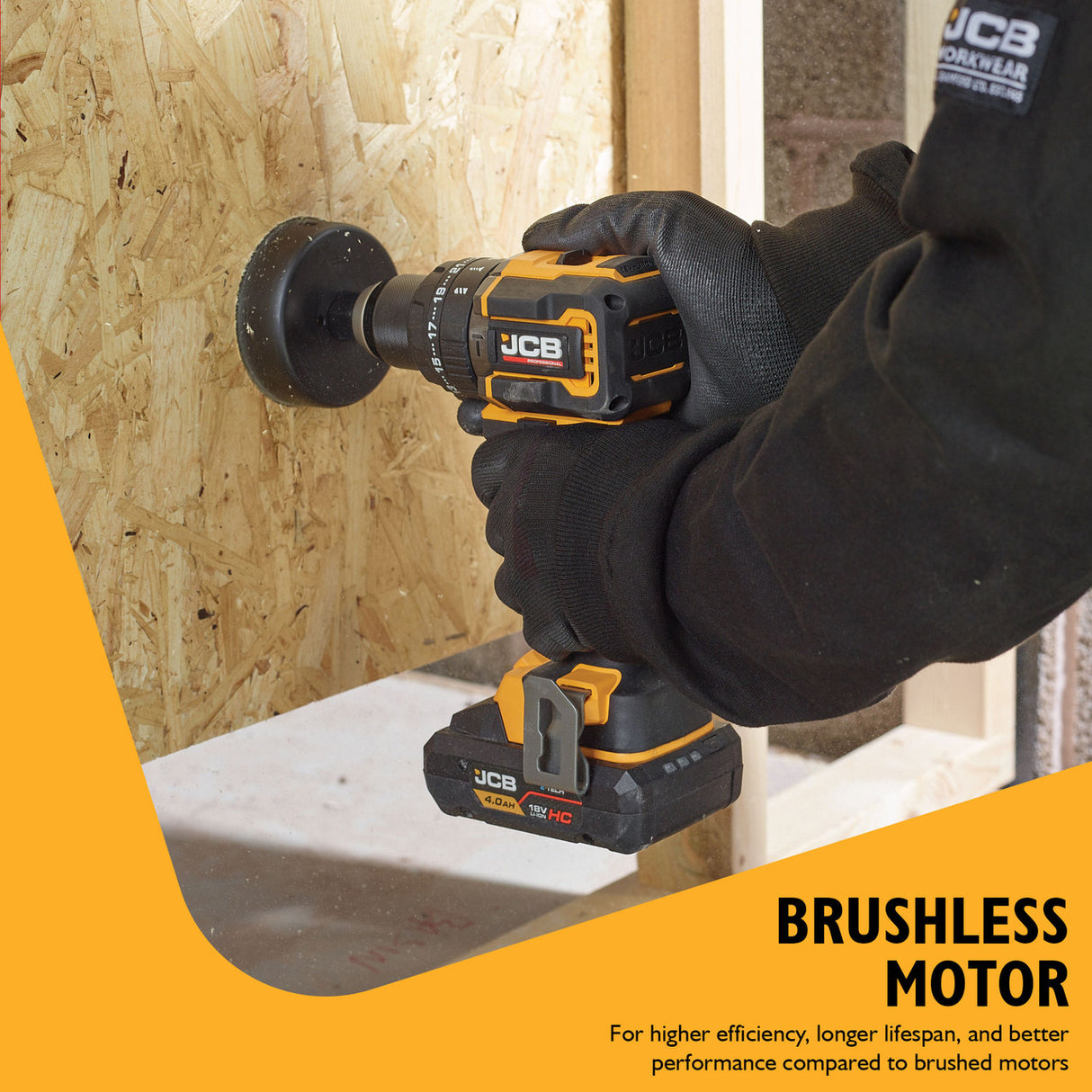

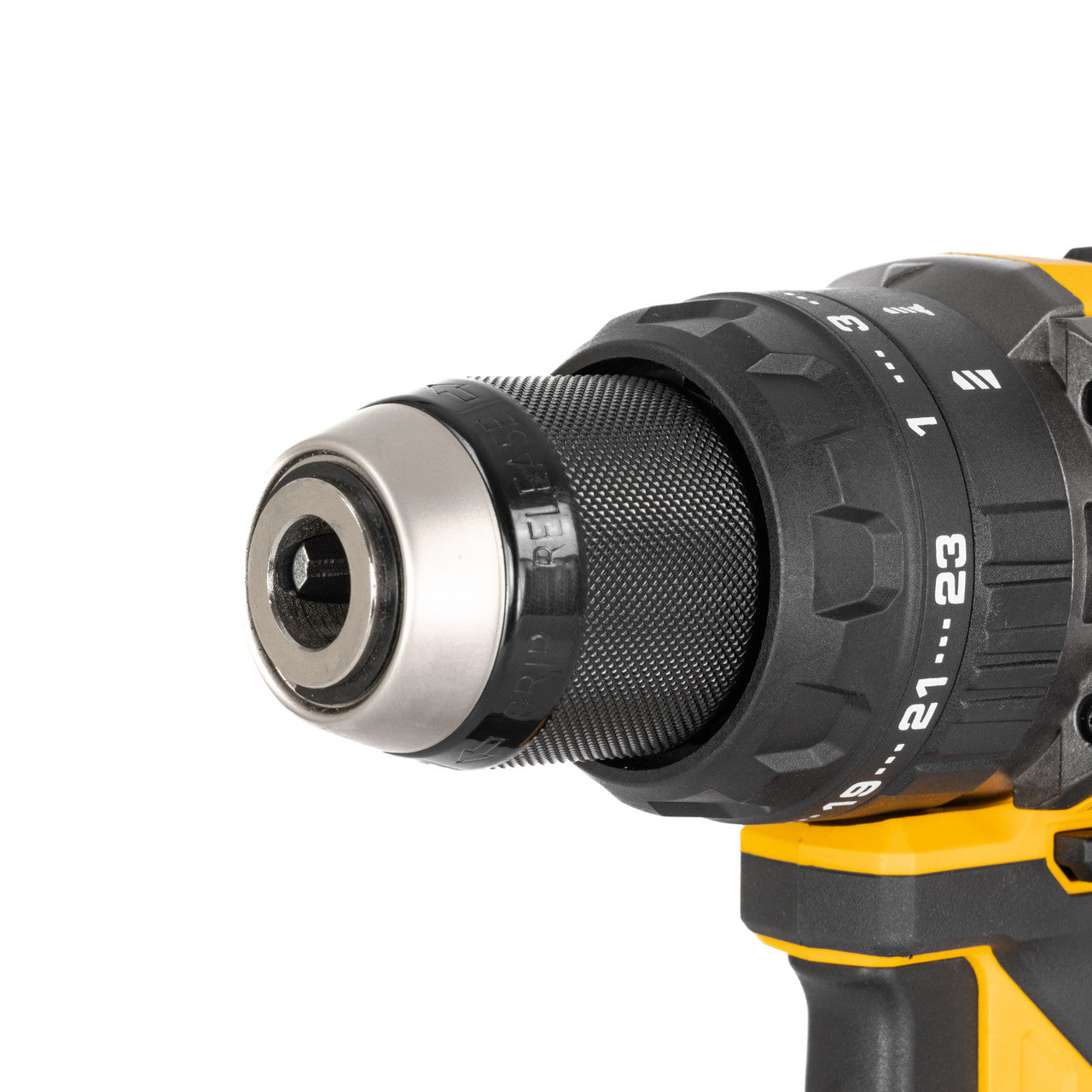

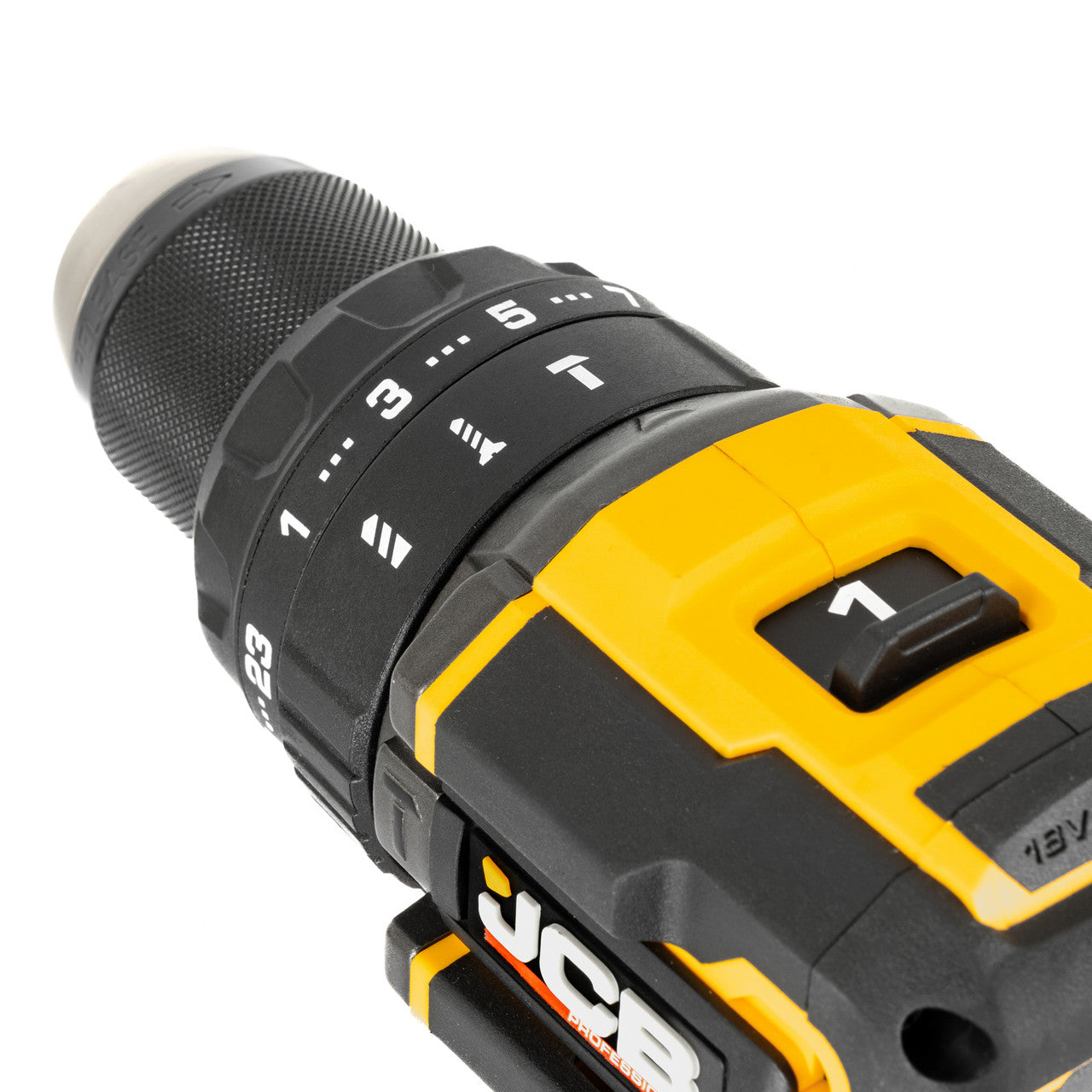

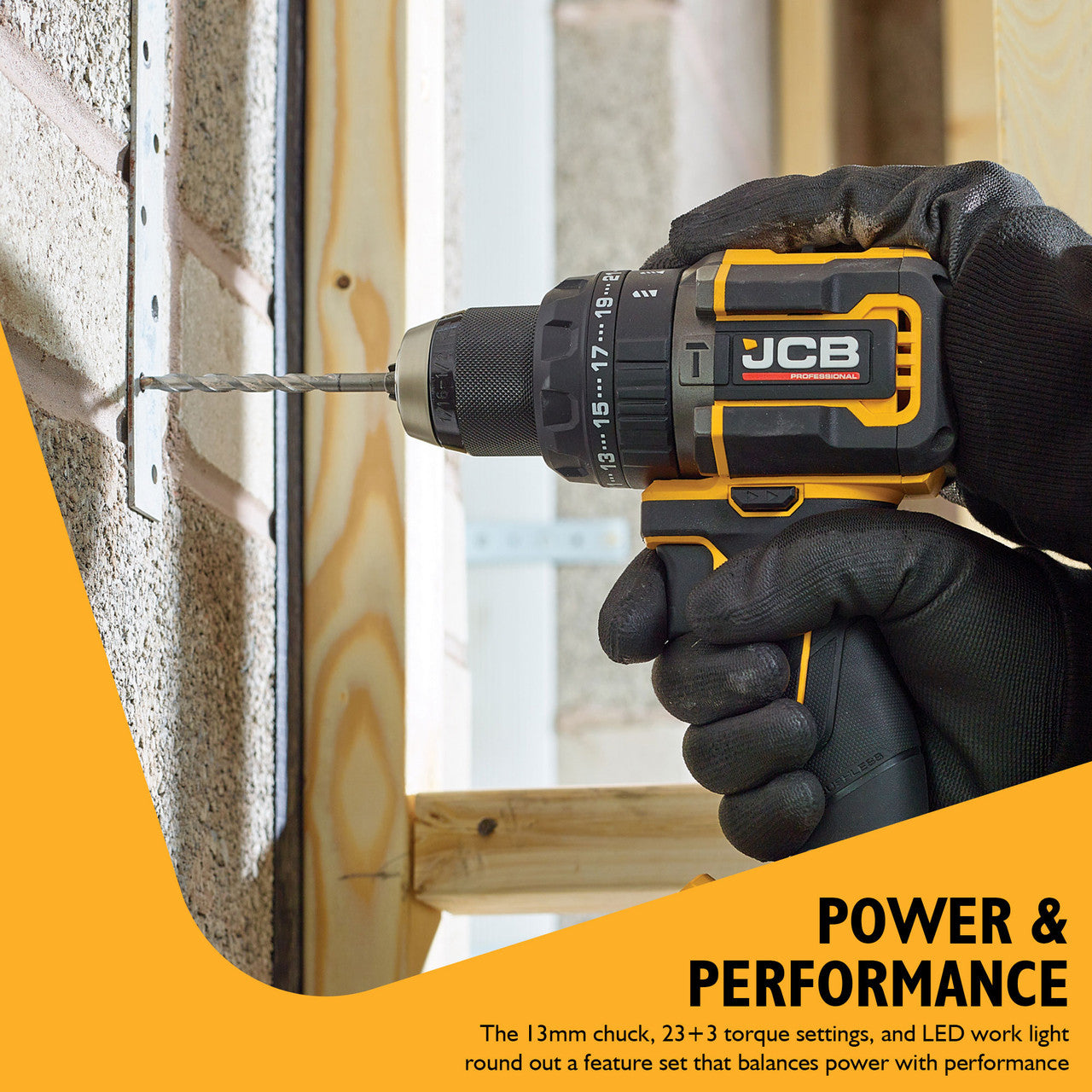

Dust-sealed electronics and a brushless motor ensure extended tool life, even in harsh working conditions. The integrated 13mm chuck, 23+3 torque settings, and LED work light round out a feature set that balances power with performance.
Ideal for electricians, plumbers, kitchen fitters, and trade users who value compact power without compromise.
Sold as Body Only – compatible with the full JCB 18V battery system
Specifications
| Model | JCB-18PCD-75 |
| Max Torque (NM) | 75 |
| Settings | 2 |
| Torque Settings | 25+3 (drill, screw, hammer) |

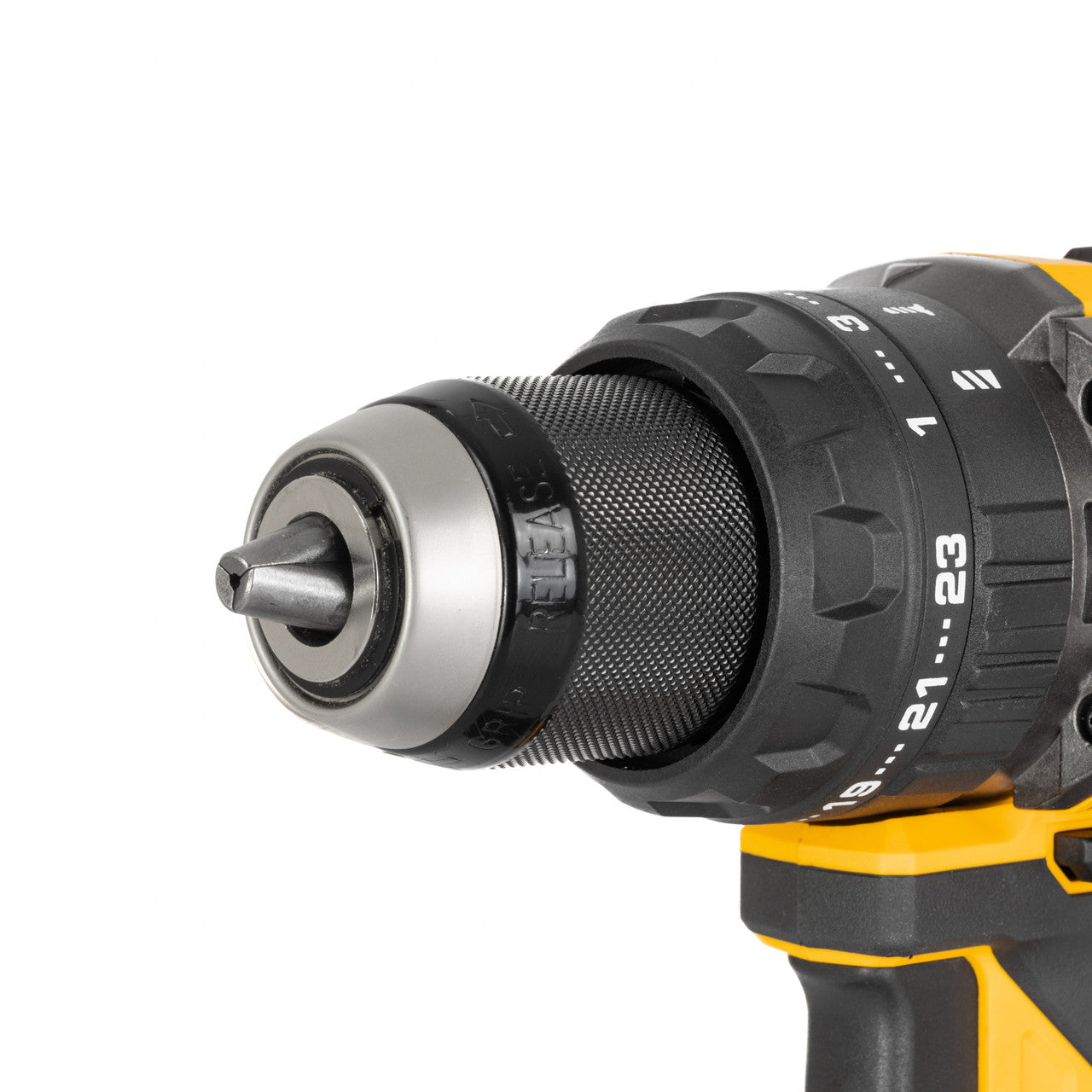

| Chuck Type | Metal Keyless |
| Chuck Capacity (inch / mm) | 1/2'' / 1.5-13mm |
| Dust Protected PCB | Yes |
| LED Light | - |

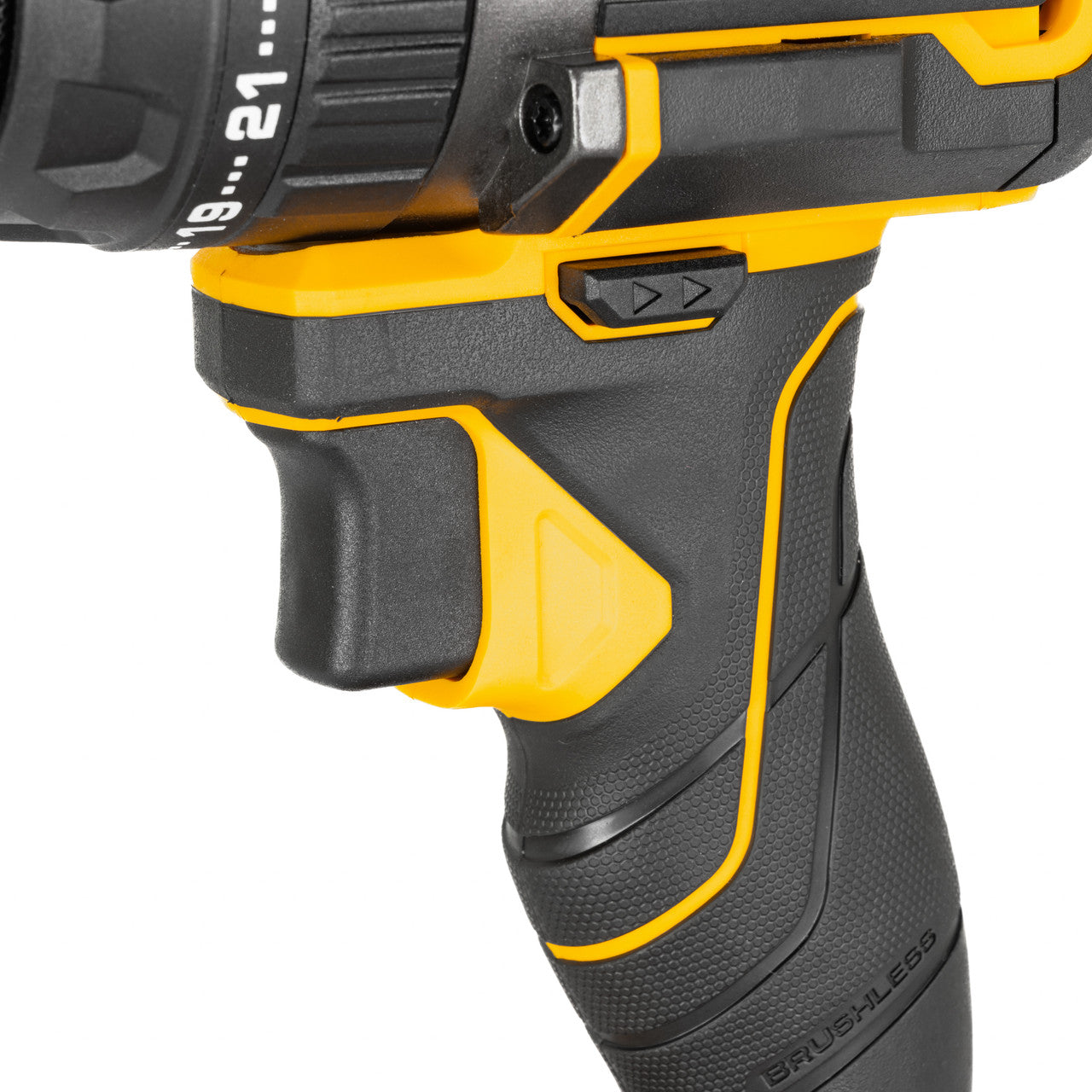

| Soft Grip | Yes |
| Variable Settings | Yes |
| Guard Type | - |
| No Load Speed (RPM) | 0 - 450 / 0-1900 |
| Impact Rate (BPM) | 0-8800/0-28800 |
| Max. Drilling Capacity (Wood) | 120mm |
| Max. Drilling Capacity (Steel) | 13mm |
| Max. Drilling Capacity (Masonry) | 13mm |
| Battery Type | Lithium-ion |
| Battery Voltage | 18v |
| Average Run Time (mins) | - |
| Charging Time (mins approx.) | - |
| Motor Type | Brushless |
| Sound Level (dB) | 93 |
| Sound Power Level (dB) | 101 |
| Auxiliary Side Handle | - |
| Vibration Level | 8.2 m/s² (Concrete) 1.9 m/s² (Metal) |
| Product Dimensions no battery (H x W x L) (mm) | 210 x 145 x 65 |
| Package Dimensions (H x W x L) (mm) | 248 x 168 x 97 |
| Fuel/Power Source | Battery-Powered |
| Product Type | Combi drill |
| Warranty (Years) | 3 |
| Charger Included | No |
| Voltage | 18 |
| Net Weight (kg) | 1.2 |
| Gross Weight (kg) | 1.3 |
| Tool Range | JCB Pro Tools |
What's in the Box
- 1 x 18v Professional 75Nm Compact Brushless Combi Drill (Body Only)

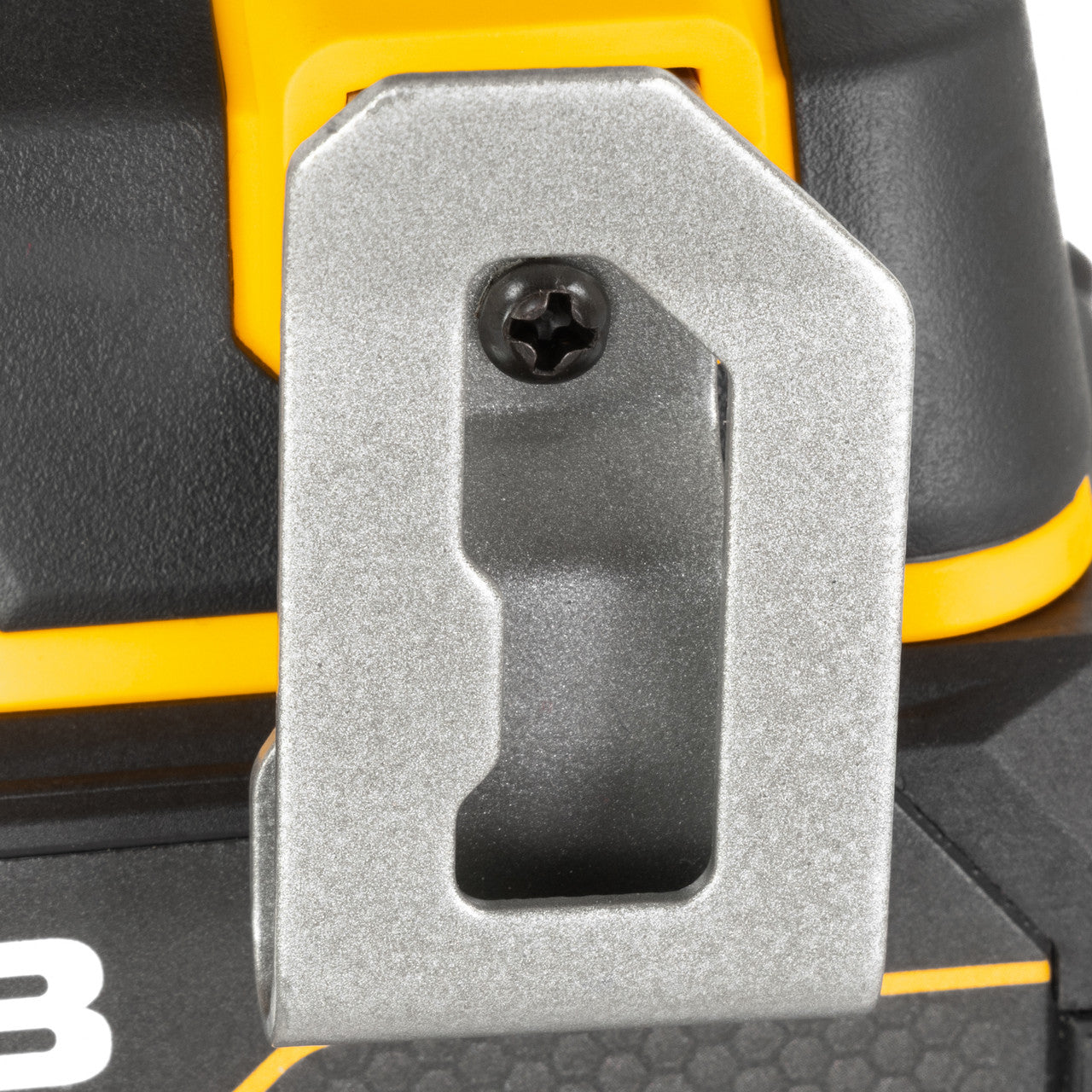

- 1x Belt clip
