Product Details
Description

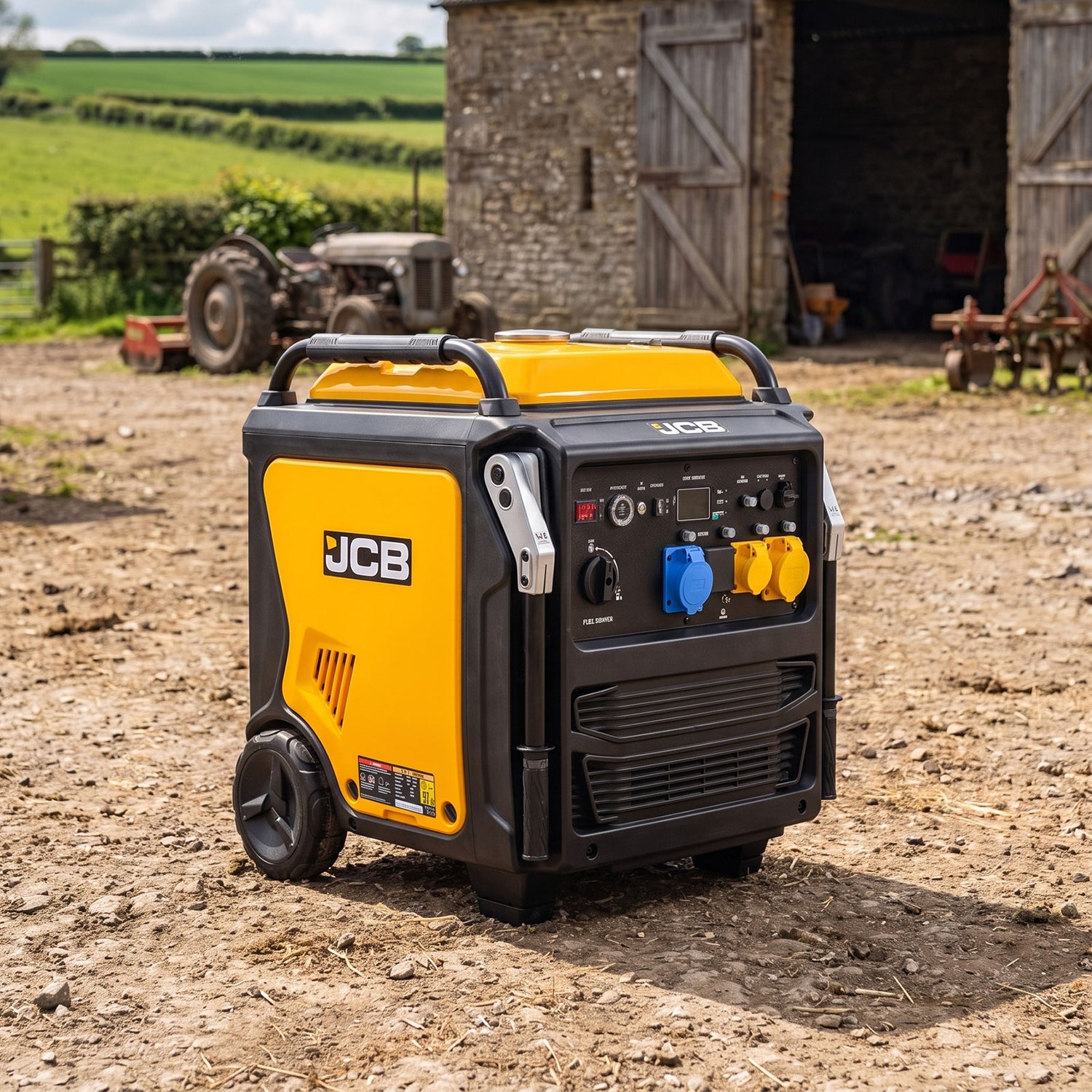

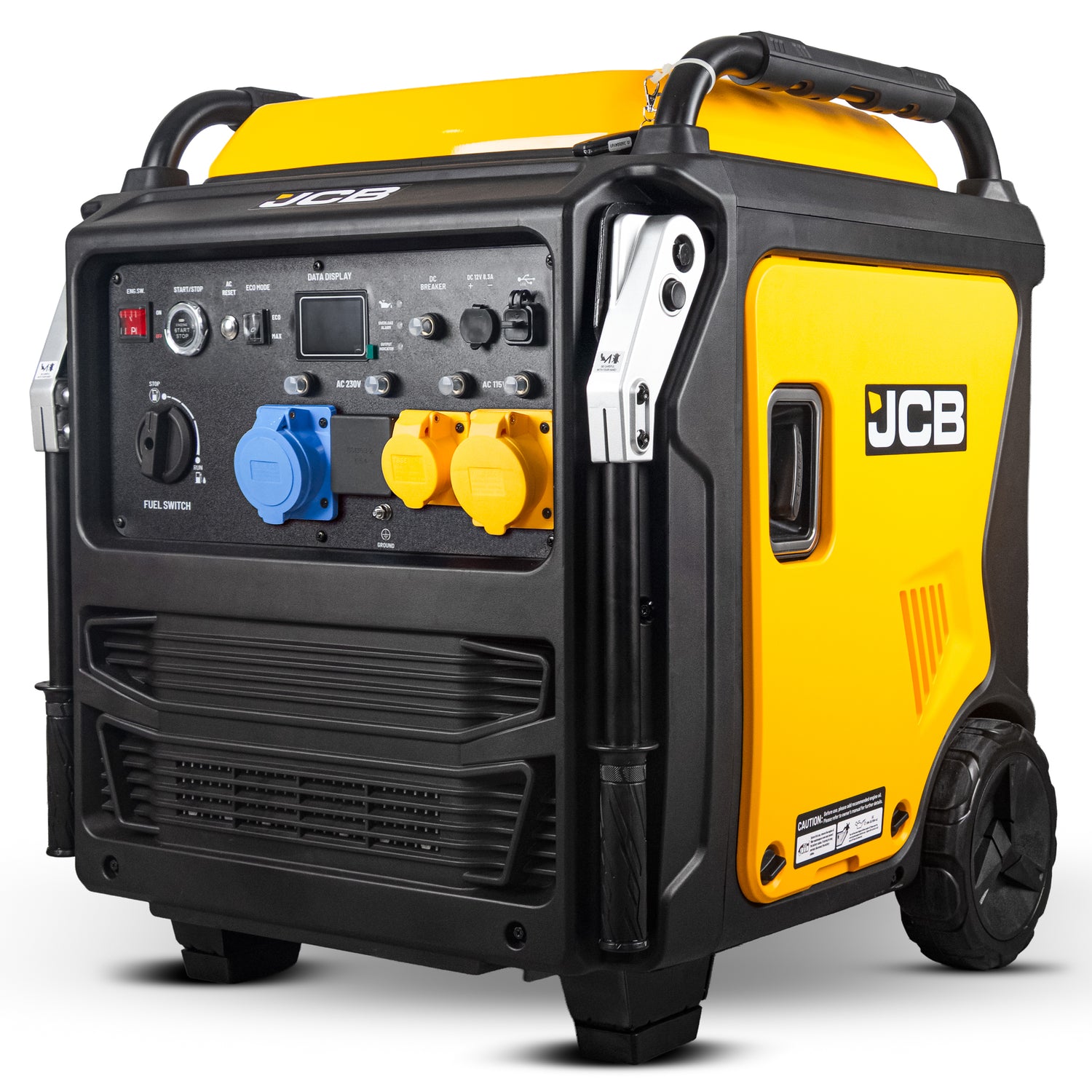

The JCB-IG12000DVE is a wheeled dual-voltage petrol inverter generator for lighting, events and compatible temporary equipment operating at 110V/115V or 230V. It delivers 11,000W maximum and 10,000W continuous pure sine wave output through verified 115V and 230V sockets, with electric, recoil and remote start.

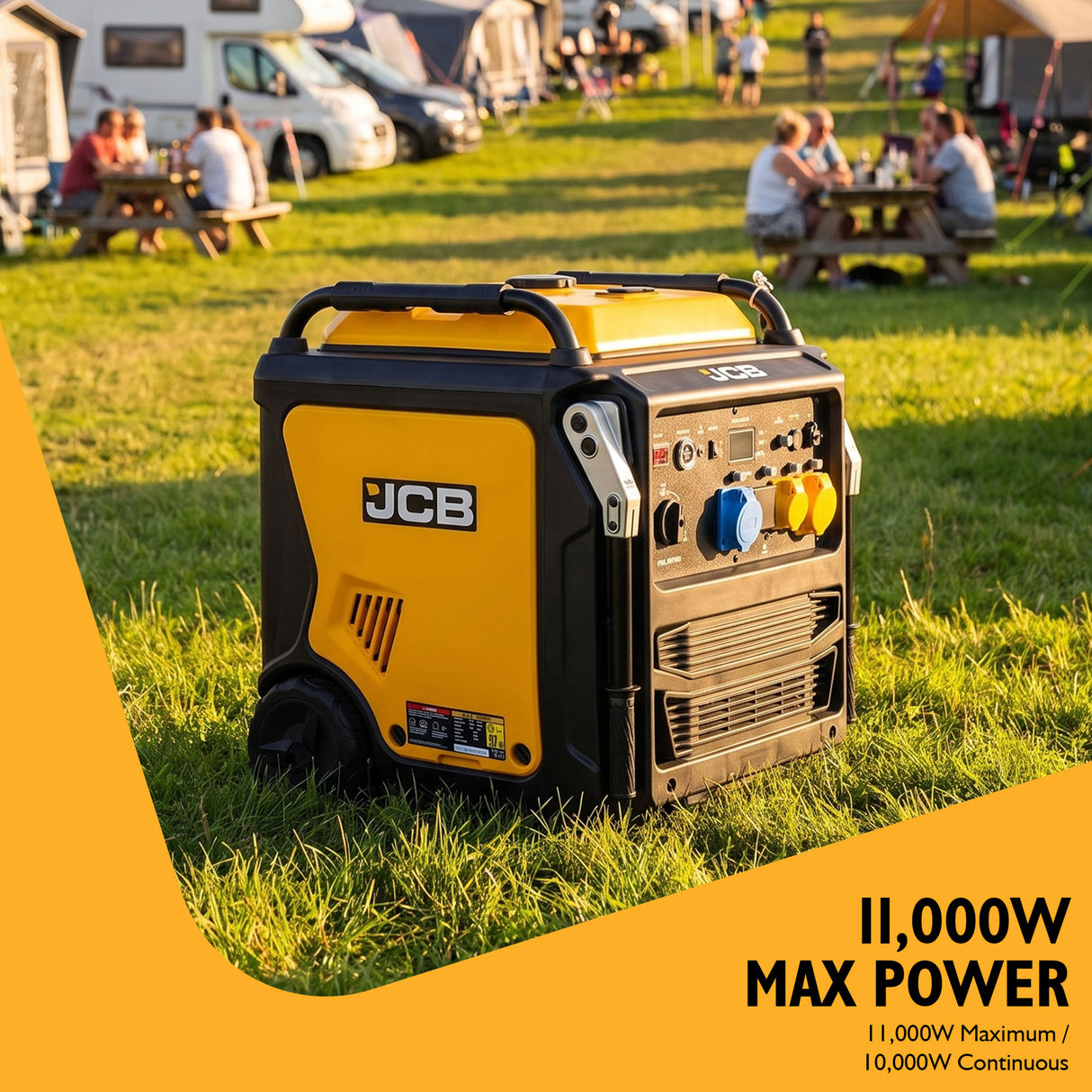

11,000W Maximum Dual-Voltage Output

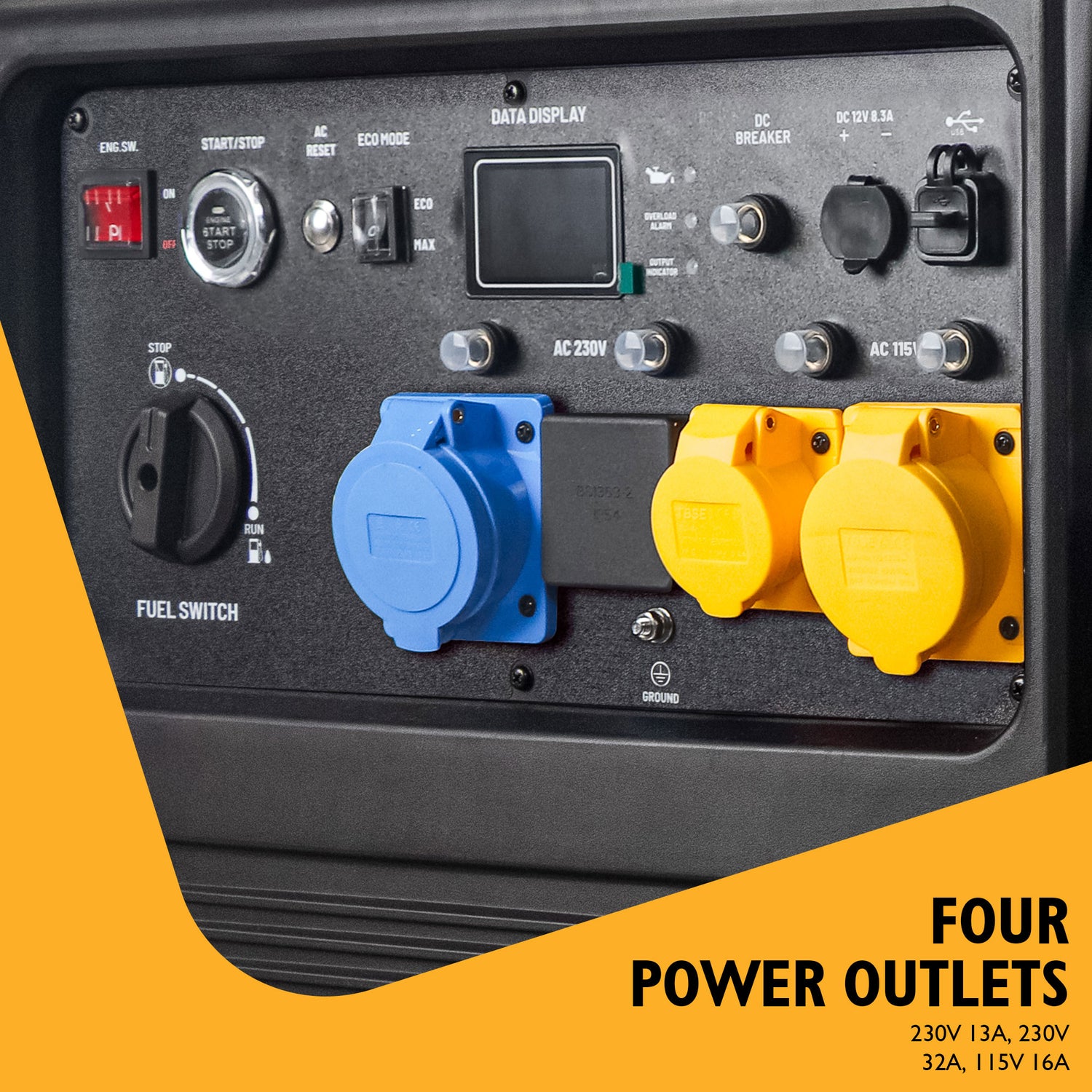

The JCB-IG12000DVE provides 11,000W maximum and 10,000W continuous output for compatible 115V and 230V equipment. Four confirmed AC outlets cover 13A and 32A connections across the two voltage options.
Pure Sine Wave Power with THD ≤3%
Clean pure sine wave inverter output with total harmonic distortion of 3% or less supports compatible event, lighting and temporary equipment with sensitive electronics.
Remote Start, Wheeled Mobility and LCD Information

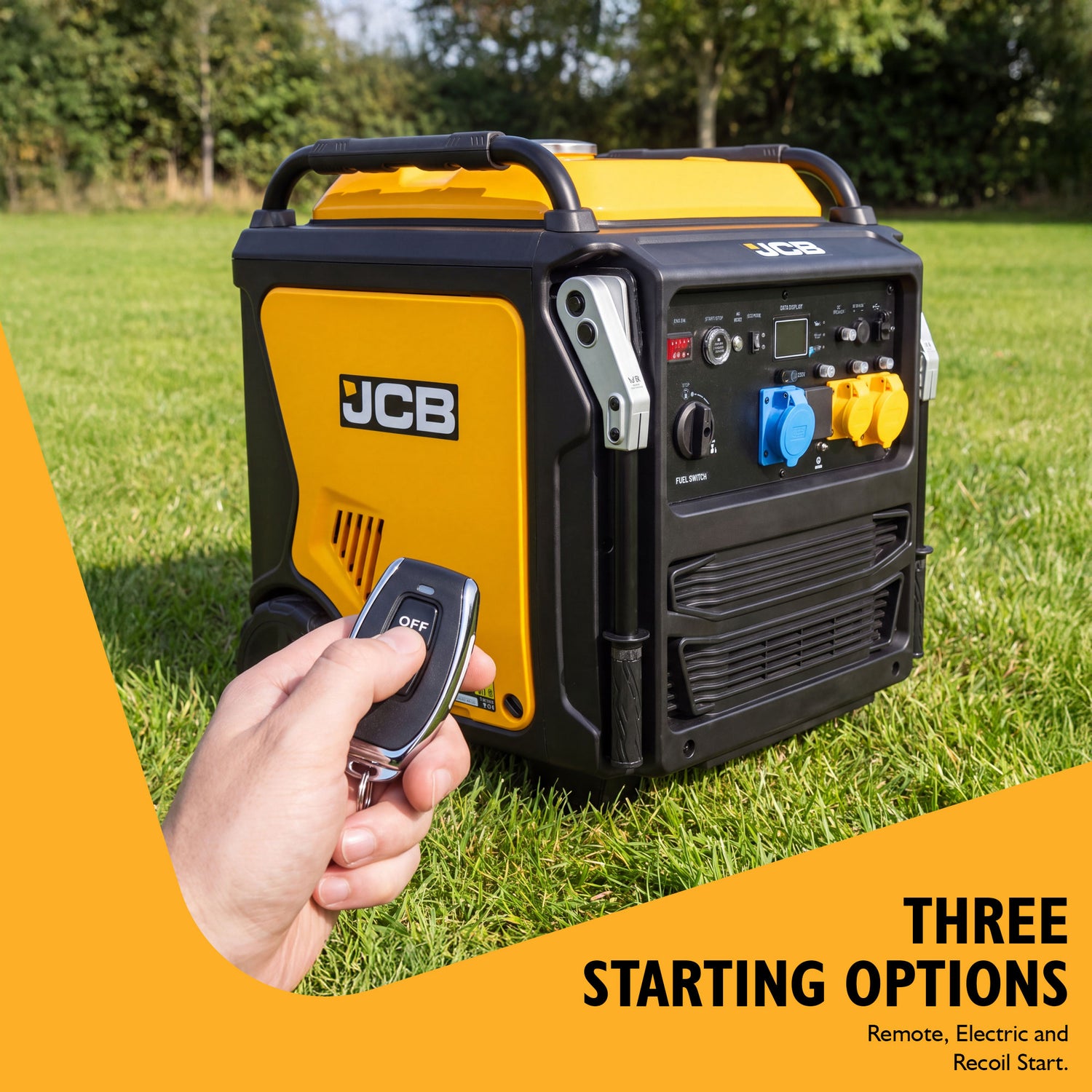

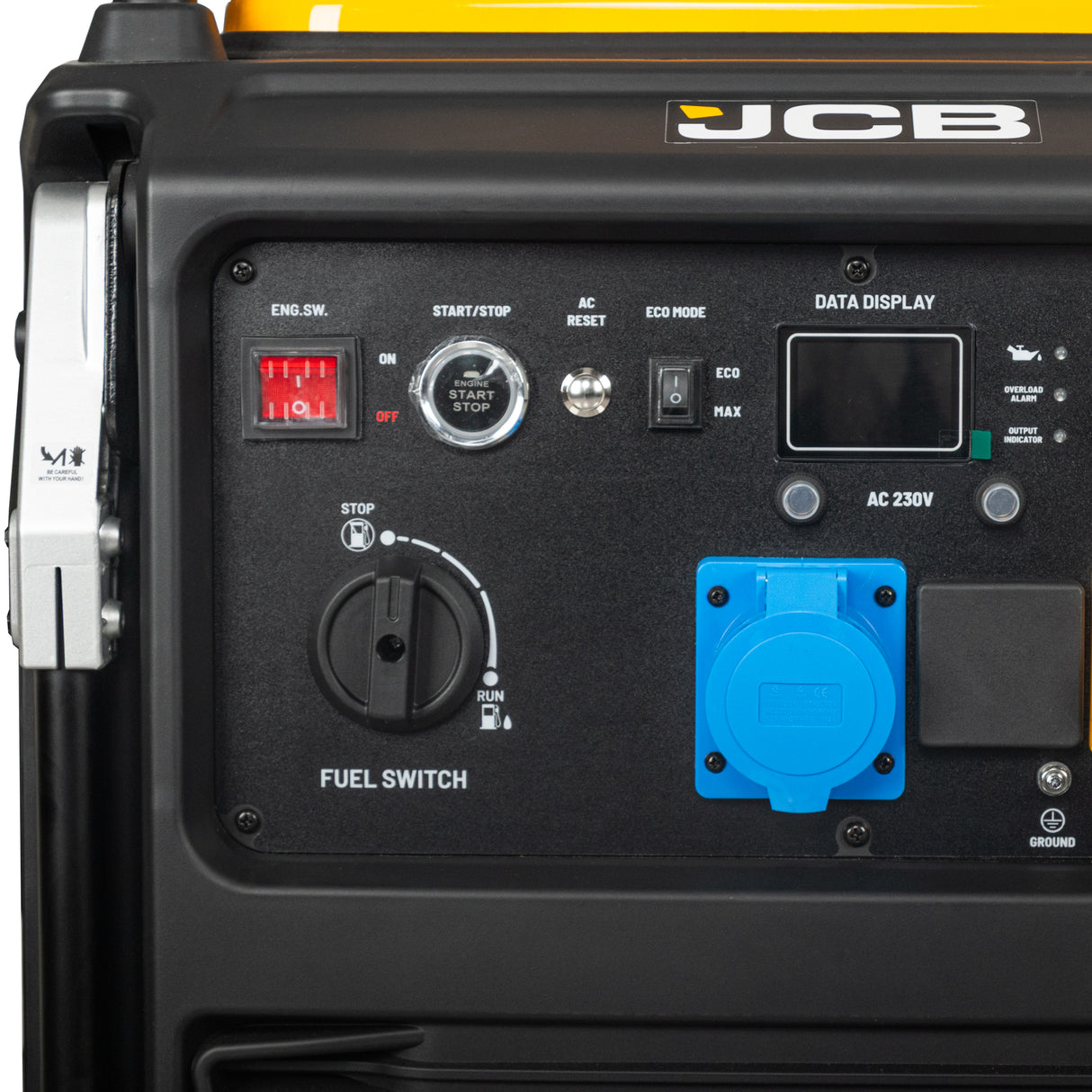

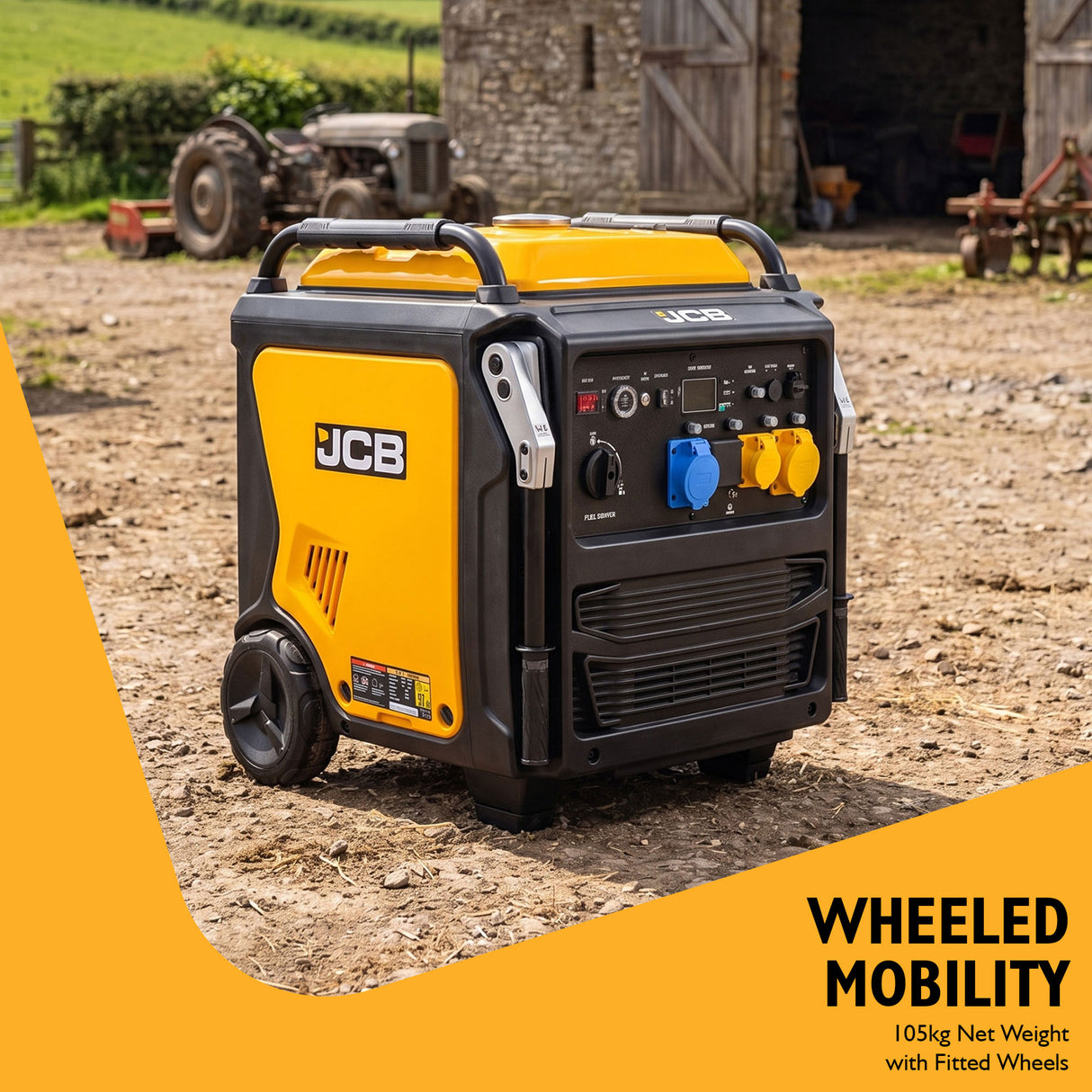

Remote key-fob, electric and recoil starting provide three ways to operate the generator. The fitted wheel kit supports movement of the 105kg unit, while the current LCD shows voltage, current, frequency, power, power percentage and total/session running time.
Carbon Monoxide Warning
Use this generator outdoors only, well away from doors, windows and vents. Never run it inside or in a partly enclosed space, including a house, garage, shed, tent, caravan, motorhome, large vehicle or site cabin, even with doors or windows open. Fit a separate, working battery-powered carbon monoxide alarm inside any nearby enclosed occupied space as an additional safeguard. An alarm does not make indoor or enclosed use safe.
Support, Warranty and Range
UK-based service and parts support is available. Warranty cover varies by use, with up to 3 years/1,000 hours for residential use, 1 year for commercial use and 90 days for hire; inverter/circuit boards carry 2 years. Check the full warranty terms and compare other models in the JCB Tools generator range.
Specifications
| Model | JCB-IG12000DVE |
| Maximum output | 11,000W |
| Continuous/rated output | 10,000W |
| Supply | 115V / 230V, 50Hz, single phase |

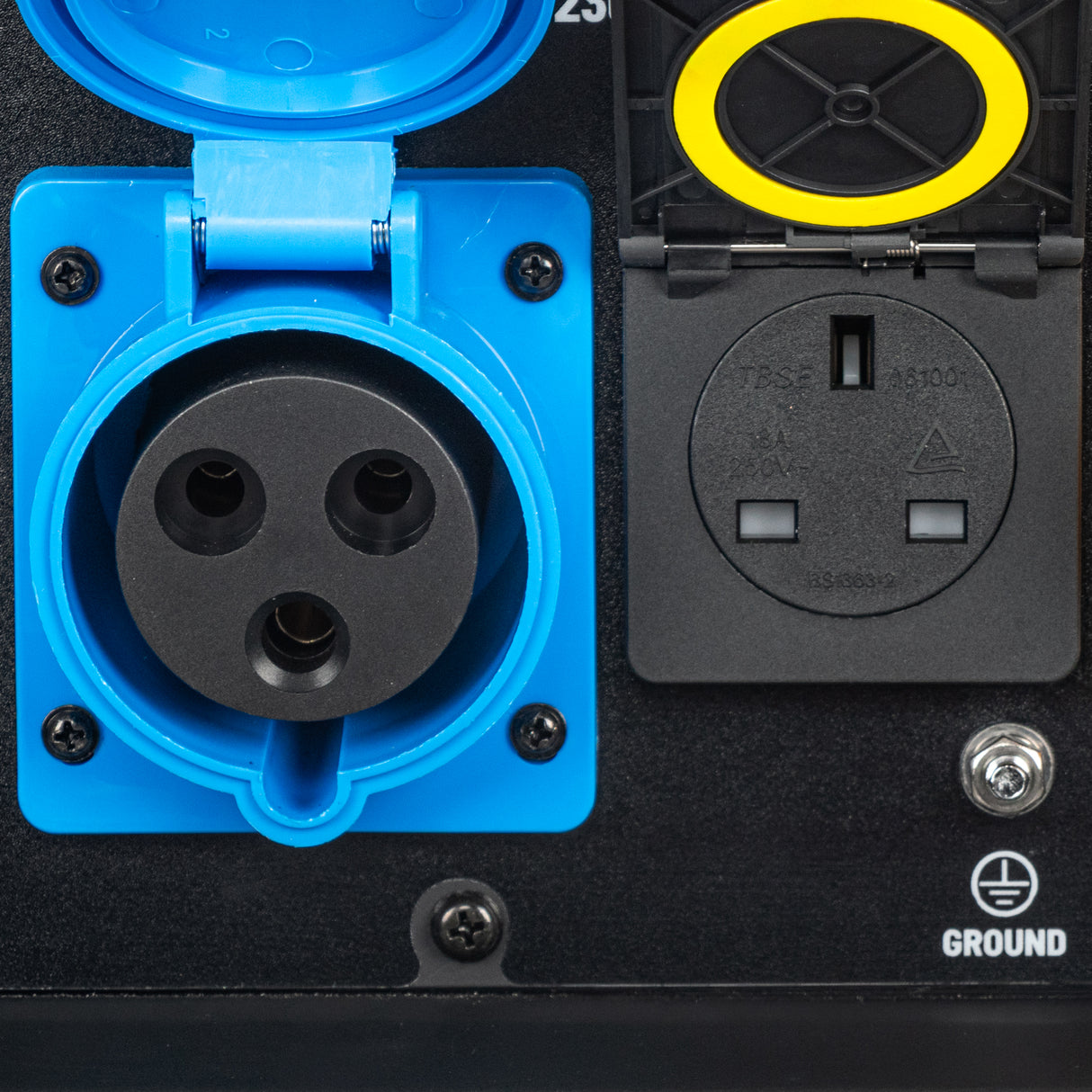

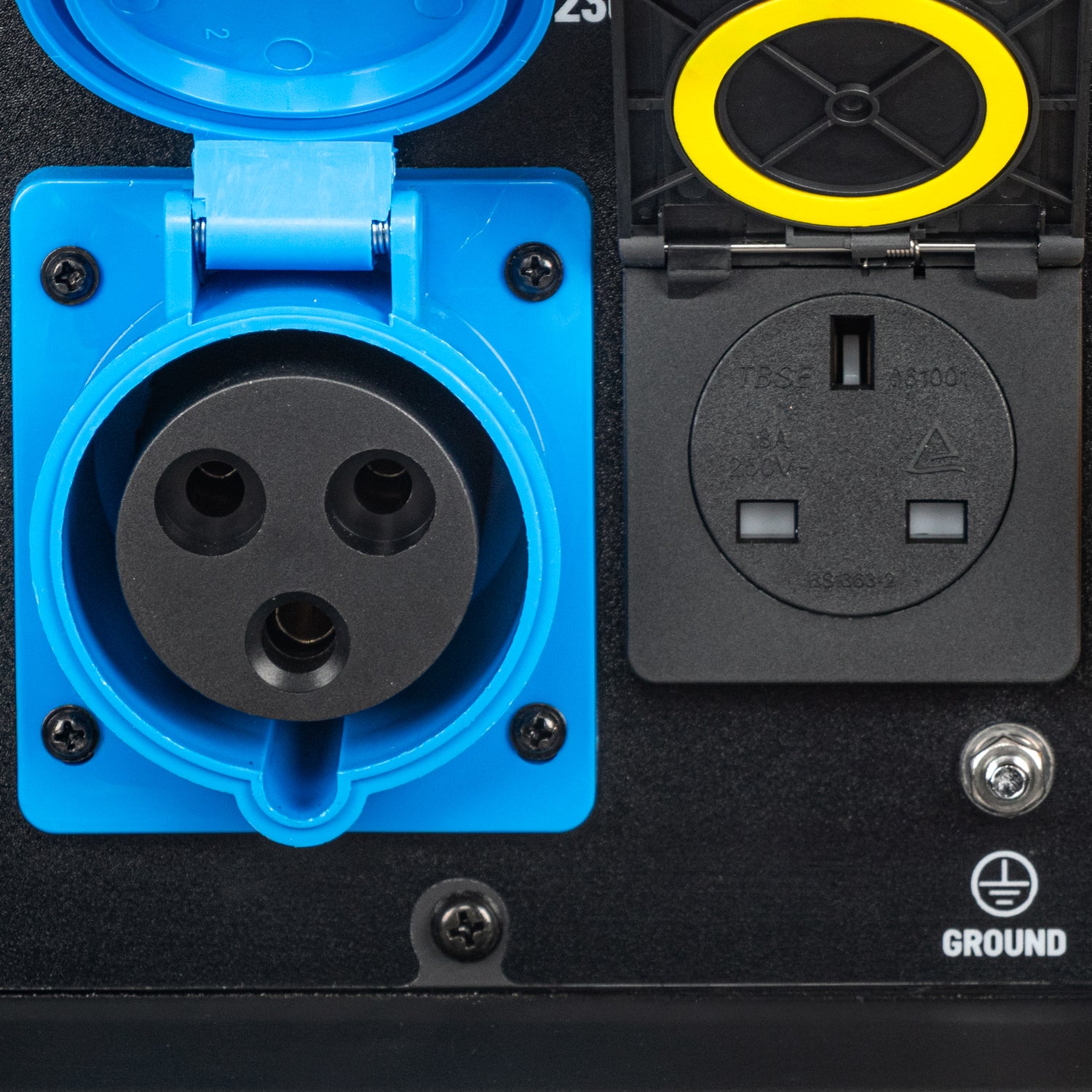

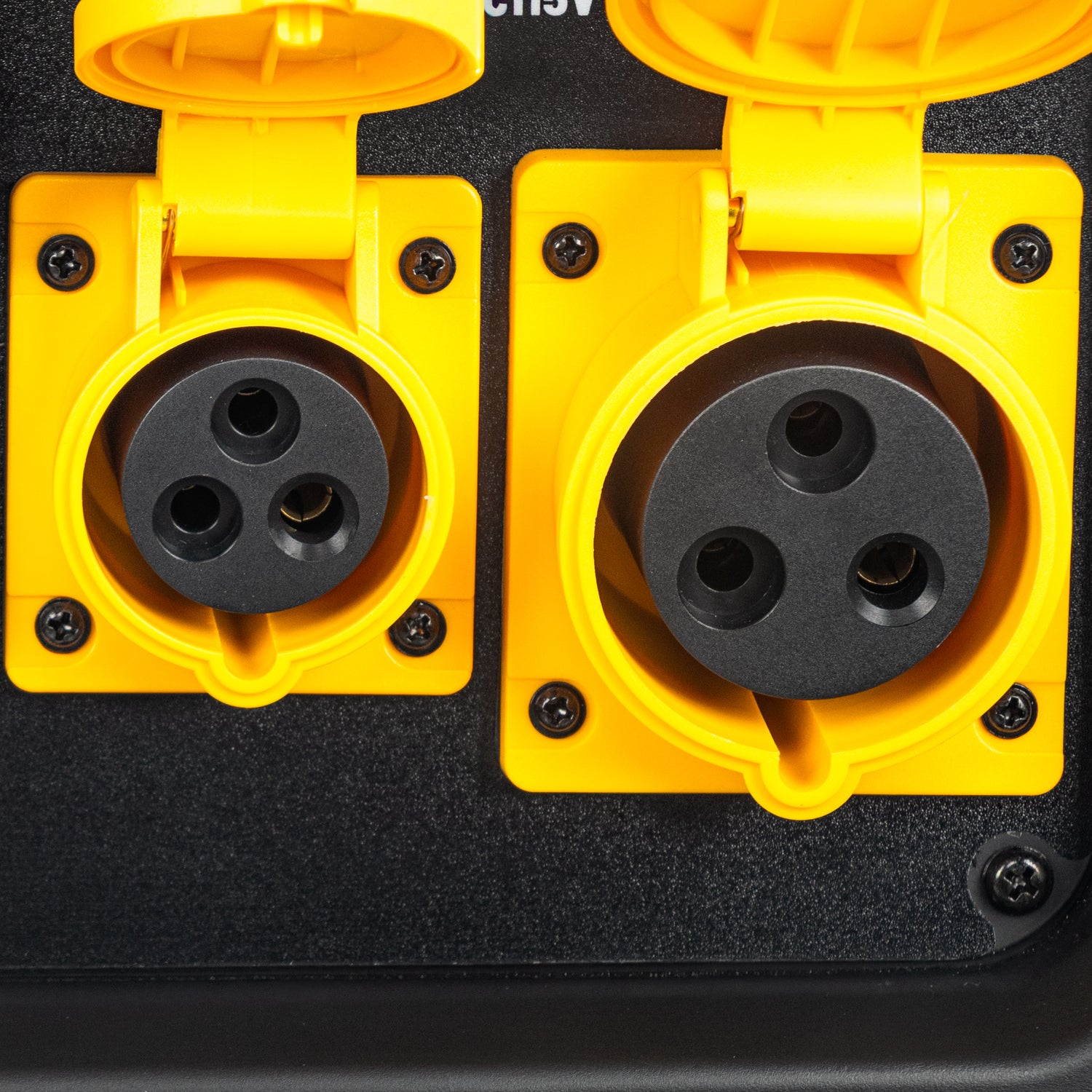

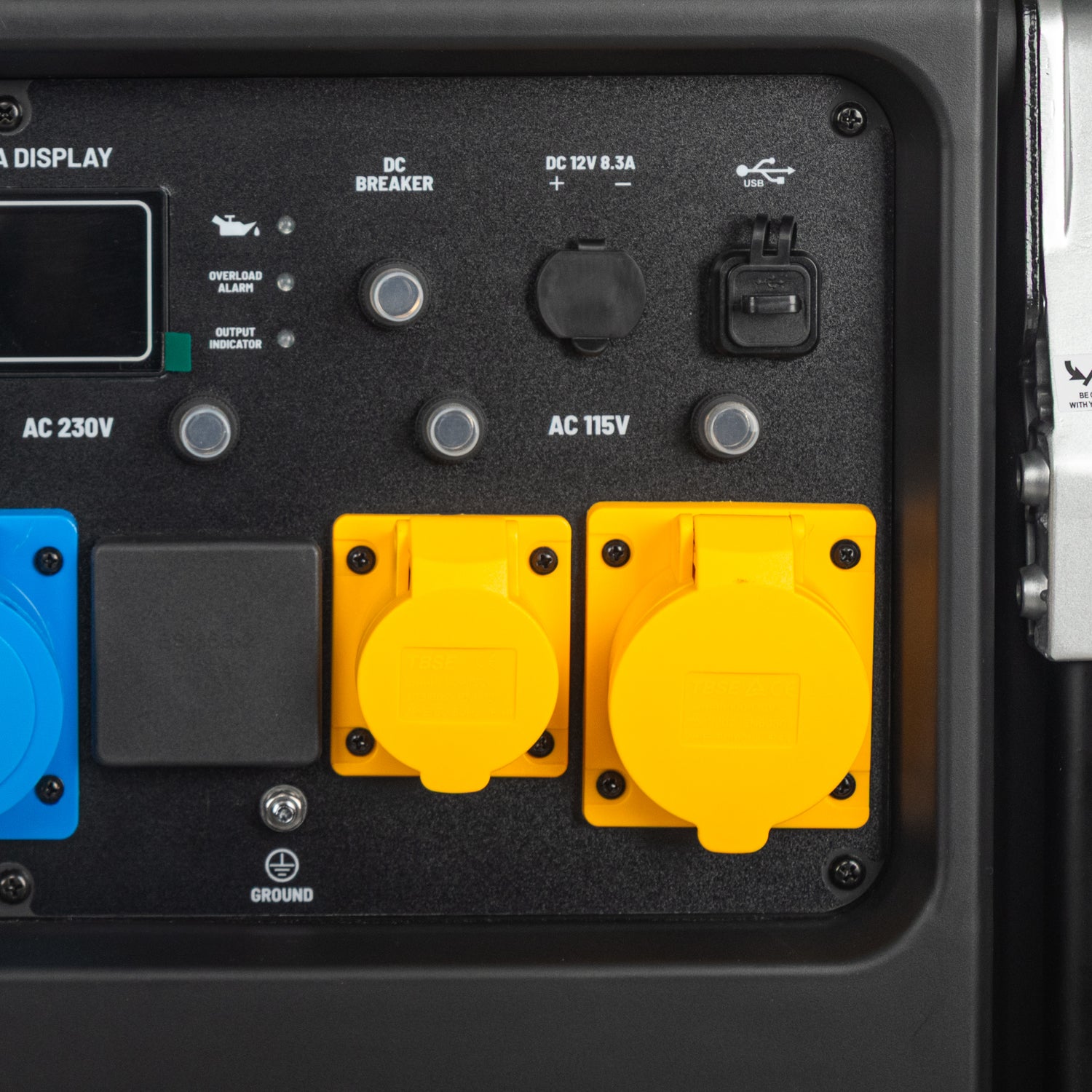

| AC sockets | 1 x 230V 13A BS, 1 x 230V 32A industrial blue, 1 x 115V 16A industrial yellow and 1 x 115V 32A industrial yellow |
| Output type | Clean pure sine wave inverter, THD ≤3% |
| Start | Electric start with lithium-ion starter battery, recoil backup and remote key-fob start/stop |

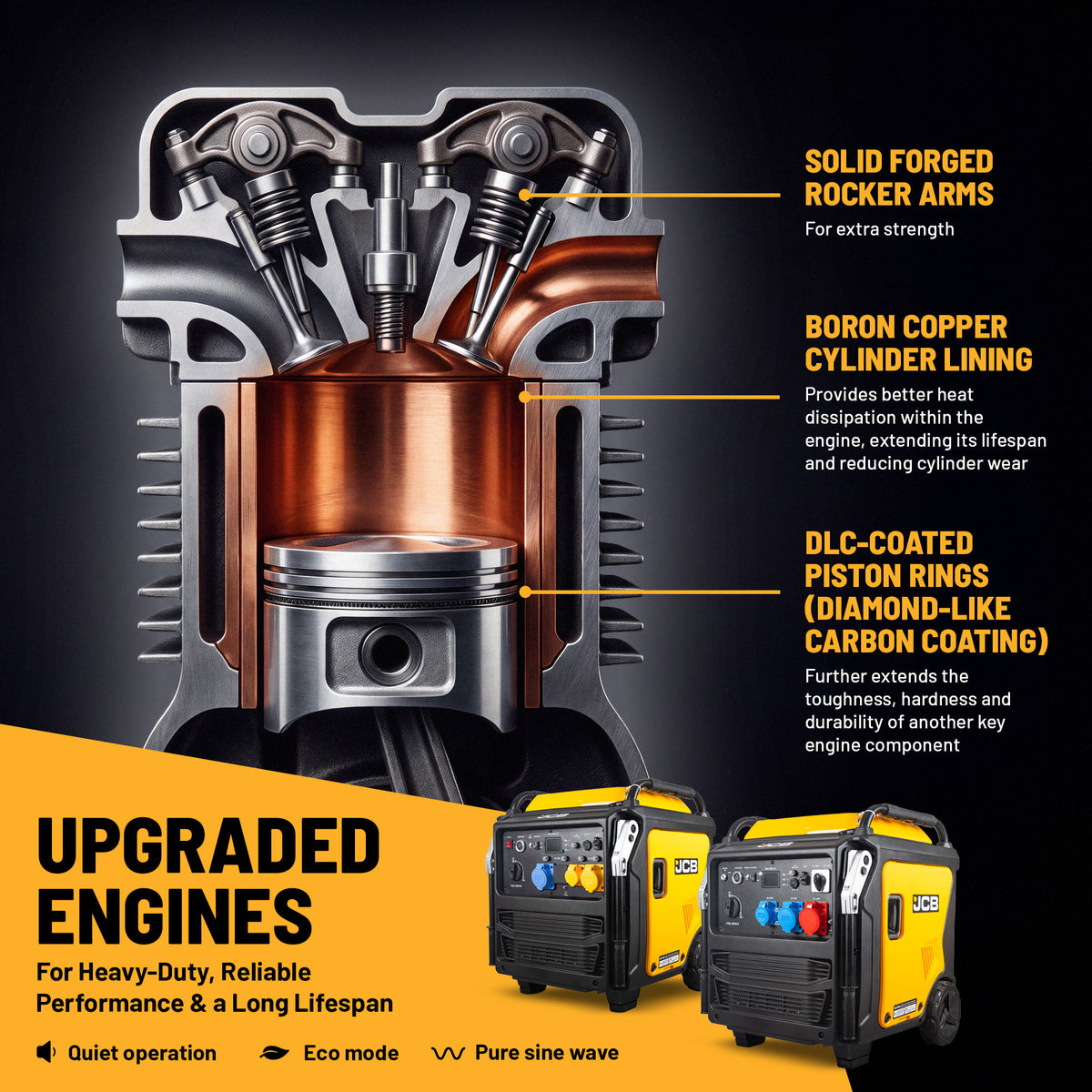

| Engine | 550cc single-cylinder, 4-stroke OHV petrol |
| Engine speed | 3600rpm |
| Fuel | Unleaded petrol; 32L tank; calculated fuel consumption of 0.70L/h at 10% load |
| Engine oil | 1.4L; SAE 10W-30 |
| DC and USB outputs | 12V/8A, USB and USB-C |
| Noise | 60 dB(A) at 10% load from 7m; 61 dB(A) at 25% load from 7m |
| Dimensions (L x W x H) | 680 x 670 x 770mm |
| Net weight and mobility | 105kg; wheel kit fitted as standard |
| Controls and display | Eco mode; display shows voltage, current, frequency, power, power percentage, total accumulated running time and session running time; separate operation, overload and low-oil indicators; automatic overload protection and low-oil shut-off |
| Package Dimensions (H x W x L) (mm) | 725 × 675 × 880 mm |
What's in the Box
- JCB-IG12000DVE inverter generator
- Pre-fitted wheel kit
- Pre-fitted lithium-ion starter battery
- Remote key
- Spark plug socket
- Funnel
- Screwdriver
- DC power cable
- Instruction manual
