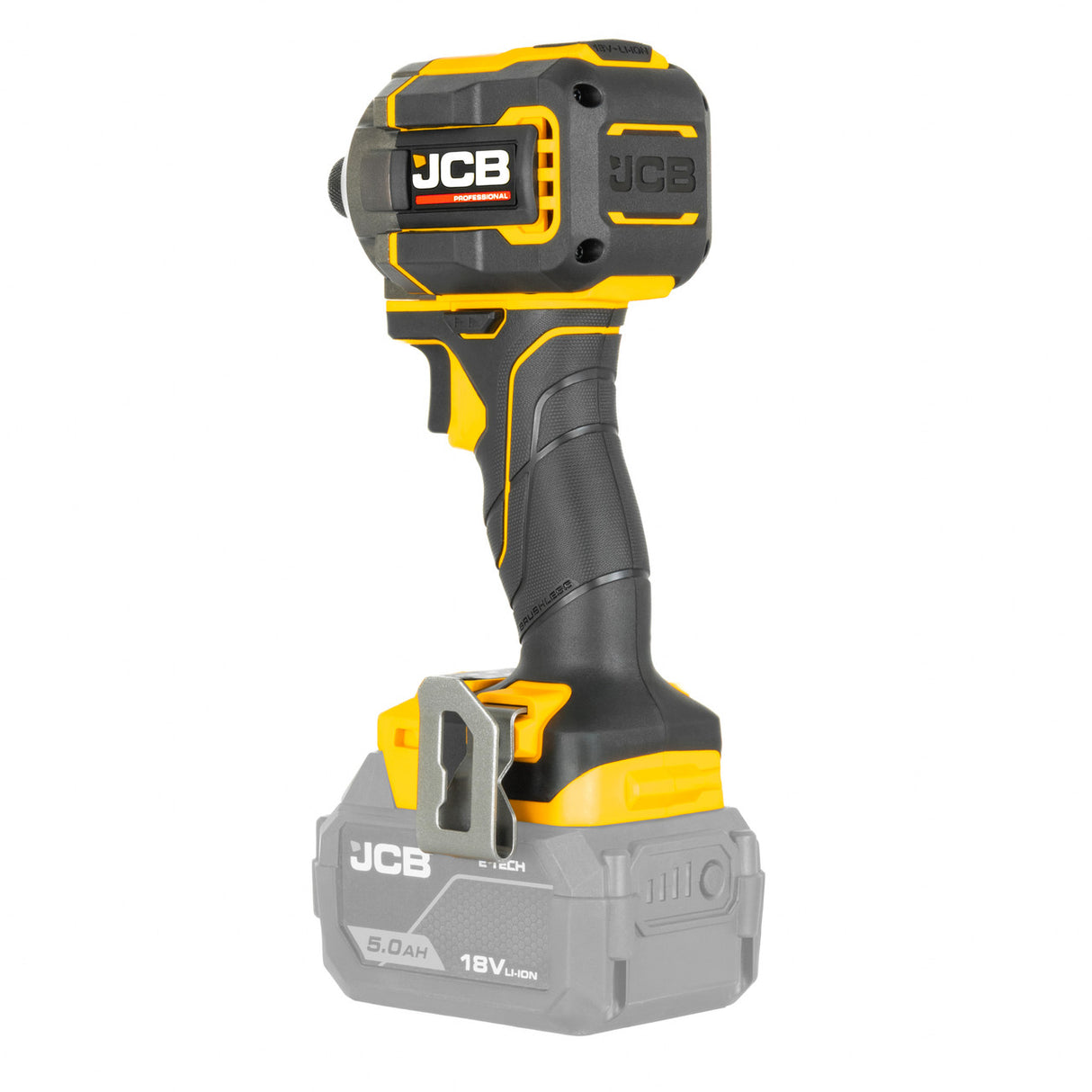

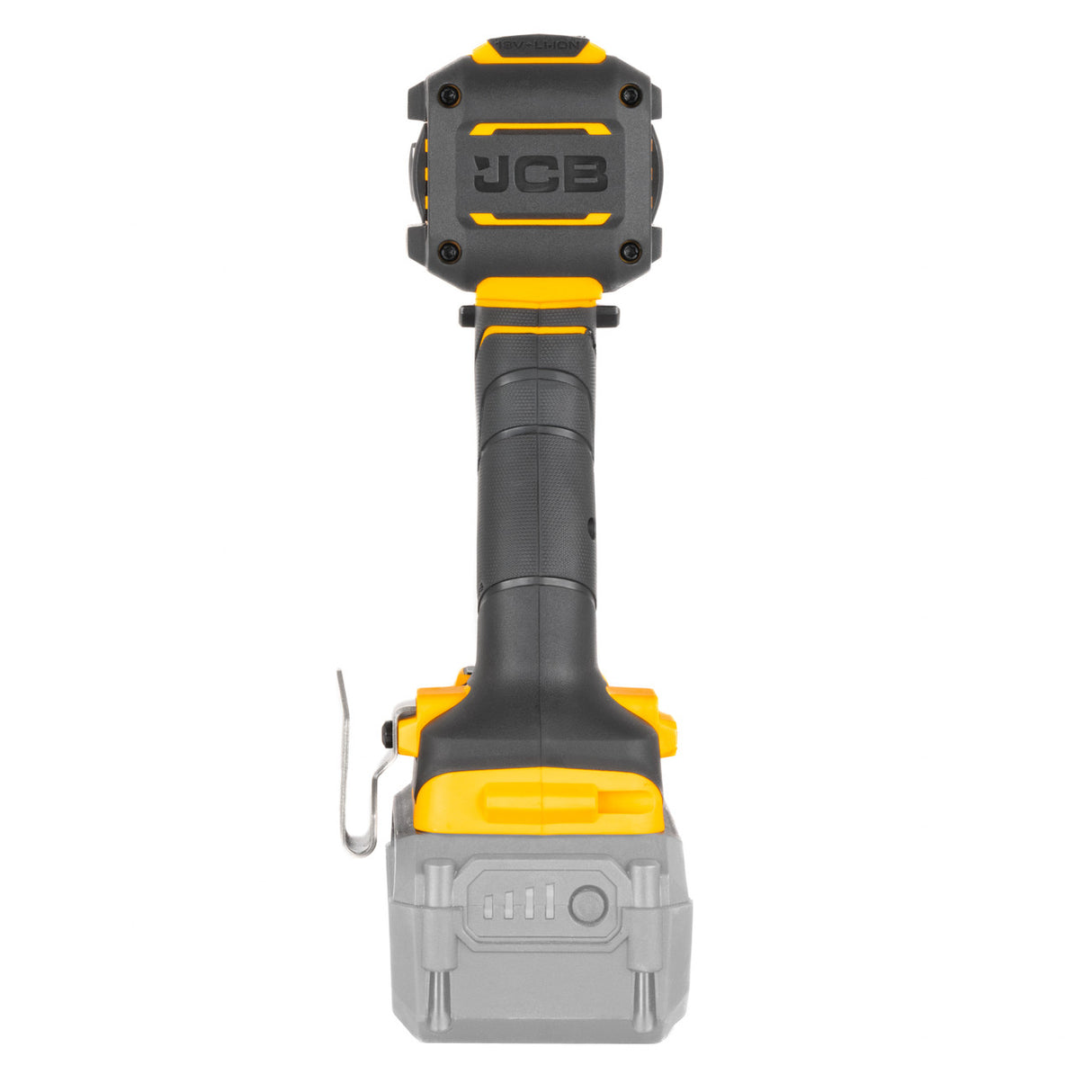

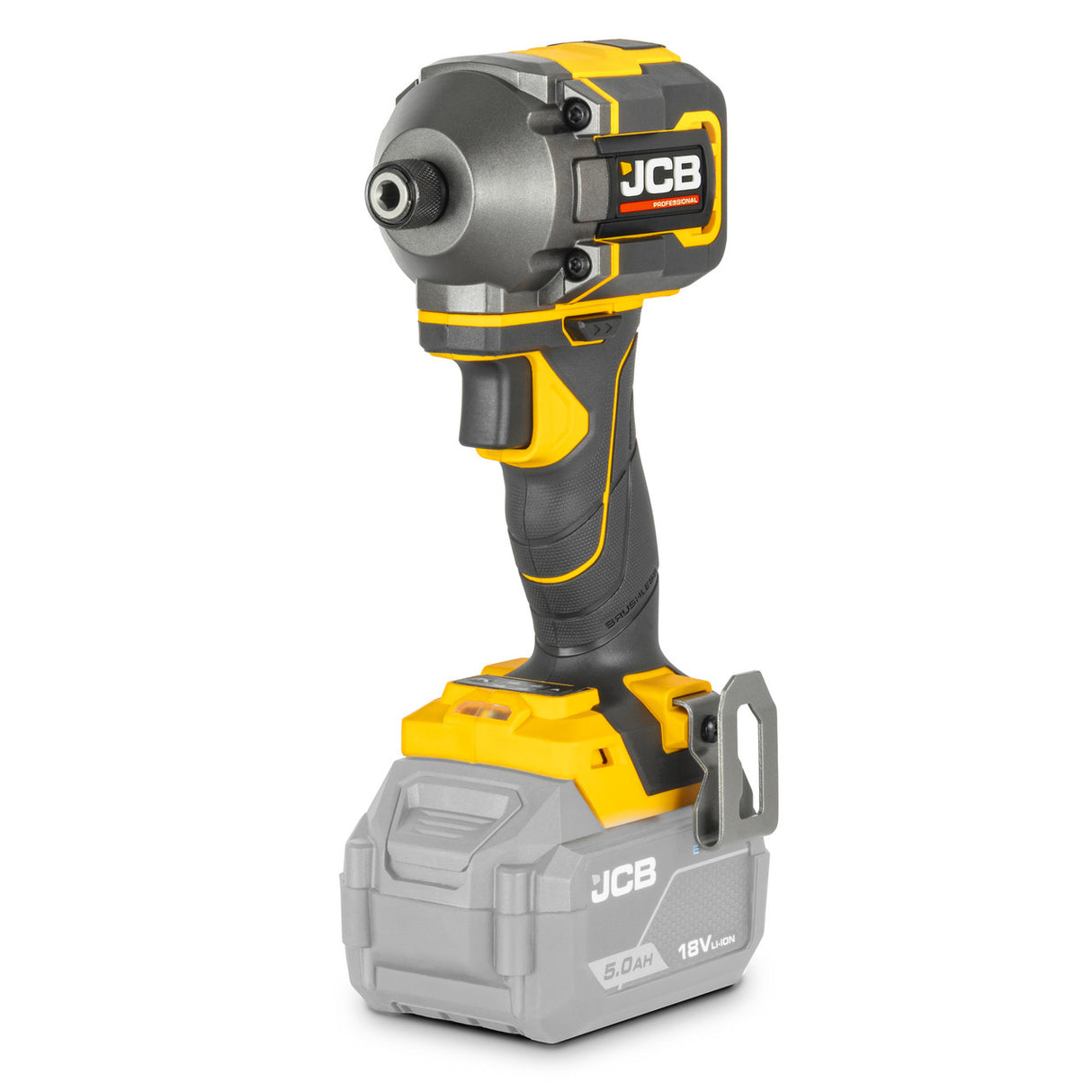

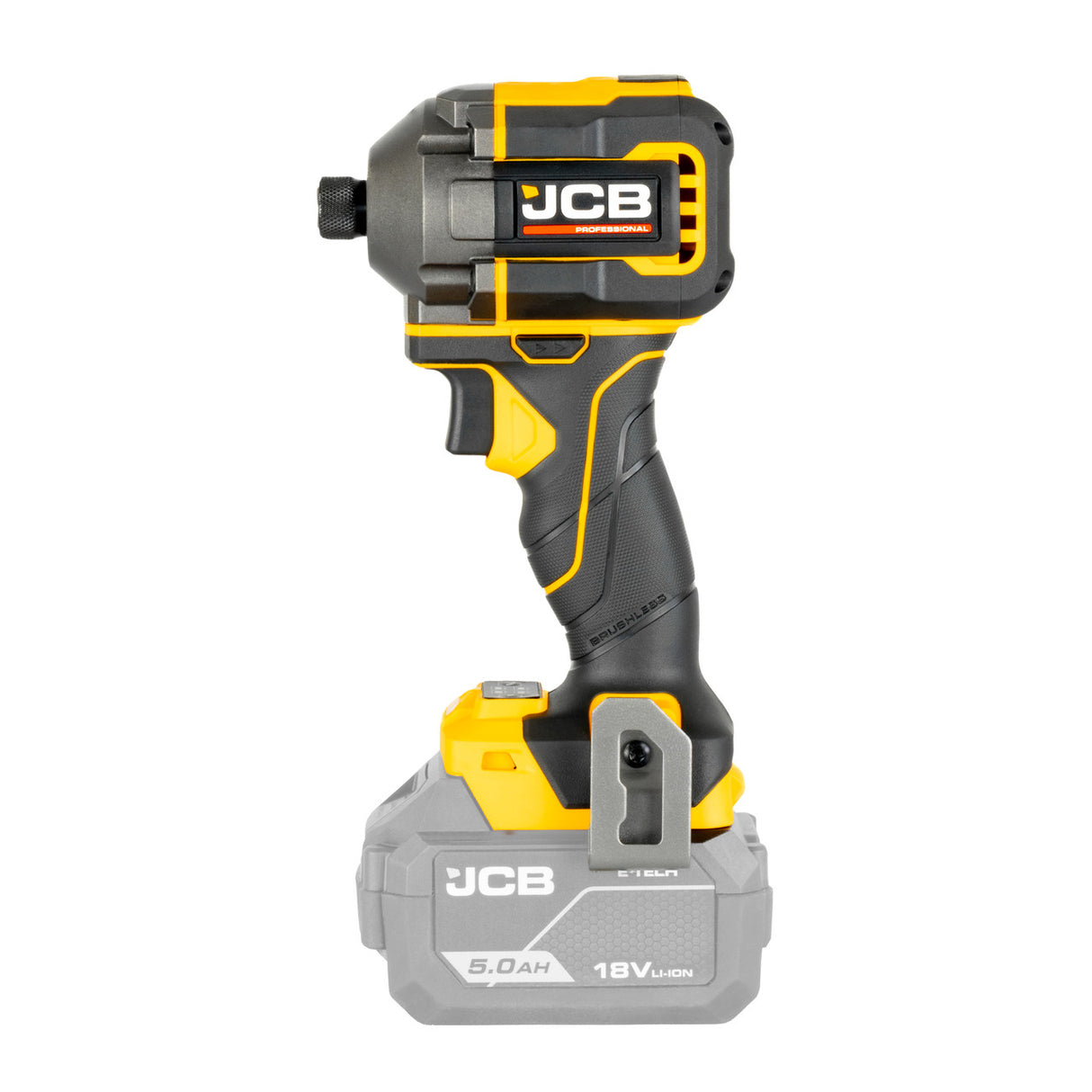

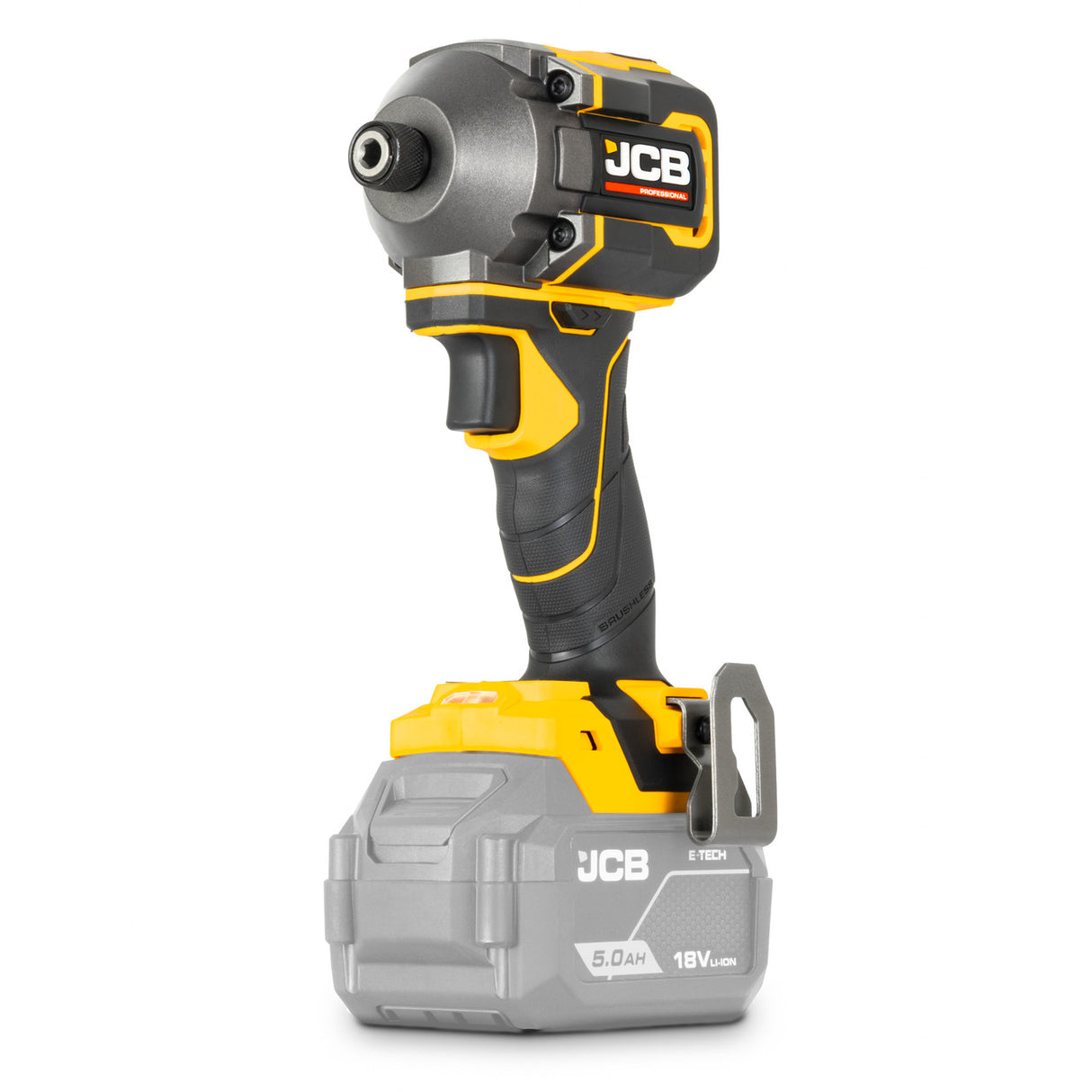

JCB Professional 18V Compact Impact Driver (JCB-18PID-230) with 230Nm Torque, 4 Settings and Quick Release ¼” Chuck

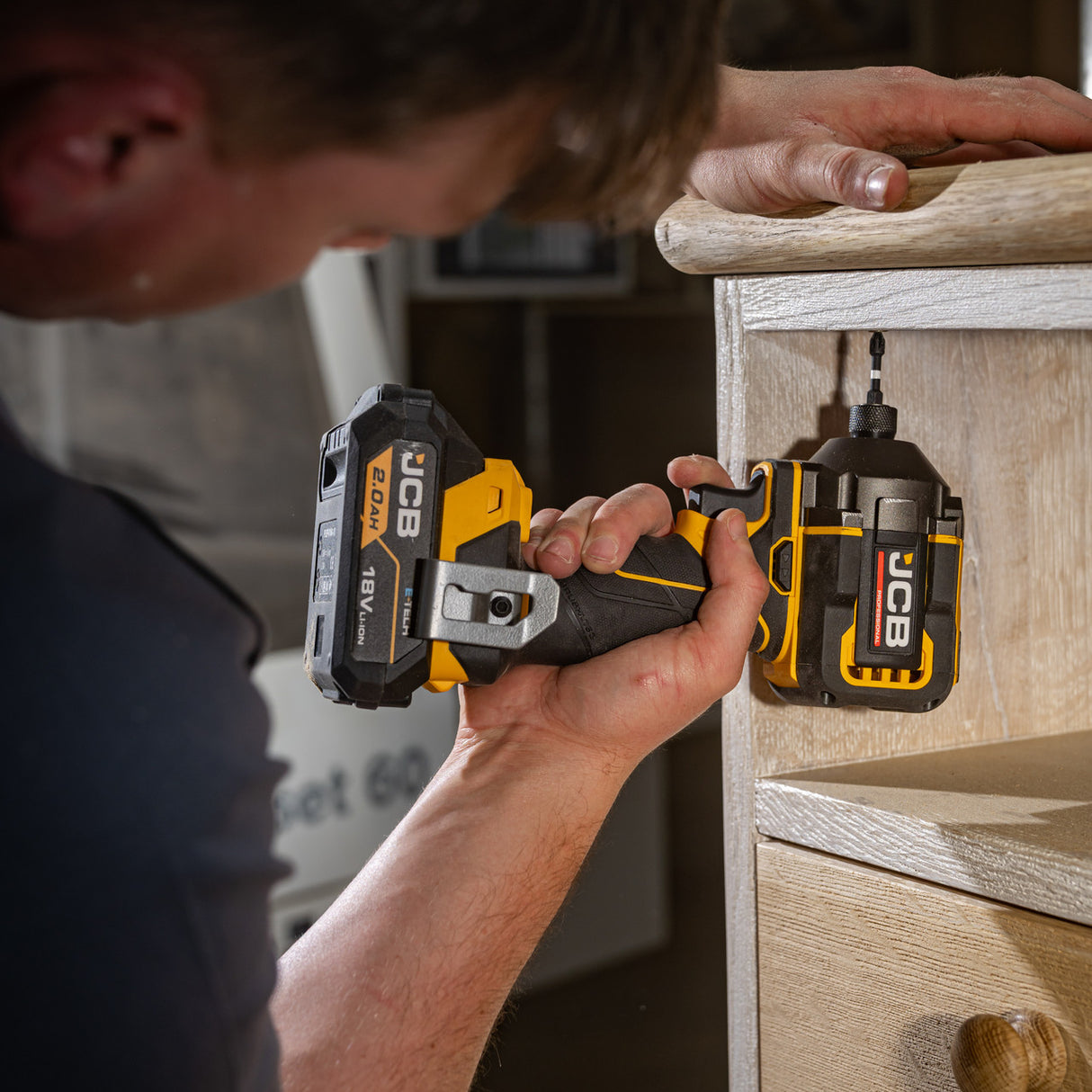

The JCB-18ID-230 Professional 18V Compact Impact Driver is built for high-volume fastening with power and precision. Delivering a 230Nm of torque in a compact, lightweight body, it’s the tool of choice for tradespeople driving structural screws and fixings into timber, metal, or composite -day in, day out.

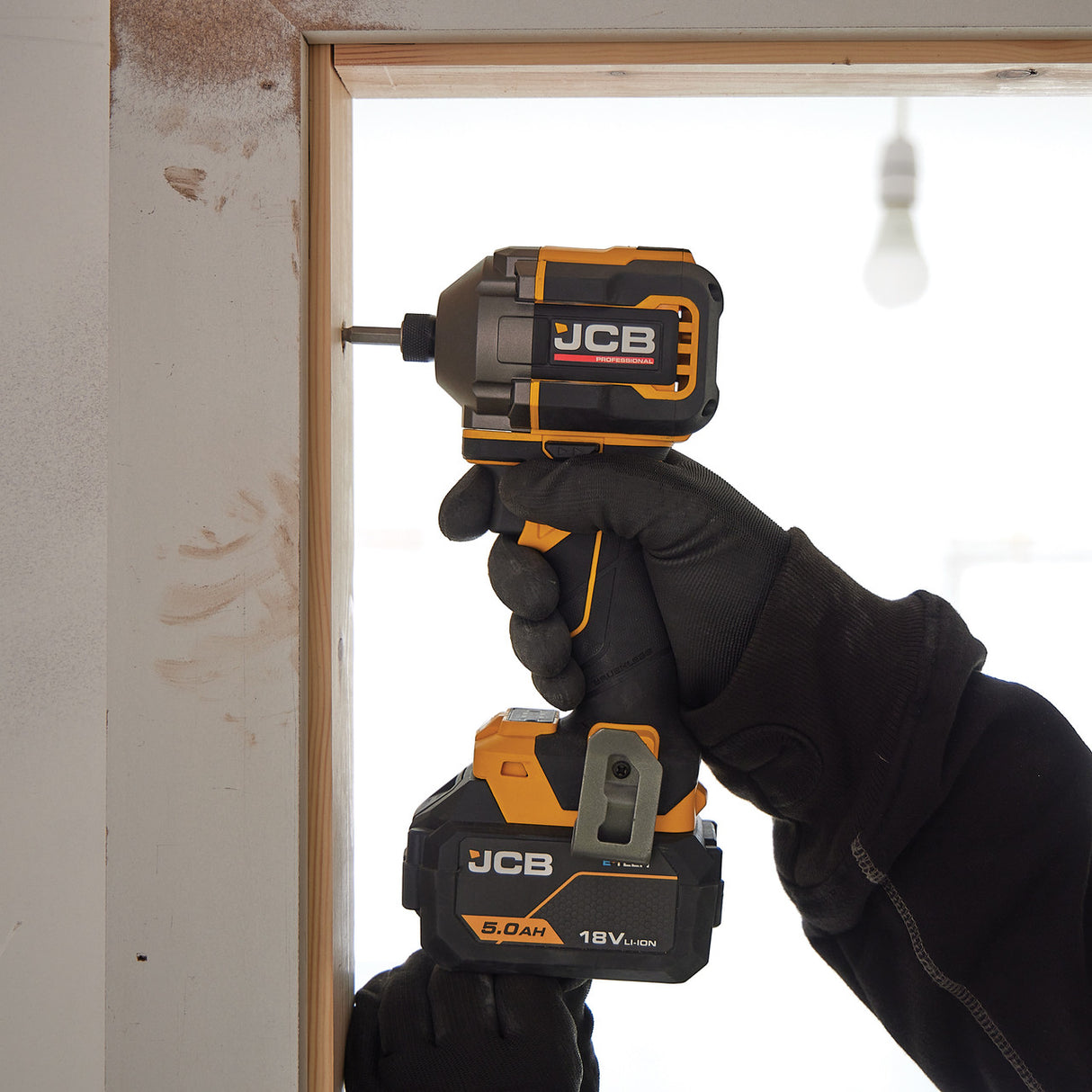

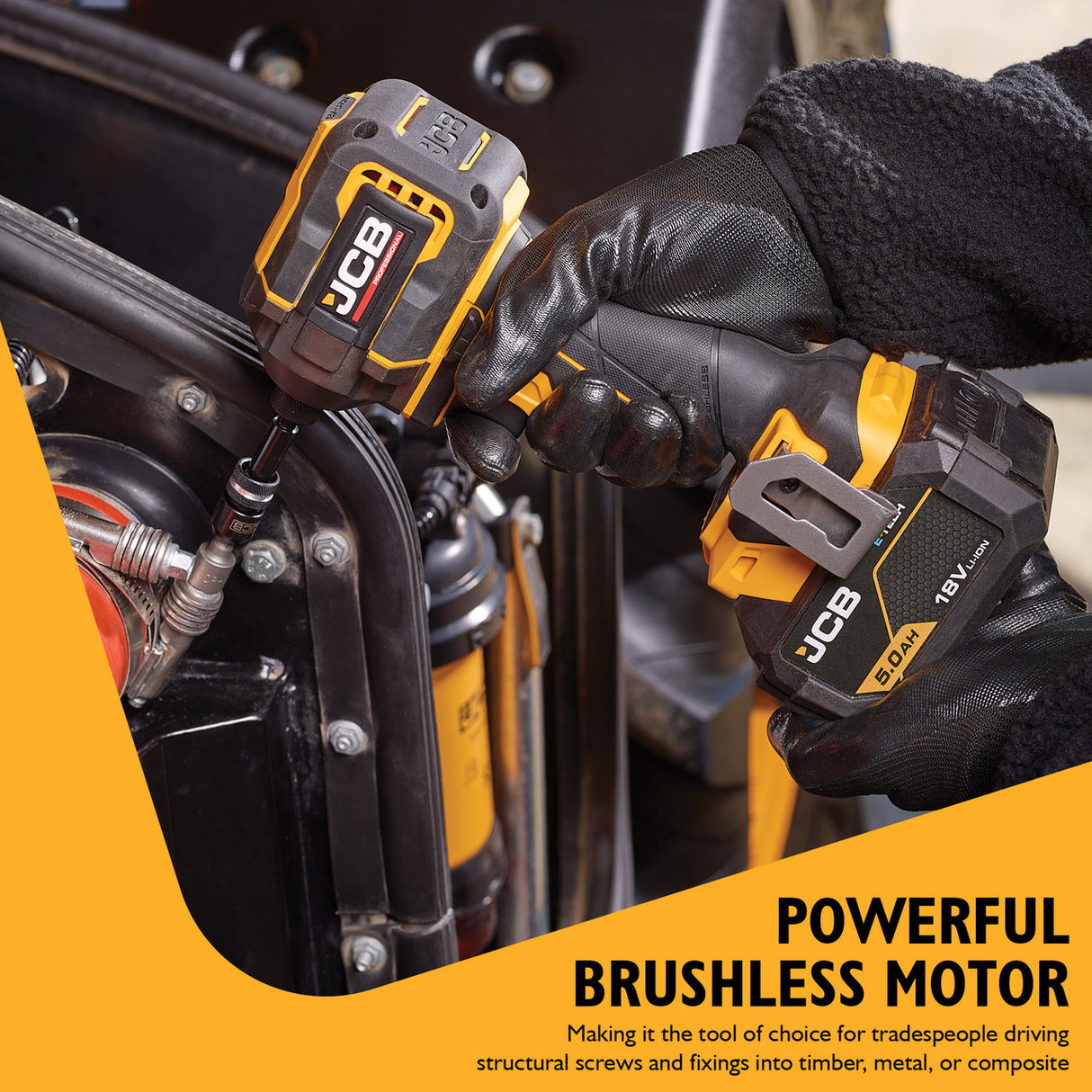

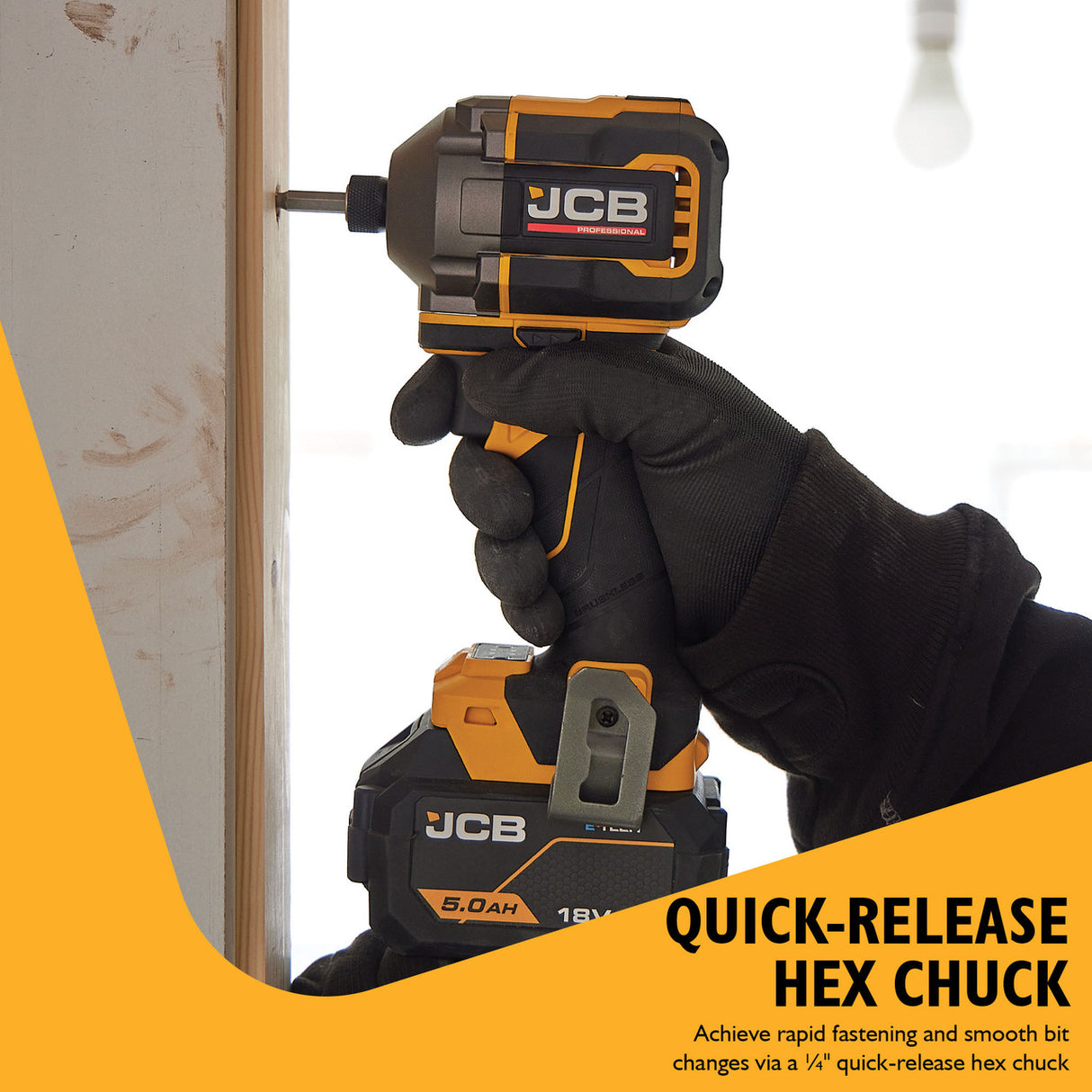

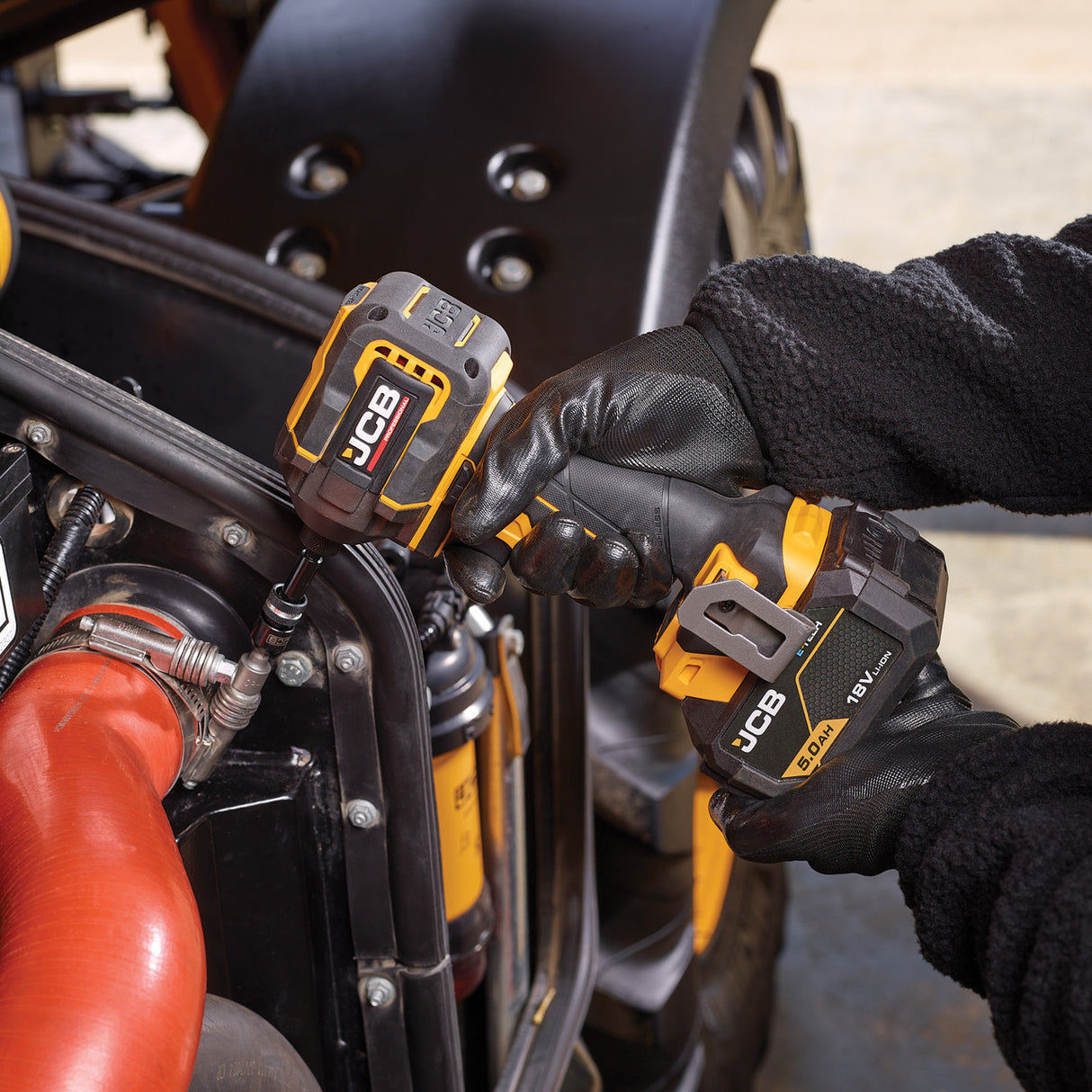

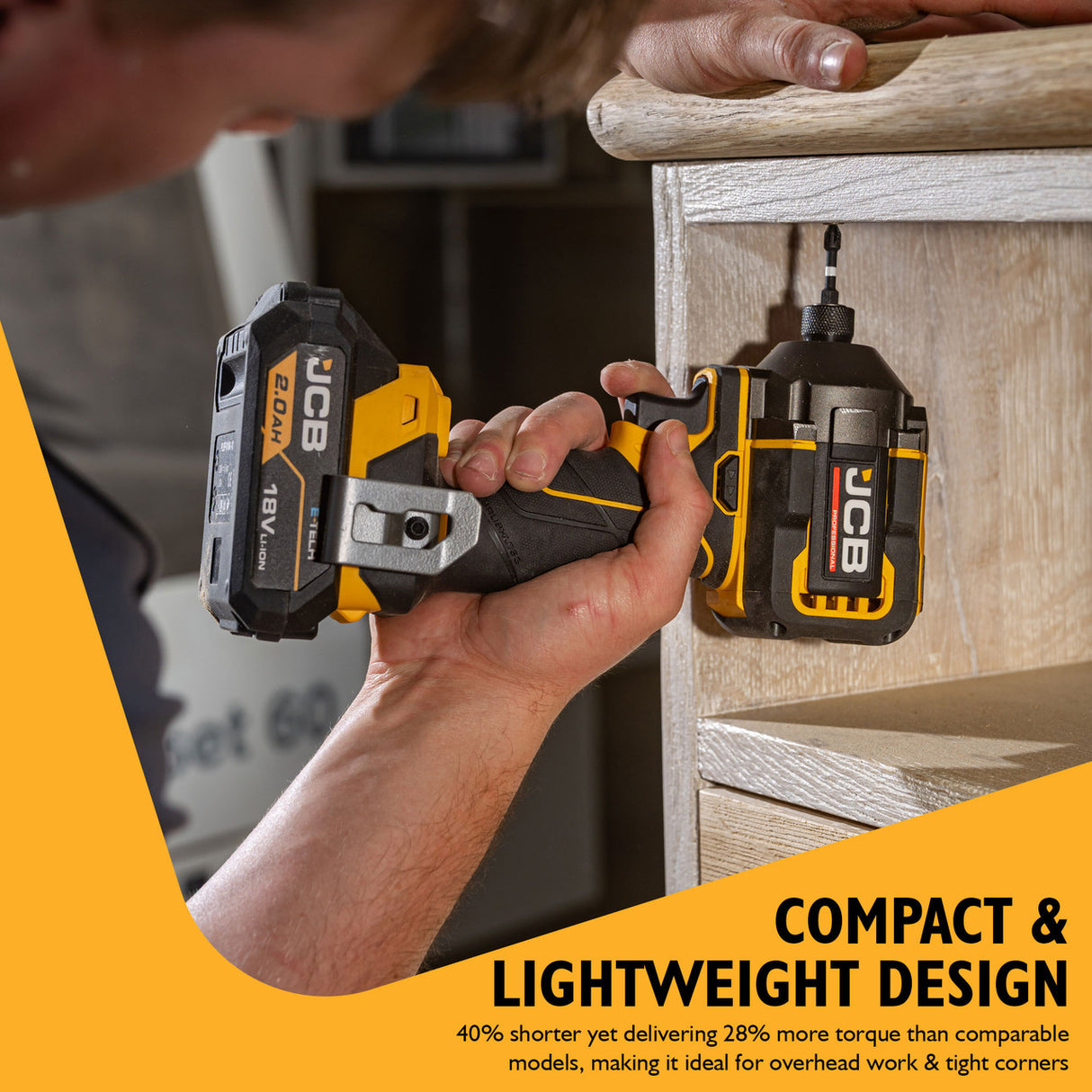

With a powerful brushless motor and four-speed control, this impact driver offers rapid fastening and smooth bit changes via a ¼" quick-release hex chuck. Its compact design is 40% shorter and delivers 28% more torque than comparable models- ideal for overhead work, tight corners, and extended shifts on-site.

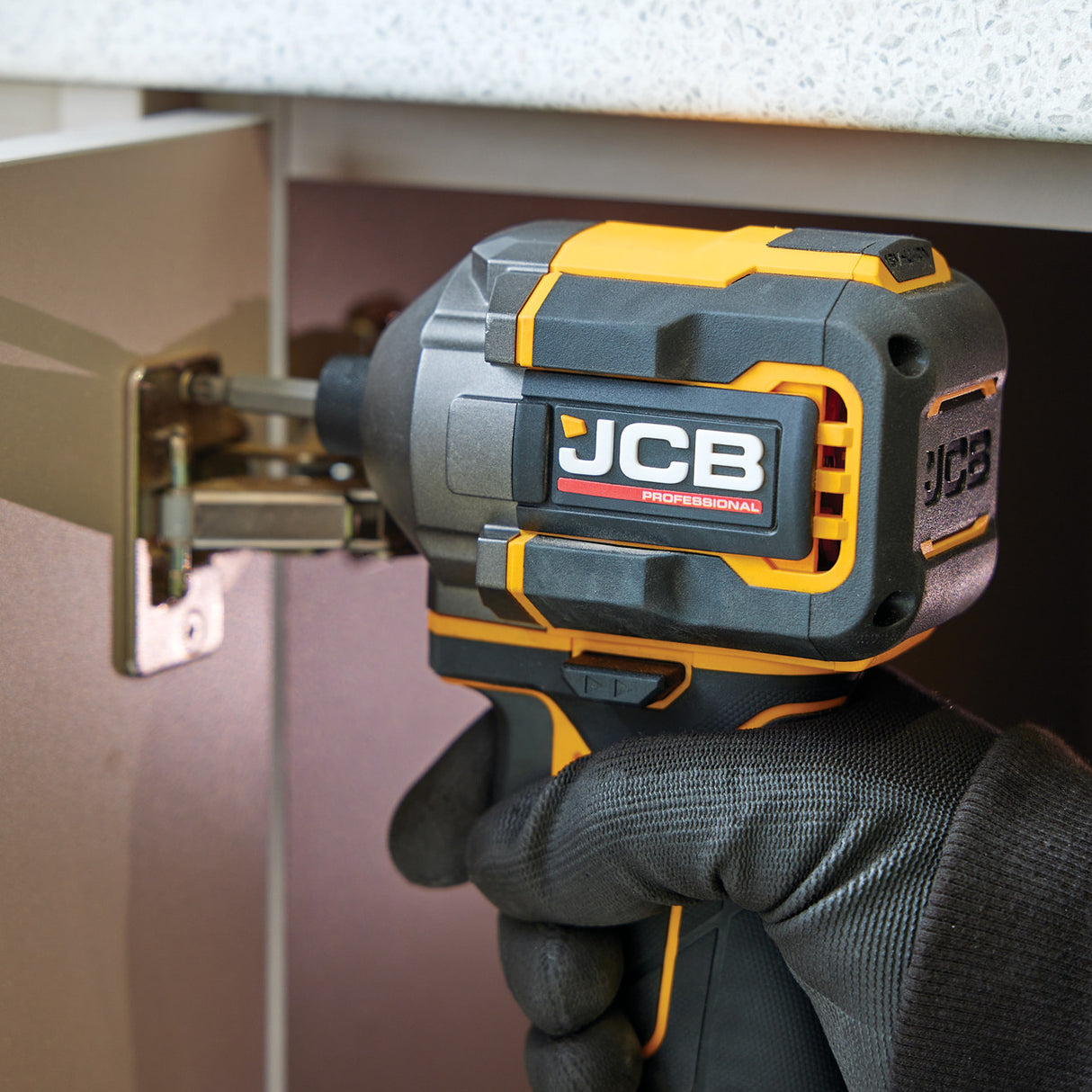

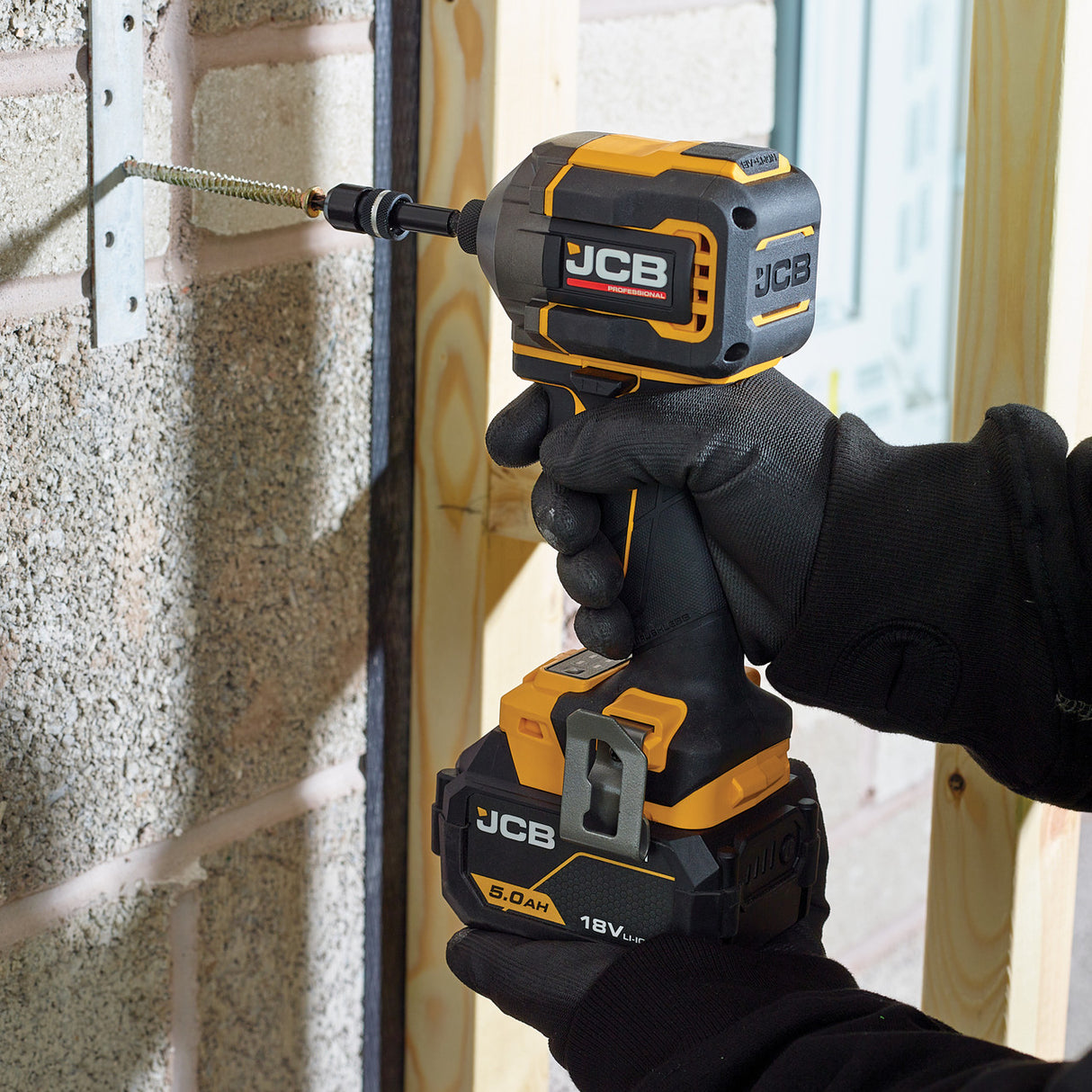

Built for demanding conditions with a dust-sealed PCB and LED work light, this driver is trusted by joiners, dryliners, deck builders, and industrial fix-out teams. When you need reliable, market-leading torque, this is your go-to tool.
Sold as Body Only – compatible with the full JCB 18V battery system.
- Voltage: 18V
- Motor: Brushless
- Max Torque: 230Nm

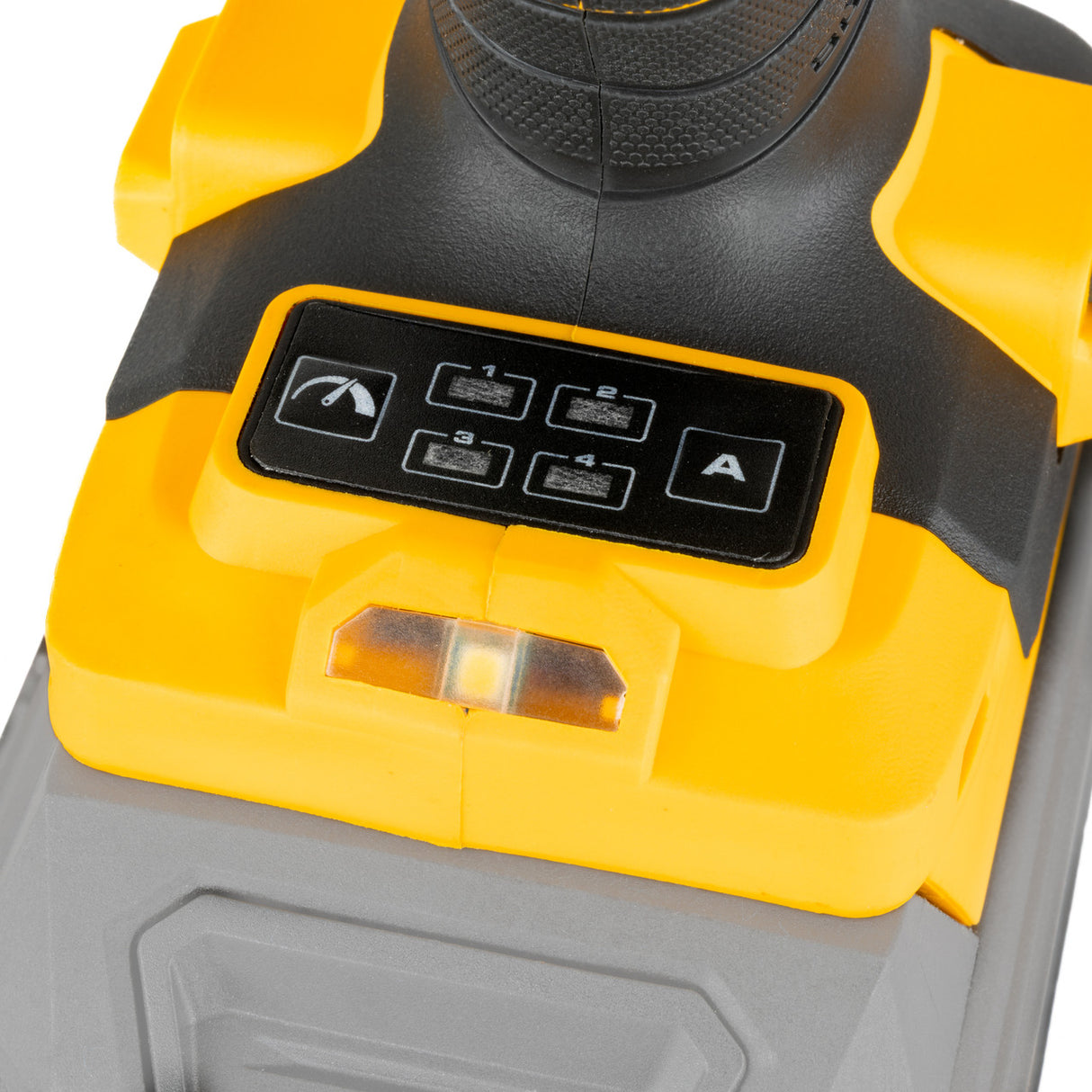

- Settings: 4
- Torque Settings: 120/ 180 / 230Nm
- No Load Speed: 0-1,100 / 0-1,900 / 2,800 / 3,600/min
- Impact Rate: 0-1,200 / 3,400 / 4,300bpm

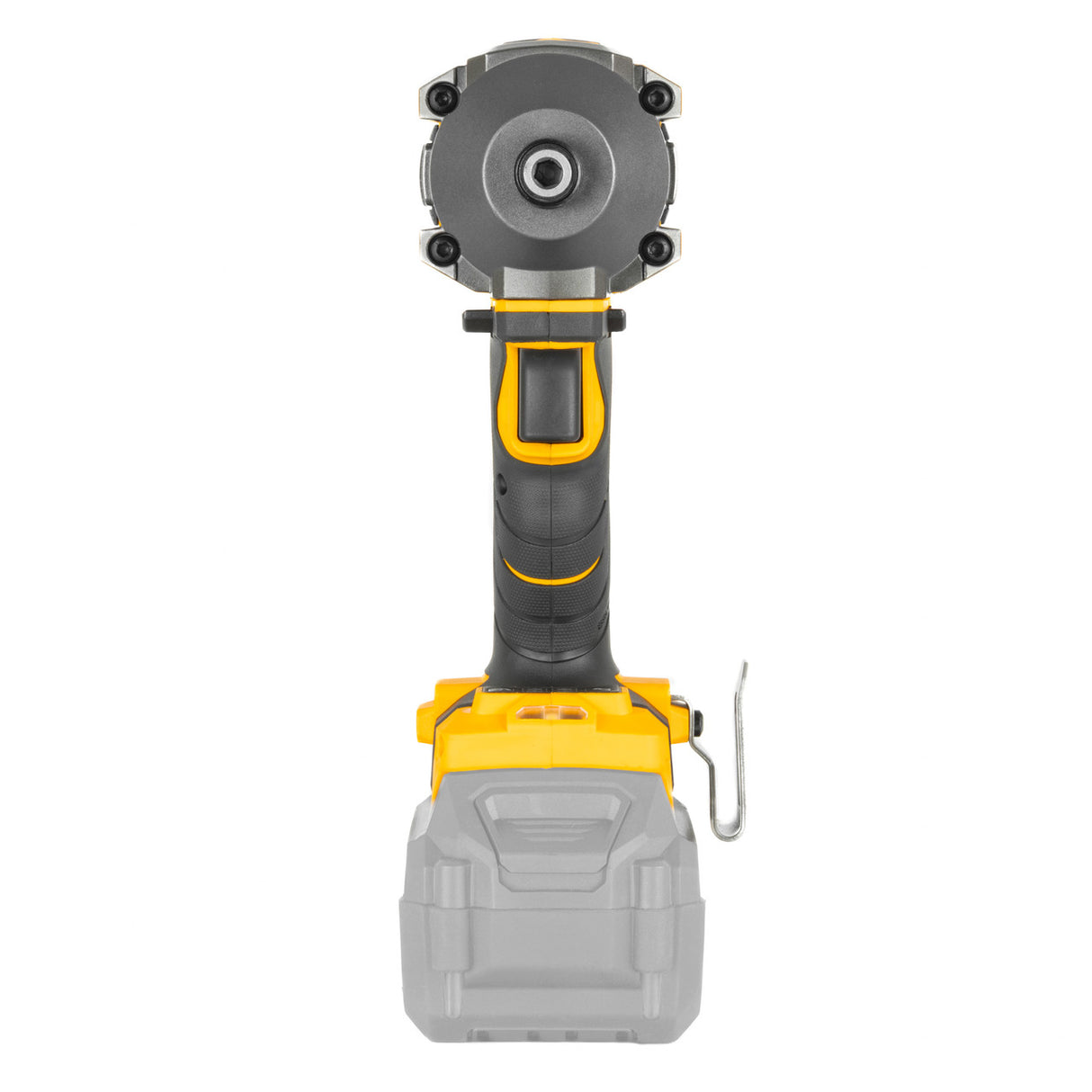

- Chuck: 1/4" Hex
- Dust protected PCB: Yes
- LED Worklight: Yes
Made For Hard Work
With a 3-year warranty on tools, and 2-year warranty on batteries (subject to terms), you can be confident your JCB Pro Tools will last for jobs to come. Coupled with our dedicated support, the JCB Professional 18V Impact Driver 230Nm offers reliability and peace of mind. Order your JCB 18V Pro Impact Driver today!
Discover the full JCB Professional Power Tool Range
In the Box
- 1 x JCB Professional 18V Impact Driver 230Nm (Body Only)
- 1x Belt clip
JCB Pro Range
JCB Power Tools
Specifications
| Auxiliary Side Handle | - |
| Average Run Time | - |
| Battery Type | Lithium-ion |
| Battery Voltage | 18 |
| Charger Included | No |
| Charging Time (mins approx.) | - |
| Chuck | 1/4" Hex Quick Release |
| Chuck Capacity (inch /mm) | 1/4" / 6.5 |
| Dust Protected PCB | Yes |
| EAN | 5059608460506 |
| Fuel / Power Source | Battery-Powered |
| Gross Weight (kg) | 1.43 |
| Guard Type | - |
| Impact Rate (BPM) | 0 -2500/2800/3400/4300 |
| In The Box | JCB-18PID-230 Impact Driver & Belt Clip |
| LED Light | Yes |
| Max Torque (NM) | 230 |
| Max. Drilling Capacity (Masonry) | - |
| Max. Drilling Capacity (Steel) | - |
| Max. Drilling Capacity (Wood) | - |
| Model | JCB-18PID-230 |
| Motor Type | Brushless |
| Net Weight (kg) | 1.0983 |
| No Load Speed (RPM) | 0 - 1900/2200/2800/3300 |
| Package Dimensions (H x W x L) (mm) | 253 x 170 x 100 |
| Product Dimensions no battery (H x W x L) (mm) | 120 x 60 x 200 |
| Product Type | Impact Driver |
| Settings | Digital Control 4+1 (Auto) |
| Soft Grip | Yes |
| Sound Level (dB) | 105.2 |
| Sound Power Level (dB) | 113.2 |
| Tool Range | JCB Pro Tools |
| Torque Settings (Nm) | 0 - 230 |
| Variable Settings | Yes |
| Vibration Level | 16.5 |
| Voltage | 18 |
| Warranty (Years) | 3 |
