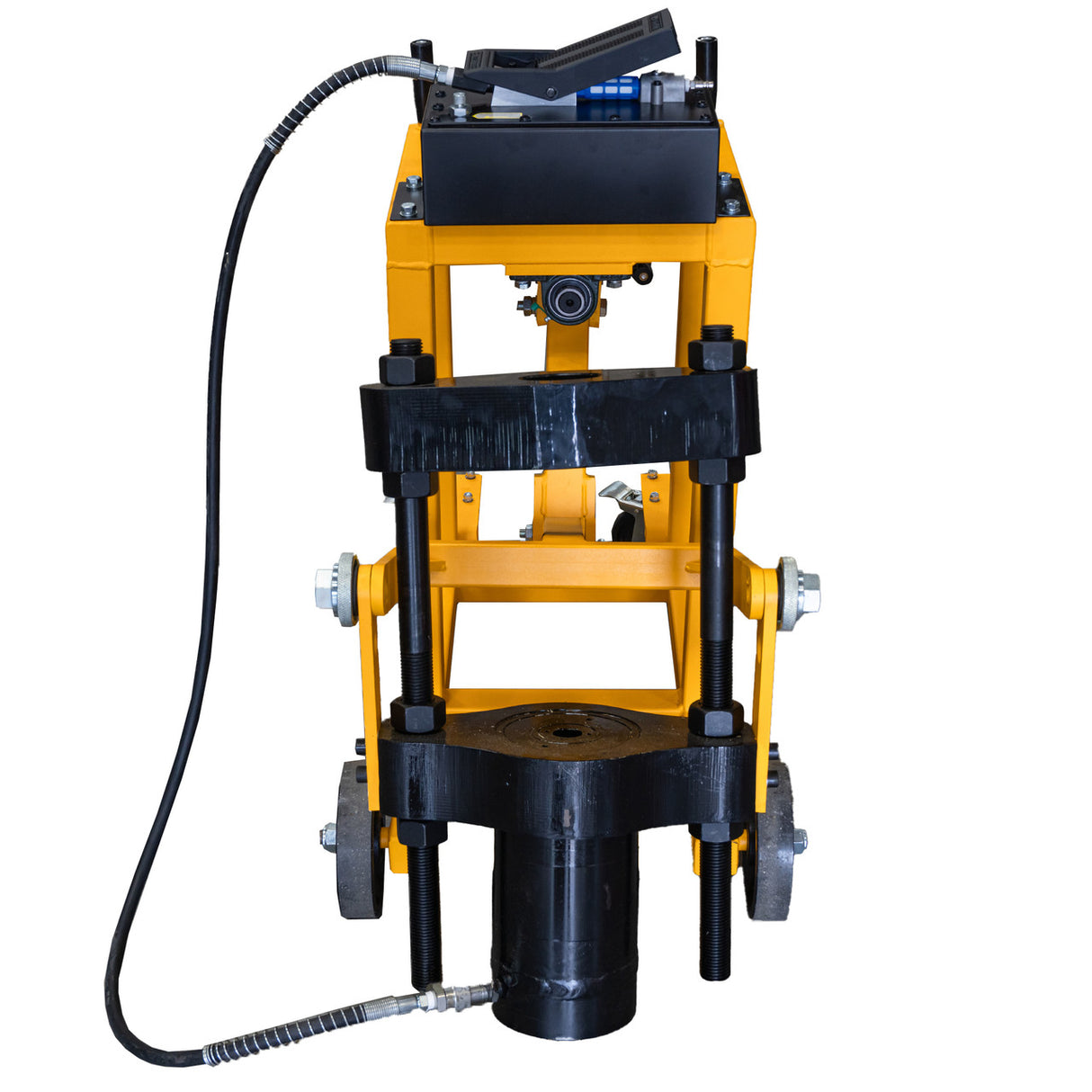

The JCB-B1339 is a robust and heavy-duty 75 tonne hydraulic truck king-pin press designed for the efficient removal and installation of stubborn or seized truck king-pins, while keeping the axle in place.
Suitable to be used in commercial automotive garages and workshops, the JCB-B1339 is equipped with 75 tonnes of compression force and operates with a piston stroke rate of 140mm to allow for the rapid removal and installation of king-pins with minimal effort to the user.
With its sturdy trolley mounted on 4-wheels, including 2-swivel wheels, this JCB king-pin press can be quickly moved and manoeuvred around any garage or workshop.
Boasting a maximum ground clearance of 430mm and lift adjustment capacity of up to 580mm, this JCB king-pin press comes complete with 4 sleeves and 5 punches in various diameters and lengths to cater for a wide-range of heavy-duty and large commercial vehicles.
Built for the trade professional, the JCB-B1339 can be operated by a foot pump, which applies up to 63 MPa of pumping pressure for quick and efficient lifting.
For added convenience, the JCB-B1339’s press block can rotate a full 360° and be adjusted to fit in even the tightest of wheel wells.
Key Features 3 Year Warranty (Terms Apply)
| Model | JCB-B1339 |
|---|---|
| Hydraulic Cylinder (T) | 75 |
| Piston Stroke (mm) | - |
| Ground Clearance (mm) | 320 - 430 |
| Lifting Adjustment (mm) | 350 - 580 |
| Pump Capacity (cm3) | 1800 |
| Pump Pressure (MPa) | 63 |
| Net Weight (kg) | 207 |
| Gross Weight (kg) | - |
| Product Dimensions (L x W x H) (mm) | - |
| Package Dimensions (L x W x H) (mm) | 910 x 520 x 1120 |
| In the Box | Includes 9 bushings and adapter |
| Model EAN | 5059608428339 |
