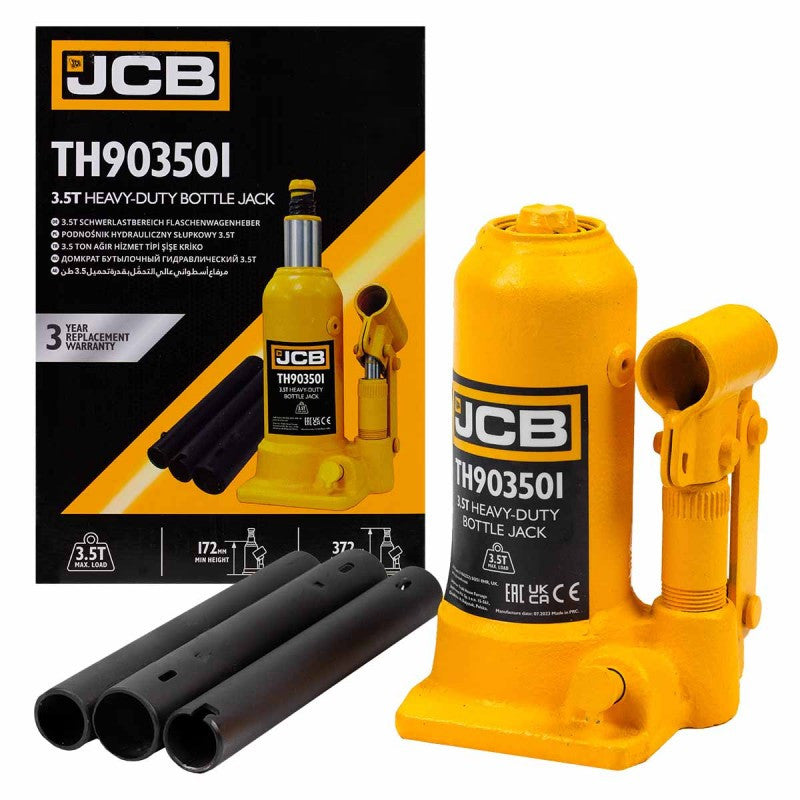

The JCB-TH903501 is a heavy-duty and portable hydraulic automotive bottle jack designed to lift and provide dependable support for vehicles, machinery and construction objects up to 3.5 tonnes in weight.
Ideal for use in car garages, MOT stations, as well as for other industrial applications, this JCB hydraulic bottle jack is capable of raising and supporting light commercial vehicles, SUVs, off-road vehicles and machinery up to a maximum of 372mm from the ground.
By virtue of its compact design, the JCB-TH903501 is also suitable to be used for vehicles with reduced ground clearance, such as sports cars.

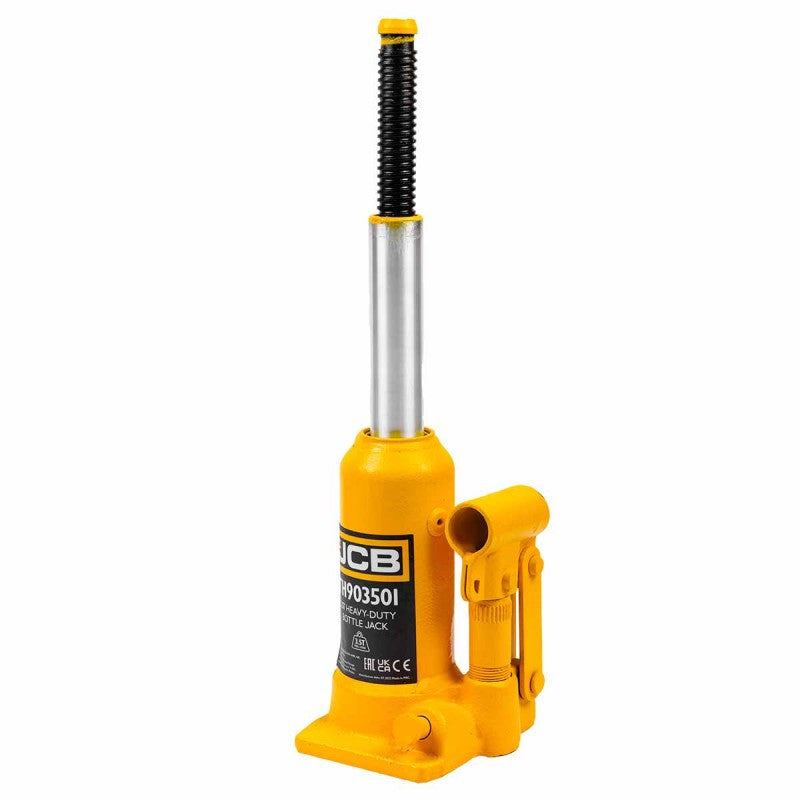

The JCB-TH903501 comes equipped with an adjustable height screw, which can be extended up to 88mm in height depending on the desired application.
For quick and efficient pumping, the JCB-TH903501 is fitted with a zinc plated long handle, while its built-in safety valve prevents the ram from being overextended and causing damage to the cylinder.

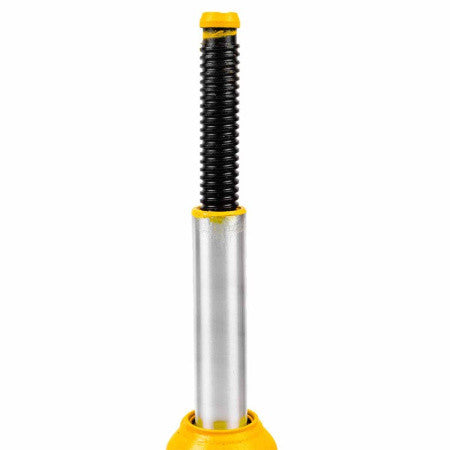

Made for hard work and built to last, this JCB heavy-duty bottle jack utilises a welded construction design to prevent any oil from leaking during operation, as well as an ENP plated ram piston, which prevents the piston from rusting.

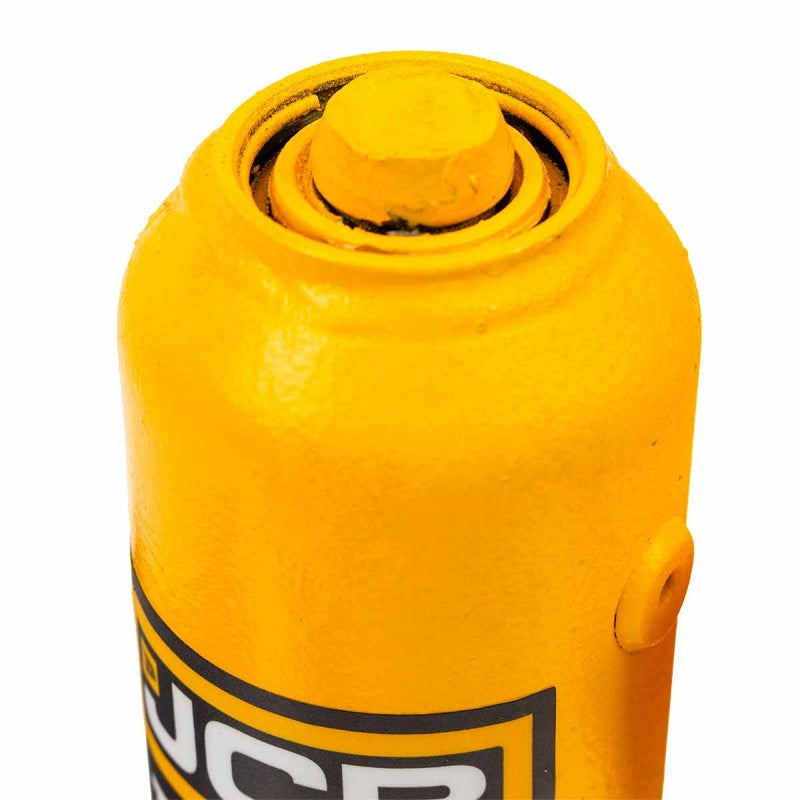

The JCB-TH903501 bottle jack’s tank is welded to a lightweight forged steel base, which provides further strength and stability to cope with the demands and high pressure of lifting and supporting large volumes of weight for prolonged periods of time.
For added convenience, the JCB-TH903501 weighs just 3.79kg and is fitted with sturdy carry handles, which means it can be easily carried and transported to be used on the go when necessary.
Key Features
3 Year Warranty (Terms Apply)
| Model | JCB-TH903501 |
|---|---|
| Lifting Capacity (T) | 3.5 |

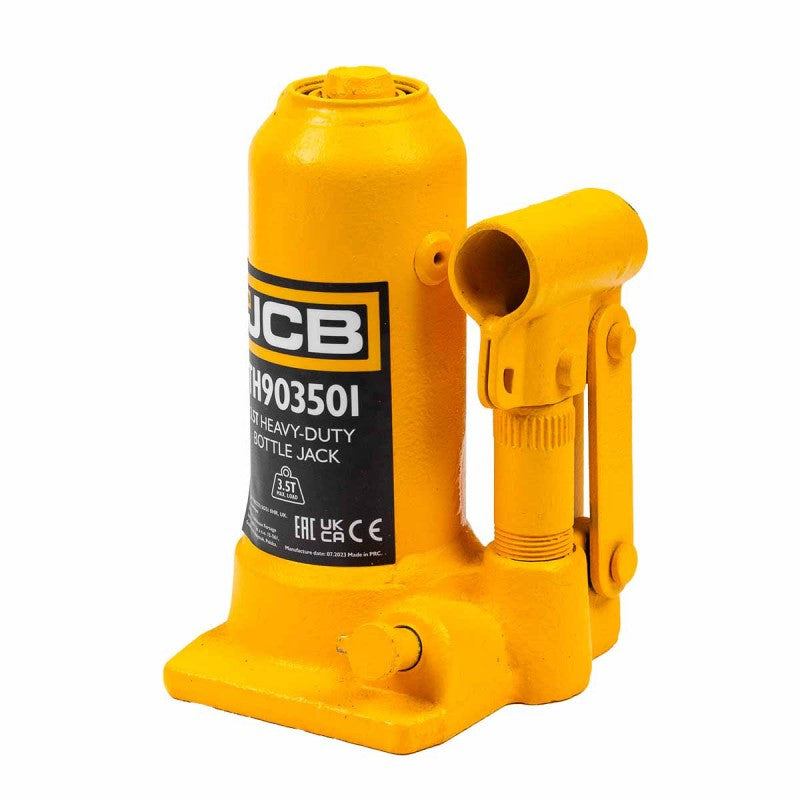

| Minimum Height (mm) | 172 |
| Maximum Height (mm) | 372 |
| Lift Height (mm) | 112 |
| Adjustable Height (mm) | 88 |
| Saddle Width (mm) | 28 |
| Base Dimensions (mm) | 103 x 105 |
| Product Dimensions (L x W x H) (mm) | - |
| Package Dimensions (L x W x H) (mm) | 375 x 290 x 225 |
| Net Weight (kg) | 3.79 |
| Gross Weight (kg) | 3.95 |
| Model EAN | 5059608428155 |
