The JCB-E460P replacement engine is a 457cc 15hp horizontal straight shaft petrol engine. 25.4mm shaft (1 inch), with keyway compatible for various applications including commercial, heavy-duty home use or industrial pressure washers, wood chippers, water pumps, tillers, grinders, compaction plates, other heavy-duty machinery or even used with karts (subject to small adjustments).

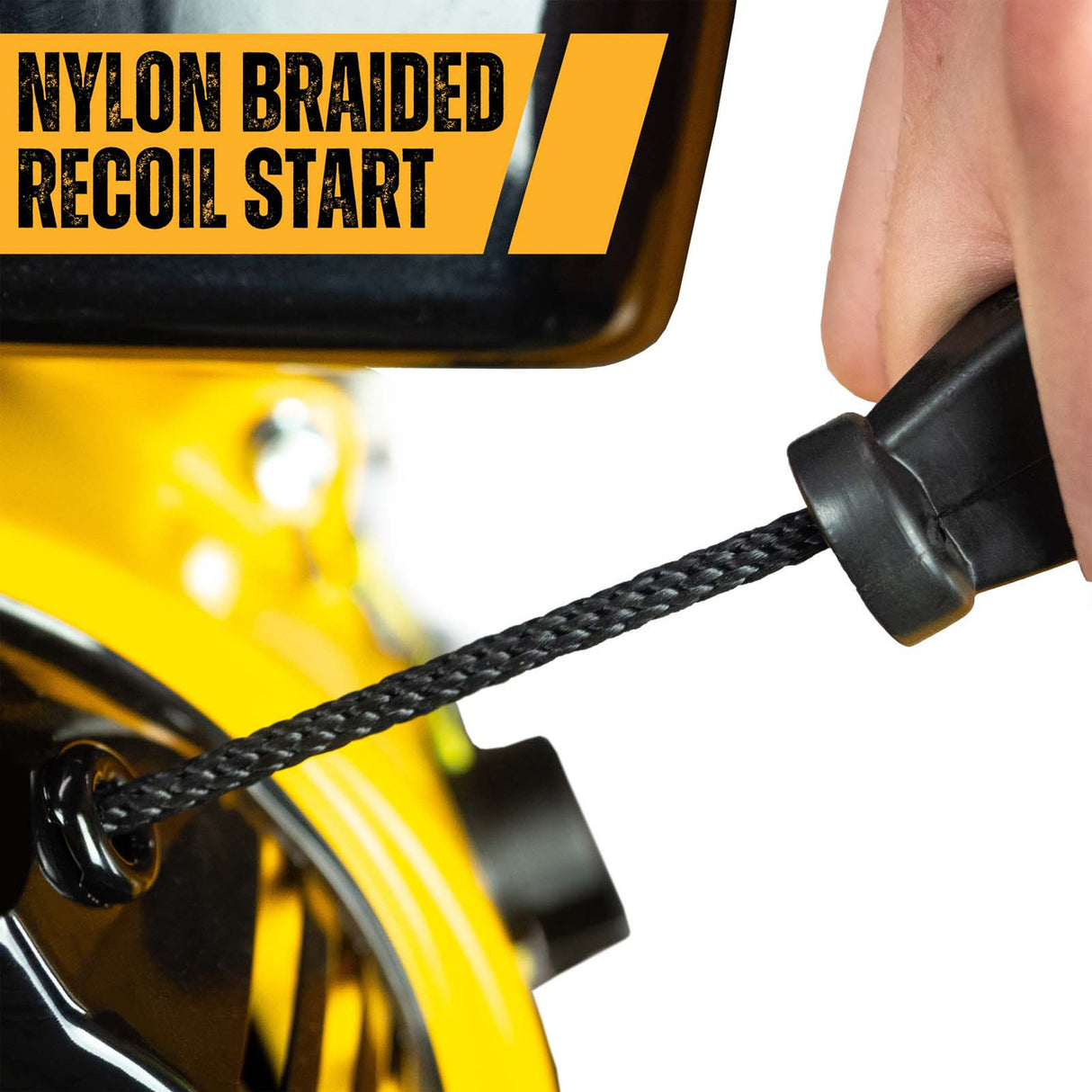

The engine’s easy recoil pull-start is aided by reliable CDI ignition for consistent and easy starting. The impressive design allows market leading 15hp of max power using a design which will retrofit all common and major brands engines as a direct replacement, ranging from 360cc to 470cc models.
The engine is a reliable OHV design, offering a balance of compactness, higher torque, and an easily serviceable layout to maintain your engine over future years.. 4-Stroke Euro V engine, with a 6.5L fuel tank.
In the Box:
Important:
If using E10 Petrol, this product must be used with high-quality unleaded fuel ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines
DO NOT mix fuel and oil.
It is recommended to use E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser in this product.
Damage caused by failure to add fuel or using incorrect or poor-quality fuel is not covered by your warranty.
Caution:
E10 petrol is hygroscopic and attracts moisture, which may damage the fuel system if stored in the product for more than four weeks.
After draining the fuel tank, always run the engine until the last of the fuel in the system is spent and drain the float bowl when the engine is cool.
E10 petrol should be used within 30 days of purchase.
Some petrol brands contain other quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your product.
Always store and dispose of fuels responsibly and in accordance with local regulations.
| Model | JCB-E460P |
|---|---|
| Start Method | Recoil |
| Shaft Type | Straight Horizontal Shaft, with Keyway |
| Shaft size (mm/in) | 25.4 / 1 |
| Fuel Type | Petrol |
| Fuel Capacity (L) | 6.5 |
| Impeller Type | PP |
| Engine Oil | SAE30 / 15W40 |
| Engine Oil Capacity (ml) | 1100 |
| Low Oil Shutdown | Yes |
| Run Time @ 50% Load (hr) | 2.5 |
| Engine Model | JCB-E460P |
| Engine Type | OHV |
| Engine Size (cc) | 457 |
| Ignition System | CDI |
| Bore x Stroke (mm) | Bore x Stroke (mm) |
| Power (hp) | 15 |
| Speed (RPM) | 3600 |
| Gross Weight (kg) | 35 |
| Net Weight (kg) | 23 |
| Fully Assembled Dimensions (H x W x L) (mm) | 460 x 420 x 480 |
| Package Dimensions (H x W x L) (mm) | 480 x 450 x 55 |
| Product Type | Petrol Engine |
| Warranty (years) | 3 |
| Warranty Commercial (years) | 1 |
| In The Box | JCB 457cc 15HP Recoil Start Engine, Instruction Manual, Spark plug wrench |
| Model EAN | 5059608313024 |
