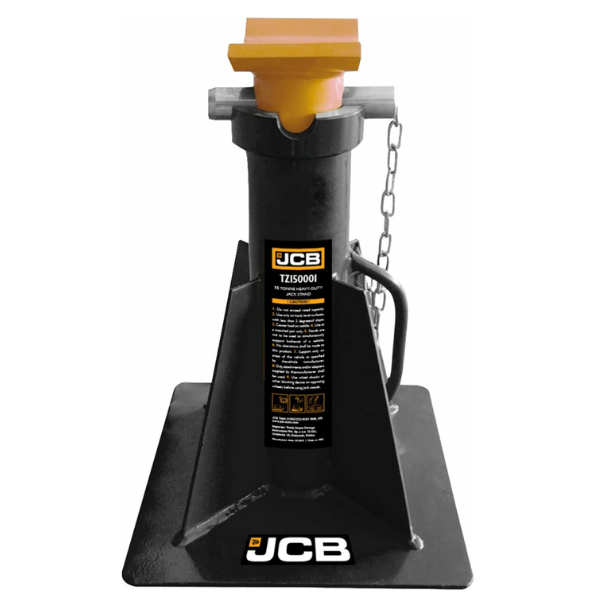

JCB 15 Tonne Axle Stand, 445-631mm Lifting Height | JCB-TZ150001
Loading delivery estimate…
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
JCB 15 Tonne Axle Stand, 445-631mm Lifting Height | JCB-TZ150001 is backordered and will ship as soon as it is back in stock.
JCB 15 Tonne Axle Stand, 445-631mm Lifting Height | JCB-TZ150001 is backordered and will ship as soon as it is back in stock.
Key Features
- Height Min: 445 mm (17.52")
- Height Max: 631 mm (24.84")
- 15 Tonne Maximum Load Capacity
- Protective locking pin with chain for secure ratchet locking
- Robust steel construction with anti-corrosion coating
- Ratchet bar made from ductile iron for increased strength and durability
- Wide base design prevents tipping and sinking into asphalt or soil
- Professional-grade for use with heavy vehicles, bulldozers, tractors, and large machinery
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description
The JCB 15 Tonne Axle Stand, JCB-TZ150001, is a heavy-duty automotive support tool designed for safely lifting and holding heavy vehicles, trucks, tractors, bulldozers, and other large machinery during maintenance or repairs. It can support vehicles up to 15 tonnes, with an adjustable height range from 445 mm to 631 mm. The stand features a secure ratchet locking system with a protective locking pin and chain, allowing for easy height adjustment and positioning. Constructed from sturdy steel with an anti-corrosion coating and a ductile iron ratchet bar, this axle stand offers durability, stability, and resistance to wear.
Axel Stand Key Features
- Height Min: 445 mm (17.52")
- Height Max: 631 mm (24.84")
- 15 Tonne Maximum Load Capacity
- Protective locking pin with chain for secure ratchet locking
- Robust steel construction with anti-corrosion coating
- Ratchet bar made from ductile iron for increased strength and durability
- Wide base design prevents tipping and sinking into asphalt or soil
- Professional-grade for use with heavy vehicles, bulldozers, tractors, and large machinery
3 Year Warranty (Terms Apply)
View All JCB Automotive Tool
Specifications
| EAN | 5056485705195 |
| Gross Weight (kg | 23.5 |
| Height Max (mm) | 631 |
| Height Min (mm) | 445 |
| Lifting Capacity (T) | 15 |
| Model | JCB-TZ150001 |
| Net Weight (kg) | - |
| Package Dimensions (H x W x L) (mm) | 490 xx 390 x 395 |
| Product Dimensions (H x W x L) (mm) | 463 x 330 x 330 |
| Product Type | Axle Stand |
| Warranty (Years) | 3 |
