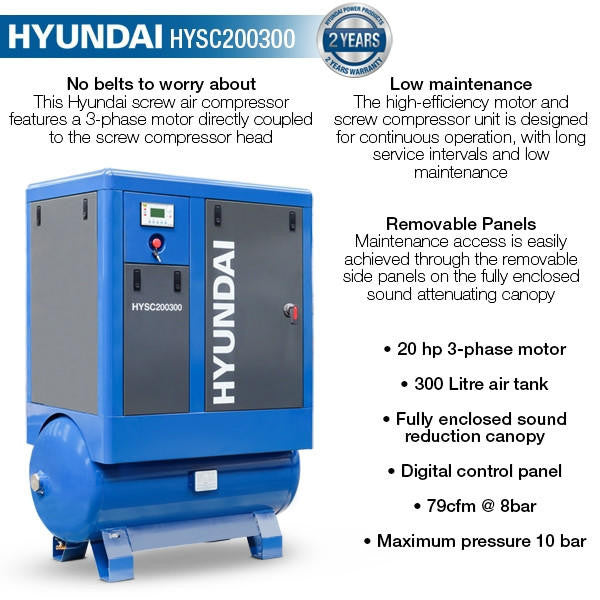

Key Features
- 20 hp 3-phase motor
- 300 Litre air tank
- Fully enclosed sound reduction canopy
- Digital control panel
- 79cfm @ 8bar
- Maximum pressure 10 bar
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description

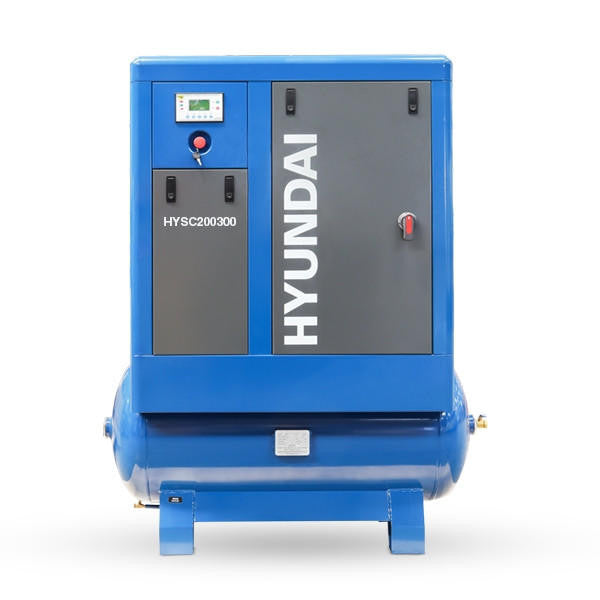

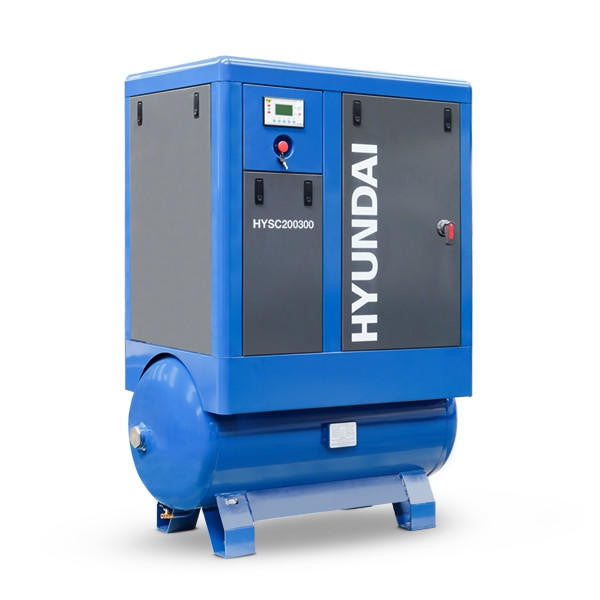

300L Screw Air Compressor

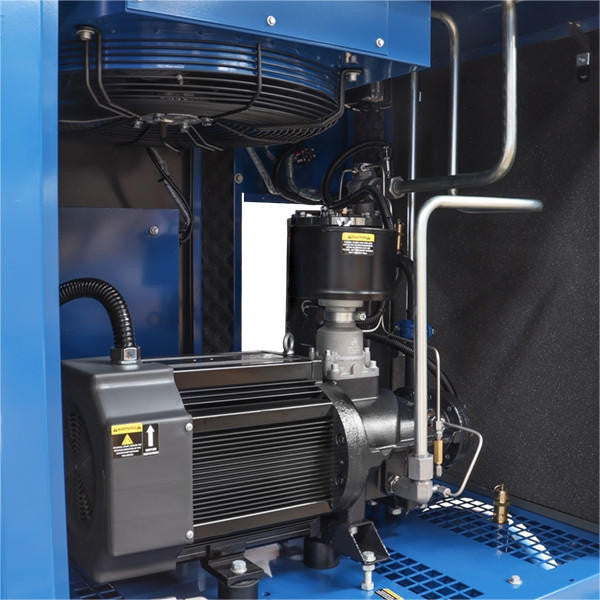

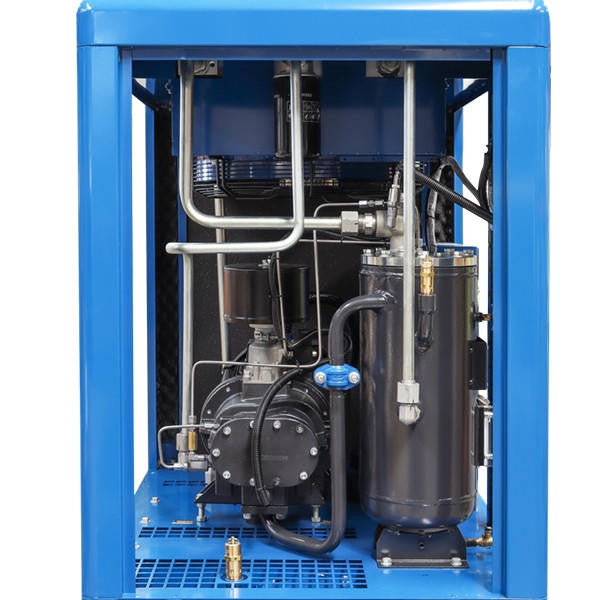

This Hyundai screw air compressor features a 300L tank, 20hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.
Designed For Continous Operation
The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance.

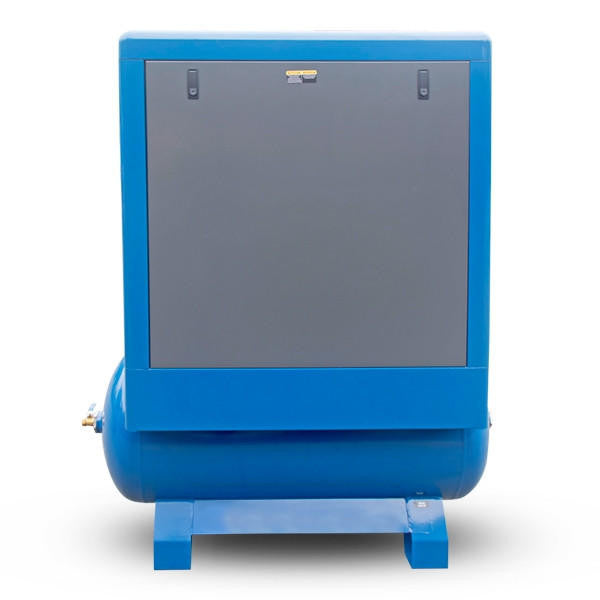

Easy Access for Maintenance

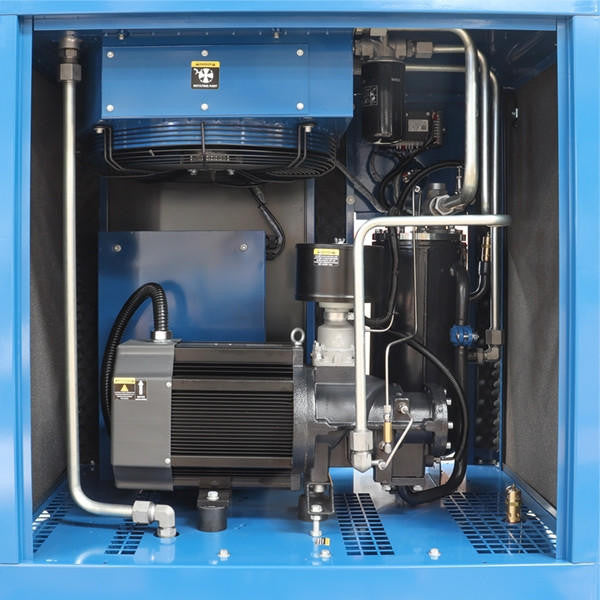

Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.

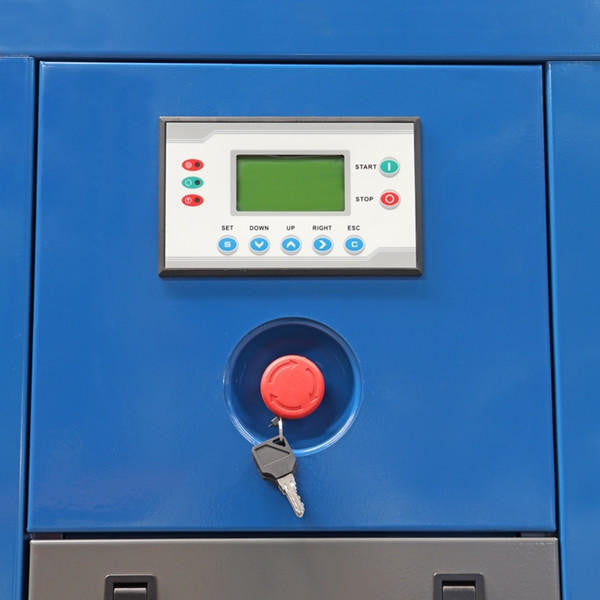

Digital Control Panel
The digital control panel monitors pressure, volts, amps, hours
Forklift Transport Ports

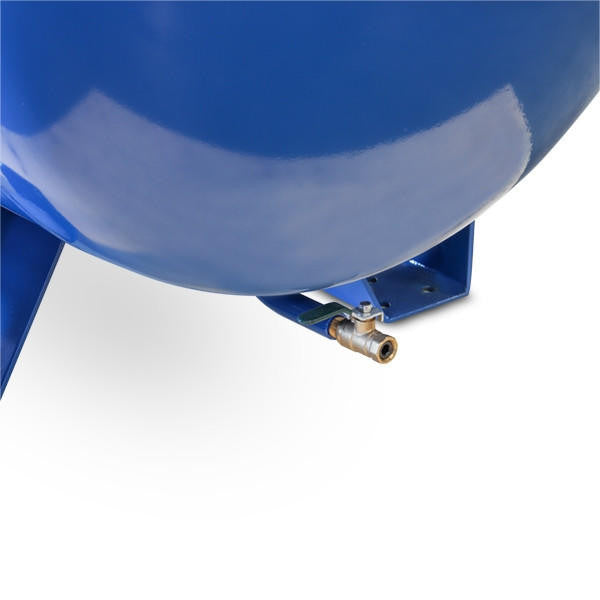

The 300 Litre tank forklift transport holes, a ¾” outlet fitting and water drain tap with CE certification to 12 bar.
Ideal Use
Ideal for spray shops, tyre-fitting garages, large workshops, small factories etc.
Warranty
Covered by Hyundai 2-year warranty.
Specifications
| Air Displacement (CFM) | 79 @ 8 bar / 64 @ 10 bar |
| Air Displacement (L/min) | 2100 @ 8bar / 1910 @ 10 bar |
| Air Flow FAD (CFM) | 75 @ 8 bar / 61 @ 10 bar |
| Air Flow FAD (L/min) | 1995 @ 8 bar / 18140 @ 10 bar |
| Air Outlet Connection | G3/4 |
| Cut-In Pressure (psi/bar) | 101.5/7 |
| Cut-Out Pressure (psi/bar) | 116/11.5 |
| Discharge Pressure (psi/bar) | 145/10 |
| Drive Type | Fixed Speed Direct Drive |
| Duty Cycle | S1 100% |
| EAN | 5056275799403 |
| Frequency (Hz) | 50 |
| Fuel / Power Source | Electric Hard Wired |
| Fully Assembled Dimensions (H x W x L) (mm) | 1790 x 820 x 1450 |
| Gross Weight (kg) | 405 |
| In The Box | Air Compressor & User Manual |
| Integral Air Dryer? | No |
| Max Pressure (psi/bar) | 145/10 |
| Model | HYSC200300 |
| Motor Power kW/hp | 15/20 |
| Net Weight (kg) | 355 |
| Noise Level @ 7m (dB) | 65 |
| Outlet Pressure Regulation Type | Fixed |
| Packaged Dimensions (H x W x L) (mm) | 1750 x 940 x 1970 |
| Phase | Three |
| Product Type | Air Compressor |
| Pump (RPM) | 2960 |
| Rated Power (kW) | 17 |
| Speed (RPM) | 2960 |
| Start Method | Electric |
| Tank Capacity (L) | 300 |
| Tank Material | Steel |
| Warranty (years) | 2 |
