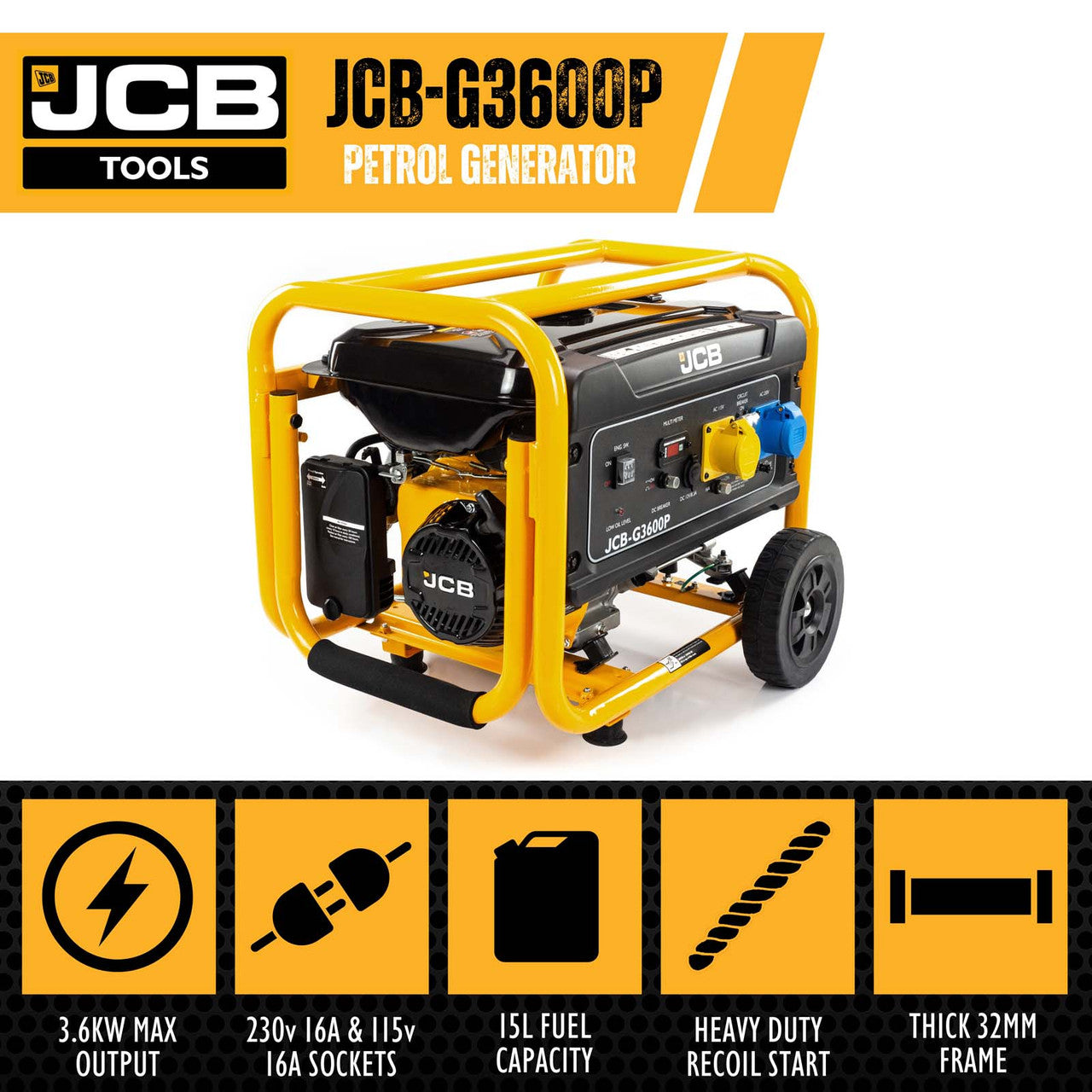

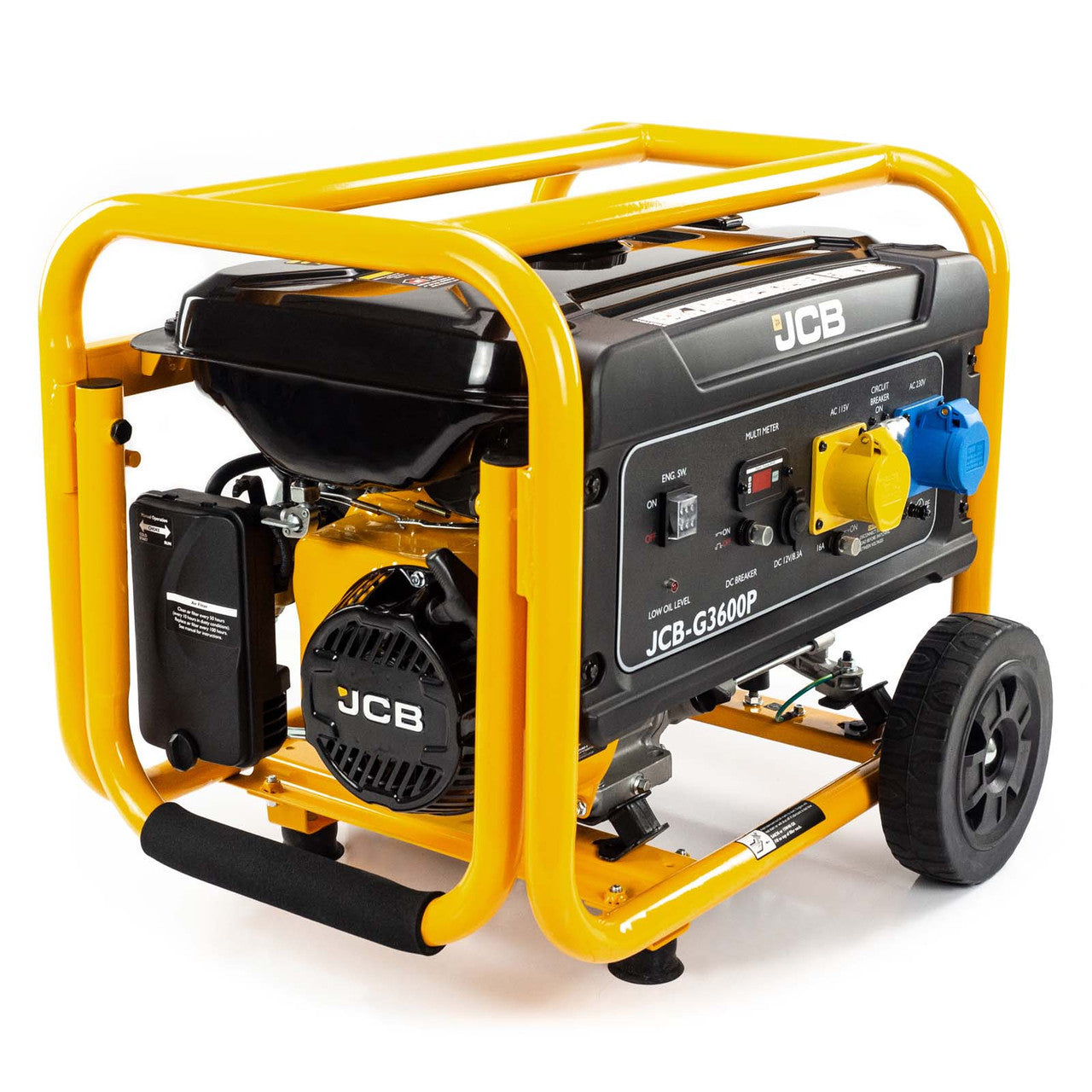

JCB 3.6kW / 4.5kVA Petrol Site Generator 115V / 230V 7.5hp 224cc JCB Engine, Recoil Pull Start| JCB-G3600P

SKU: JCB-G3600P  |  Barcode: 5059608313055
Regular price £399.99
Tax included Shipping calculated at checkout.

Loading delivery estimate…

*Exact delivery dates are calculated at checkout depending on your delivery postcode.

  • Powered by a 224cc 7.5hp JCB petrol engine.
  • Max output of 3.6kW / 4.5kVA*, continuous output of 3.3kW / 4kVA
  • Automatic Voltage Regulator (AVR), which ensures a smooth and stable power output.
  • Built-in overload protection prevents damage to the alternator during operation.

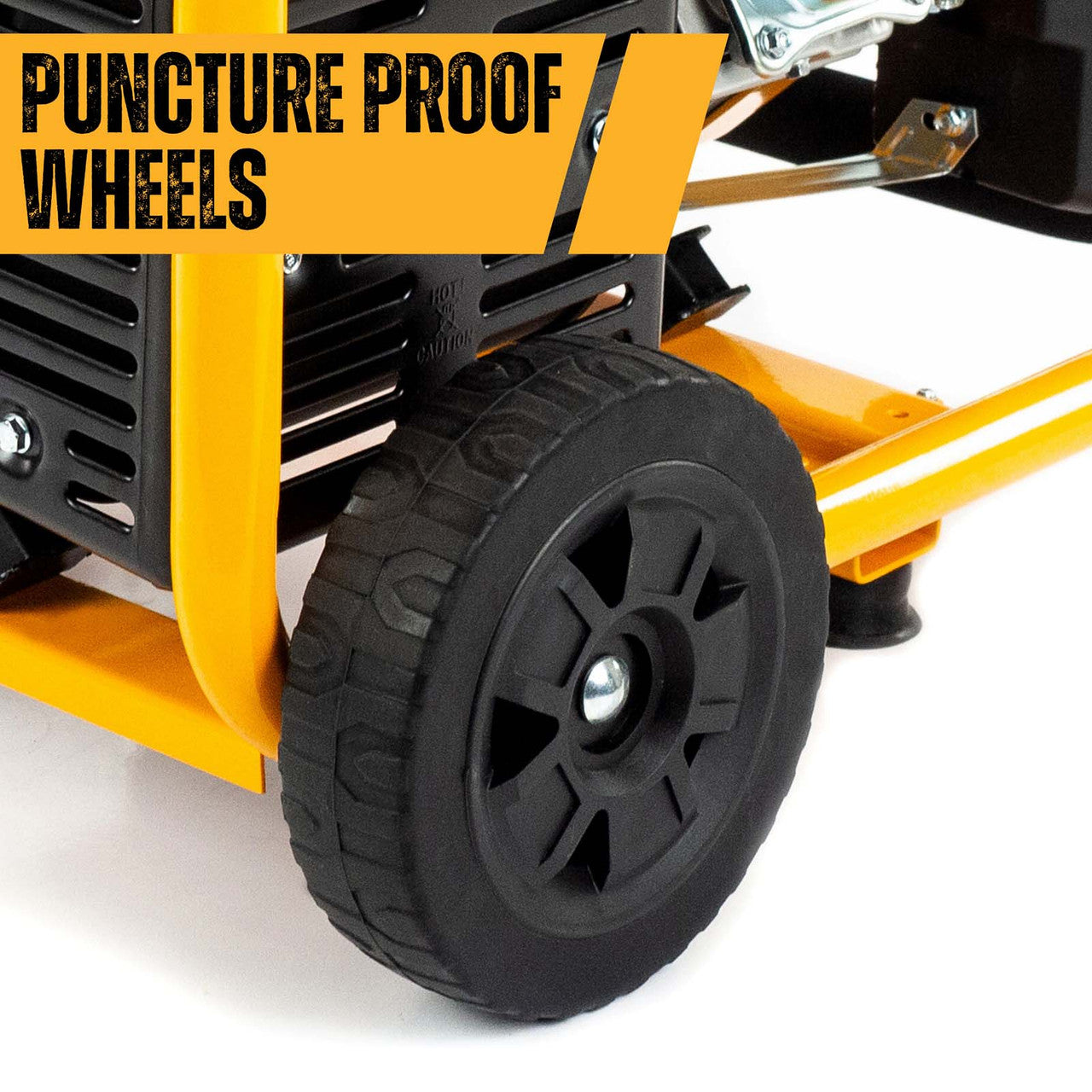

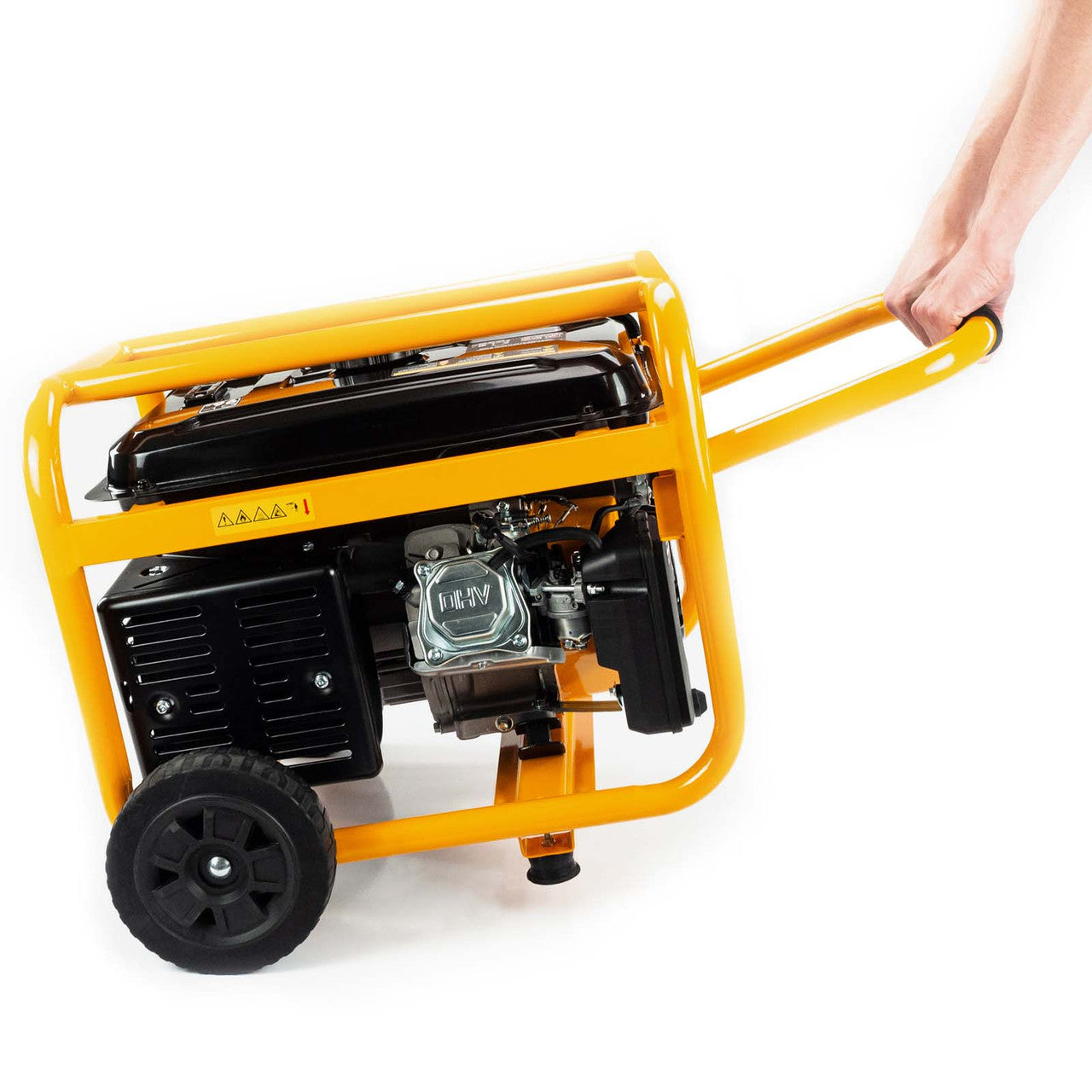

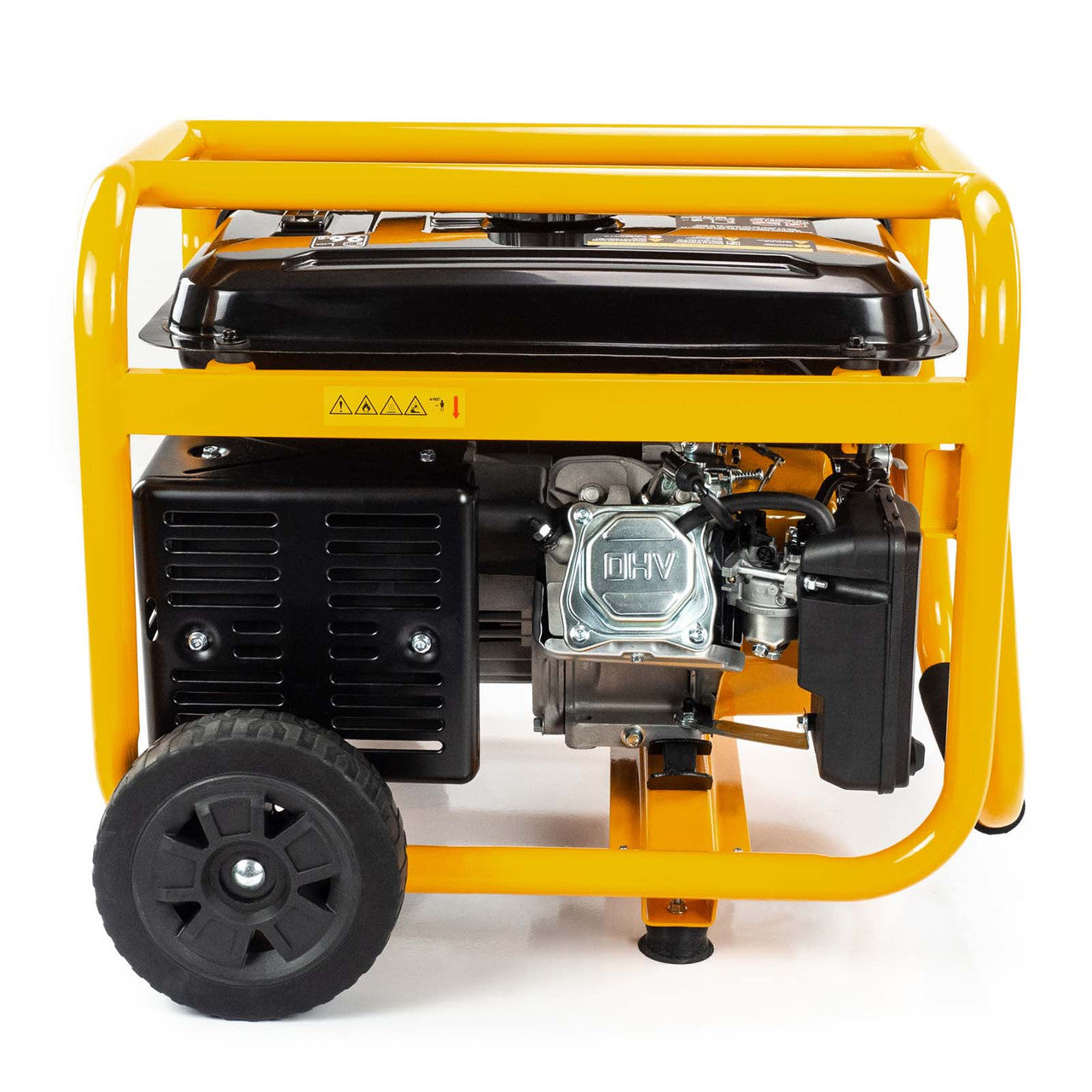

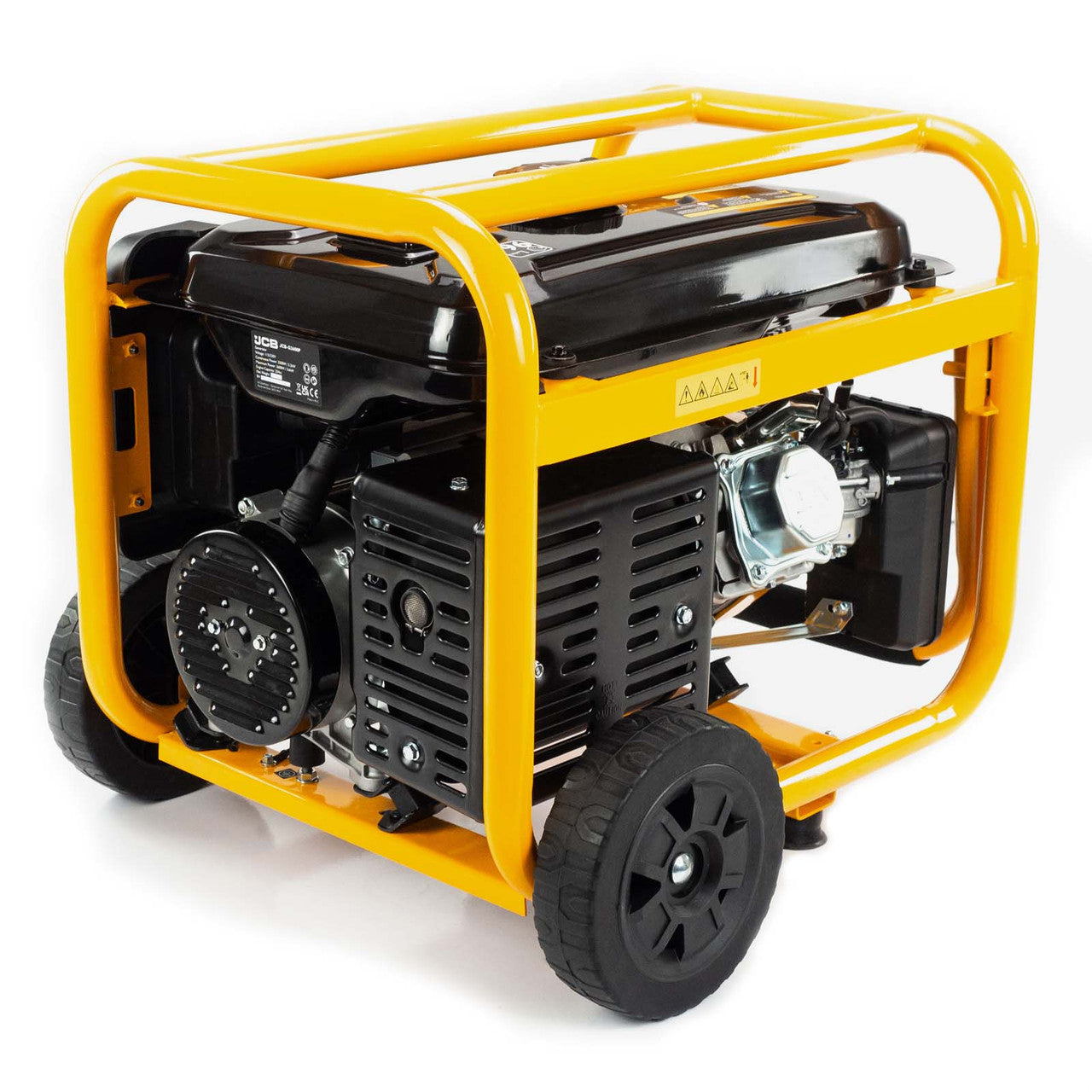

  • Mounted on puncture-proof tires and encased in a robust 32mm tubular steel full frame design.

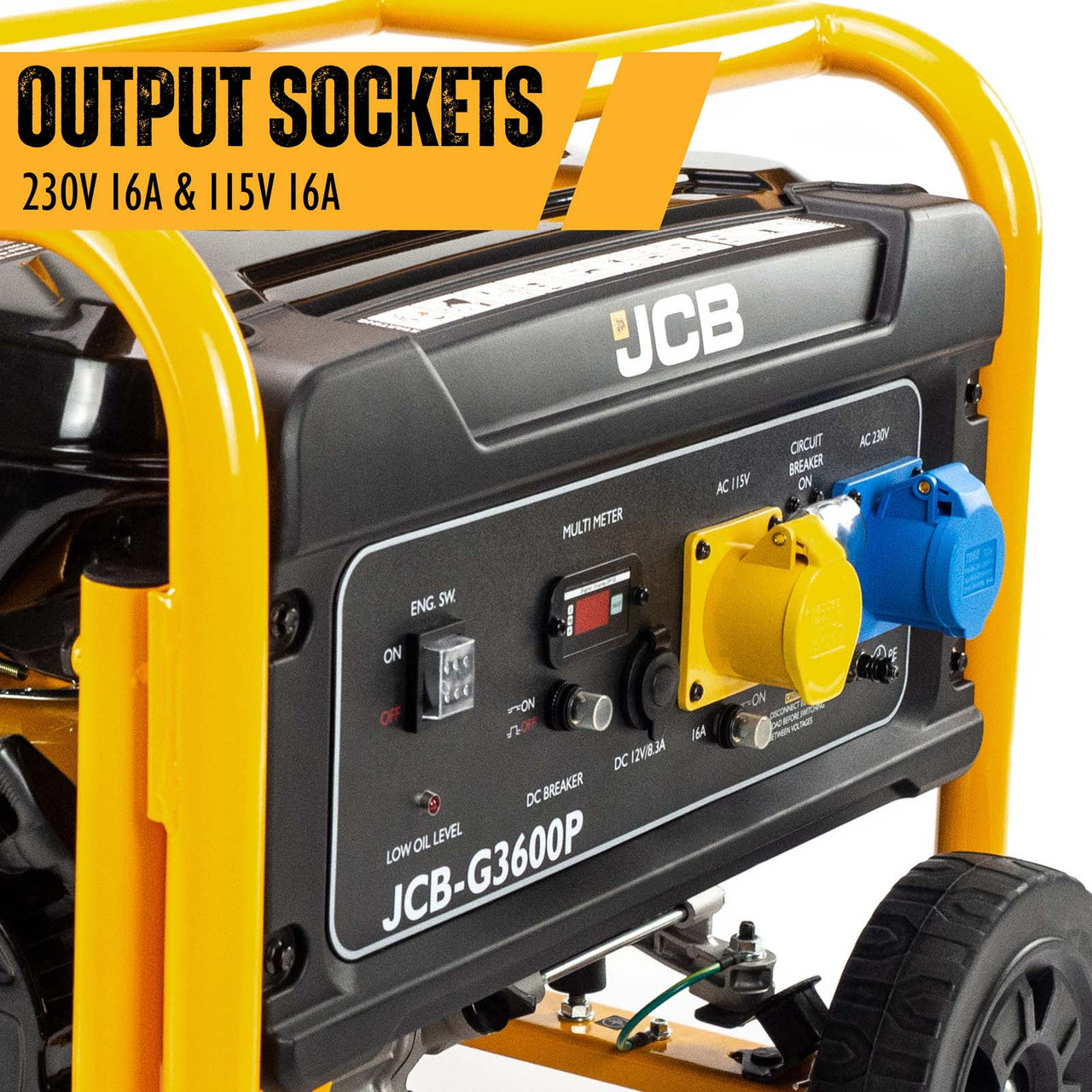

  • Equipped with a 230v / 16A (Blue) socket and a 115v / 16A (Yellow) socket, as well as a 12v DC 8.3A auxiliary power outlet.

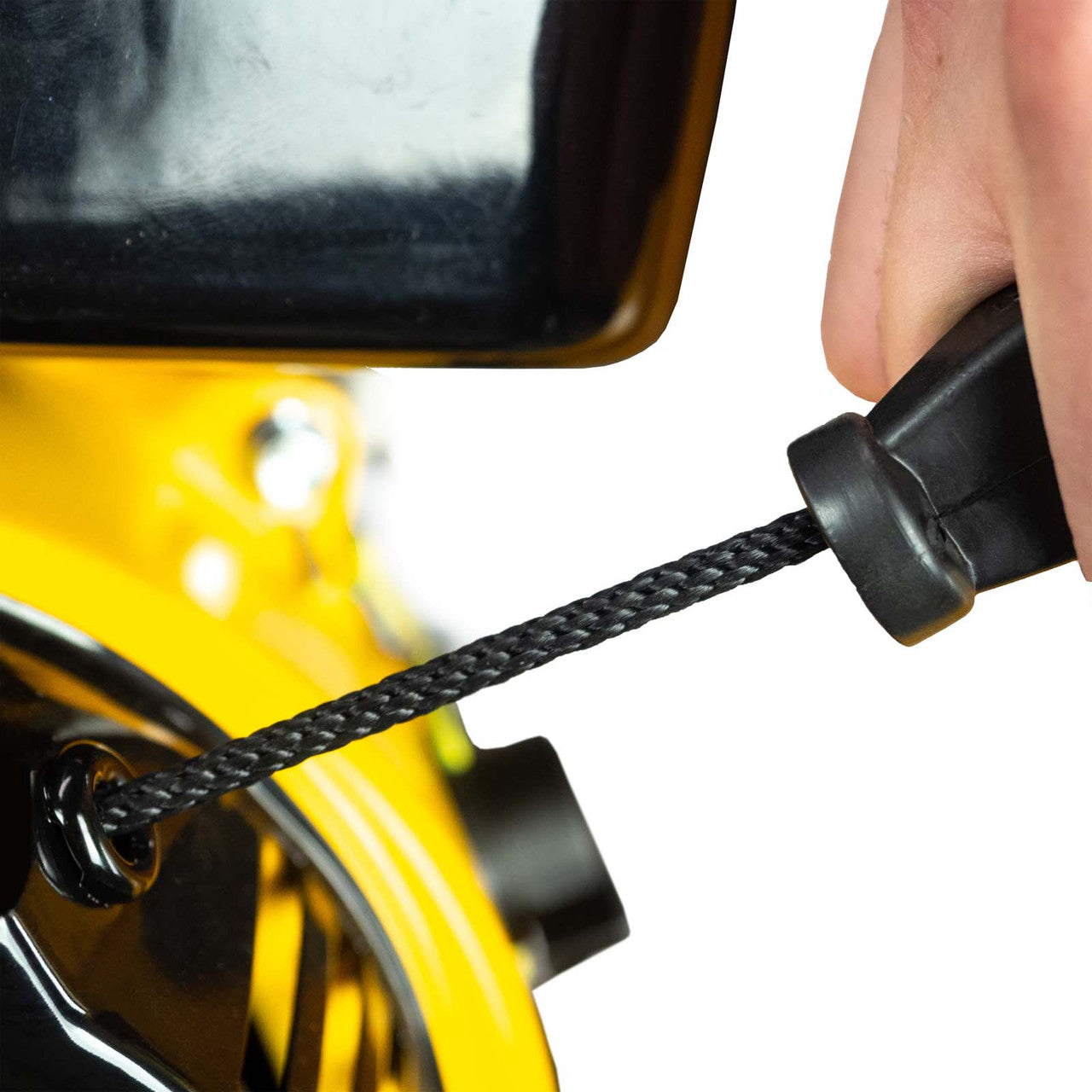

  • Heavy-duty recoil pull start
  • Powered by a 4-stroke petrol engine, the generator requires no fuel-oil mixing.
  • Run time of over 13 hours at 50% load with its 15-litre fuel tank.
  • Net Weight 50kg
  • Backed by a comprehensive 3-year warranty (1 year Commercial)*

Complete Your Setup

Bundle these accessories with your purchase — tick to select

JCB 3.6kW / 4.5kVA Petrol Site Generator 7.5hp 224cc JCB Engine, Recoil Start| JCB-G3600P
This product JCB 3.6kW / 4.5kVA Petrol Site Generator 115V / 230V 7.5hp 224cc JCB Engine, Recoil Pull Start| JCB-G3600P £399.99

Product Details

Description

The JCB-G3600P is a robust and high-performance 4.5kVA petrol generator designed to meet the demands of professional applications. Equipped with a market-leading 224cc 7.5hp JCB petrol engine with an output of 3.6kW / 4.5kVA* at peak capacity. Its sturdy construction ensures reliable power generation for building and construction sites, mobile workshops, farms, and beyond!

Heavy Duty Generator Features

3 Year Long-term Warranty

For your peace of mind, the JCB-G3600P comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your generators remain in excellent condition for years to come.

Read more information on Generator Safety Operation and Carbon Monoxide Safety.

Important:

  1. If using E10 Petrol, this product must be used with high-quality unleaded fuel ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines

  2. DO NOT mix fuel and oil.

  3. It is recommended to use E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser in this product.

  4. Damage caused by failure to add fuel or using incorrect or poor-quality fuel is not covered by your warranty.

Caution:

  1. E10 petrol is hygroscopic and attracts moisture, which may damage the fuel system if stored in the product for more than four weeks.

  2. After draining the fuel tank, always run the engine until the last of the fuel in the system is spent and drain the float bowl when the engine is cool.

  3. E10 petrol should be used within 30 days of purchase.

  4. Some petrol brands contain other quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your product.

  5. Always store and dispose of fuels responsibly and in accordance with local regulations.

Specifications

Assembly Required?Yes - some assembly may be required
Casing32mm Thick Open Frame
Connection Method(s)Sockets - 1x 230V/16A, 1x115V/16A 12V DC 8.3A"
Continuous Output (kVa)4
Continuous Output (kW)3.2
EAN5059608313055
Engine ModelJCB-EG225P
Engine Oil Capacity (ml)600
Engine Oil Type10w-30 / SAE 15w40
Engine Power (hp)7.5
Engine Size (cc)224
Engine TypePetrol single cylinder
FeaturesOverload Protection
Frame Diameter (mm)32
Frequency (Hz)50
FuelPetrol
Fuel / Power SourcePetrol

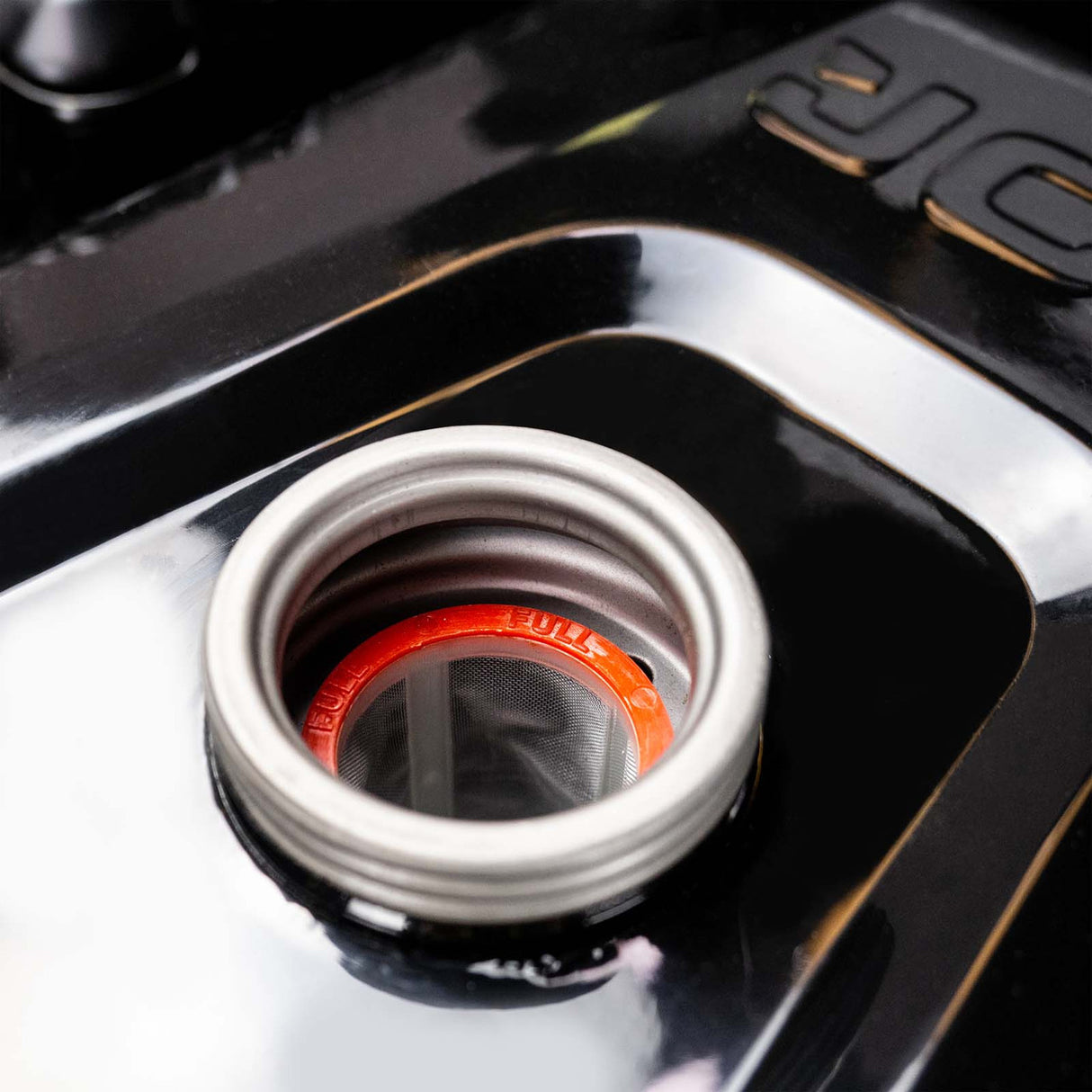

Fuel Capacity (L)15
Fuel Consumption @ 100% load (L/Hr)2
Fuel Consumption @ 50% load (L/Hr)1.15
Fully Assembled Dimensions (L x W x H) (mm)610 x 595 x 545 (handle protracted) 915 x 595 x 545 (handle extended)
Gross Weight (kg)54
Low Oil Level ShutdownYes
Max/Continuous Current (Amps)15.6 / 13.9
Maximum Output (kVA)4.5
Maximum Output (kW)3.6
ModelJCB-G3600P
Net Weight (kg)51
Noise Level @ 1m 75% load (dB)97
Noise Level @ 7m 75% load (dB)70
Package Dimensions (L x W x H) (mm)685 x 520 x 515
PhaseSingle Phase
Power Factor (Cosφ)1
Product TypePetrol Generator
Rated Speed (RPM)3000
Run Time @ 100% load (hours)7
Run Time @ 50% load (hours)13
Start MethodRecoil
Voltage115V / 230V
Voltage Regulation MethodAVR
Warranty (Years)3
Wheel Kit?Yes
