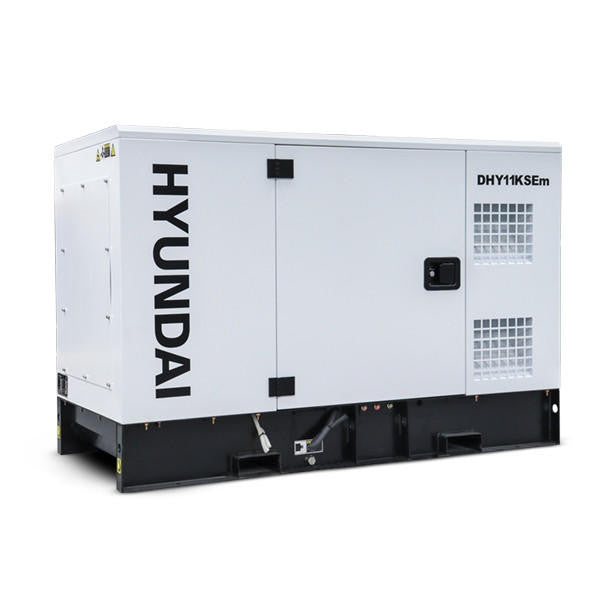

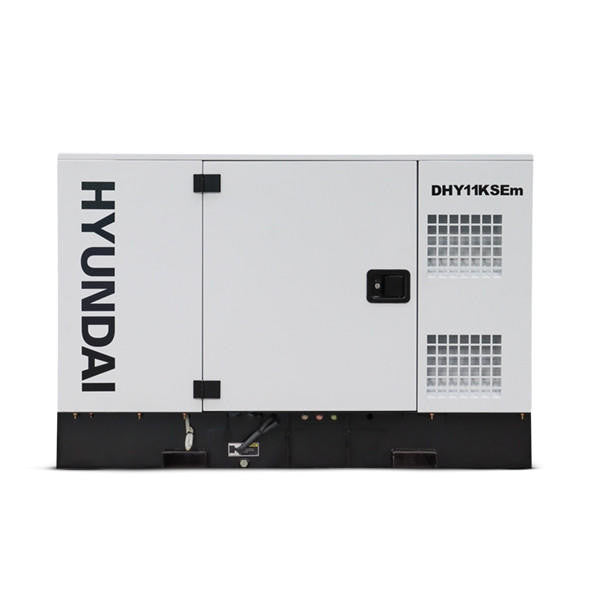

Hyundai 11kW / 13.75kVA* Single Phase, 230v Diesel Generator, 1500rpm Water-cooled Slow Running Genset, Silenced Canopy | DHY11KSEm

SKU: DHY11KSEm  |  Barcode: 700621496205
Regular price £6,499.99
Tax included Shipping calculated at checkout.

Call us for a delivery lead time

*Exact delivery dates are calculated at checkout depending on your delivery postcode.

  • Single-phase diesel generator: Produces up to 14kVA of backup power and 12.5KVA of prime power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 64dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Peace of mind: Up to 2 year Hyundai warranty* (terms apply)

Complete Your Setup

Bundle these accessories with your purchase — tick to select

Hyundai 14kVA Diesel Generator Single Phase DHY11KSEm
This product Hyundai 11kW / 13.75kVA* Single Phase, 230v Diesel Generator, 1500rpm Water-cooled Slow Running Genset, Silenced Canopy | DHY11KSEm £6,499.99

Product Details

Description

11kW Single-Phase Diesel Generator

The DHY11KSEm is a powerful single-phase diesel generator from Hyundai. Suitable for providing your home or business with either prime power, if you just have a few appliances to run, or for backup power when the national grid lets you down, this diesel gensets has a maximum output of 14KVA.

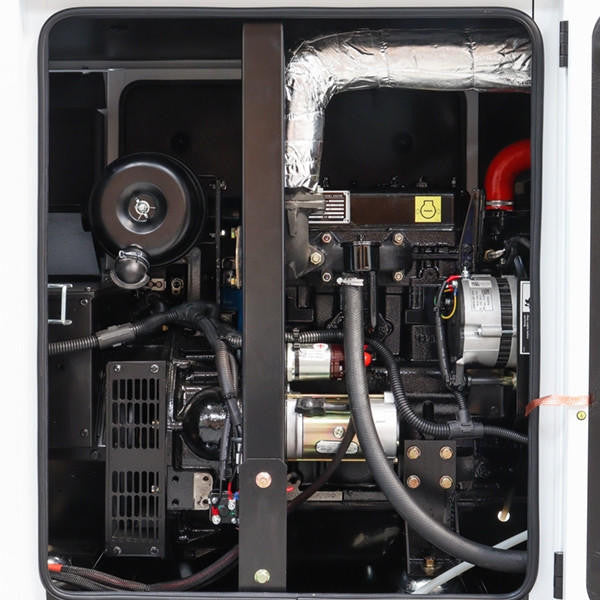

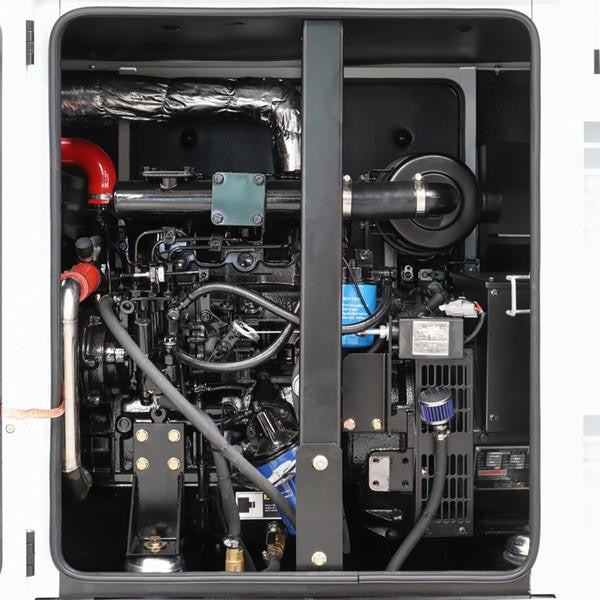

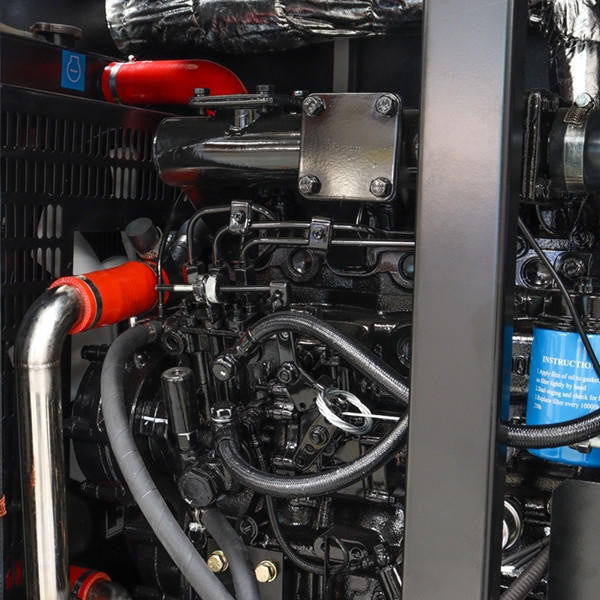

Powered by a 13hp HY390 diesel engine, the DHY11KSEm is able to produce a maximum output of 13.75KVA / 11kW backup power and 12.5KVA / 10kW prime power.

ATS Compatible Hyundai Generator

The DHY11KSEm can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.

This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.

Silenced Generator

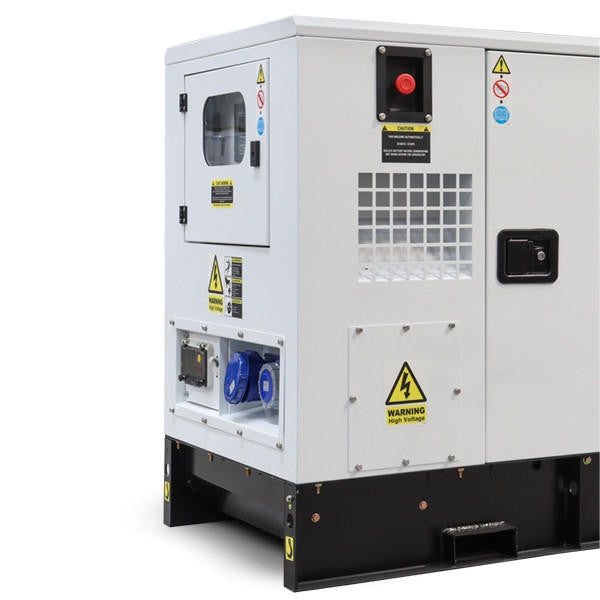

Housed in a weather-proof 'silenced' canopy, the DHY11KSEm produces only 64dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.

Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.

1500rpm Generator

1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.

1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.

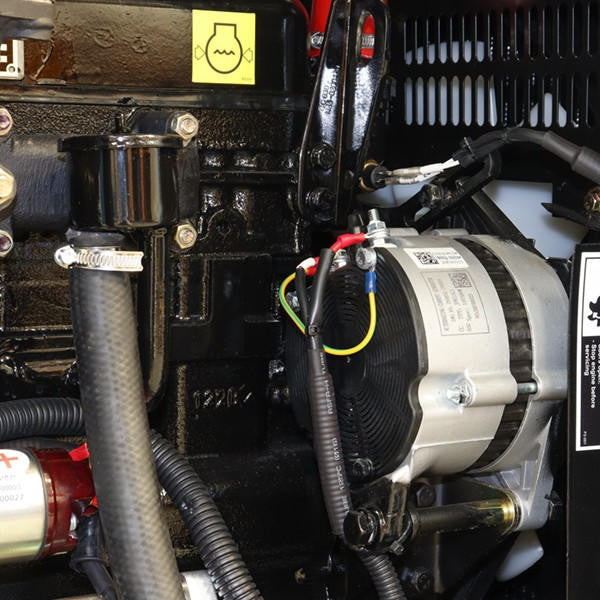

Equipped with an AVR alternator to produce clean energy, the DHY11KSEm is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business.

Delivery

Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.

2 Year Warranty

This 14kVA diesel generator comes with a 1 year / 1,000 hour warranty which can extended to 2 years* (subject to standby use of 500 hours per year - terms apply) with full UK parts and service backup for added peace of mind. Read our warranty terms here.

Generator kVA Ratings

All of our single-phase generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.

Specifications

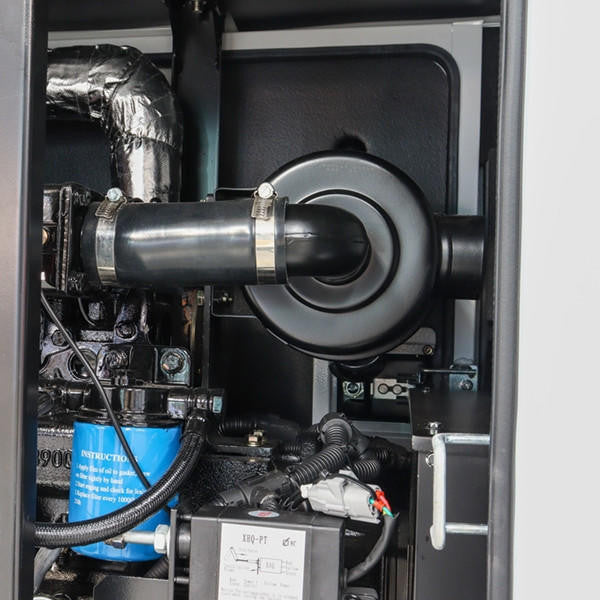

Air Filter Part No.K1317
Alternator Model164C
Alternator TypeBrushless
AspirationNatural
Assembly Required?Yes - some assembly may be required
ATS / MTS CompatibleYes
Battery System / Starting (V - Ah)2x12/30

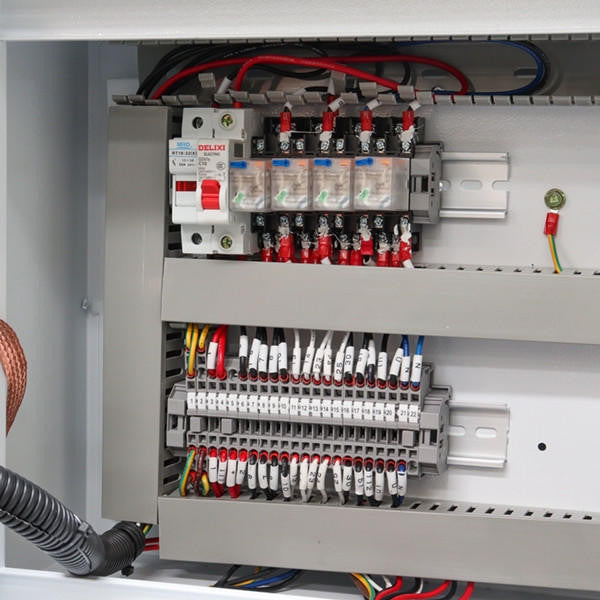

Breakers2P C63A 100mA

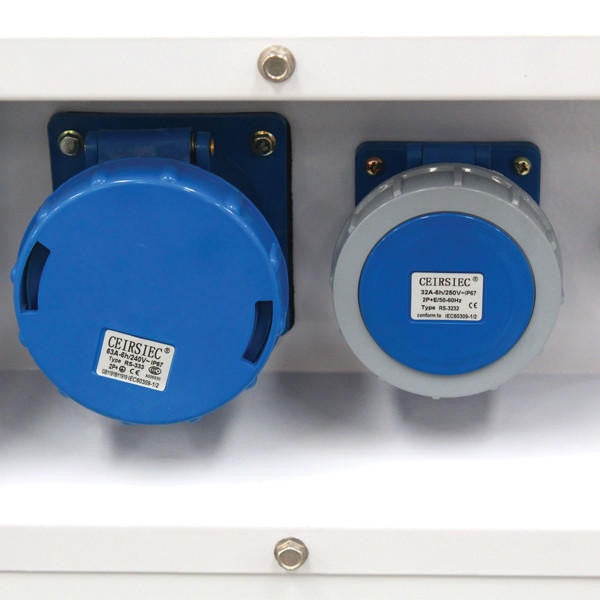

Connection Method(s)1 x 230V/32A 1 x 230V/63A

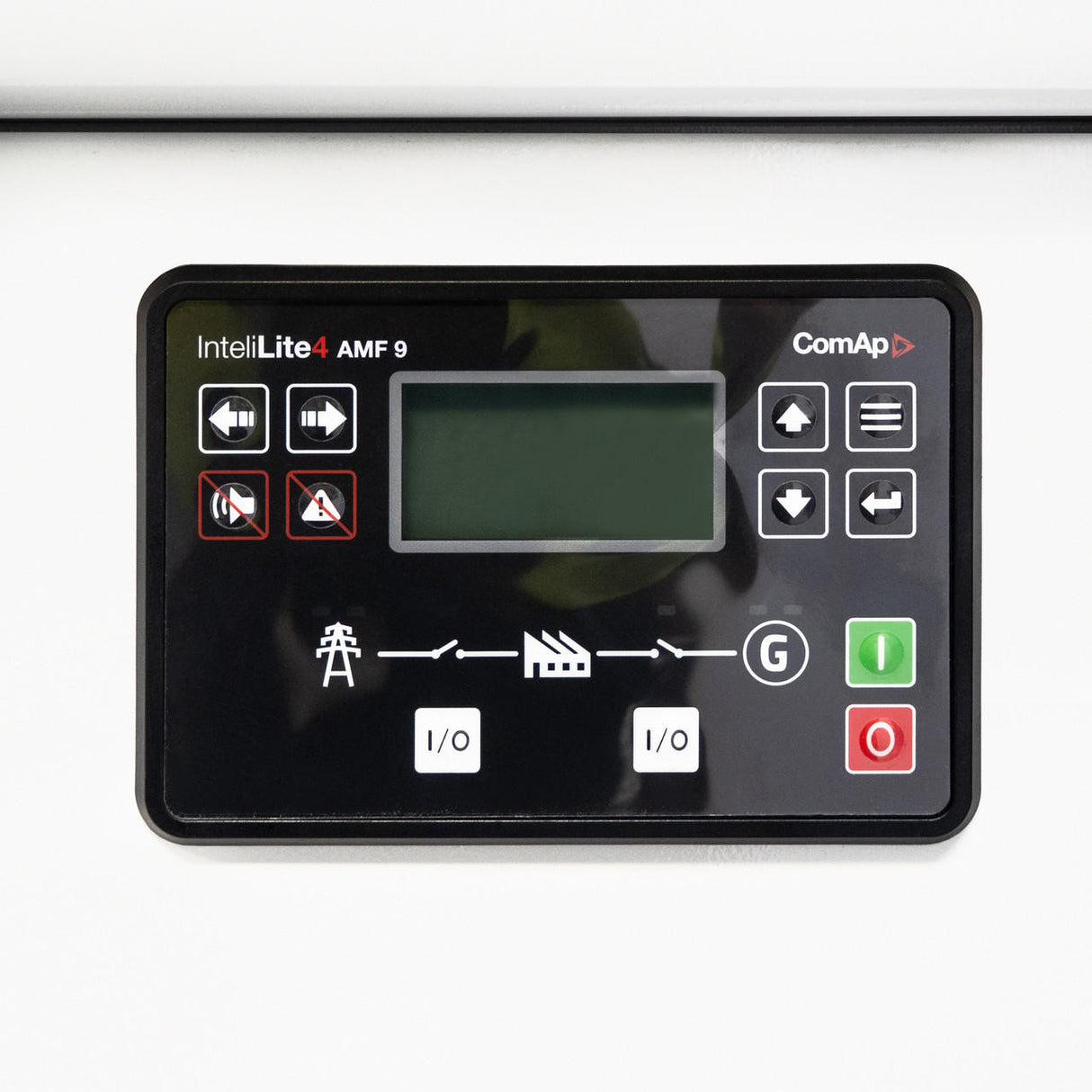

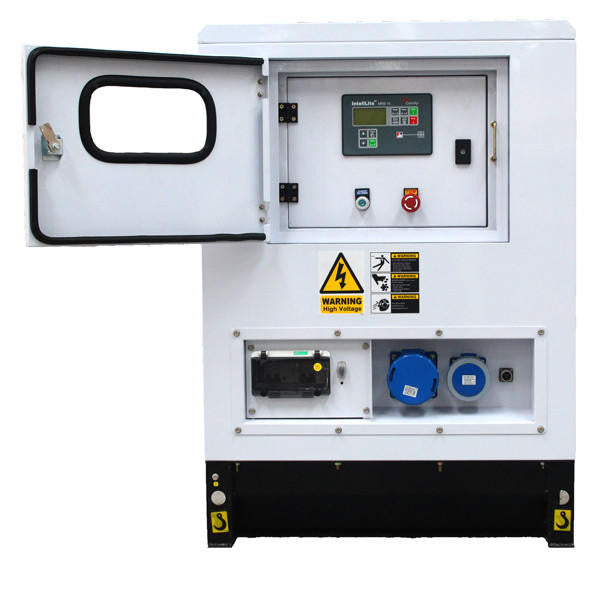

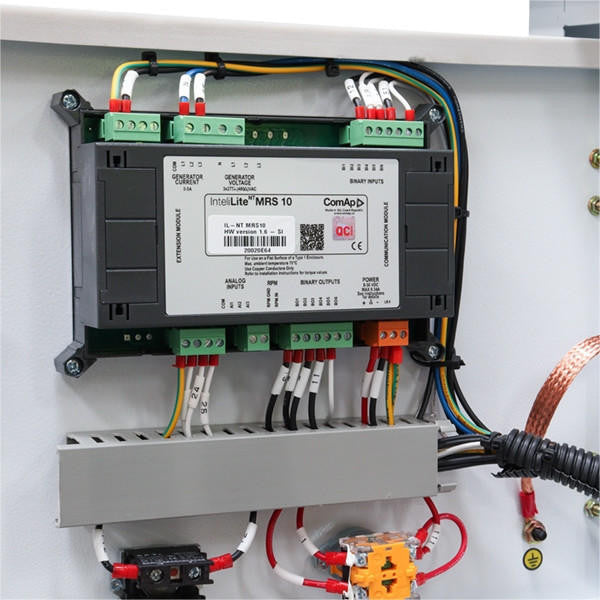

Control PanelComAp AMF9
CoolingWater
Dimensions L x W x H (mm)1630 x 760 x 1115
Displacement (CC)1815
Displacement (Litres)1.815
EAN700621496205
Frequency (Hz)50
Fuel / Power SourceDiesel
Fuel Consumption (100% Load) [Litres]3.8
Fuel Filter Part No.CX0708
Fuel Regulation/Governor SystemMechanical
Fuel Tank (Litres)46
Gross Weight (kg)655
Hyundai Diesel Engine ModelHY390
Max/Continuous Current (Amps)47.8 / 43.5
Max/Standby kVA*13.75
Max/Standby kW11
ModelDHY11KSEm
Net Weight (kg)655
No. of Cylinders3
Noise Level @ 1m 75% load (dB)62
Noise Level @ 7m 75% load (dB)62
Oil Capacity (Litres)3.5
Oil Filter Part No.JX0810Y
PhaseSingle
Power Factor (Cosφ)1
Power Output (kw)13
Product TypeDiesel Generator
Rated Speed (RPM)1500
Rated/Prime kVA*12.5
Rated/Prime kW10
Recommended Oil TypeSAE 15W40
Runtime (Hours) @ 100% Load12.11
Voltage230
Voltage RegulationAVR
Warranty1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
