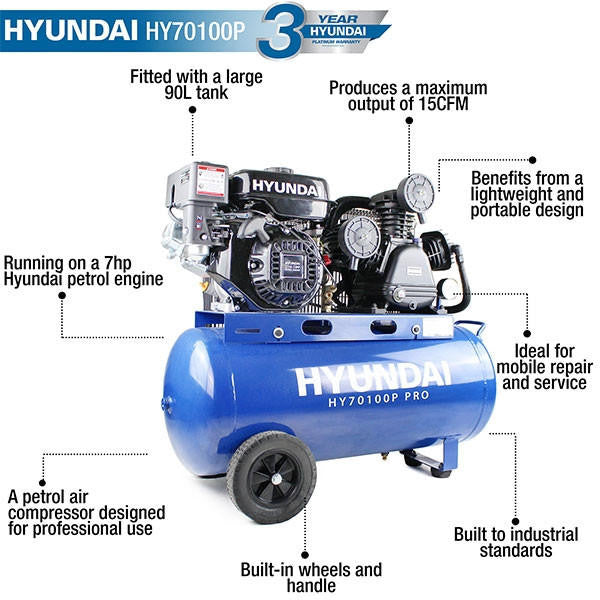

- A powerful petrol driven air compressor for enthusiast and professional use.

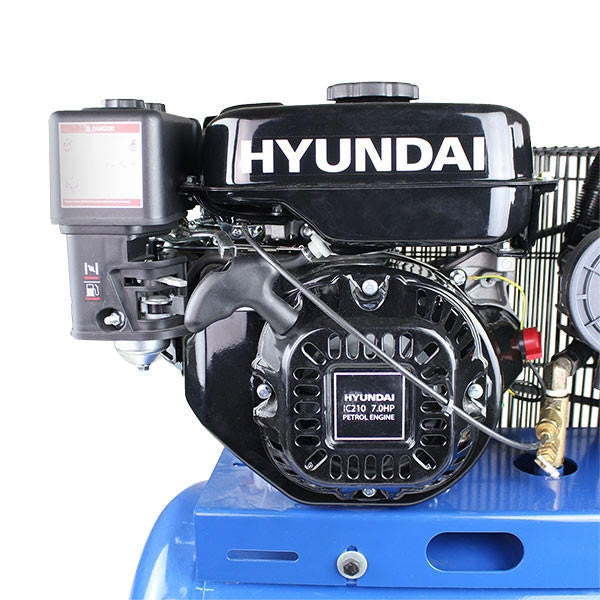

- Powered by a 7hp petrol engine.
- Equipped with a large 90L tank.
- Products a maximum output of 10.7CFM.
- A lightweight and portable machine with built-in wheels and handle.
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description
Professional Petrol Air Compressor

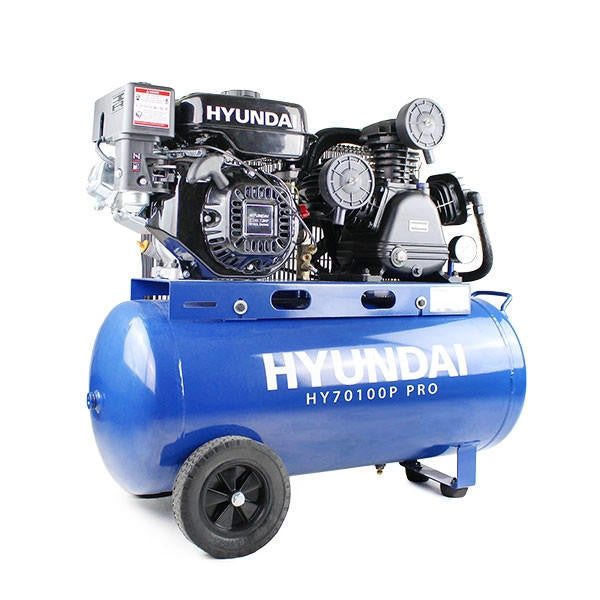

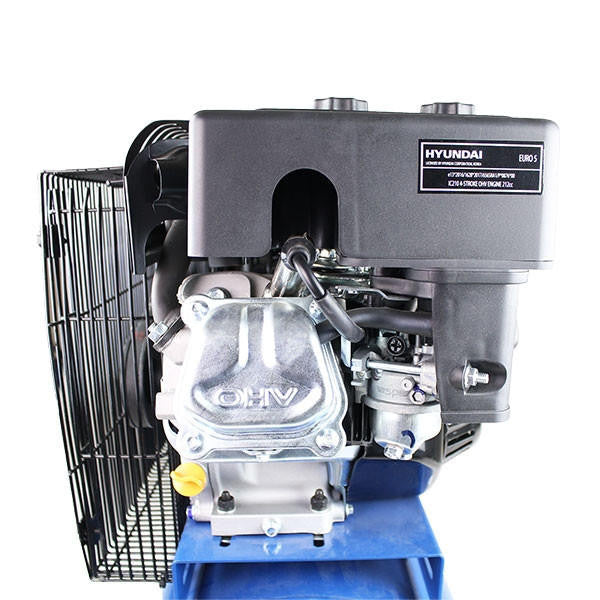

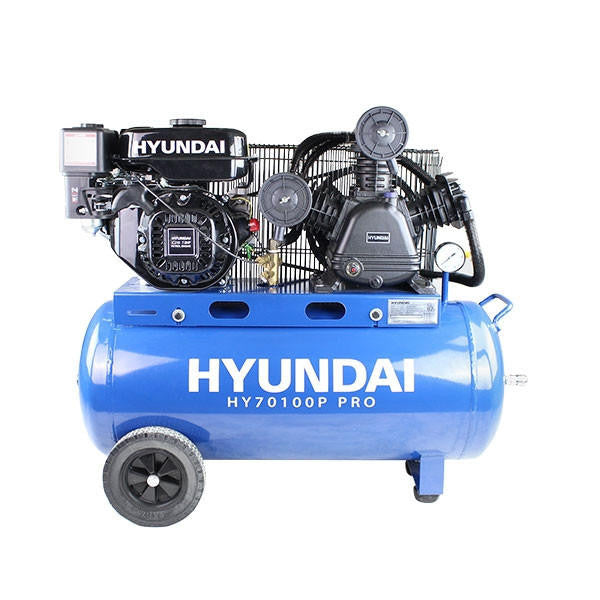

The HY70100P is a petrol driven air compressor designed for enthusiast and professional use, built to industrial standards. Powered by a 7hp petrol engine and coupled to a heavy-duty, two-stage twin piston, cast iron pump.
Heavy Duty

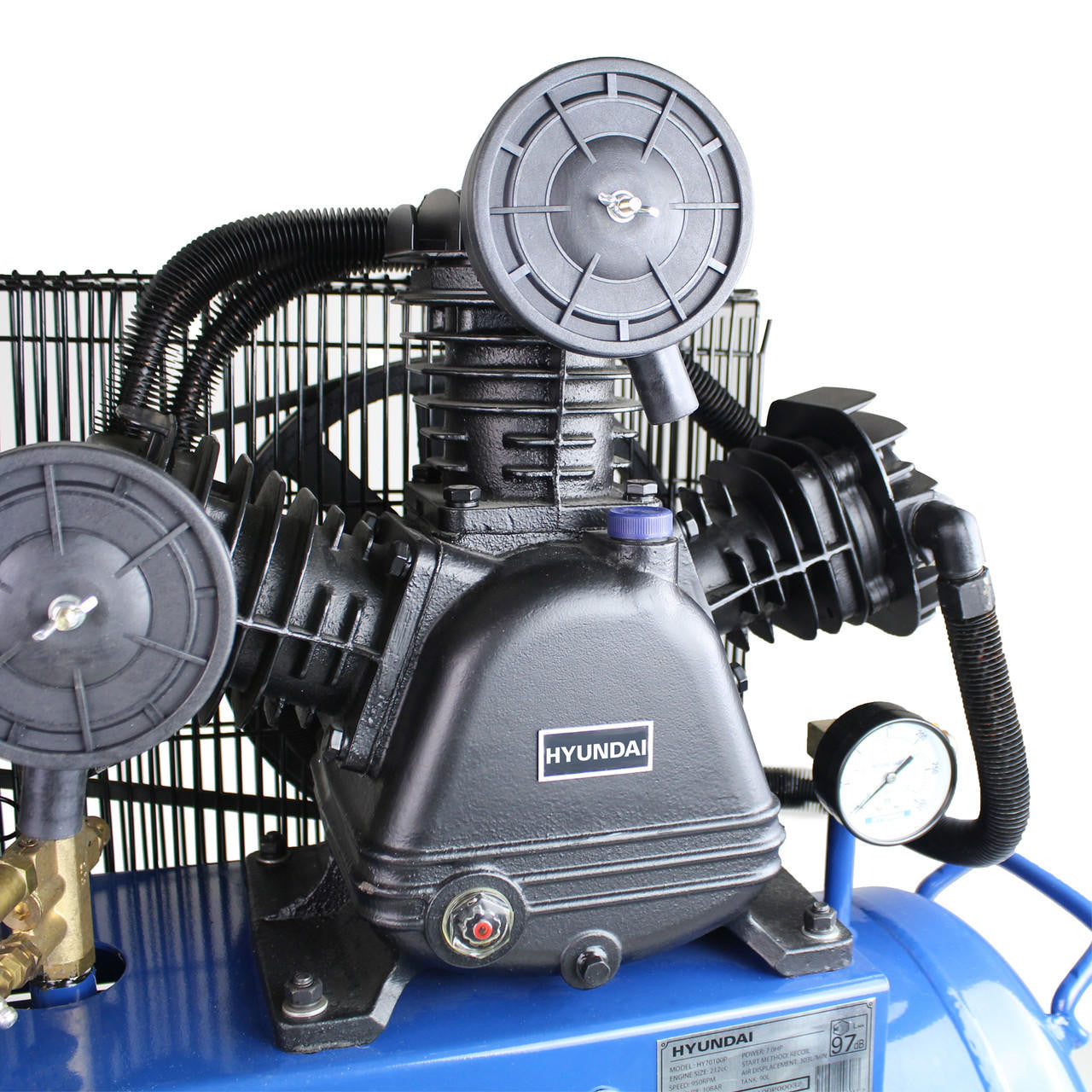

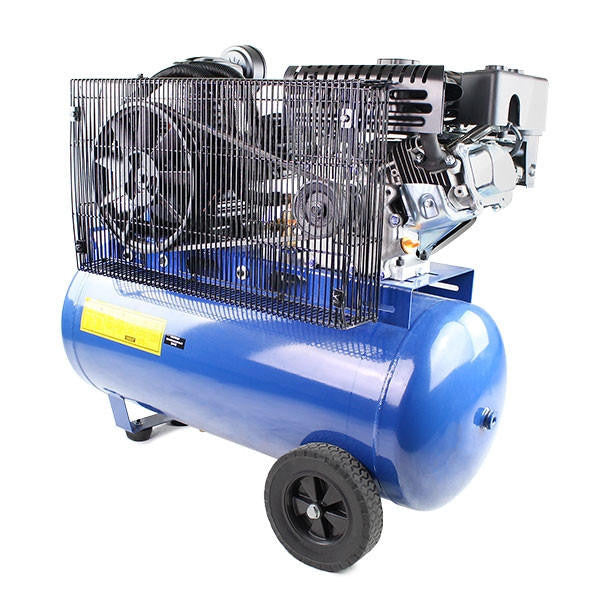

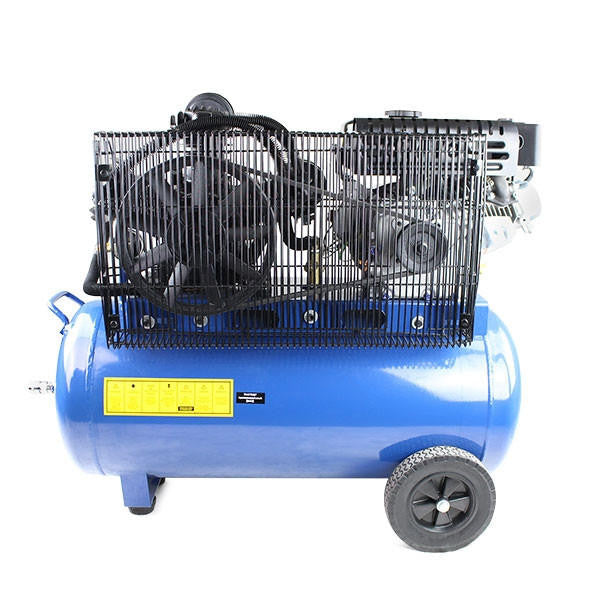

The pump has a heavy duty full cast cylinder, capped by an alloy head for improved heat dissipation and will make for longer life. A strong and long-lasting drive guard protects the belt and flywheel that is designed to force air over the pump to aid cooling.
90L Tank
Equipped with a 90L tank, the HY70100P outputs a commercial level of air, with a maximum output of 10.7CFM. This means this air compressor is ideal as a powerful but portable solution for mobile repair and service.
Easy To Transport
The HY70100P is a relatively lightweight and portable air compressor for its size, weighing only 71kg with built-in wheels and handle for easy transportation and storage.
Please Note
As this unit is driven by a petrol engine it must not be used in enclosed spaces due to the risk of CO poisoning
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
Warranty
Covered by 2-year warranty / 1-year commercial warranty.
View the full range of Hyundai Air Compressors
Specifications
| Air Displacement (CFM) | 15.1 |
| Air Displacement (L/min) | 428 |
| Air Flow FAD (CFM) | 11 |
| Air Flow FAD (L/min) | 300 |
| Air Outlet Connection | 1/2" BSP/Euro Quick Release |
| Commercial Warranty (years) | 1 |
| Cut-In Pressure (psi/bar) | 116/8 |
| Cut-Out Pressure (psi/bar) | 145/10 |
| Discharge Pressure (psi/bar) | 145/10 |
| Drive Type | Belt Drive |
| Duty Cycle | 70%-80% |
| EAN | 700621496083 |
| Engine Model | IC210 |
| Engine Oil | SAE 15W40 |
| Engine Oil Capacity (ml) | 600 |
| Engine Size (cc) | 212 |
| Engine Type | Single Cylinder |
| Frequency (Hz) | - |
| Fuel / Power Source | Petrol |
| Fuel Capacity (L) | 3.6 |

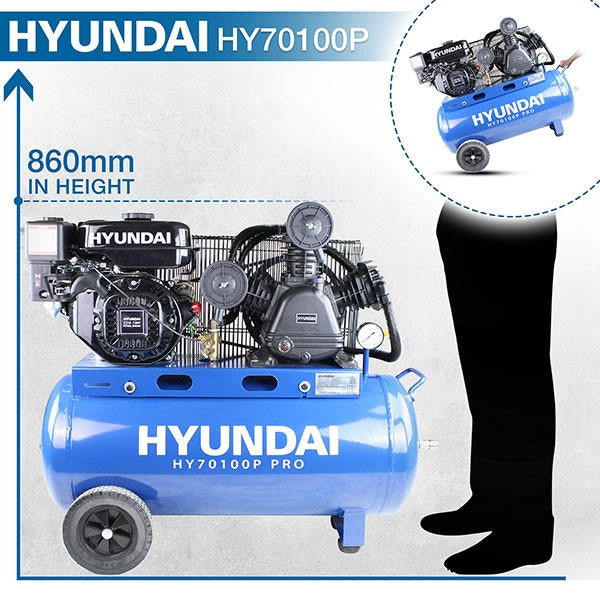

| Fully Assembled Dimensions (H x W x L) (mm) | 770 x 390 x 1040 |
| Gross Weight (kg) | 85.8 |
| In The Box | HY70100P,User Manual,2 Rubber Feet,2 Air Cleaner, Spark plug wrench for gasoline engine |
| Max Pressure (psi/bar) | 145/10 |
| Model | HY70100P |
| Motor Power kW/hp | 5.25/7 |
| Net Weight (kg) | 79.5 |
| Noise Level @ 7m (dB) | 97 |
| Outlet Pressure Regulation Type | Fixed |
| Packaged Dimensions (H x W x L) (mm) | 860 x 430 x 1080 |
| Phase | - |
| Product Type | Air Compressor |
| Pump (RPM) | 950 |
| Rated Power (kW) | 4.4 kW @ 3600 RPM |
| Speed (RPM) | 1800 (Idle) |
| Start Method | Recoil |
| Stationary / Wheeled | Wheeled |
| Tank Capacity (L) | 90 |
| Tank Material | Rolled Steel |
| Warranty (years) | 2 |
