Hyundai 10hp 350L Industrial Three-Phase, 400v, Screw Compressor with Air Dryer | HYSC100350D
Call us for a delivery lead time
*Exact delivery dates are calculated at checkout depending on your delivery postcode.
Hyundai 10hp 350L Industrial Three-Phase, 400v, Screw Compressor with Air Dryer | HYSC100350D is backordered and will ship as soon as it is back in stock.
Hyundai 10hp 350L Industrial Three-Phase, 400v, Screw Compressor with Air Dryer | HYSC100350D is backordered and will ship as soon as it is back in stock.
- 10hp 3-phase motor
- 350 Litre air tank
- Integral air dryer
- Fully enclosed sound reduction canopy
- Digital control panel
- 38cfm @ 8bar
- Maximum pressure 10 bar
Complete Your Setup
Bundle these accessories with your purchase — tick to select
Product Details
Description
350 Litre Screw Compressor With Dryer

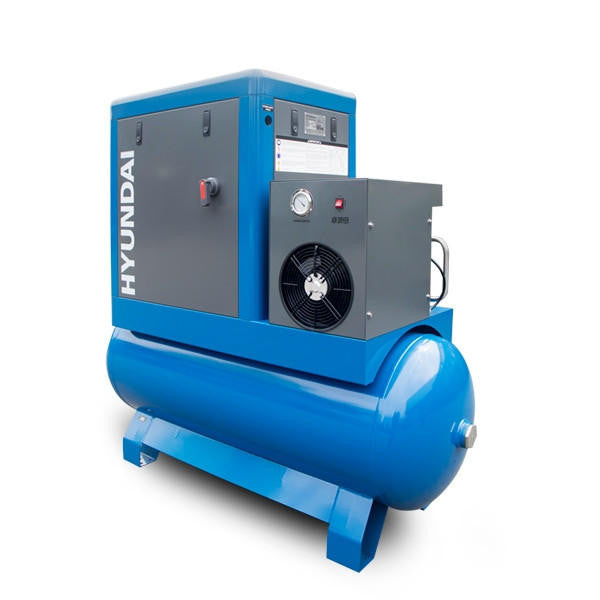

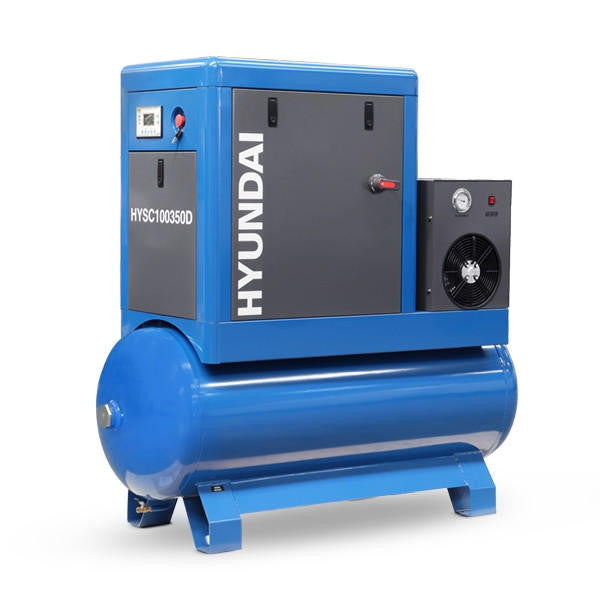

This Hyundai screw air compressor features a 350L tank, 10hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.
Continuous Operation

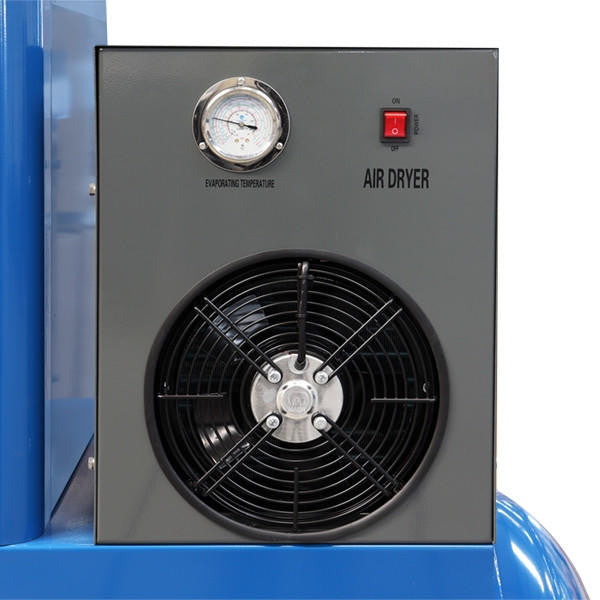

The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance and features an integral air dryer to remove moisture entering the tank.
Easy Access For Maintenance

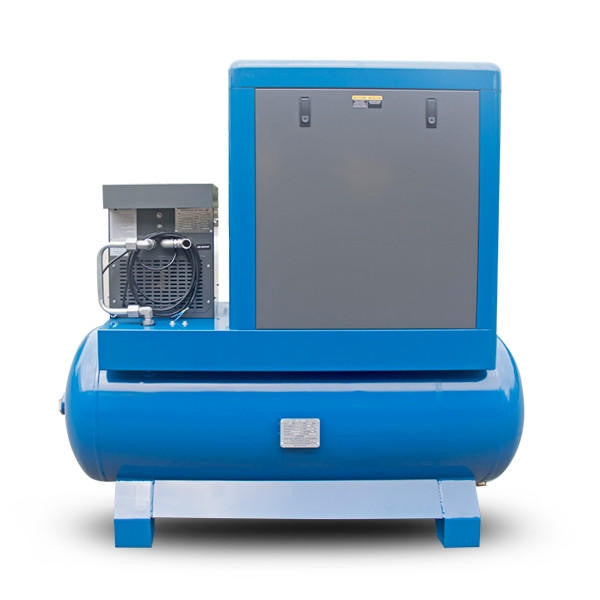

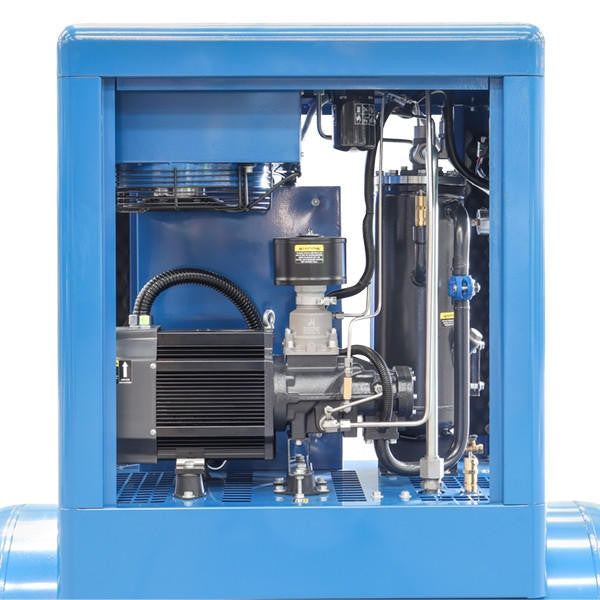

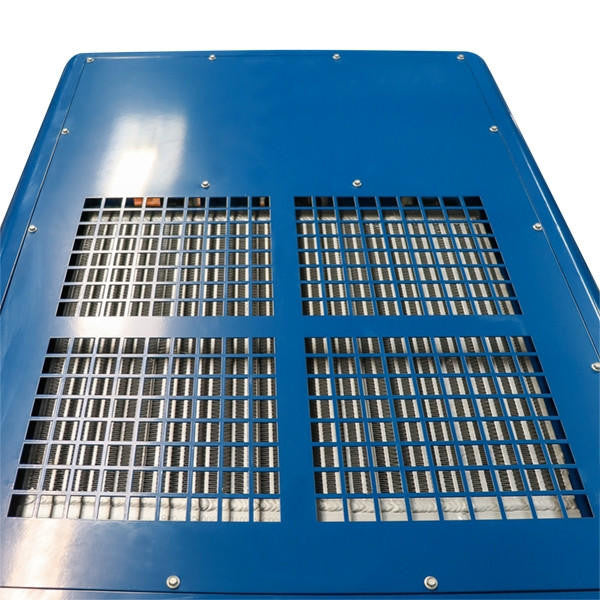

Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.
Digital Control Panel

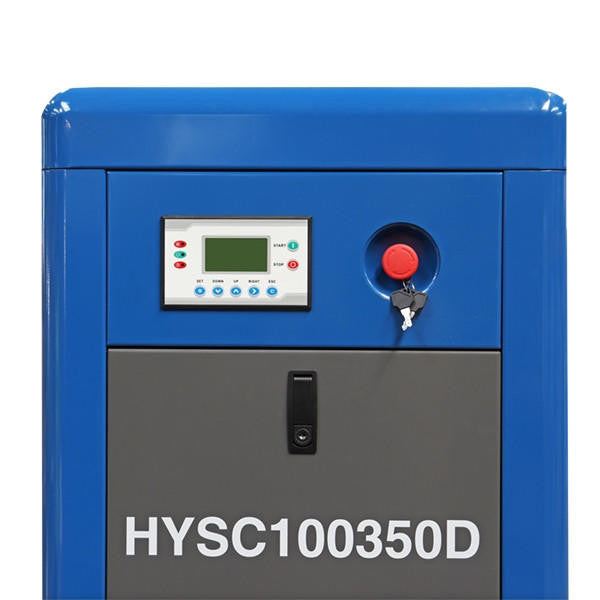

The digital control panel monitors pressure, volts, amps, hours
Forklift Ports

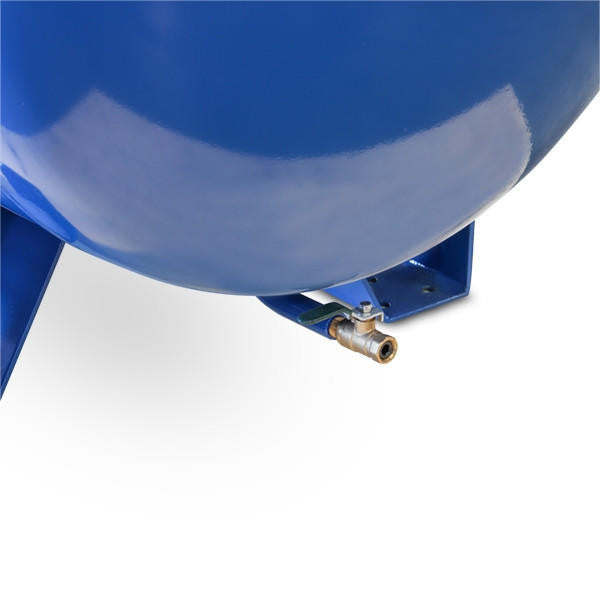

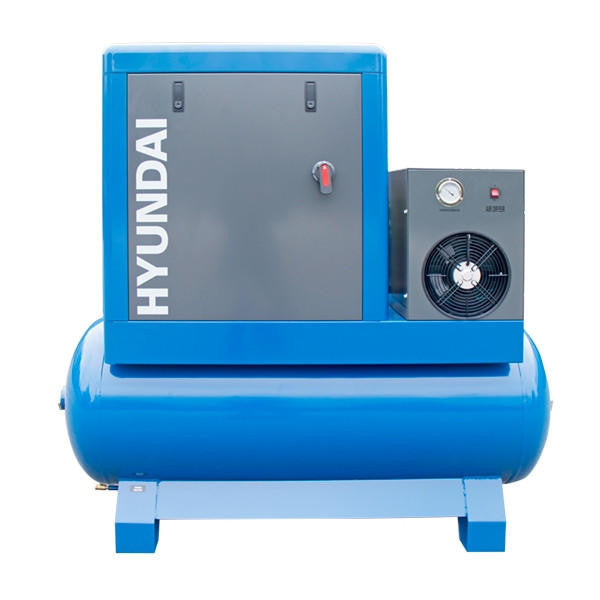

The 350 Litre tank forklift transport holes, a ¾” outlet fitting and water drain tap with CE certification to 12 bar.
Ideal Use
Ideal for spray shops, tyre-fitting garages, large workshops, small factories etc.
Specifications
| Air Displacement (CFM) | 38 @ 8 bar / 33 @ 10 bar |
| Air Displacement (L/min) | 990 @ 8 bar / 900 @ 10 bar |
| Air Flow FAD (CFM) | 36 @ 8 bar / 31 @10 bar |
| Air Flow FAD (L/min) | 940 @ 8 bar / 855 @ 10 bar |
| Air Outlet Connection | G3/4 |
| Cut-In Pressure (psi/bar) | 101.5/7 |
| Cut-Out Pressure (psi/bar) | 116/11.5 |
| Discharge Pressure (psi/bar) | 145/10 |
| Drive Type | Fixed Speed Direct Drive |
| Duty Cycle | S1 100% |
| EAN | 5056275799342 |
| Frequency (Hz) | 50 |
| Fuel / Power Source | Electric Hard Wired |
| Fully Assembled Dimensions (H x W x L) (mm) | 1560 x 600 x 1650 |
| Gross Weight (kg) | 435 |
| In The Box | Air Compressor & User Manual |
| Integral Air Dryer? | Yes |
| Max Pressure (psi/bar) | 145/10 |
| Model | HYSC100350D |
| Motor Power kW/hp | 7.5/10 |
| Net Weight (kg) | 385 |
| Noise Level @ 7m (dB) | 65 |
| Outlet Pressure Regulation Type | Fixed |
| Packaged Dimensions (H x W x L) (mm) | 1860 x 790 x 1750 |
| Phase | Three |
| Product Type | Air Compressor |
| Pump (RPM) | 2960 |
| Rated Power (kW) | 9.5 |
| Speed (RPM) | 2960 |
| Start Method | Electric |
| Tank Capacity (L) | 350 |
| Tank Material | Steel |
| Warranty (years) | 2 |
